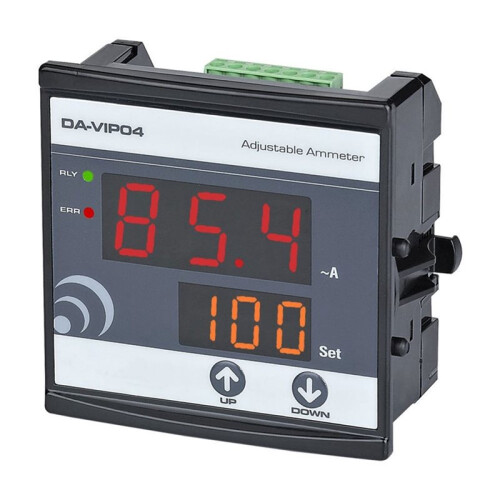

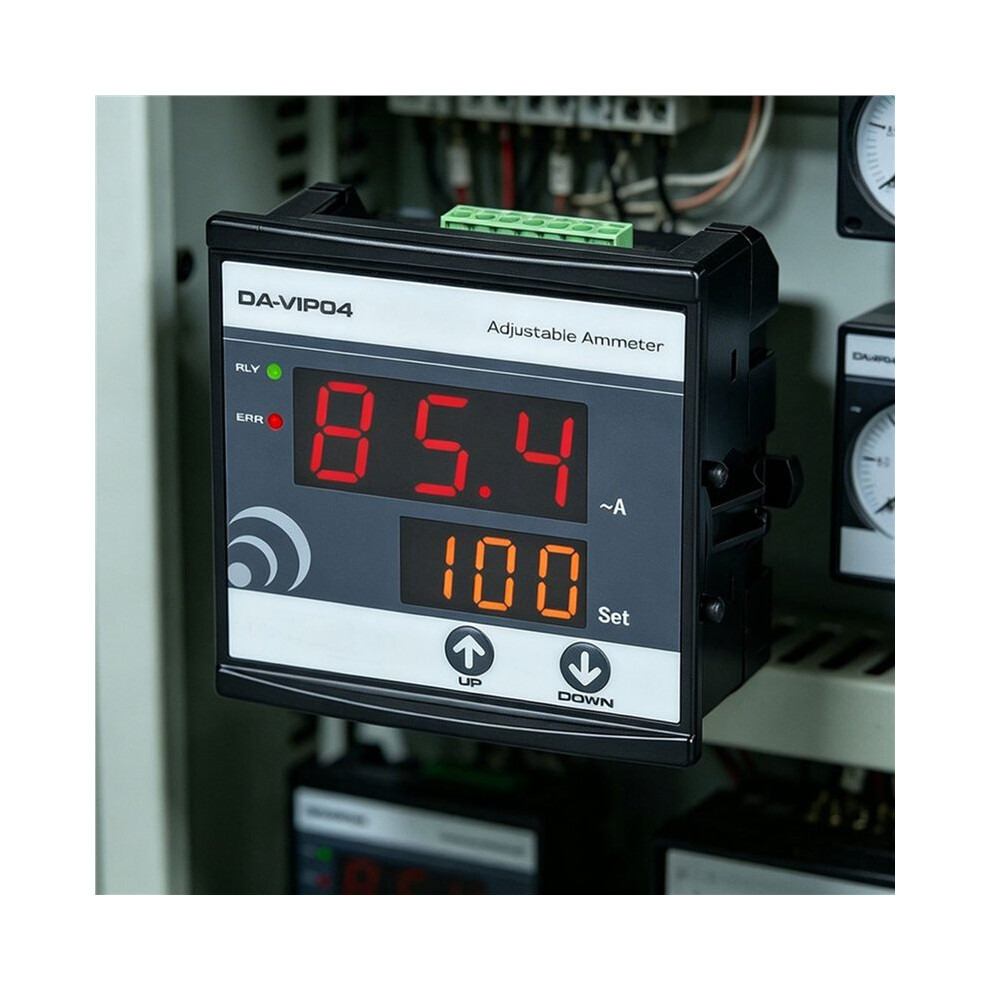

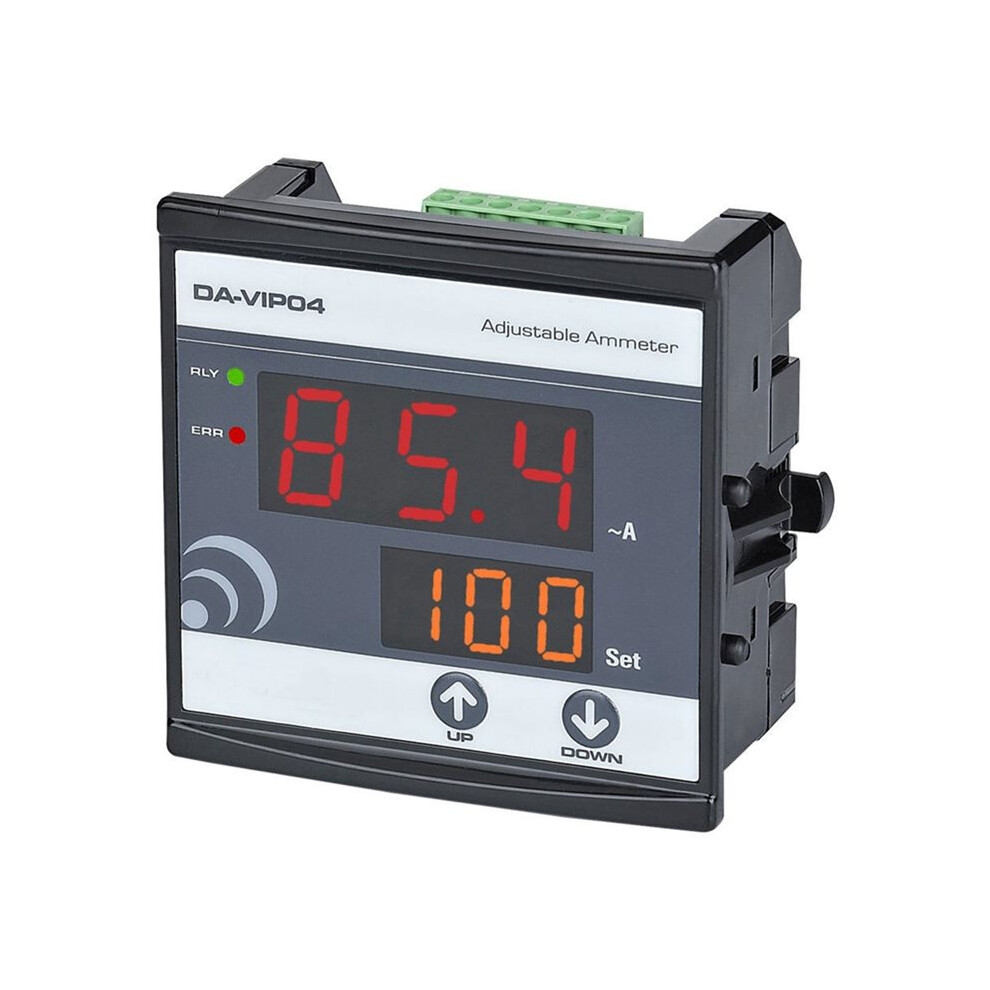

5X da-VIP04 Digital Adjustable Overcurrent Ammeter(0.1-999A)

Description de 5X da-VIP04 Digital Adjustable Overcurrent Ammeter(0.1-999A)

Press the and down buttons for about 3 sec. And enter the current value in the system. 3 seconds after entering the value. The device will record the current value and to the normal operation screen.

To enter the high current value: Returning to the normal operation screenthen use the or Down button to enter the high current value. After entering the value, the device stores the value entered as high current set value.When the current rises above the set current value, the relay immediately stops, the relay LED (RLY) goes off and the fault LED [ERR] turns , contact output is in NC position. When the current drops below 0.5A of the set value, the relay is triggered, the error LED goes off and the relay LED is turned , contact output is in NO position.
Specifications
Operating Voltage(Un)....: 150V - 270V AC
Operating Frequency.......: 50/60 Hz.
Less than ;4VA
Operating Temperature..: -20C.....+55C
Measuring Range............: 100mA - 5.5A
Measurement Precision..: %2
Display............: 3 x 20mm and 3 x 14mm display
Connection Type..............: Plug-in terminal
Cable Diameter.................: 1,5mm²

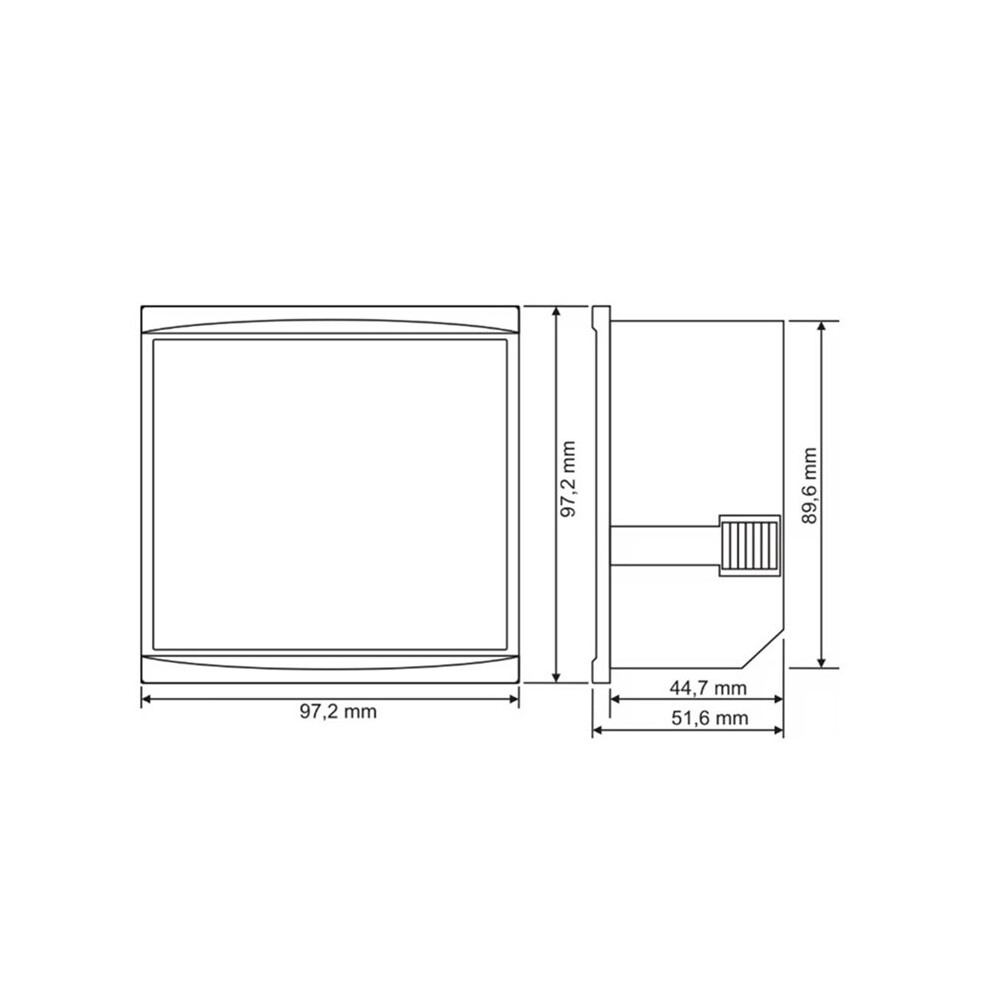

Panel Hole Sizes................: 91x91mm
Color: Black
Material: ABS

Package Contents:

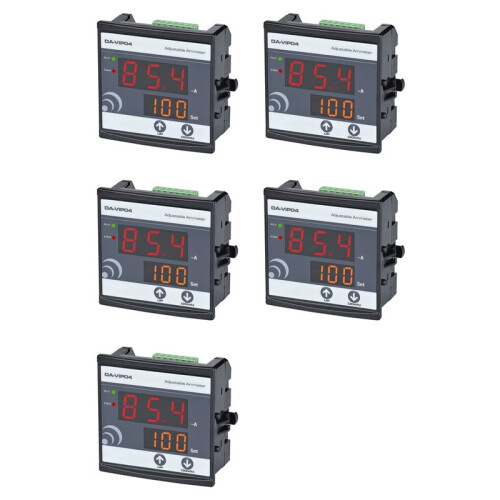

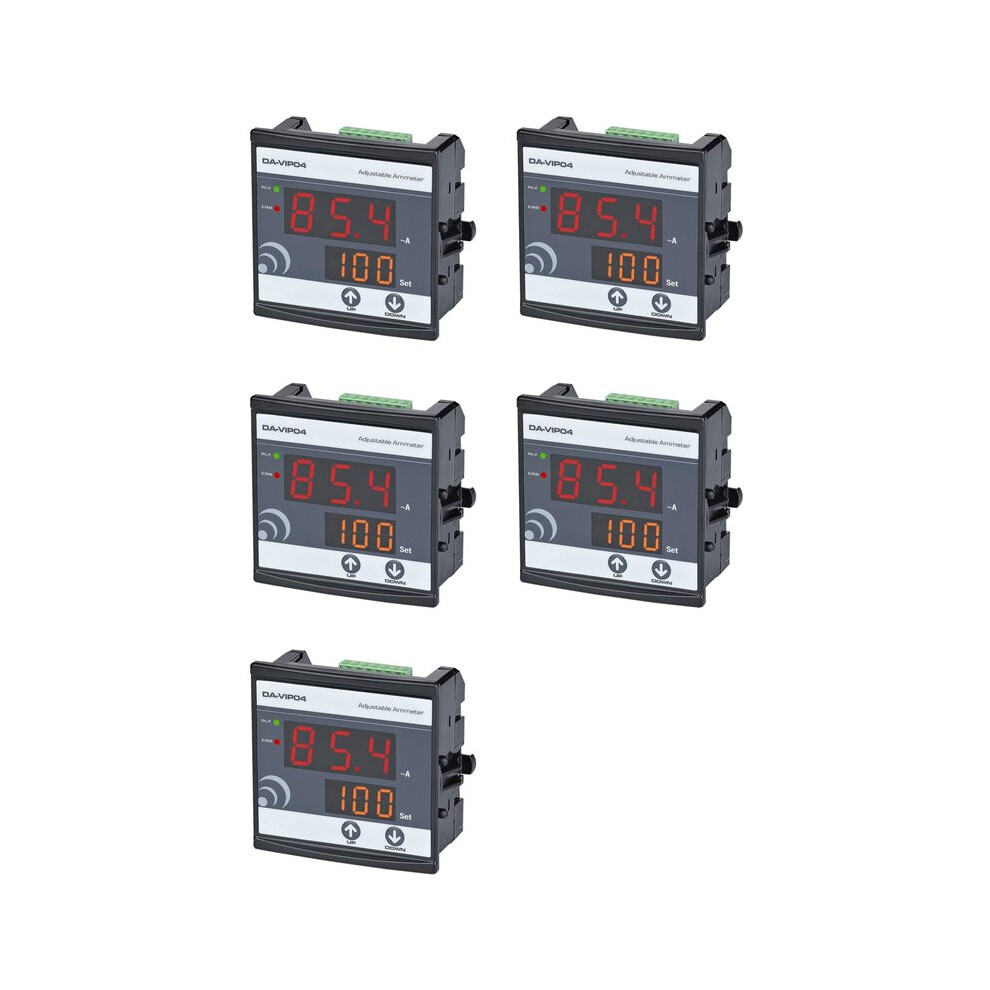

5 x Adjustable Ammeter
