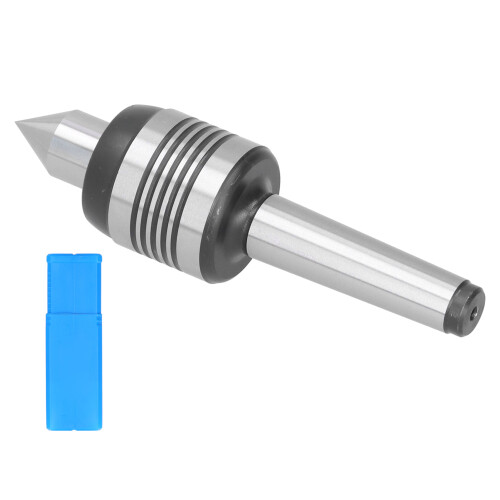

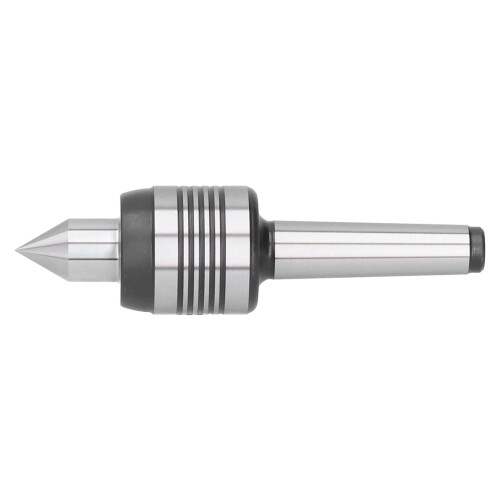

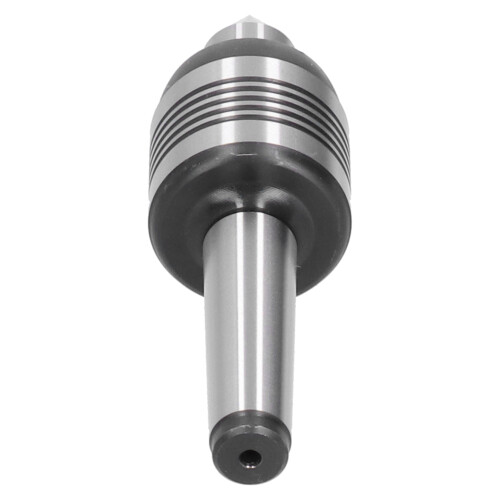

Centre à cône Morse MT2 à 5 rainures, acier, tour de 140 mm
New
35,51 €
Would you like us to let you know when it's back?
Description et informations
Résumé
- The revolving live center can be used for machine tool shaft parts with an accuracy of 0.01mm, which can improve work efficiency.
- The cone part is made of high‑speed steel, the main part is made of 40Cr steel, and the hardness after quenching can up to 45‑50HRC.
- The 60° center runs in its own high‑speed bearing and is used for the non‑drive end or tailstock end of the machine.
- Specially designed for high‑speed lathes and CNC lathes, which can achieve high accuracy, good balance and smoothness.
- Very suitable for supporting your work at the head and tail of the machine tool, and can be used for drilling, nesting and reaming of workpieces.
Description de Centre à cône Morse MT2 à 5 rainures, acier, tour de 140 mm
Centre conique Morse tournant pour tour, accessoires d'outillage de machine-outil MT2, 5 rainures
Type d'article : Centre conique Morse
Modèle : MT2-5 rainures
Matériau : Acier
Précision : 0,01 mm
Cône Morse : MT2
Matériau du connecteur : acier à outil allié T10
Longueur de pointe : env. 17 mm / 0,7 po
Longueur totale : env. 140 mm / 5,5 po
Diamètre extérieur maximal : env. 39 mm / 1,5 po
Machines-outils applicables : tours, travail du bois
Informations
| OPC | PHVZ5Y5 |
|---|---|
| Codes | 4961322576269 (EAN) |
