compatible for Mid-Motor Color Display 750C compatible for BBS01, BBS02B, BBS03

Description de compatible for Mid-Motor Color Display 750C compatible for BBS01, BBS02B, BBS03

For Mid-Motor Color Display 750C for BBS01, BBS02B, BBS03

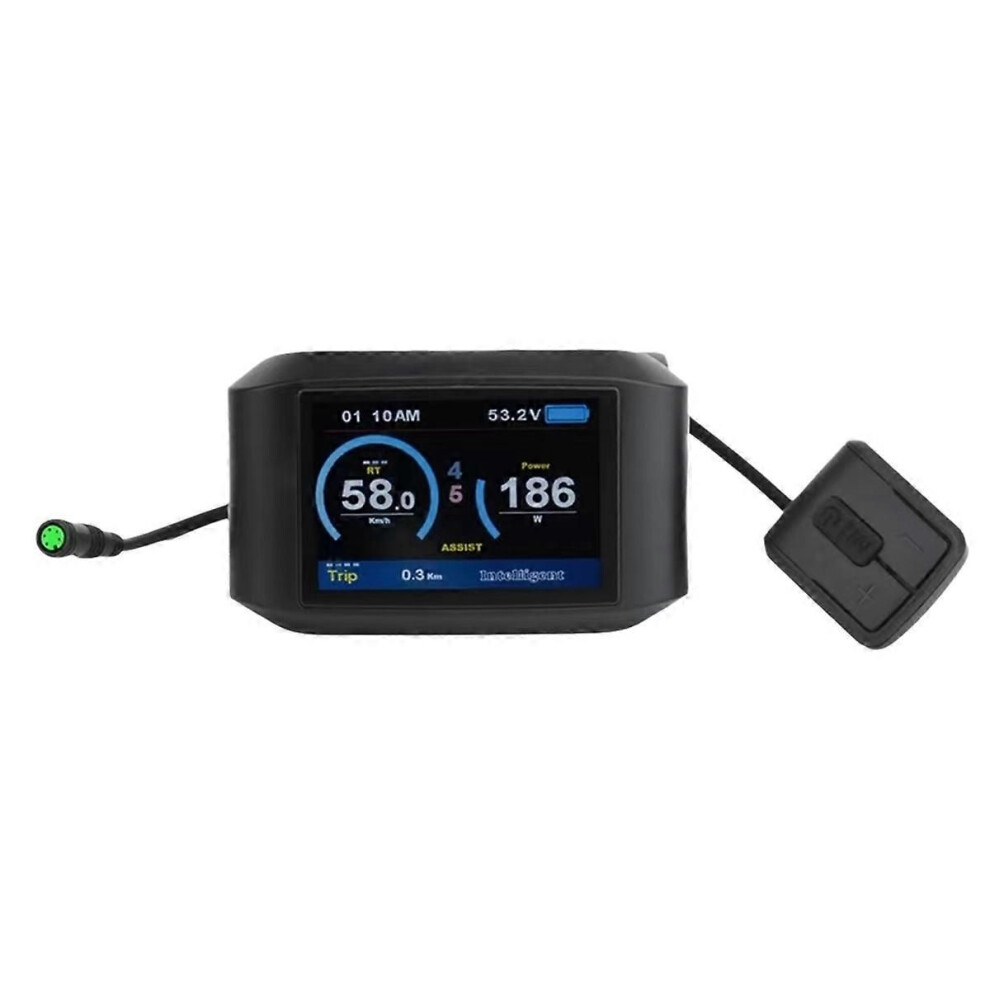

This TFT750C offers many functions for your riding pleasure. These Include: Multiple Power levels settings (Mode) Remaining Battery Capacity Speed (Speed/MAX/AVG)Distance and Odometer (TRIP/ TOTAL) Time Assist walking (slow speed motor assist) Backlight Error codes.
Caution: Do not plug in or unplug this display when the power to the unit is on.Avoid collisions.
Protect the display's membrane to provide water performance.
Do not attempt to reset parameters if the display is not working.
Call for service if this TFT750C display is not working.
Installation: Install the display and button control on the handlebar and adjust its location. Plug it into the controller with power off.
Screen Size: 3.2 inch
Voltage: DC 24V/36V/48V/52V
Speed Limit: 99km/h
Brightness: 5-level
PAS Speed Level: 0-9 level
Show Battery level, speed, distance, power, and more
Protocol: UART
High-contrast IPS Colorful Matrix Display
Compatible with BBS01, BBS02 and G320 G340
Waterproof: IP65
Suitable Handlebar Diameter: 22.5/25.4/31.8mm
Key cable length: 24.5cm
Power cable length: 46cm
Plug Type: 5-pin waterproof quick release female
Due to different batches, there may be differences in product appearance, color, and printed text, which not affect the use.
Color:Black
Material:ABS
Package Contents:
1 * LCD Display
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
