Frequency 3-30MHz SWR Meter with LED Display for TV & Radio Shortwave Testing
New
45,43 €
Produits similaires que vous pourriez aimer selon nous
Would you like us to let you know when it's back?
Description et informations
Résumé
- Compact and lightweight, powered by RF-tapped power, with no batteries required, and easy to carry, very suitable for amateur radio enthusiasts to use in the field.

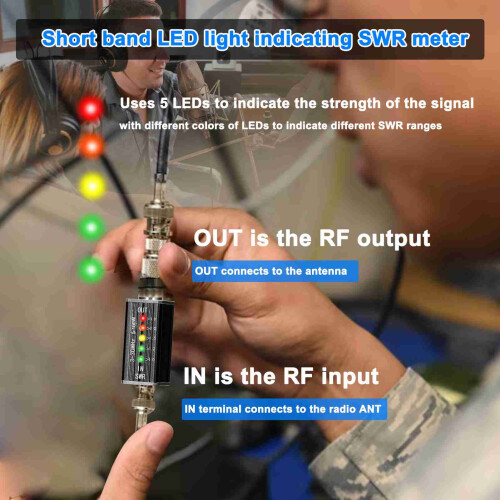

- It can be used to measure radio frequency signals, it uses 5 LEDs to indicate the strength of the signal, with different colors of LEDs to indicate different SWR ranges.
- It is used to test the SWR of shortwave radio signals in the frequency ranges of 3-30MHz. The input power does not exceed 100W, and the smallest LED (\u003e1.0 corresponding to the green light) light requires 5W power, suitable for various shortwave radio equipment.
- This equipment is commonly used in radio communication systems such as radio broadcasting, television broadcasting, and radio communication.
- It helps the operator to determine the strength of the signal and thus adjust the settings of the radio equipment, to improve the quality and reliability of the signal.
Description de Frequency 3-30MHz SWR Meter with LED Display for TV & Radio Shortwave Testing
LED SWR Meter 3-30MHz Frequency Shortwave Standing Waves Indicator for Television Broadcasting
This product is a short band LED light indicating SWR meter. Powered by RF tapped power, no batteries are required, and easy to carry. SWR meter is a device used to measure radio frequency signals using 5 LEDs to indicate the strength of the signals, with different colors to indicate different ranges of SWR. It is used to measure and display the SWR of shortwave radio signals in the frequency ranges of 3-30MHz. Input power does not exceed 100W, the smallest LED (>1.0 corresponds to the green light) light requires 5W power, suitable for a variety of shortwave radio equipment.
Specifications:
Name: SWR Meter
Material: metal
Using frequency: 3-30MHMz
Maximum power: no more than 100W
Insertion Loss: <0.3dB
VSW: <1.2
Interface: M female
Item size: 25 * 25 * 90mm / 0.98 * 0.98 * 3.54in (not counting M base)
Package size: 80 * 30 * 50mm / 3.15 * 1.18 * 1.97in
Package weight: 85g / 3.00ounce
