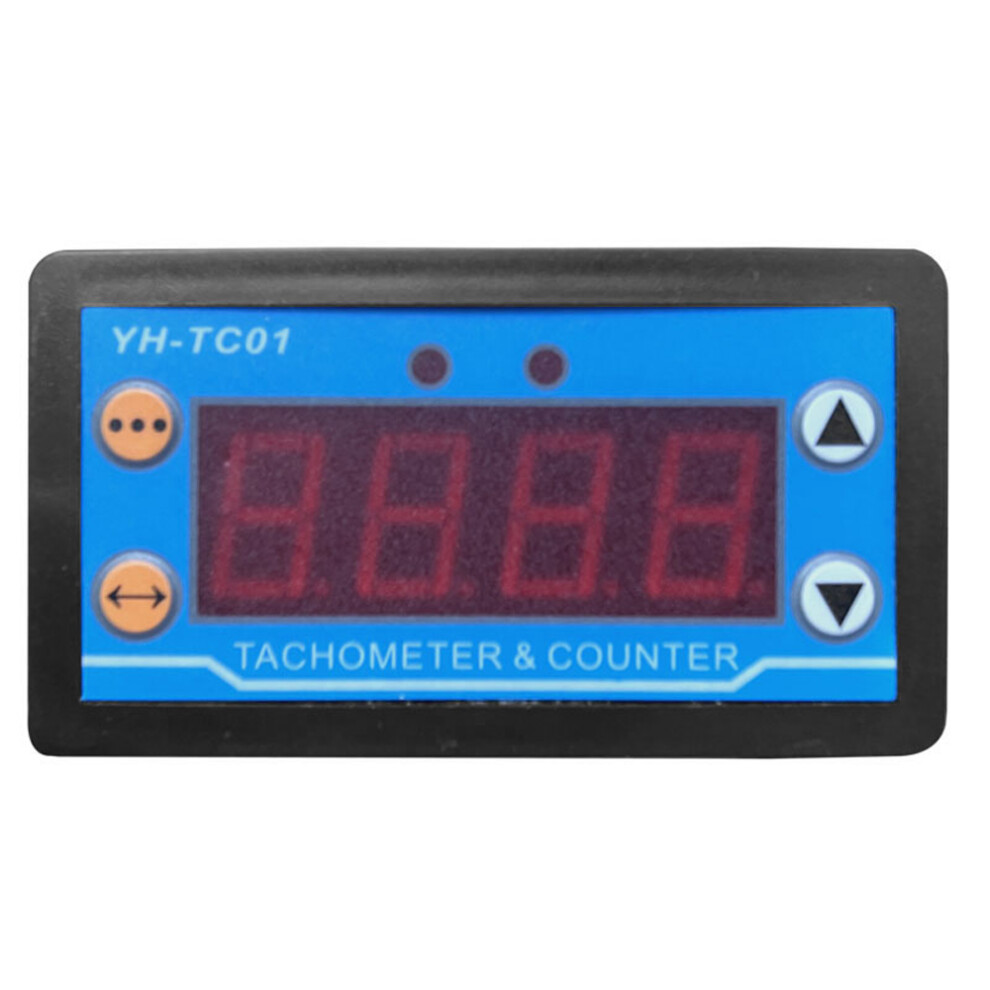

YH-TC01 Digital Tachometer LED Display Hall Sensor

Description de YH-TC01 Digital Tachometer LED Display Hall Sensor

YH-TC01 Digital Tachometer High-Accurancy LED Digital Display Motor Speed Meter With Hall Sensor Motor Speed Detector
This product adopts Hall sensor for speed measurement. Through the internal function of the program, one probe can be set for multiple detection points, thus improving the detection accuracy. The speed measurement adopts the multi-period average speed measurement method, which has a wide range of low speed, high speed measurement and high measurement accuracy. The counting function is realized by the external counting function of the single-chip timer, which is stable and reliable.
Features:

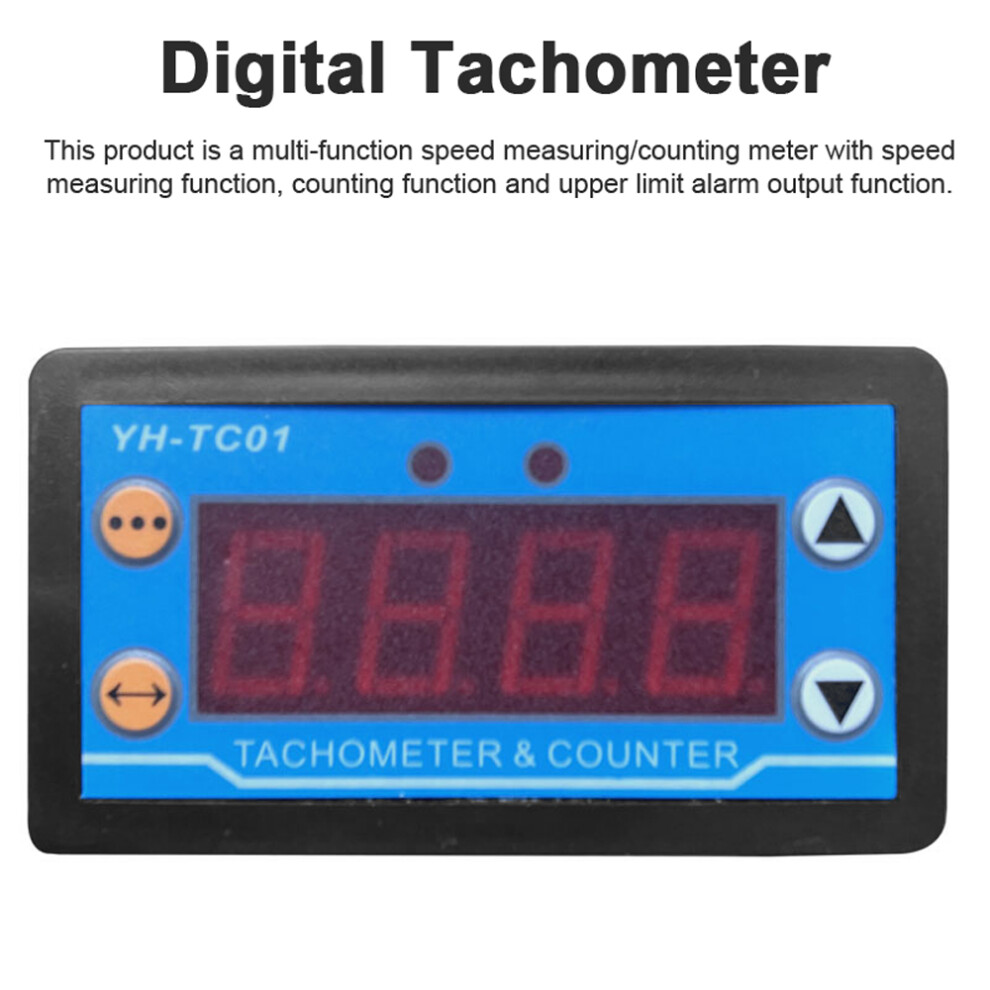

This product is a multi-function speed measuring/counting meter with speed measuring function, counting function and upper limit alarm output function.
With reliable performances, simple installation and wide application range, it is generally applicable to all kinds of mechanical equipment, such as harvesters, machine tools, motors, fans, etc., where rotational speed measurement is required for devices, as well as production counting and other occasions.
This product is compatible with Hall switch, metal proximity switch, infrared proximity switch and other detection switch signals.
This product can output a channel of NPN alarm signal, and the user can connect the indicator light and sounder for warning. The user can customize the alarm field values.

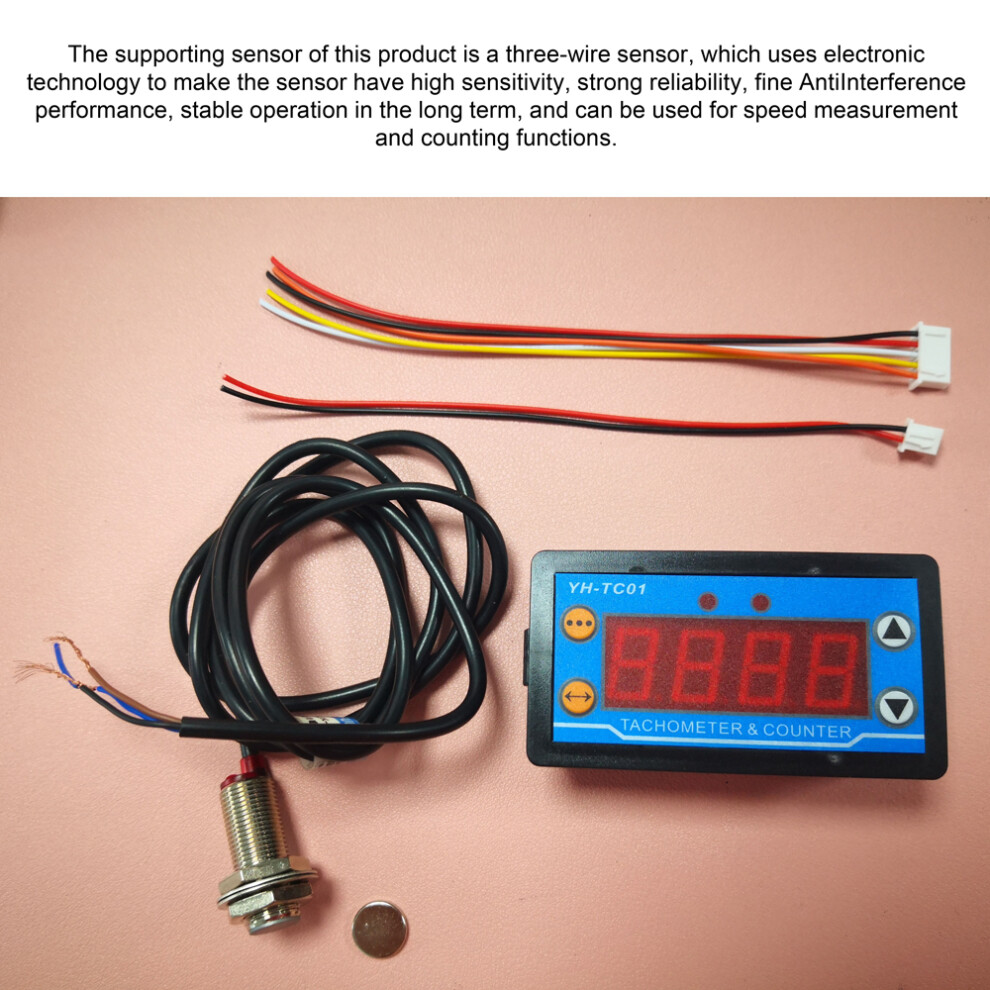

The supporting sensor of this product is a three-wire sensor, which uses electronic technology to make the sensor have high sensitivity, strong reliability, fine AntiInterference performance, stable in the long term, and can be used for speed measurement and counting functions.

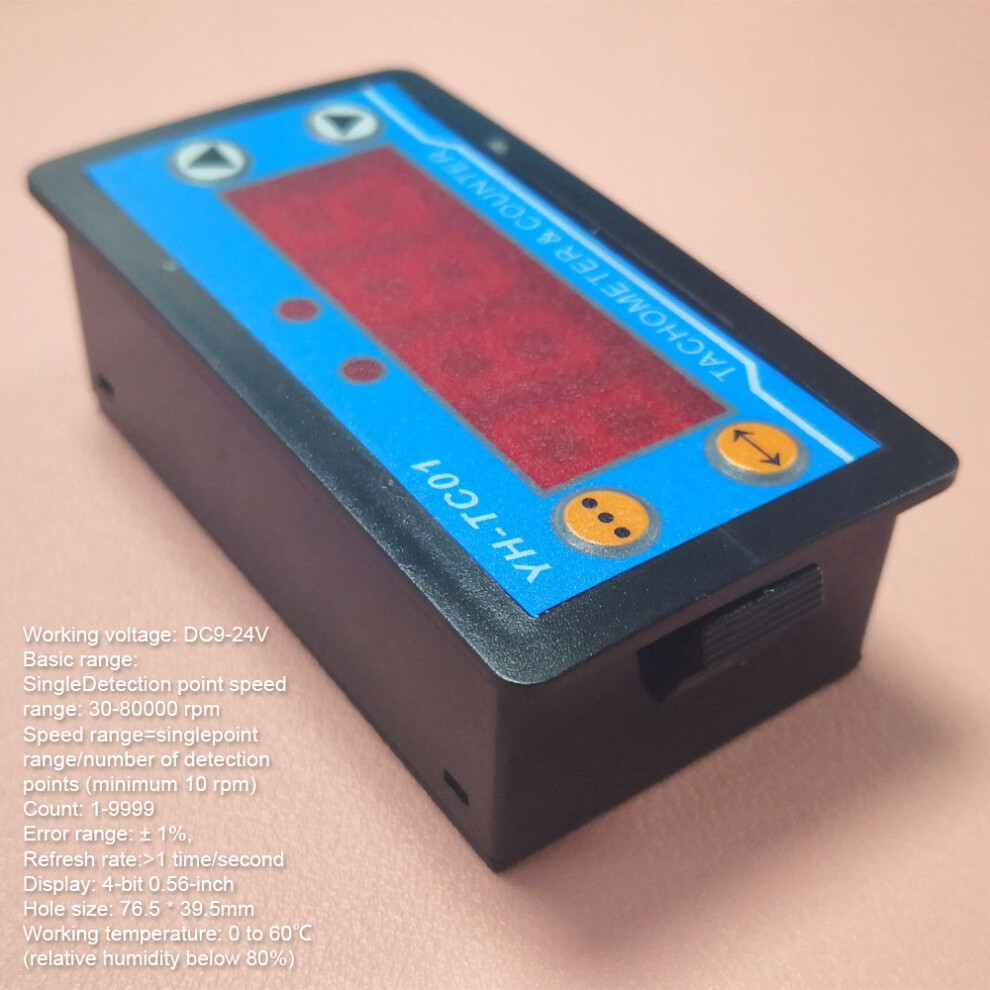

Specifications:
Working voltage: DC9-24V
Basic range:
SingleDetection point speed range: 30-80000 rpm
Speed range=singlepoint range/number of detection points (minimum 10 rpm)
Count: 1-9999
Error range: ± 1%,
Refresh rate:>1 time/second
Display: 4-bit 0.56-inch
Hole size: 76.5 * 39.5mm
Working temperature: 0 to 60 (relative humidity below 80%)

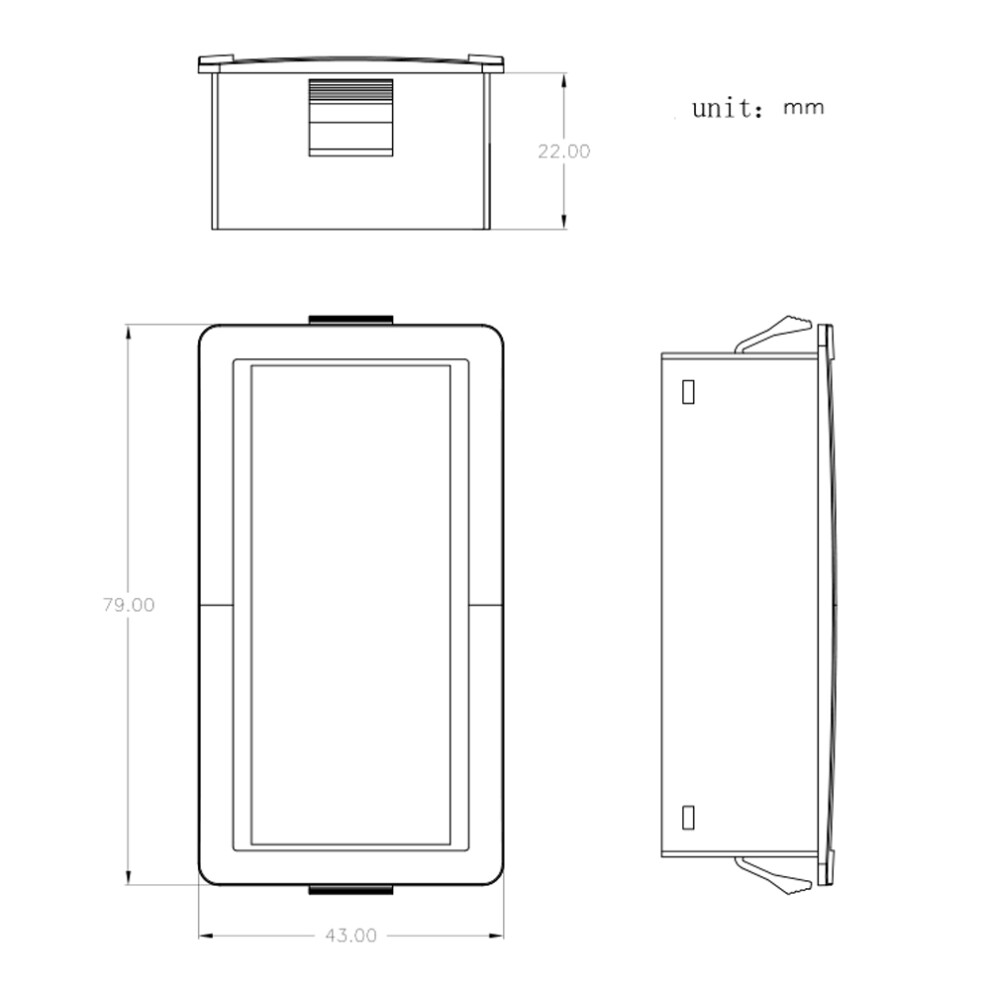

Item size: 78 * 42 * 24mm / 3.1 * 1.7 * 0.9in
Package size: 130 * 80 * 45mm / 5.1 * 3.1 * 1.8in
Package weight: 100g / 3.5ounce
Packing List:
1 * Digital Tachometer
