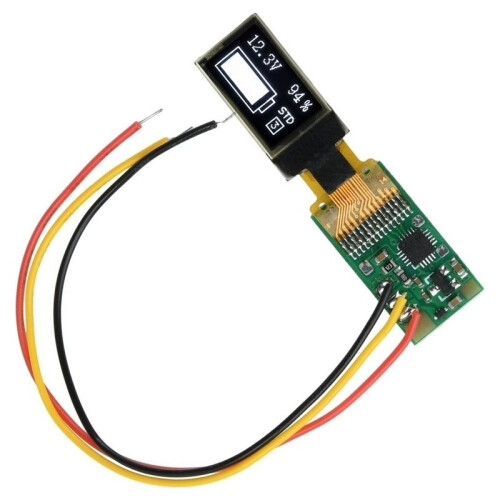

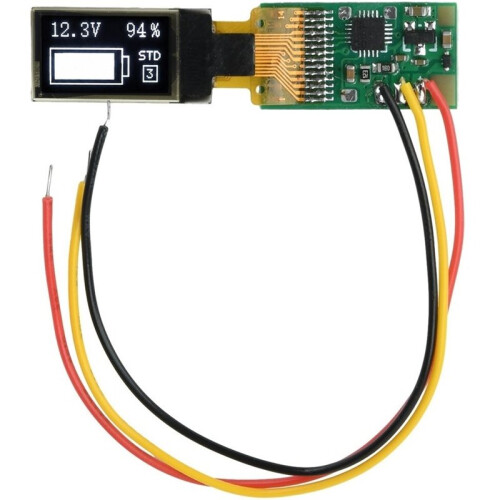

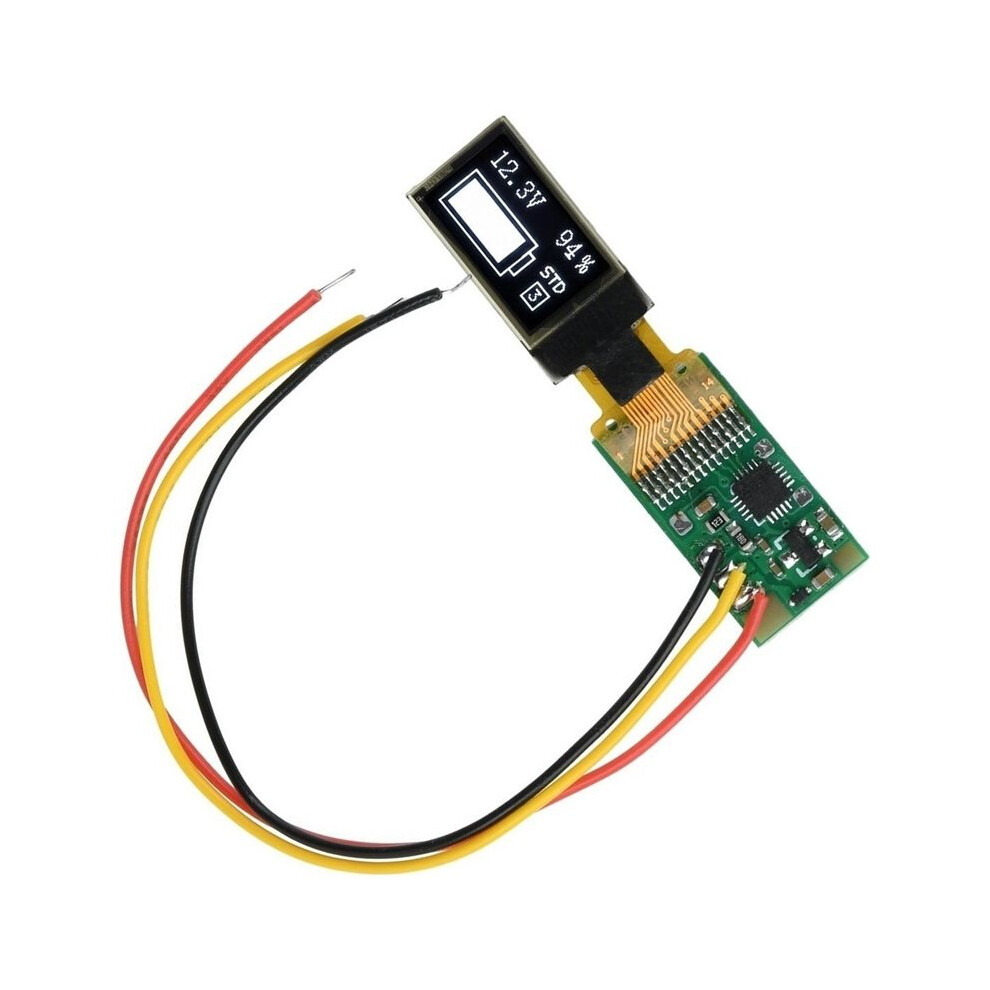

0-30V Digital Voltmeter & Battery Meter 0.5-Inch OLED Display Voltage Tester 1-6S Adjustable Battery Level Tester

0-30V Digital Voltmeter & Battery Meter 0.5-Inch OLED Display Voltage Tester 1-6S Adjustable Battery Level Tester Περιγραφή

1. Compact, ultra-slim design; easily integrates into tight spaces within various devices.
2. High-precision 12-bit ADC sampling; low detection error and accurate, reliable voltage measurement.
3. 0.5-inch OLED display; 88x48 resolution for clear, intuitive reading of measurement values.
4. Default 5Hz refresh rate (switchable to 10Hz via jumper); tracks dynamic voltage changes in real-.
5. Wide range of applications; suitable for embedded use cases such as voltage displays for adjustable power supplies.

6. Can be used in 1-6S lithium battery systems, without voltage regulation, reverse connection without burning

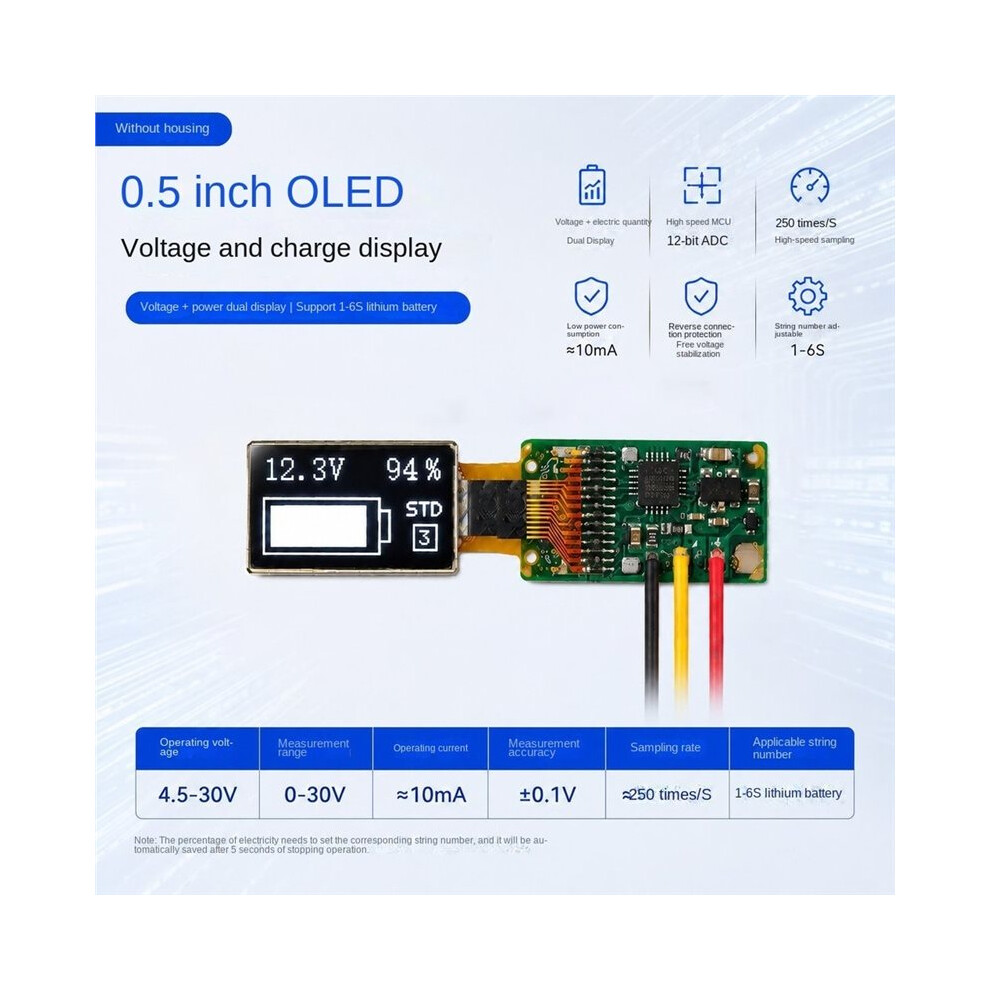

Product Parameters
Working voltage: 4.5-30V
Measurement voltage: 0-30V
Working current: 10mA
Measurement accuracy: 0.1V
Sampling rate: 250 times/S
Compatible battery configuration: 1-6S Li-ion/LiPo batteries

This meter can measure 0-30V voltage in real , but the percentage of electricity needs to be set to the corresponding string number, otherwise the percentage display will be relatively inaccurate.

Method for setting the number of battery strings
Short circuit the number of strings with tweezers to set the solder pad and negative electrode for two seconds (similar to long pressing a button), and hold for about 3 seconds. The STD character the right side of the screen starts flashing, indicating that it has entered the serial number setting mode. Afterwards, tap the short-circuit string number to set the solder pad and negative electrode, which can cycle between 1-6 strings. The number displayed in the box corresponds to the corresponding string. After stopping the operation for 5 seconds, the system automatically saves and exits the setting mode.
Color: As Shown
Material: PCB+Plastic+Metal

Package Contents:
1 *
