0.96 OLED SX1262 Wifi BLE ESP32 LoRa32 V3 Development Board LoRa 32 IoT Dev Board 433-510Mhz with Case Upgraded Version

0.96 OLED SX1262 Wifi BLE ESP32 LoRa32 V3 Development Board LoRa 32 IoT Dev Board 433-510Mhz with Case Upgraded Version Περιγραφή

Microprocessor: ESP32-S3FN8 (32-bit LX7 dual-core processor, five-stage pipeline rack Structure, frequency to 240 MHz) SX1262 LoRa node chip.
Type-C USB interface with a complete voltage regulator, ESD protection, short circuit protection, RF shielding, and other protection measures.
Onboard SH1.25-2 battery interface, integrated lithium battery management system (charge and discharge management, overcharge protection, battery power detection, USB / battery power automatic switching).
Integrated WiFi, LoRa, -tooth three network connections, onboard WiFi, dedicated 2.4GHz metal spring antenna, reserved IPEX (U.FL) interface for LoRa use.
Onboard 0.96-inch 128*64 dot matrix OLED display can be used to display debugging information, battery power, and other information.

Integrated CP2102 USB to serial port chip, convenient for program downloading, and debugging information printing.
Support the for development environment.
We provide ESP32 + LoRaWAN protocol for library, this is a standard LoRaWAN protocol that can communicate with any LoRa gateway running the LoRaWAN protocol. To make this code run, a unique license is needed.
With good RF circuit design and low-power design.
Colour:As Shown
Material:ABS

Package Contents:
1 * development board

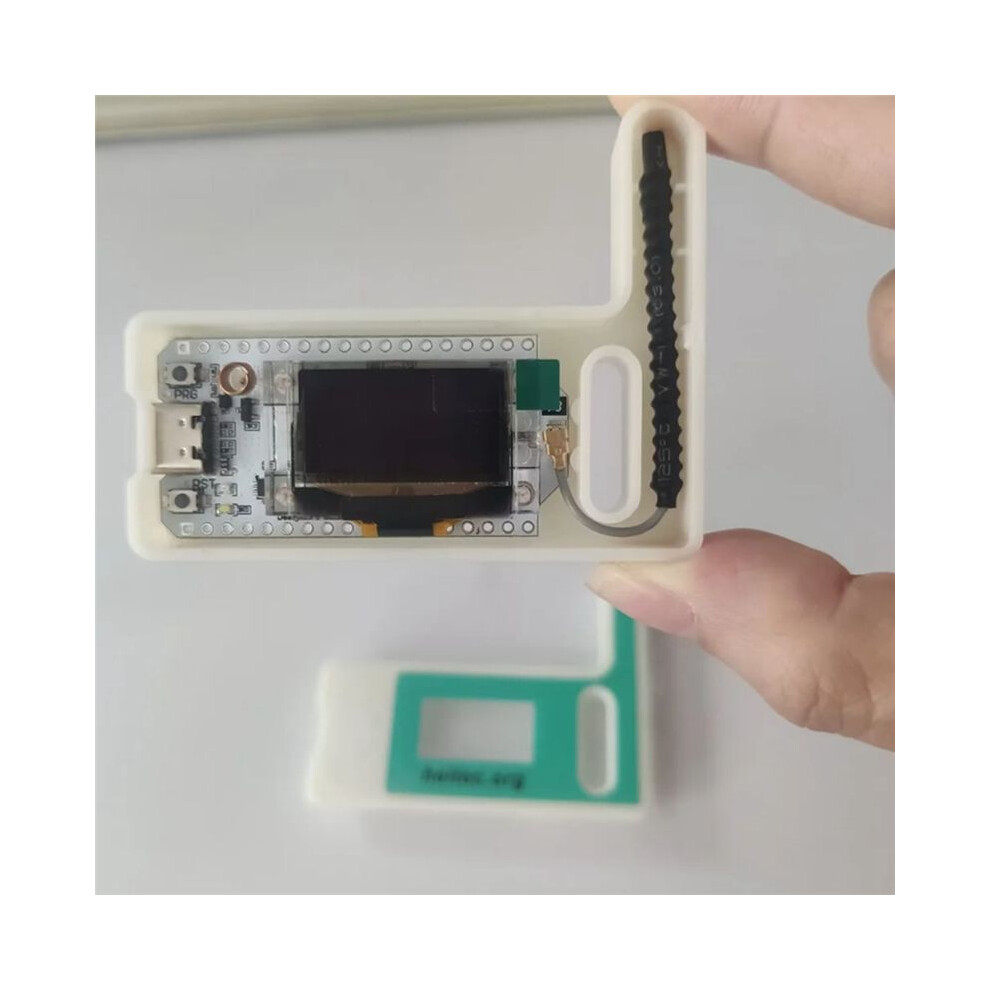

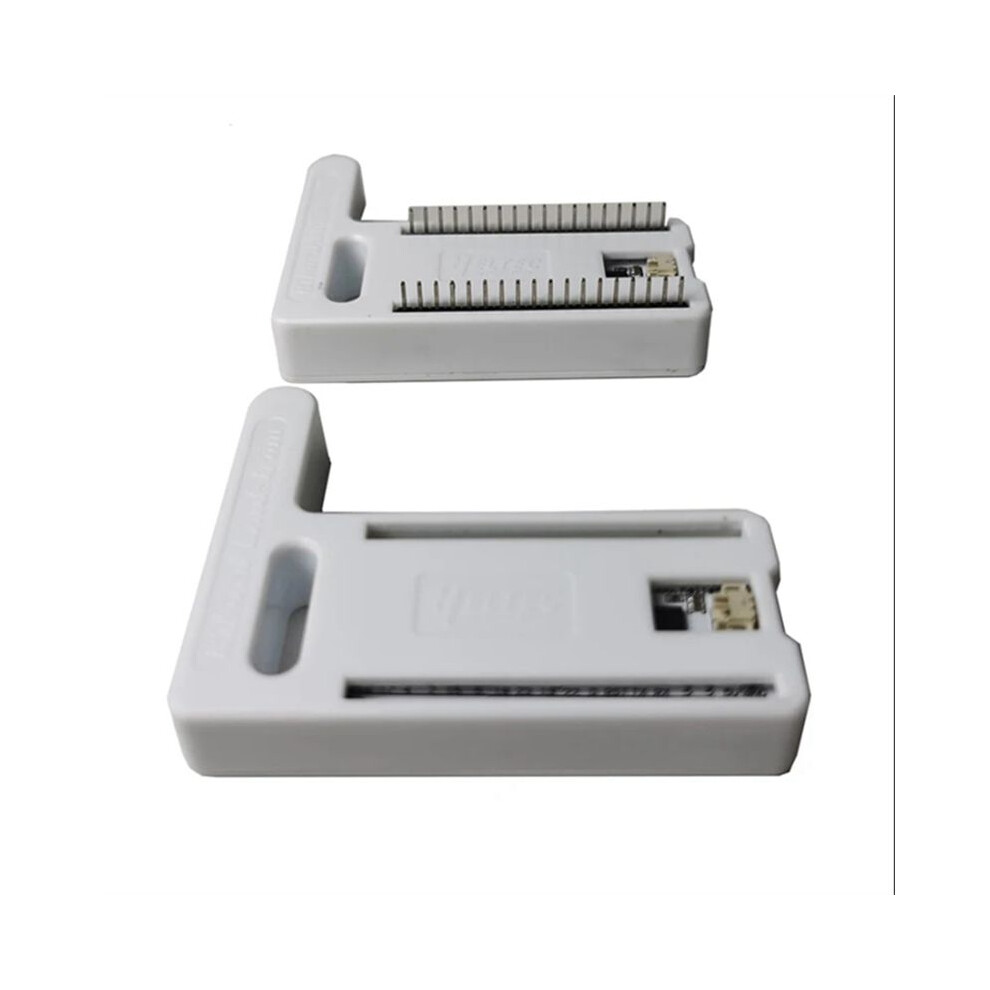

1 * shell

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
