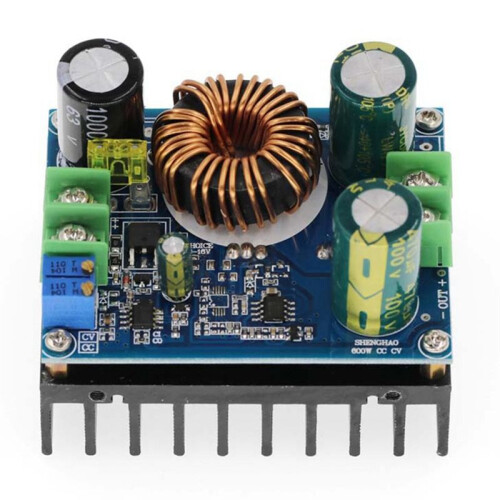

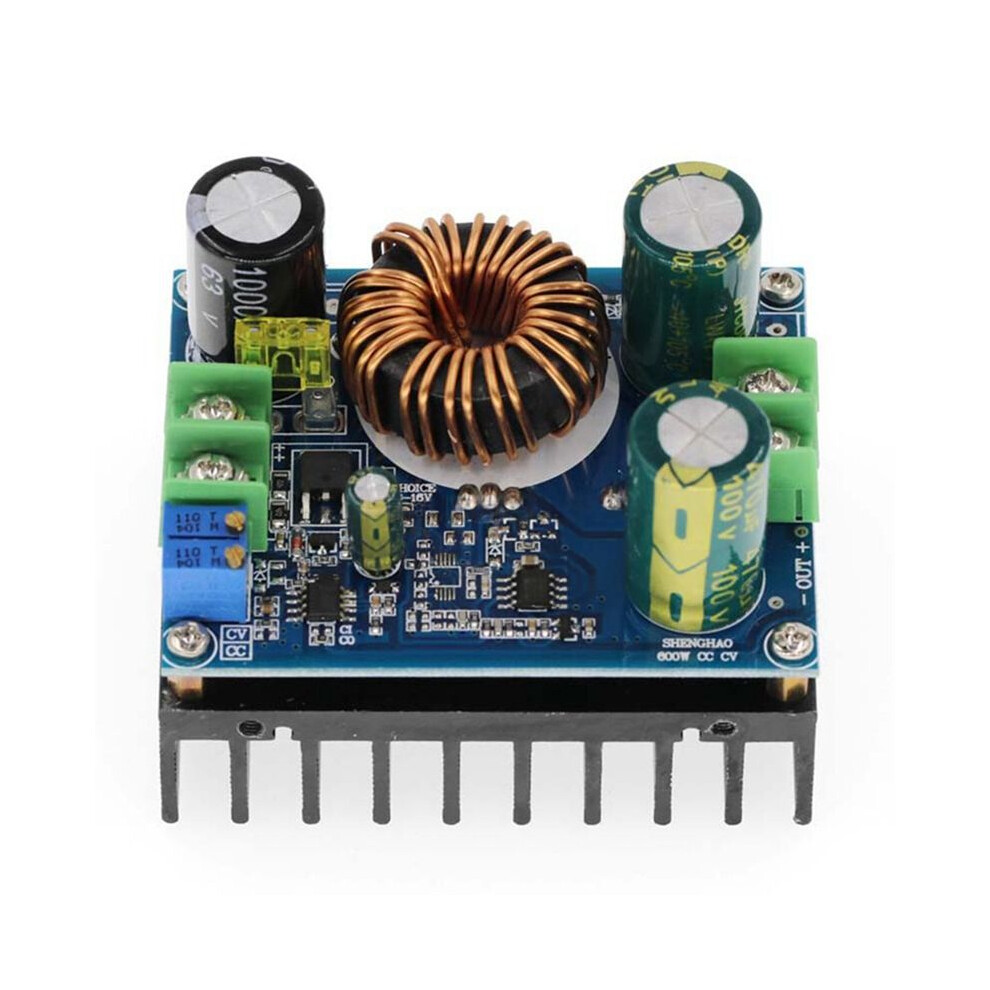

10-60V to 12-80V High Power Boost Module 600W Solar Constant Voltage Constant Current Vehicle Voltage Regulator Module

10-60V to 12-80V High Power Boost Module 600W Solar Constant Voltage Constant Current Vehicle Voltage Regulator Module Περιγραφή

Protection Features: Overcurrent Protection: Yes (output voltage automatically reduces if input exceeds 17A, with minor tolerance); Short-Circuit Protection: Yes (dual protection with a 20A input fuse); Reverse Polarity Protection (Input): No (add a diode in series if needed); Reverse Current Protection (Output): Yes (no additional diode required for charging applications)
Input Voltage:Two selectable input voltage ranges (selected via jumper the board) 1: 8-16V input (for 3S lithium batteries and 12V battery applications) - Do not exceed this voltage range, or the module may burn out!!! 2: 12-60V input (factory default range for wide input voltage applications)
Input Current:16A (MAX) - Enhance heat dissipation if exceeding 10A. Quiescent Current:15mA (when boosting 12V to 20V; increases slightly with higher output voltage)
Operating Temperature: -40 to +85(enhance heat dissipation in high-temperature environments)
Conversion Efficiency: to 95% (varies with input/output voltage, current, and voltage difference)

Module Name:600W Boost Constant Current Module
Module Type:Non-isolated boost module (BOOST)
Output Voltage:
Adjustable:12-80V (default 19V)
Output Current:12A MAX - Enhance heat dissipation if exceeding 10A (current decreases with larger input-output voltage difference)
Constant Current Range: 0.1-12A
Output Power: = Input Voltage x 10A
Example:
12V x 10A = 120W
24V x 10A = 240W
36V x 10A = 360W
48V x 10A = 480W
60V x 10A = 600W
For higher power: Two modules can be connected in parallel. For example, to achieve 16A output, set each module to 8A.
Switching Frequency: 150KHz
Installation: 2pcs 3mm screws
Connection Method: Screw terminals (no soldering required)
Module Dimensions:76mm(L)x60mm(W)x56mm(H)
Weight:205g
Applications:
