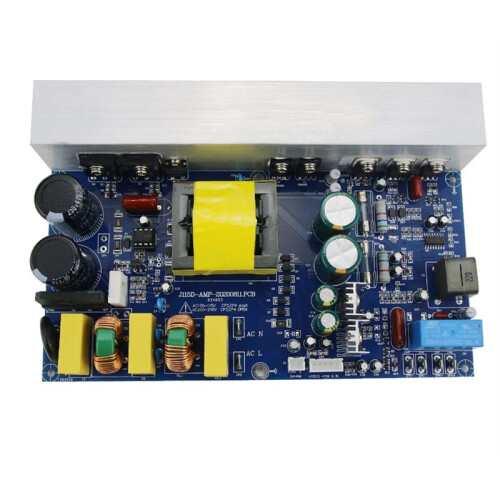

1000W Class D Power Amplifier Board Mono Power Amp Board with Switching Power Supply

1000W Class D Power Amplifier Board Mono Power Amp Board with Switching Power Supply Περιγραφή

Specifications:
1. Amplifier model: J115D-AMP
2. Amplifier type: Class D digital amplifier (switching power supply)
3. Board color:
4. Channel: Mono (not stereo)

Can be bridged: NOT
power: 1000W
RMS power: 500W, 4 Ohm load (one 4 Ohm speaker)
RMS power: 300W, 8 Ohm load (one 8 Ohm speaker)
RMS power: 500W, 8+8 Ohm load (two 8 Ohm speakers used in parallel)
Frequency response: 20HZ-20KHZ at -2DB
Distortion: THD 1% at 1KHZ (4 ohms)

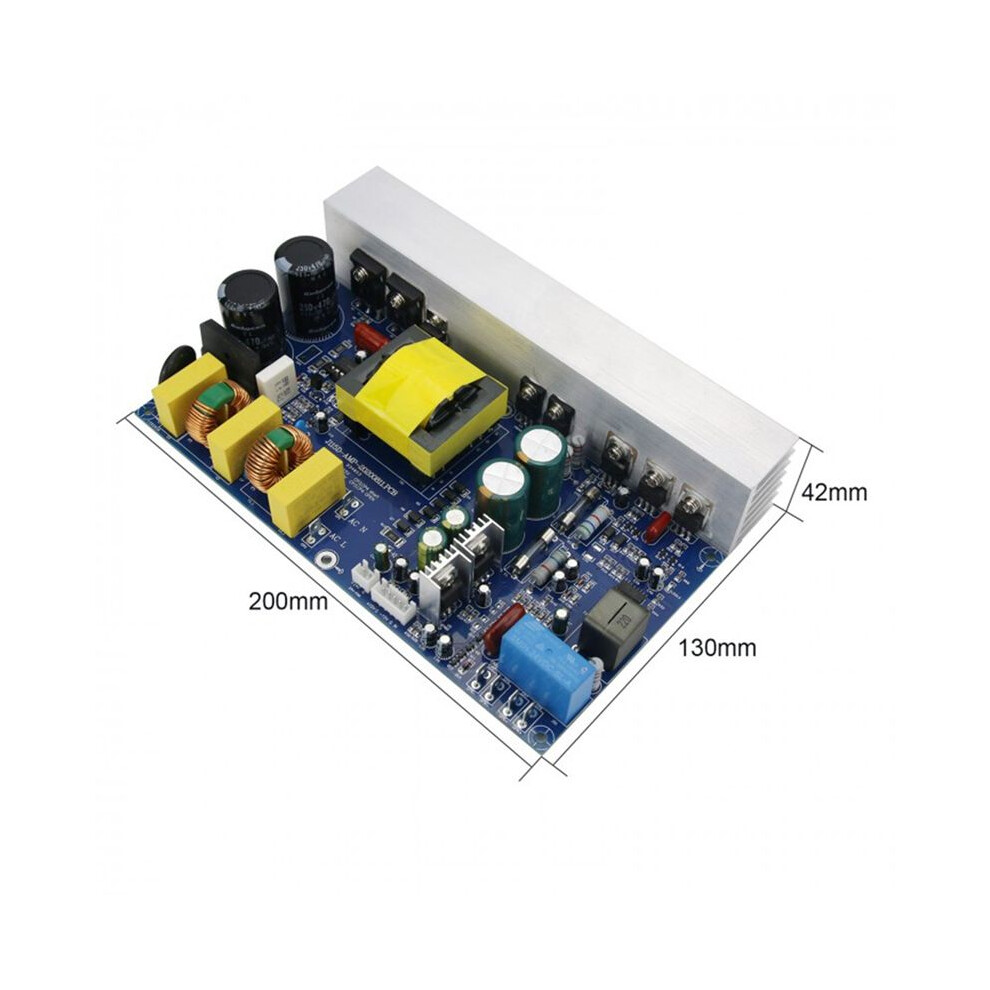

Board Size: 200 x 130 x 42mm/7.9 x 5.1 x 1.7 inch (LxWxH)
Net weight: 0.8KG/1.8LB

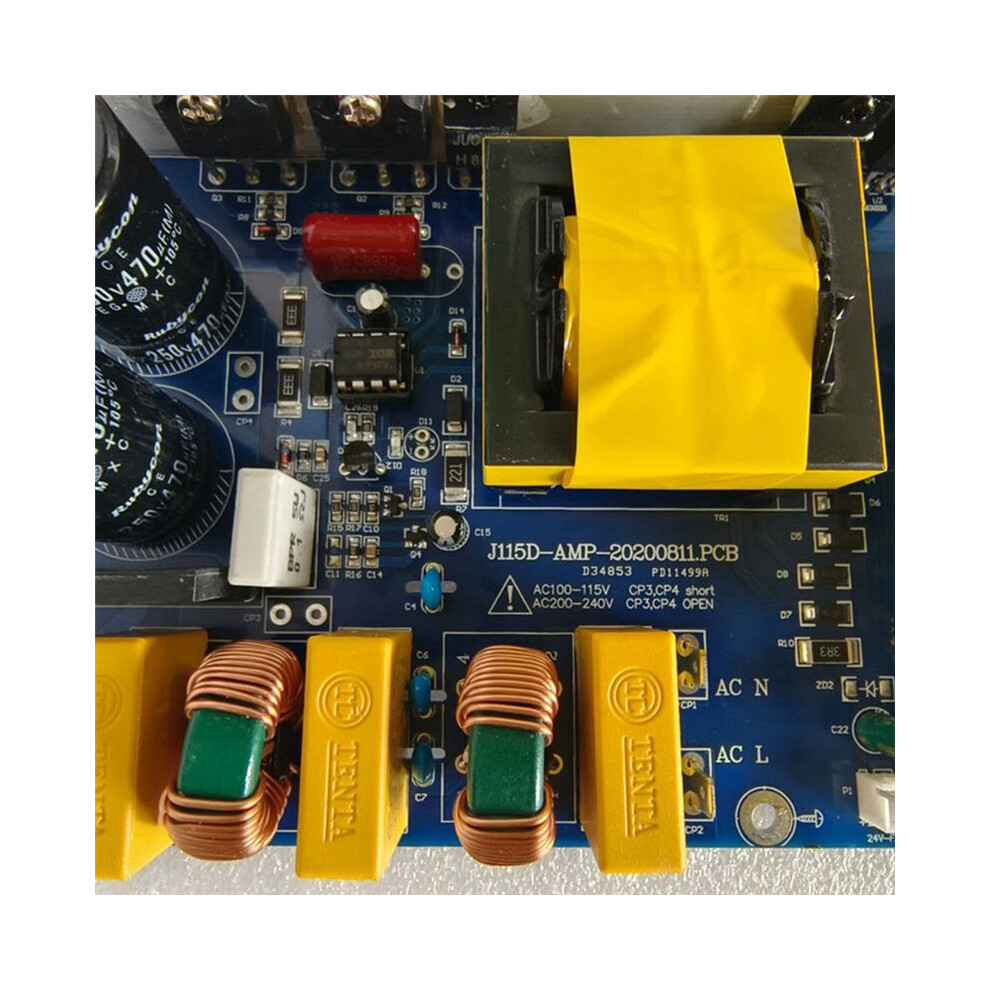

Input working voltage: AC100-120V 60HZ, CP3 and cp4 connection
Input working voltage: AC200-240V 50HZ, CP3 and cp4B are not connected
Input working voltage error: +/-10%
Need to add 24v fan: Yes
Amplifier main power supply voltage: +79V, 0V, and -79V
Output voltage for preamplifier board: +15V, 0V, and -15V
Fan output voltage: 24v
Input sensitivity: Amplitude: 1.5V; Frequency: 1KHZ; Waveform: Sine wave
Magnification: 30 times
Signal input : IN (signal input) and G (signal ground)

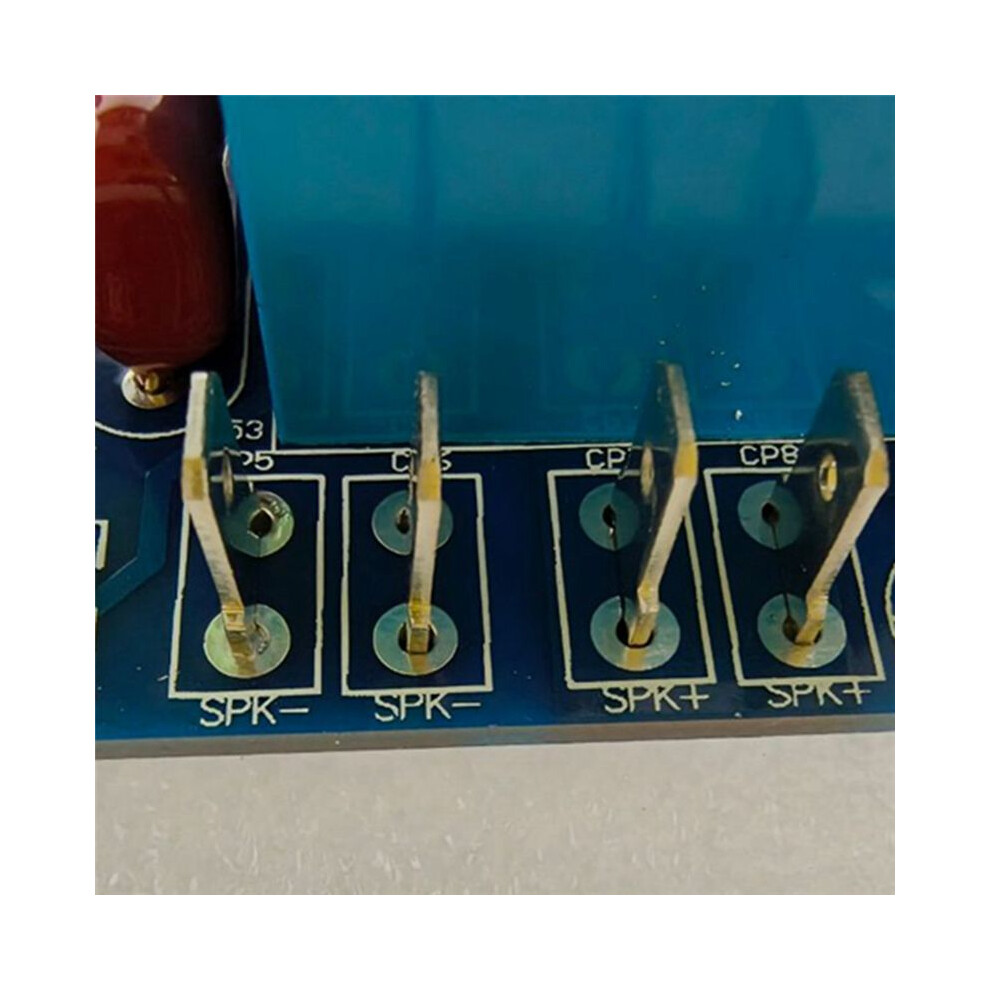

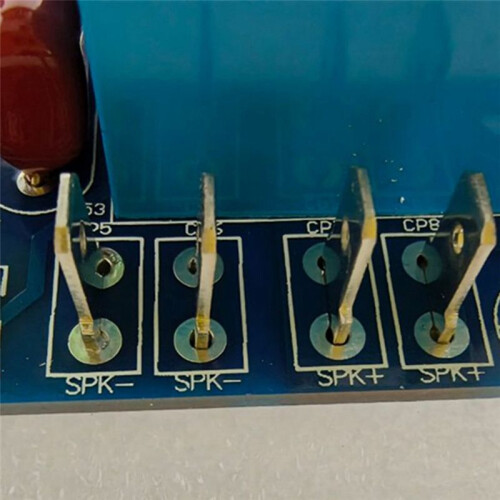

Speaker port: SPK- and SPK+
Power port: AC INPUT L and N
Noise: 1 MV
The speaker has output short-circuit protection: Yes (automatic reset after removing the short circuit)
Boot delay anti-shock sound 1-3 seconds
Material:plastic+Metal

Package Contents:
1 x Power Amplifier Board
