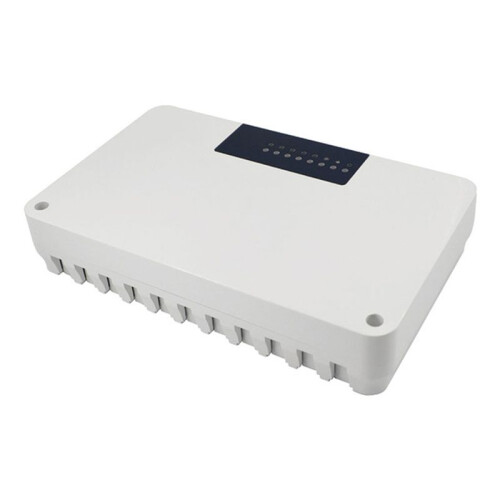

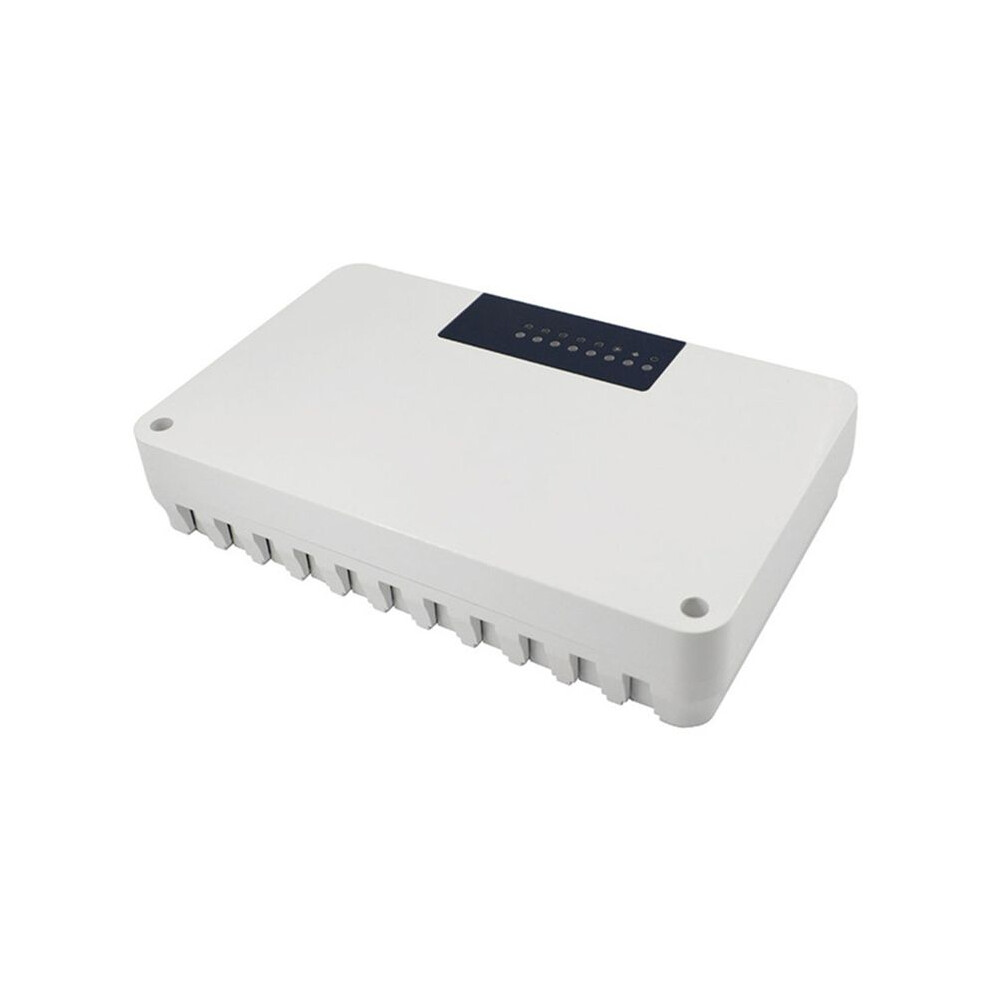

1pc 5 Zone Central Heating Controller Floor Hot Water System Pump Valve Actuator for Heating System 5-Way

1pc 5 Zone Central Heating Controller Floor Hot Water System Pump Valve Actuator for Heating System 5-Way Περιγραφή

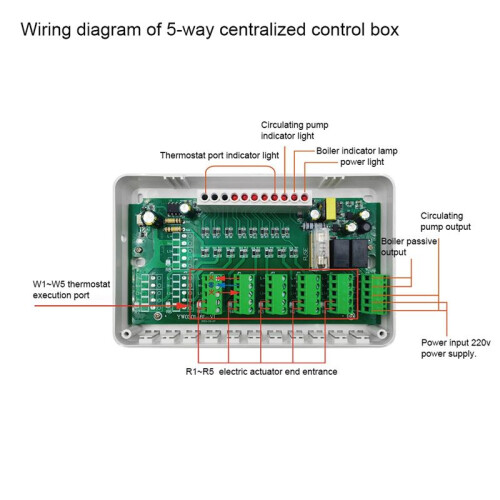

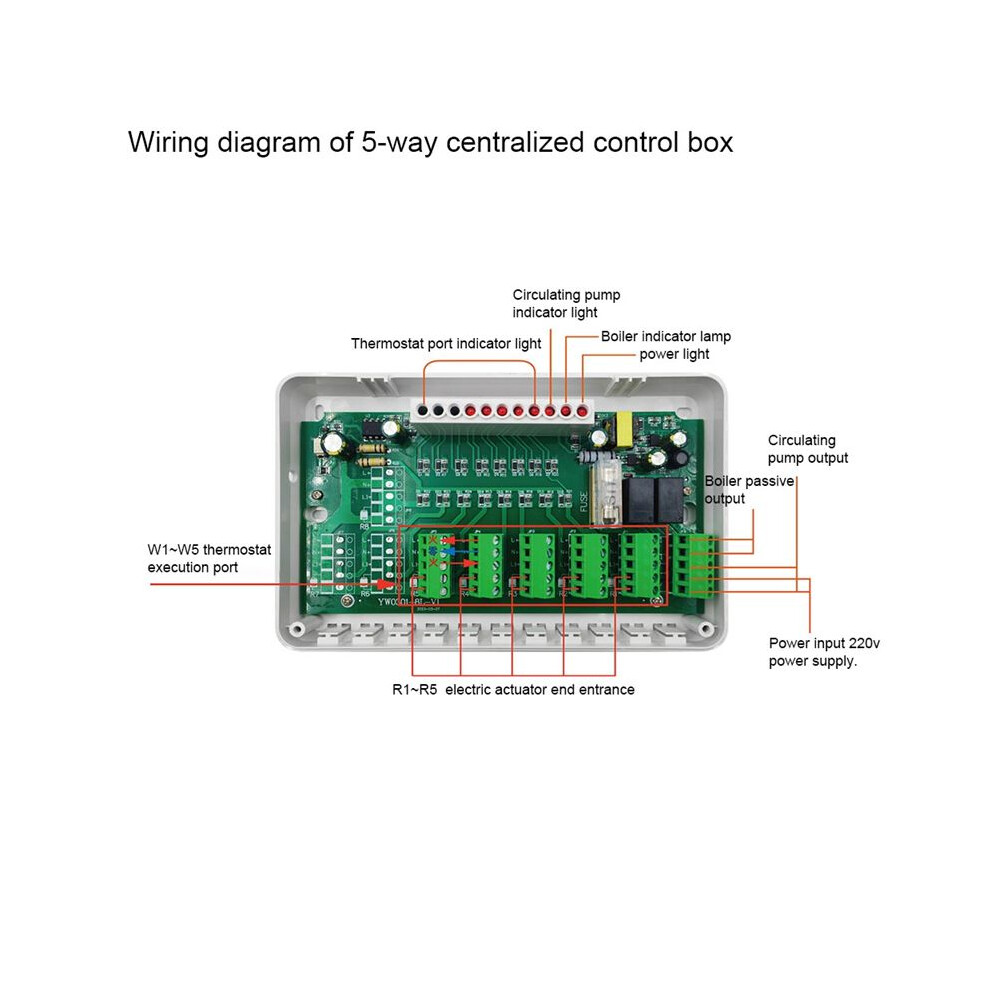

Features: CCT-25 is a multi-zone central heating system intelligent hub controller 5 channel concentrator with indicator.
The thermostat corresponds to the zone valve, which is indirectly connected to the actuator. to 3NC actuators can be connected to 1 zone.
In the zone heating system, the actuator opens and closes the valve according to the thermostat setting of the zone.
Each thermostat controls the heating independently to heat different areas of the house.
The intelligent multi-zone central heating system controller is a 5 channel thermostat controller with indicator light.

This unit is used to centrally process floor heating or thermostat signals, transmit instructions to control the opening or closing of floor heating electric valves, and realize zone control.
While controlling the electric actuator, the passive connection of the heat pump host, boiler and external water pump (mixing center) can be controlled.
Specifications:
Part name: Heating controller
Size: 177 x 110mm
Power supply: 100-240VAC, 50/60Hz 10A
Passive output (boiler): 8A
Circulation pump output: 250VAC, 8 (5) A
No electrical connection: 1 normally open (common terminal)

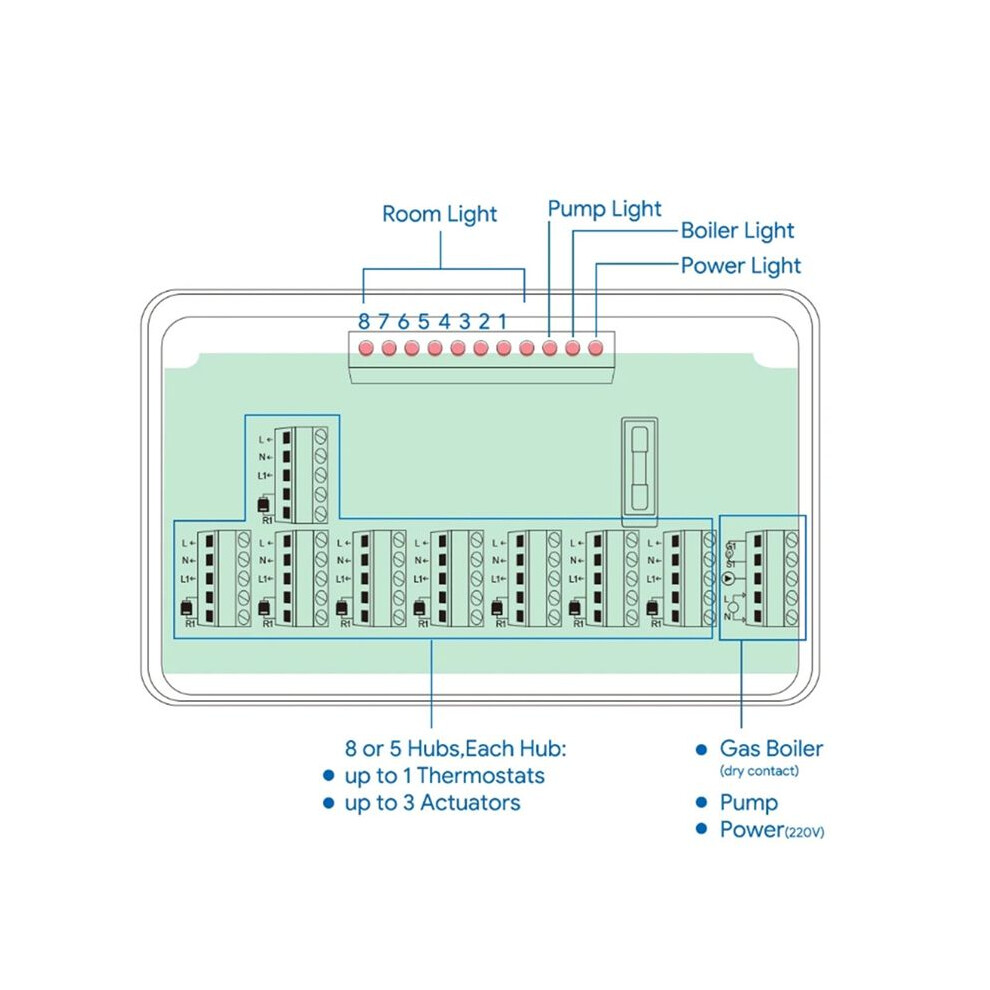

Number of circuits: 5 loops. Maximum number of actuators in a loop: 3. Exit delay: 200S.
Thermostats correspond to zone valves, which are indirectly connected to actuators. to 3NC actuators can be connected to 1 zone.
CCT-25: 5 temperature controllers can be connected. 1 thermostat corresponds to 1 zone valve, and to 3NC actuators can be connected to 1 zone.
Material: Plastic
Color: As shown
Due to different product batches, the appearance may vary, but it will not affect the use

Package Contents:
1 x Heating Controller
