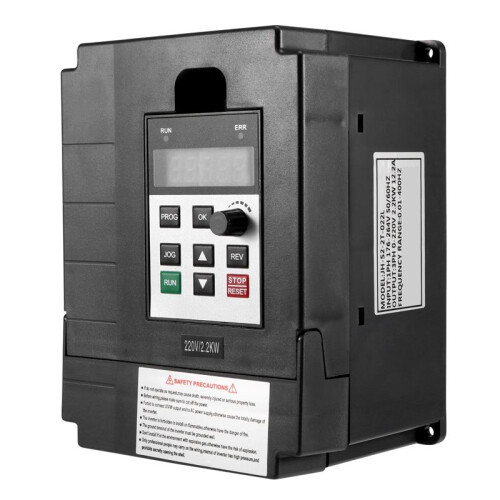

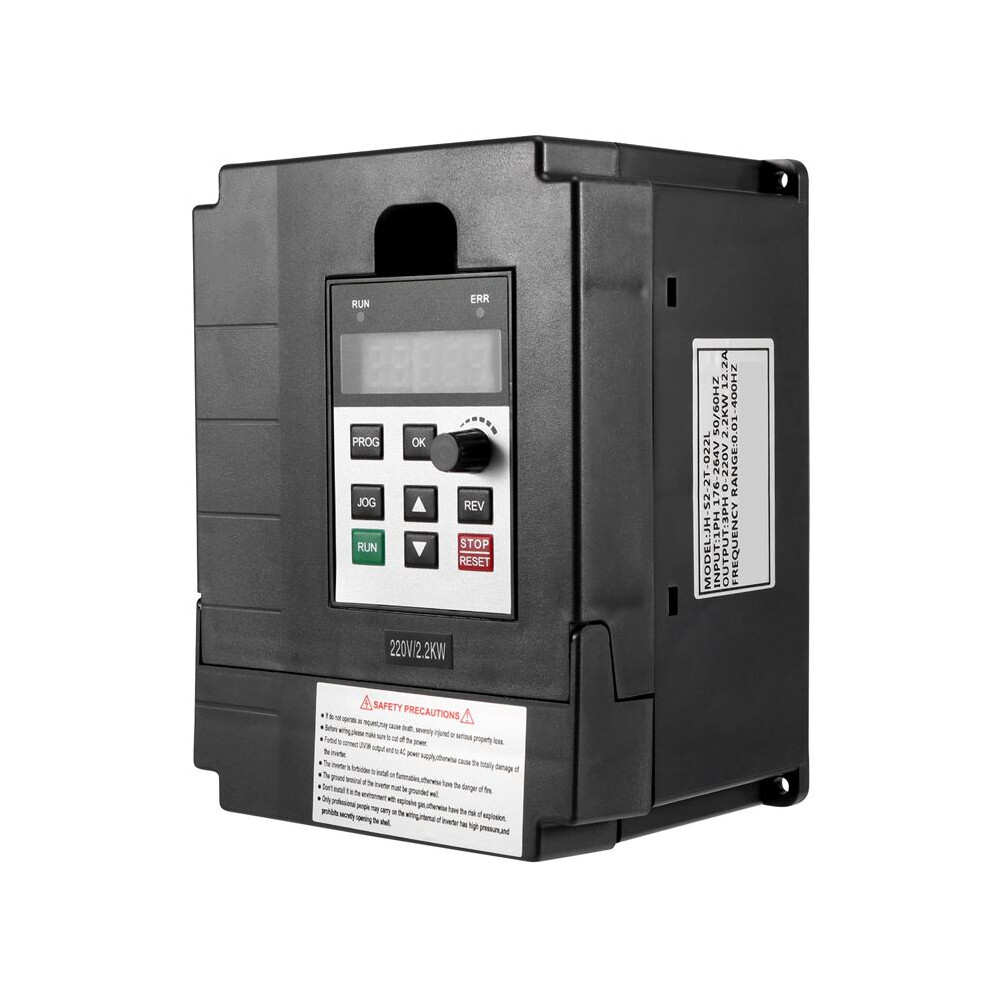

2.2KW 220V Variable Frequency Drive Inverter Single to 3 Phase CNC VFD Universal

2.2KW 220V Variable Frequency Drive Inverter Single to 3 Phase CNC VFD Universal Περιγραφή

The product can be connected with an external controller to realize infinite speed regulation control by 0-5V/0-10V analog voltage input and 0-20mA current signal input.
Frequency converter has quick start-stop response and high low speed torque.The internal protection function of the product has such protection functions as under-voltage, over-voltage, over-current, over-heat, etc.
When short-circuit occurs, it will stop immediately to protect the host (short-circuit protection).The maximum output frequency of the converter is 0-400 Hz.
Frequency converter with multi-function relay transmission, PID function, constant pressure watersupply function.
Inverter built-in temperature detection, internal self-cooling function for the external environment requirements are low.The additional control panel is equipped with external fixed casing support and 1 meter long connecting wire.
This is a kind of fine quality variable frequency inverter, which can be connected with an external controller to realize infinite speed regulation control by 0-5V/0-10V analog voltage input and 0-20mA current signal input. Frequency converter has quick start-stop response and high low speed torque. The internal protection function of the product has such protection functions as under-voltage, over-voltage, over-current, over-heat, etc. You can have a try.
Specification:
Name: Variable Frequency Inverter
Color: Black
Adapt motor power: 2.2kW
Scope of application: Universal
Rated current: 20 (A)
Rated input voltage: Single-phase AC 220 V
Power output phase: three phase
Supply voltage: Low Voltage
Filter: No
Control mode: V/F open loop
Output voltage regulation: PWM control
Colour:black
Material:Plastic + metal
Size:about 160*120*95mm
Package Contents:
1 * Variable Frequency Drive Inverte
