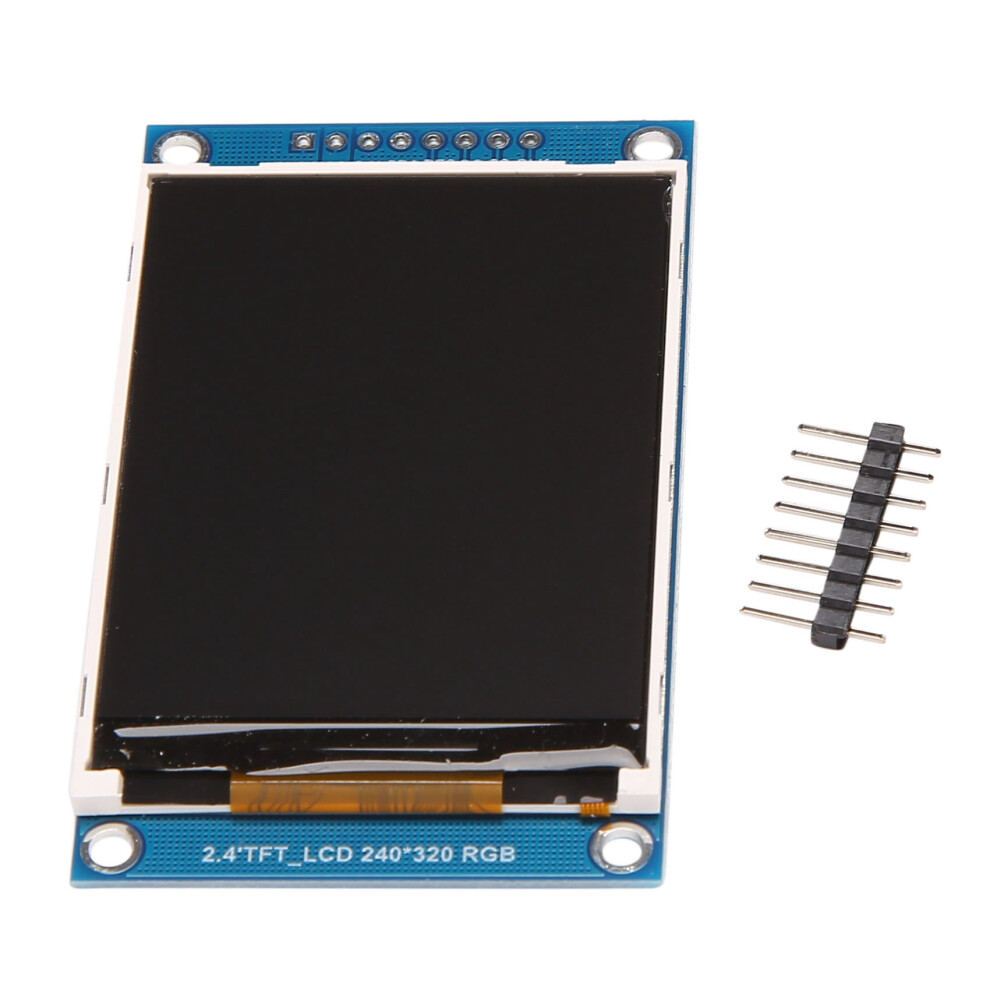

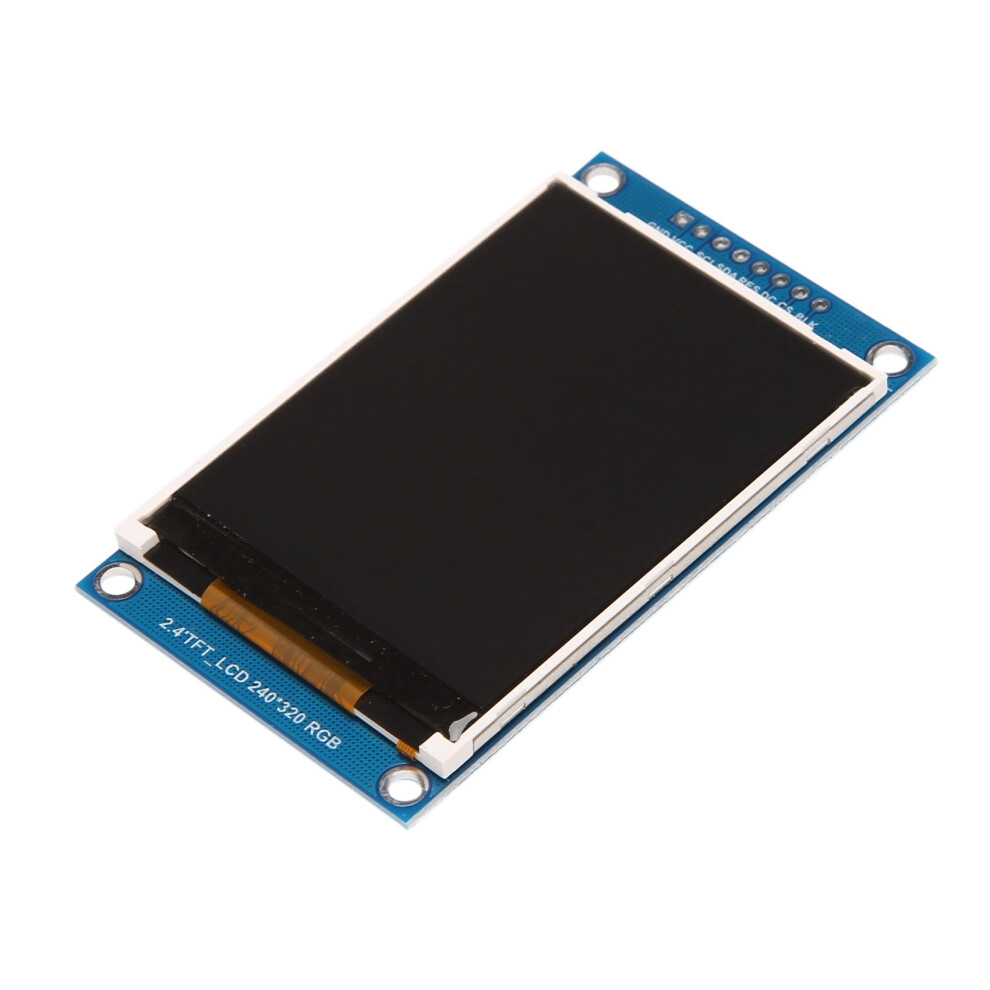

2.4 Inch 240X320 LCD SPI TFT Display Module Driver IC ILI9341 for
New
9,79 €
Παρόμοια προϊόντα που πιστεύουμε ότι θα σου αρέσουν
Would you like us to let you know when it's back?
Περιγραφή & Λεπτομέρειες
Περίληψη
- Size: 2.4 inch
- Drive chip: ILI9341
- Touch type: without touching
- Resolution: 240 * 320
- Communication interface: SPI
2.4 Inch 240X320 LCD SPI TFT Display Module Driver IC ILI9341 for Περιγραφή
Size: 2.4 inch
Drive chip: ILI9341
Touch type: without touching
Resolution: 240 * 320
Communication interface: SPI
Interface description:
1. GND (power ground)
2. VCC (power supply is 3.3V)
3. CLK (clock )
4. MOSI (input data)
5. RES (reset )
6. (data / selection command)
7. BLK (backlight)
8. MISO (output data)
Brooches description:
If you want to save IO port, BLK backlight may not be connected. The system is designed to illuminate the backlight, even if it is not connected. If you need to turn off the backlight, You need to connect BLK low level or directly to ground.
MISO is the screen output signal. If there is no need to read the screen information, this pin can be disconnected. A minimum of 4 IO are required to operate.
Colour:
Material: PCB
Size: 30x40mm
Package Contents:
1 * LCD Display Module
Λεπτομέρειες
| OPC | PWG82VQ |
|---|---|
| Κωδικοί | 6032550387465 (EAN) |
| Πληροφορίες προϊόντος και ασφάλειας |
Στοιχεία Προϊόντος
| Height | 5cm |
|---|---|
| Width | 10cm |
| Length | 11cm |
| Weight | 0.03kg |
| Colour | blue |
| Material | PCB |
