24V Relay Module, 6 Channel SPDT Module with Isolated Optocoupler DIN Rail Mount Pluggable Power Relay Module

24V Relay Module, 6 Channel SPDT Module with Isolated Optocoupler DIN Rail Mount Pluggable Power Relay Module Περιγραφή

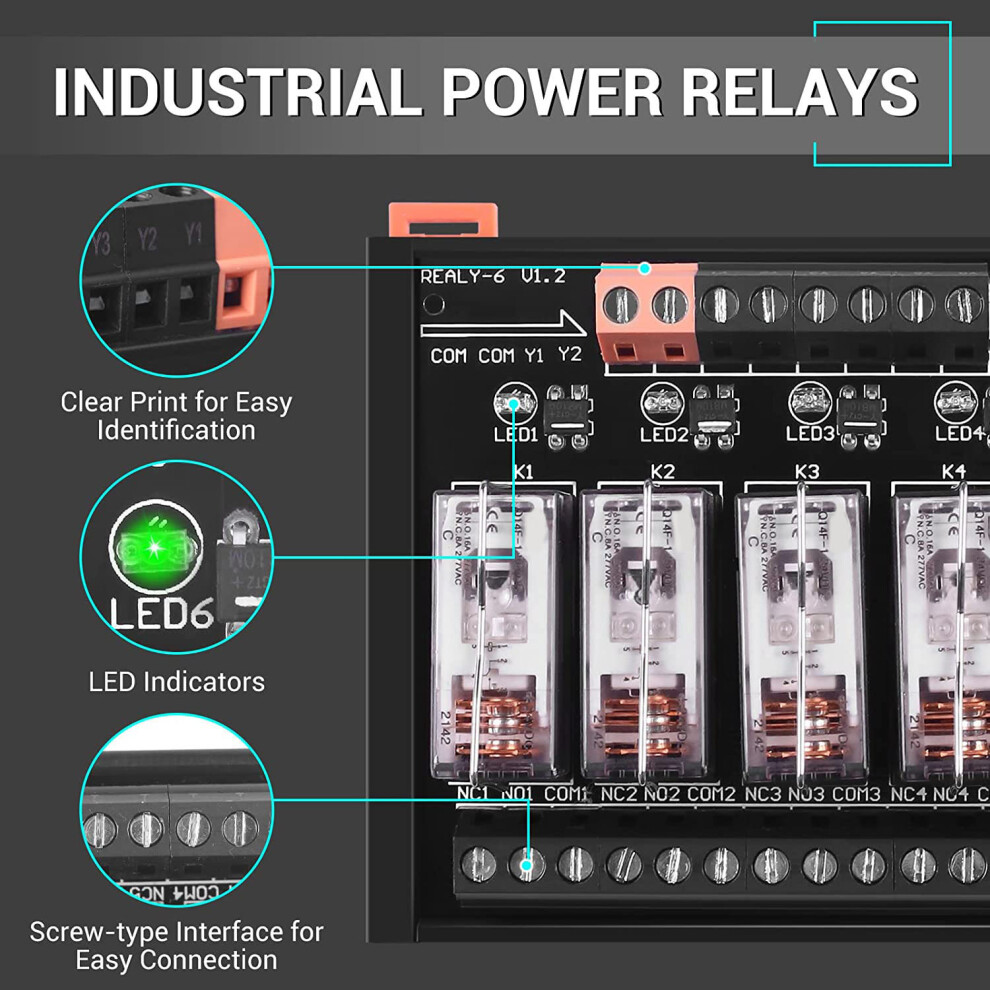

[Industrial Power Relays]Includes 6 channel intermediate relay with SPDT output control terminal. Support AC / control signals and switching current to 16A at 277VAC (or 30VDC)

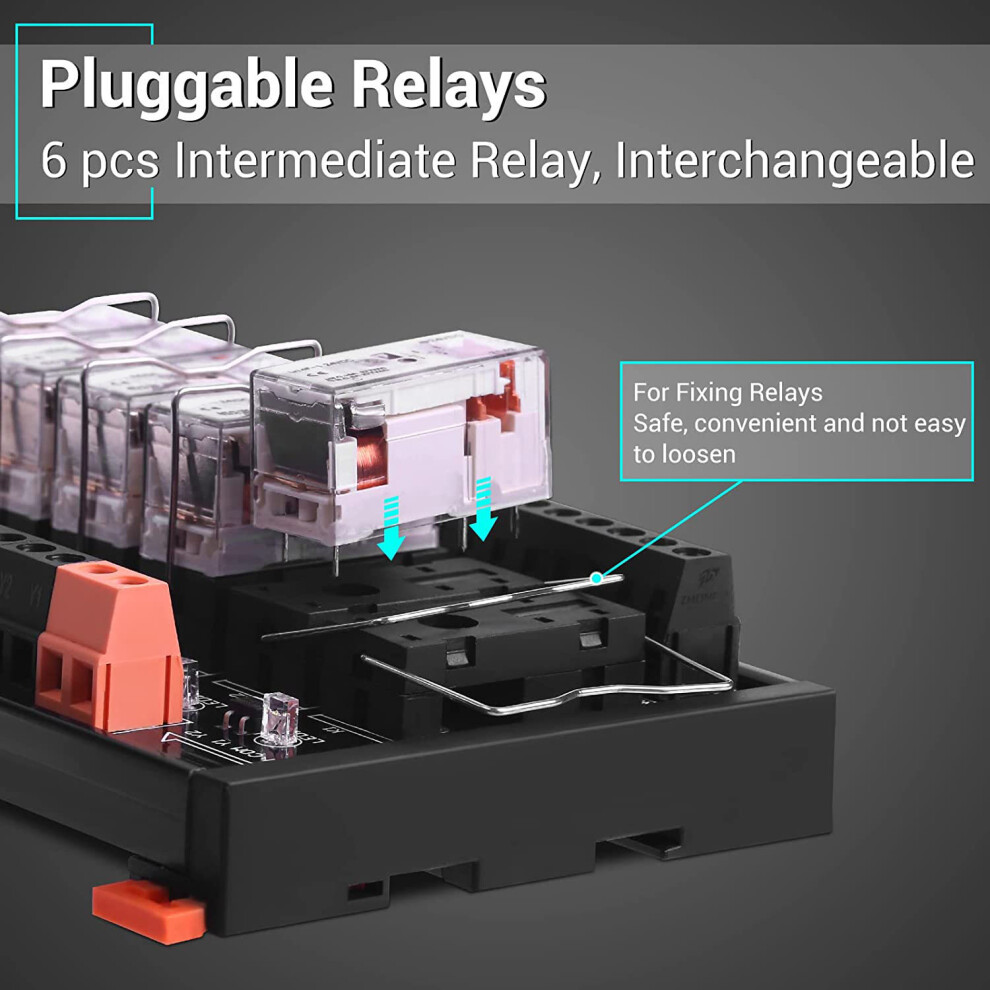

[LED Indicators]There are LED indicators for each relay channel and pluggable intermediate relays, easy to replace
[Optocoupler Isolation Protection]The relay has the characteristics of optocoupler isolation protection to avoid equipment damage caused by high voltage generated during the switching process

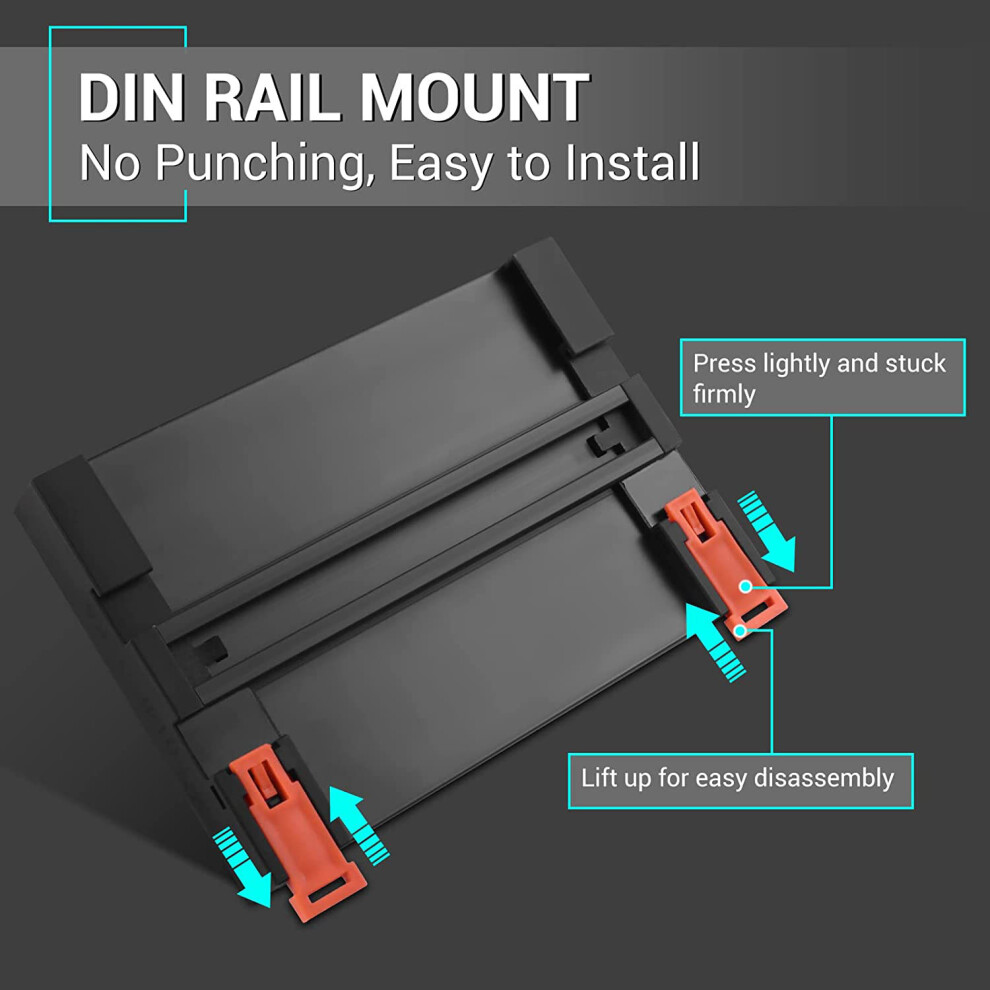

[DIN Rail Mount]The relay adopts the rail installation method to avoid punching holes, directly embedded in the place you want to install, and can be removed at any , which is very convenient. Supports rails with a width of 35mm

Input voltage: 24V
Work current: about 30mA
Output type:Relay output(No voltage output!!!)
Trigger signal type: High Low level signal(24V)
Load power(N.C.): 8A 277V AC (Max)
Load power(N.O.): 16A 277V AC (Max)
Work Temperature:-25~85
Work Humidity:5%~95%RH

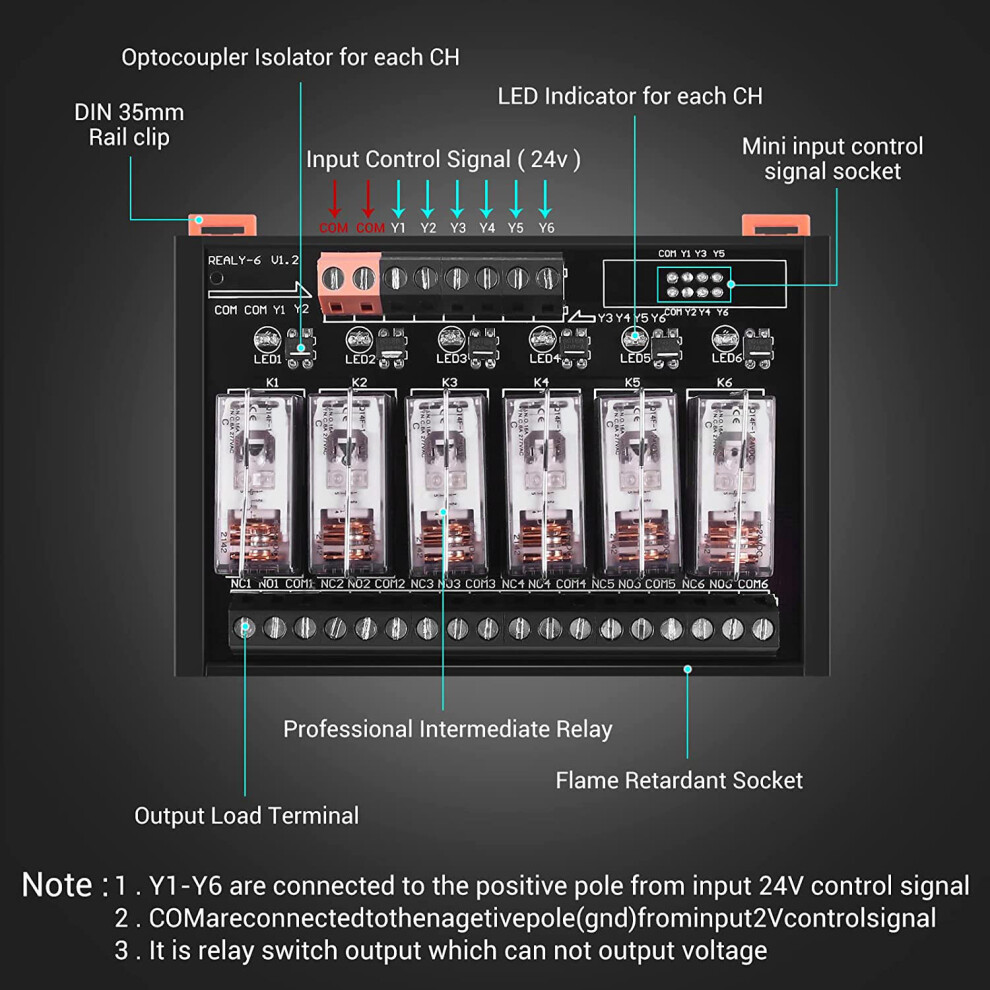

Connection Method
Y1~Y6 : 24V Signal input positive terminal
COM : Orange, Signal input negative terminal
NC1~NC6 : Relay normally close terminal
NO1~NO6 : Relay normally open terminal
COM1~COM6 : Relay common terminal
Pitch 5.0mm/0.197inch screw terminal block

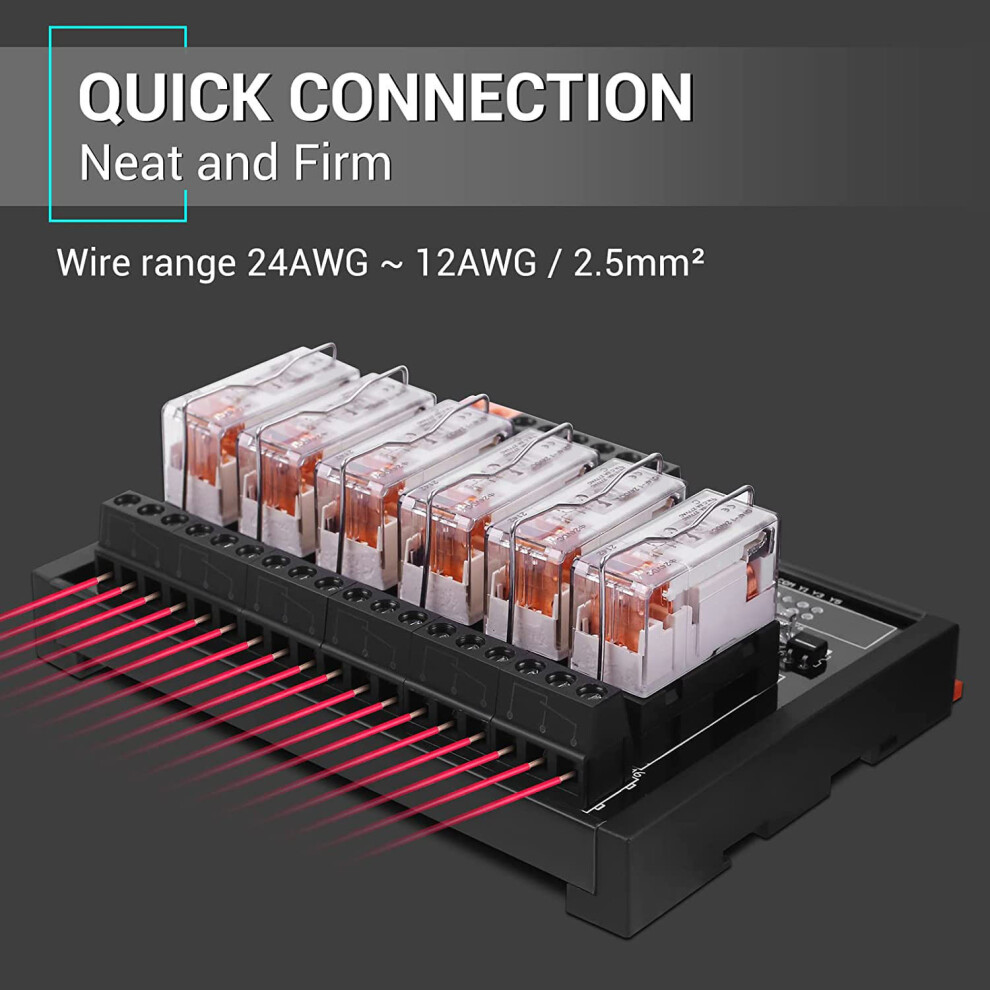

Wire range 24AWG ~ 12AWG / 2.5mm²
Colour: picture color
Material: ABS

Package Contents:
1 * Relay Module
