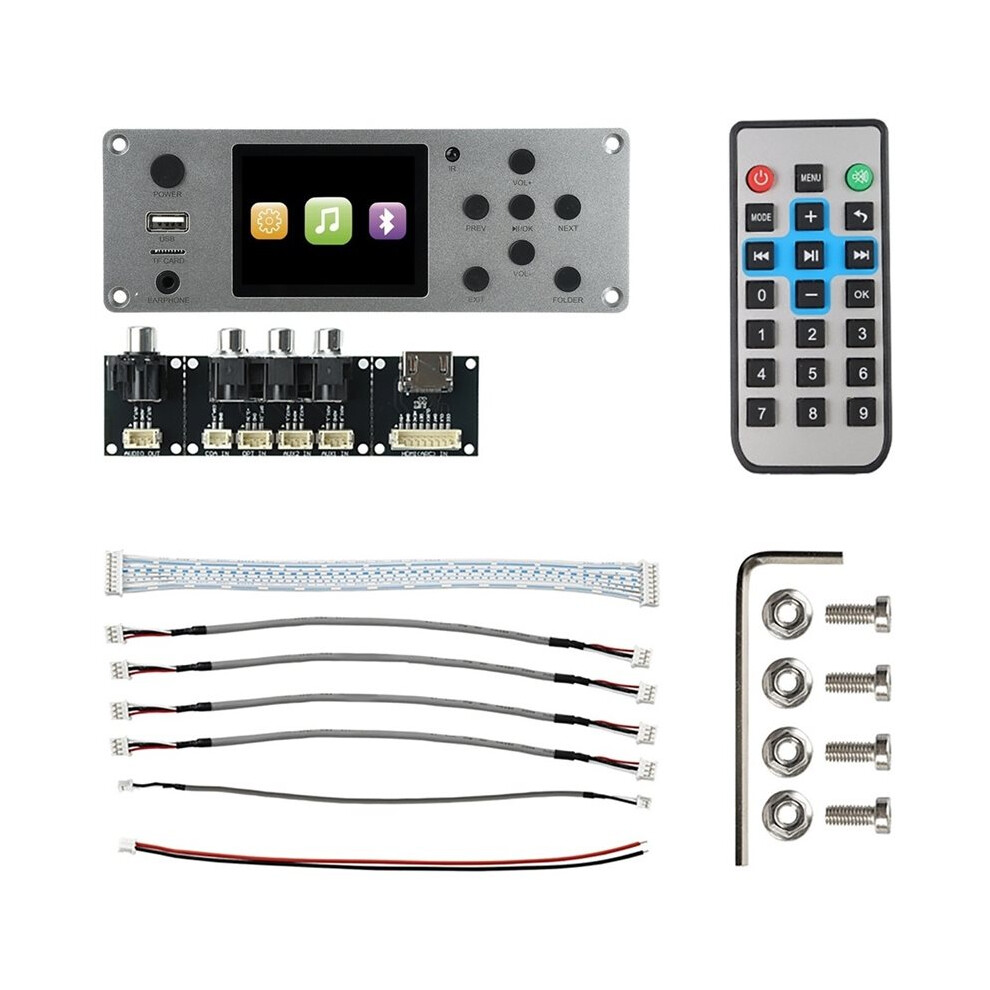

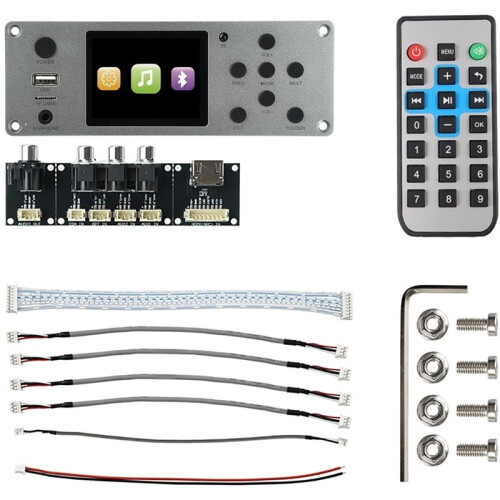

2.8" Color Screen Lossless Audio Decoder Board Car FM Radio Support I2S Digital Audio Output Player Silver

2.8" Color Screen Lossless Audio Decoder Board Car FM Radio Support I2S Digital Audio Output Player Silver Περιγραφή

1. Adopting a 2.8-inch IPS color screen for displaying playback status and decoding related information, supporting switching between Simplified Chinese, Traditional Chinese, and English displays
2. mode, coaxial, fiber optic, SPDIF (ARC), USB sound card digital audio input supports left and right channel envelope display+spectrum display
3. The built-in equalizer is pre-set with 7 EQ scenes and 1 custom EQ scene, which can be well matched with speakers and personal listening preferences to choose and adjust sound effects that suit oneself
4. Supports both analog audio and digital audio (I2S) output functions. Analog audio output can be directly pushed to headphones or connected to the audio input terminal of a power amplifier; Supports decoding file formats MP3/WAV/WMA/FLAC/APE when playing USB/TF cards in music mode
5. Multi functional high fidelity stereo sound decoding board: integrates audio decoding, TF card, USB music file decoding, 2-channel AUX input, coaxial input, fiber optic input, SPDIF (ARC) input, and computer USB sound card

Product Parameters:
Working voltage: 5-12V
Standby current: 50mA
Working current: 50-200mA (only motherboard working current, power consumption varies in different states, excluding peripheral current)
Name: BT Audio (Users can change it themselves)
version: V5.3+BR+EDR
reception distance: about 10 meters
Audio DAC hardware bit width: 32 bits
Output audio channels: 2 channels
Output audio signal level: 2.5Vp-p
Audio output signal-to-noise ratio: SNR 104db
Audio output signal power: 50mW (can support direct push headphones, if you need to push the speaker, an external amplifier is required)
Screen specifications: 2.8-inch 320 * 240 pixel IPS screen
The product contains battery accessori
