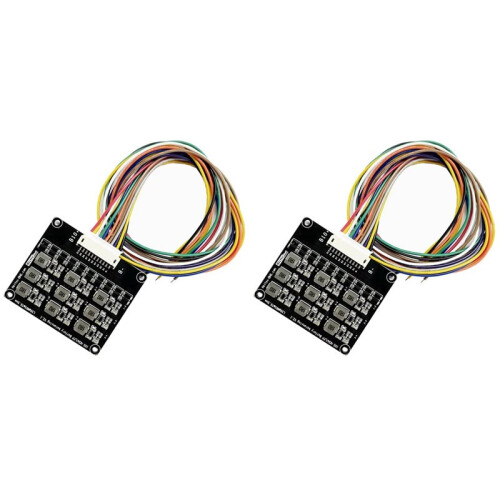

2X 1.2A Lifepo4 Lipo Li-Ion Lithium Battery Transfer Equalizer Inductive Version BMS 10S Active Balancer Board

2X 1.2A Lifepo4 Lipo Li-Ion Lithium Battery Transfer Equalizer Inductive Version BMS 10S Active Balancer Board Περιγραφή

Balance indication: 1. When the equalization light is , the equalization work is turned .
2. The equalization light goes out, the equalization circuit sleeps,
3. The equalization light flashes, the string indication is lost, or the circuit is faulty.

Principle of equilibrium: This module is adjacent to the differential pressure equalization, and the adjacent battery voltage difference reaches 0.1V or more. The internal trigger balance is working until the adjacent battery voltage difference stops within 0.03V. There is an adjacent differential pressure when charging and discharging the battery pack. Trigger equalization, the battery pack voltage error will be pulled back to the ideal value, reducing battery maintenance costs.
Technical Parameters: Working voltage is 2.0V-4.5V, ternary iron lithium battery is common, lithium cobalt oxide battery is not applicable.
Equilibrium current: Adjacent pressure difference is 0.1V or more (current is about 0.5-0.7A);
Adjacent pressure difference is above 0.2V (maximum equalization current is 1.2A);
The smaller the differential pressure, the smaller the equalization current.
Color: Black
Material: ABS

Package Contents:
2 x 10S Active Balancer Board
