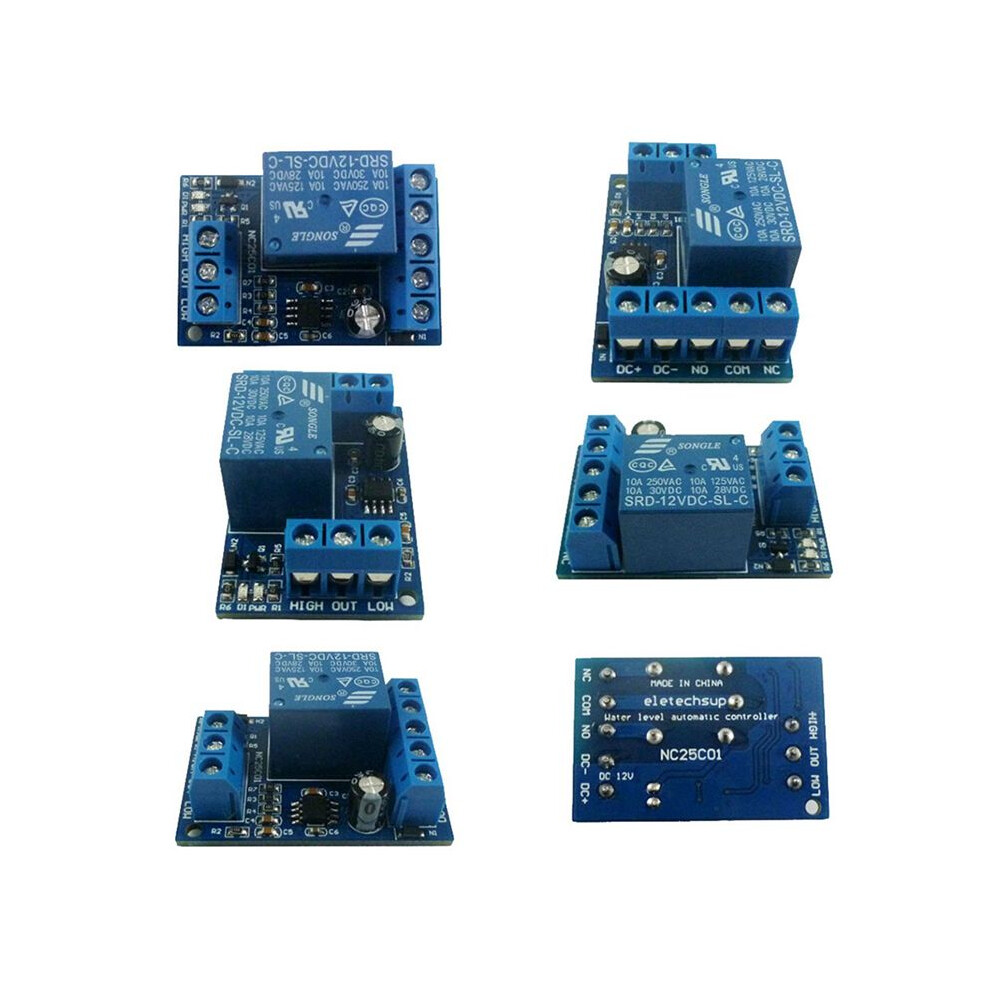

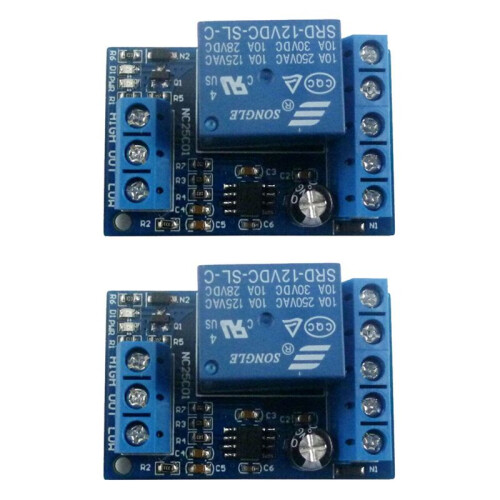

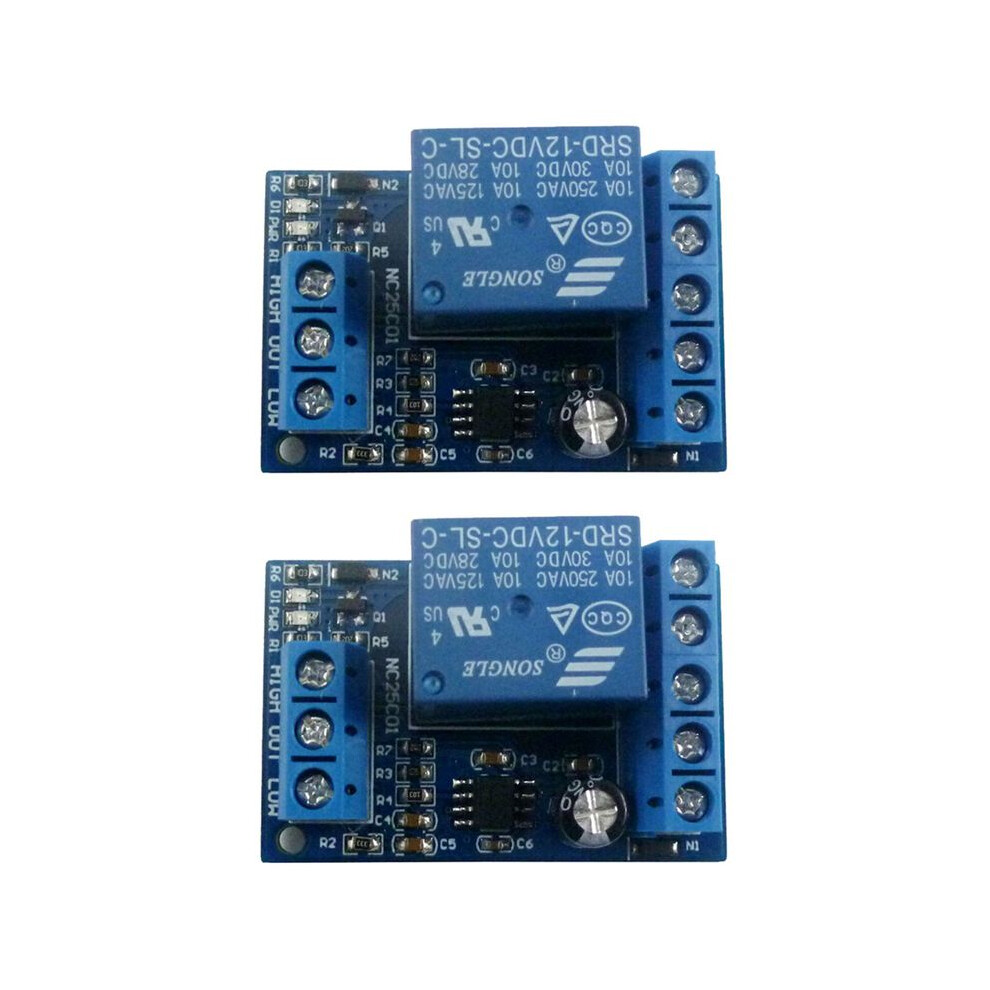

2X 2 in 1 Pump pour Water Automatic Controller DC12V Liquid Level Sensor Relay Module

2X 2 in 1 Pump pour Water Automatic Controller DC12V Liquid Level Sensor Relay Module Περιγραφή

Widely used; Simple and easy to understand; Easy to use; Standby current 9MA; Working current 40MA
Working voltage: 12V ( 10-15V); Standby current: 9MA; Working current: 40MA; Dimensions: 44mm X 29mm X 19mm; Maximum load: 10A/250VAC, 10A/125VAC, 10A/30VDC, 10A/28VDC, 10A/12VDC
There are two purposes for connecting the NO and NC of the relay: The water pump is connected to the automatic water injection tower at the COM NC port. The water pump is connected to the COM NO port and automatically pumps water from the water tower.

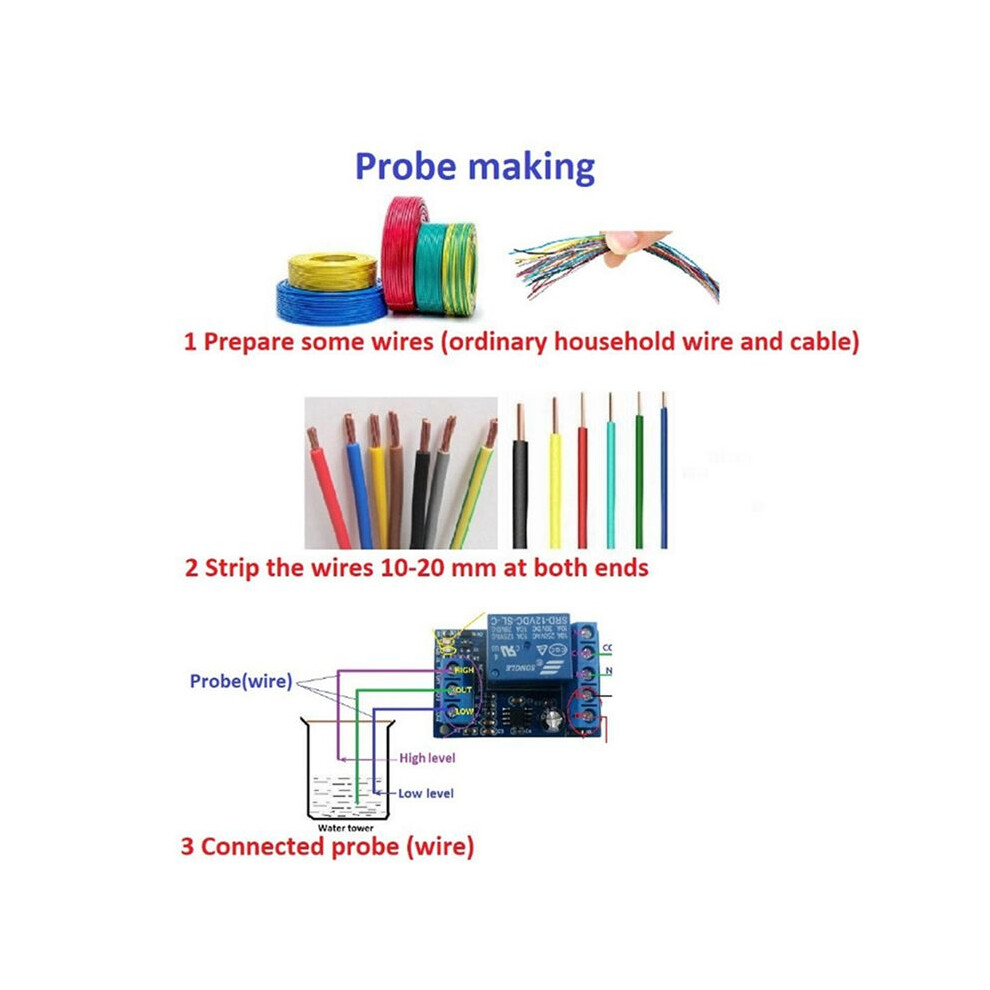

Notes: The probe (wire) is not included in the package. No need to use special probes, use household wires to make probes. For safety, please use a well-isolated power supply.
Application: Automatic water supply system for household water tower; Aquarium fish tank water changing system; Automatic filling of water tower; Automatic pumping of water tower; Conductive liquid automatic control; Automatic feeding system for poultry and livestock; Farm automatic water supply system; And other occasions that require automatic water supply and water change; Solenoid valve water pump motor automatic control.

Interface Description:
HIGH: Upper limit probe
OUT: output probe
LOW: Lower limit probe
+: positive power supply
-: Negative power supply
NC: Relay normally closed contact
COM: Relay common contact
NO: Relay normally open contact
Working principle (automatic water injection tower):
The water level rises: when the water level is lower than the "low level", the water pump starts to supply water to the water tower; when the water level is higher than the "high level", the water pump stops water supply.
The water level drops: When the water level is lower than the "high level", the water pump does not work and the water level continues to drop. When the wa
