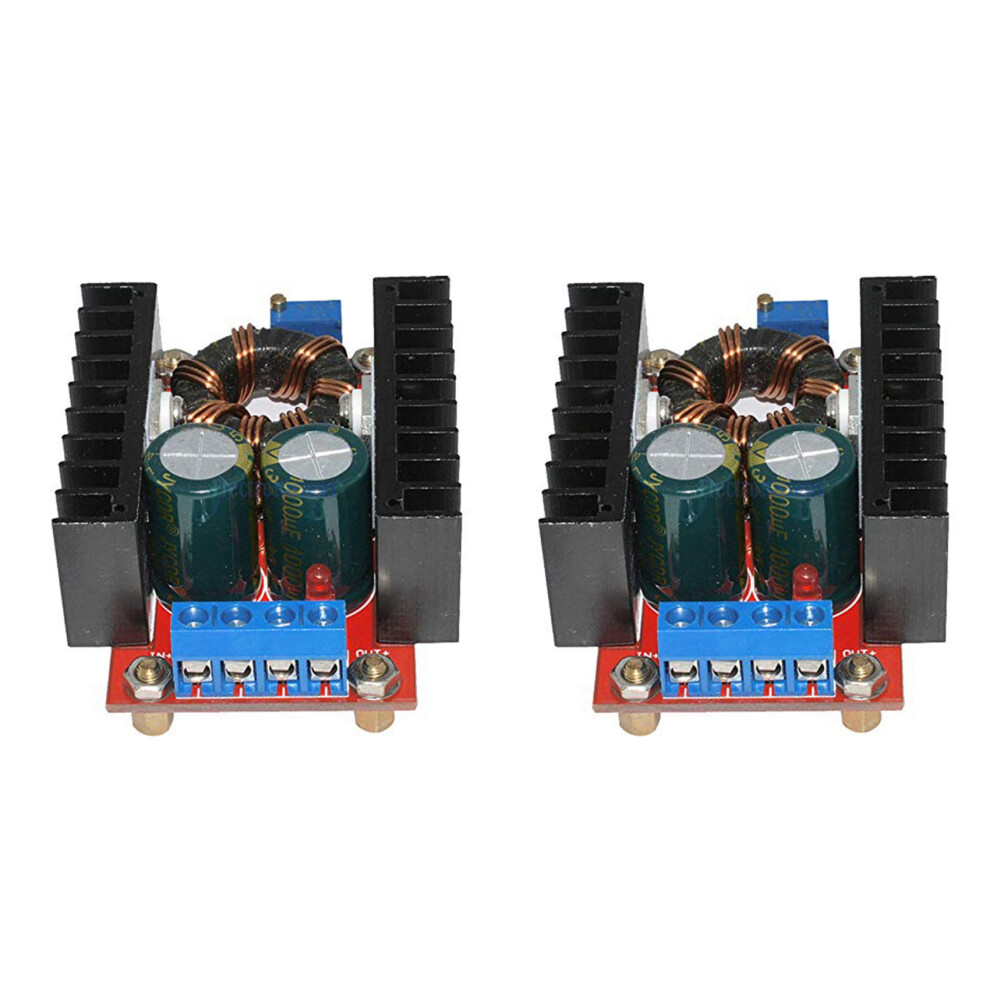

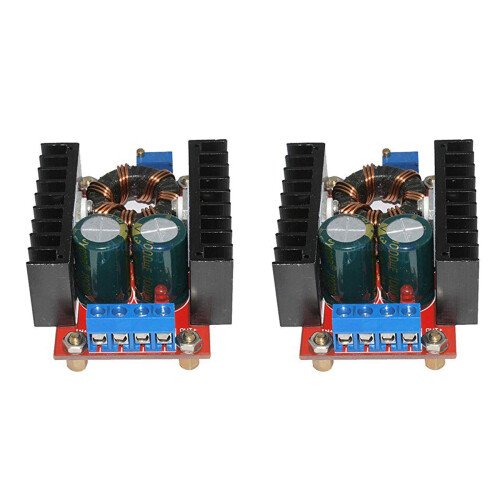

2X - 9A 150W Step-Down Converter 5-40V to 1.2-35V Power Module 12A Step-Down

2X - 9A 150W Step-Down Converter 5-40V to 1.2-35V Power Module 12A Step-Down Περιγραφή

Applications: Vehicle adjustable power supply, connect 12V input, and the output could be 14-35v (vehicle adjustable power supply), however, the output voltage cannot be lower than the input voltage.
Boost charger You can use the 12V power supply to charge the battery more than 12V, for example 24V battery.
Turn your electronic devices as long as you set the voltage to the voltage you need and the current does not exceed the rated current
System-level power supply before, when you are doing a project when the input is 10-18v, and your system board will need about 24v power supply, and the power is large, the use of the power of the Ordinary module is too small, let you choose this module, we will be your best choice, can be used without direct work debugging, easily achieving efficient high-power enhancer.

Input voltage: 10-32V
Output voltage: 12-35V (adjustable)
Output current: 6A (max.)
Input current: 10A (max)
Output power: 100W (max) natural cooling, 150W (max) cooling boost real power.
Conversion efficiency: 94% (when input 19V 2.5a output 16V, reference).
Output ripple: 2% (max.)
Working temperature: industrial (40 to + 85), ambient temperature, winding 40 degrees, reduce the use power or improve cooling).
Full Charge Temperature: 45 degree
No-load current: 25mA typical
Voltage regulation: 0.5%
Load regulation: 0.5%
Dynamic response speed: 200uS 5%
Short circuit protection: Do not install the fuse or protection circuit in the input parts.
Input reverse protection: No (Please comply with a reverse protection or connect a link to the input parts.)
Size: 65x23x56.3mm
colour: as shown
Material: PC+metal

Package Contents:
2 x converter
