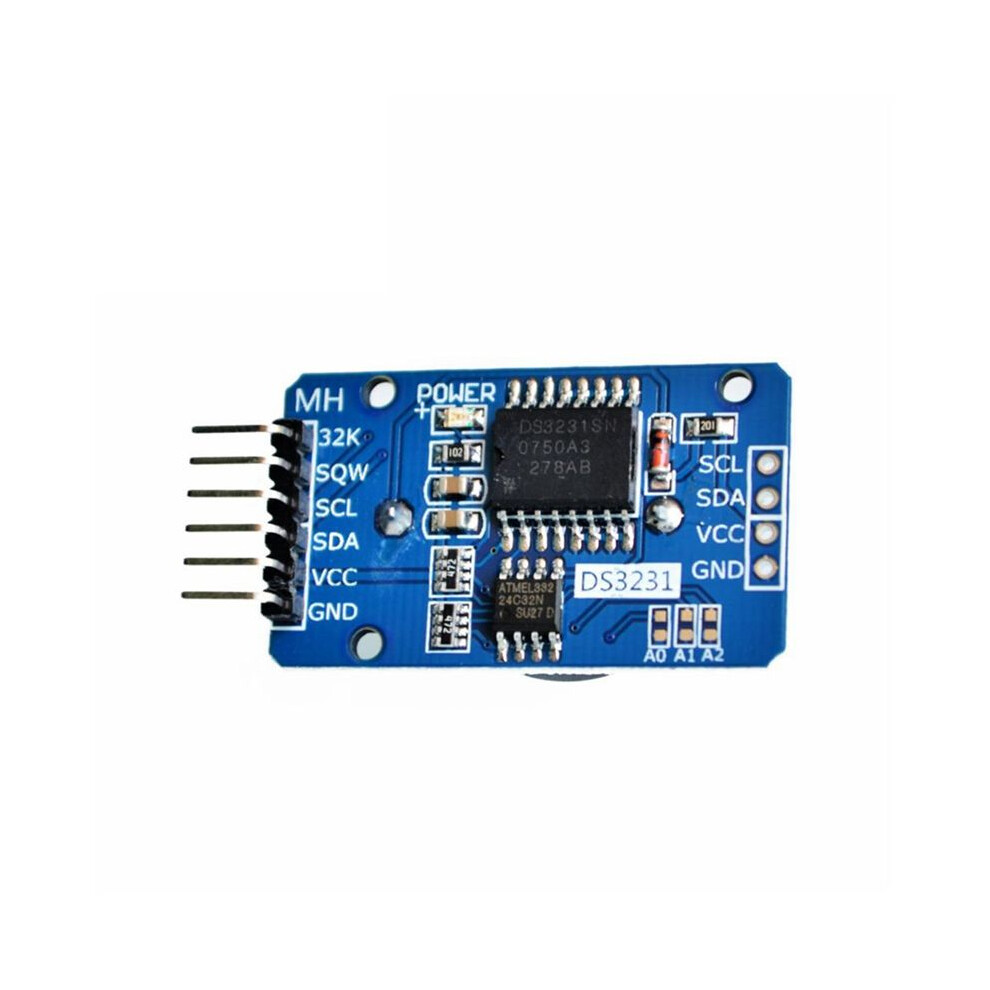

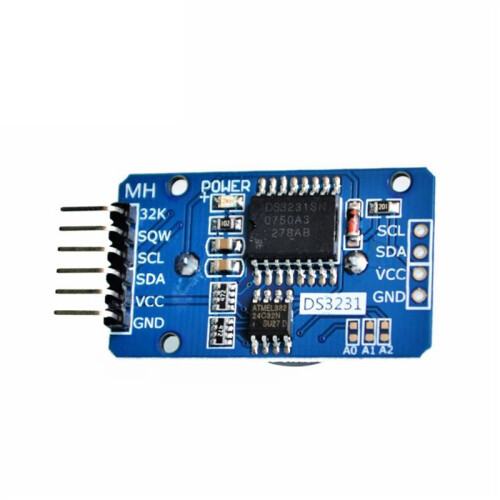

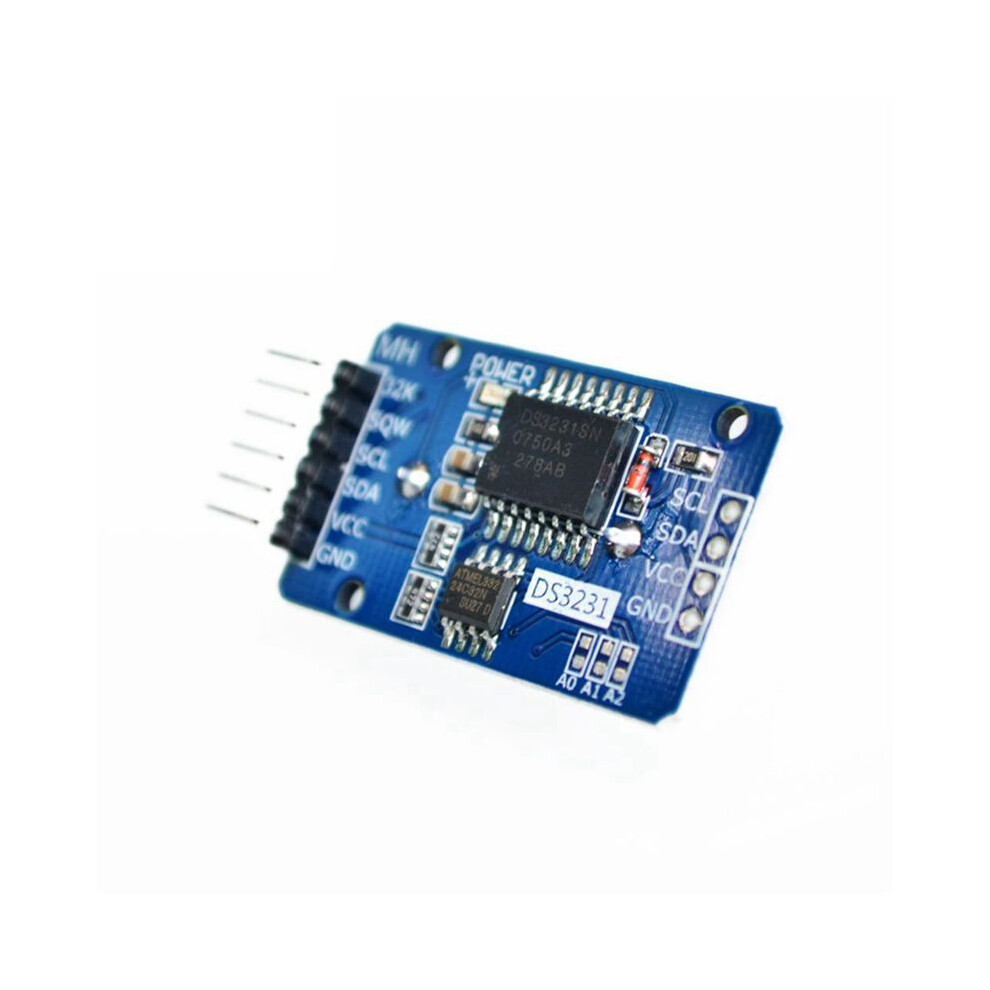

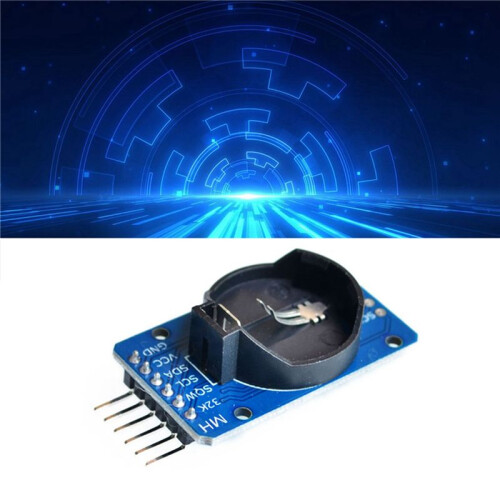

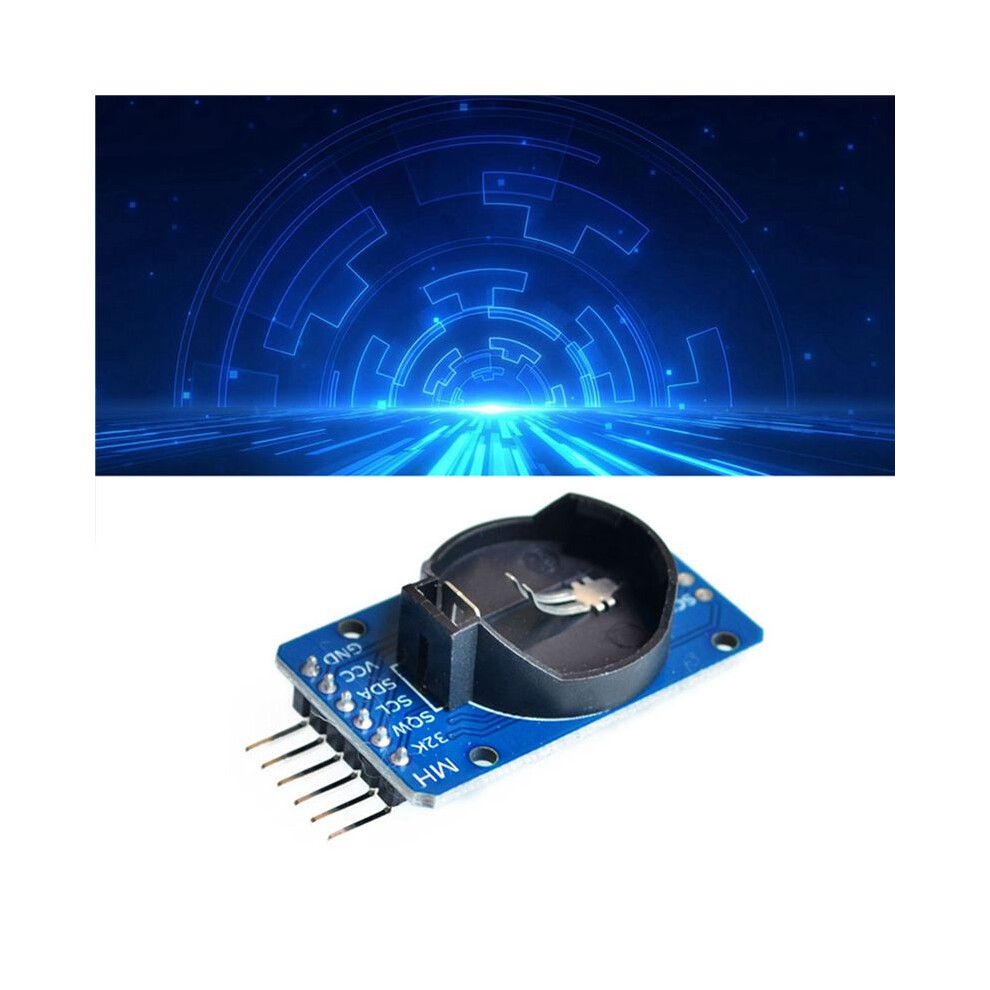

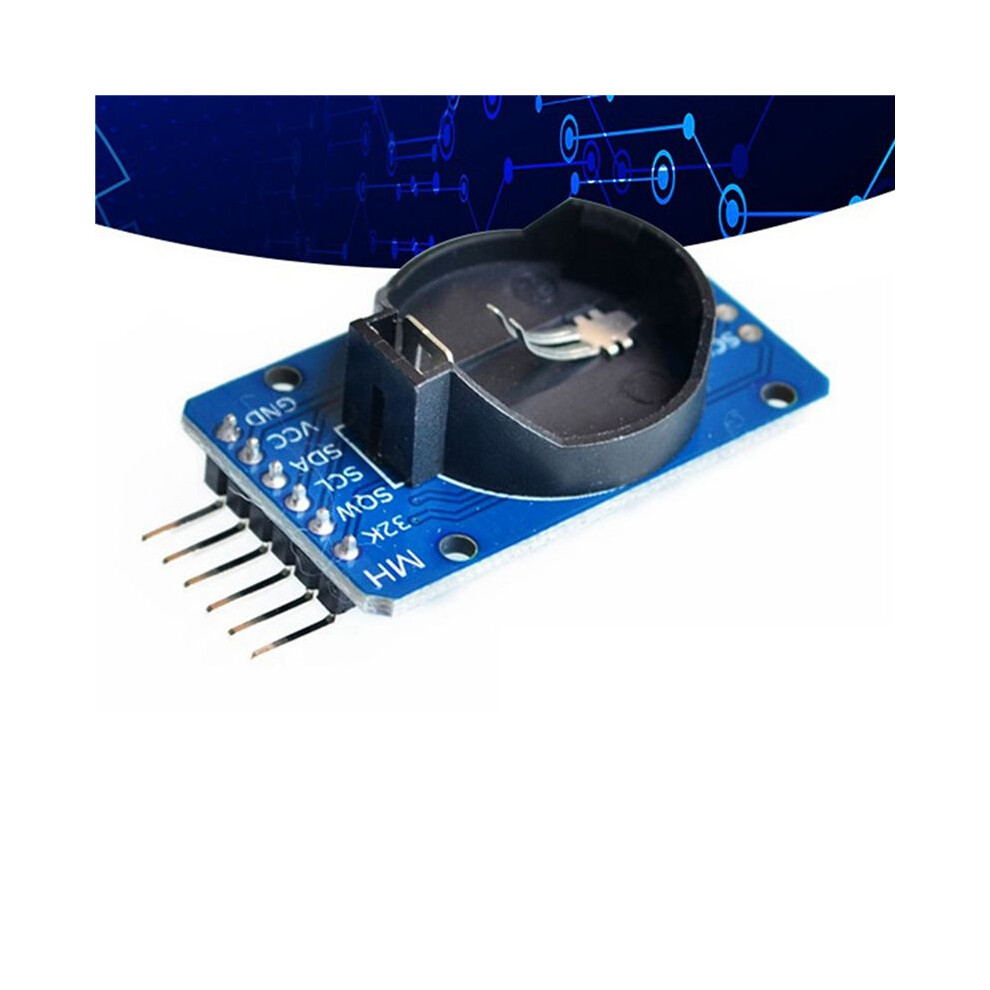

2X DS3231 AT24C32 IIC Module Precision Clock Module Memory 3.3V/5V Temperature Sensor Portable Module
Μάρκα Exogio
Νέο
Σε απόθεμα
Γιατί θα λατρέψεις τις αγορές στην OnBuy :
- Κέρδισε Επιστροφή Ποσού σε κάθε αγορά – ξόδεψε το άμεσα στην επόμενη παραγγελία σου
- Δωρεάν παράδοση – σε εκατομμύρια προϊόντα σε όλο το site
- Οι πελάτες μας λατρεύουν – 126,000 κριτικές με βαθμολογία « Άριστα »
10,44 €
13,20 €
Έκπτωση 21%!
ΔΩΡΕΑΝ Παράδοση
1%
Τι είναι το άμεσο Cashback;
Μάθετε περισσότερα
Οι τιμές για τα είδη που πωλούνται από την OnBuy περιλαμβάνουν ΦΠΑ.
Διαθέσιμες άτοκες επιλογές πληρωμής
Δες την πλήρη περιγραφή & λεπτομέρειες του προϊόντος
Παράδοση: Κανονικό (Δωρεάν) | Τετ 17 - Δευ 22 Ιουν
Επιστροφές: 30 ημέρες
Προστασία πληρωμής 180 ημερών
Τα πιο δημοφιλή στο Θήκες μέσων & αποθήκευση
Περιγραφή & Λεπτομέρειες
Περίληψη
- The DS3231 Is A Low-Cost, High-Precision I2c Real-Time Clock (Rtc) With Integrated Temperature-Compensated Crystal Oscillator (Tcxo) And Crystal. The Device Contains A Battery Input To Maintain Timing When Mains Power Is Removed. Integrated Crystals Improve Device Longevity And Reduce Component Count In Production Lines.
- S3231 Is Available In Commercial And Industrial Temperature Ranges And Is Available In A 16-Pin 30omil So Package. The Rtc Stores Seconds, Minutes, Hours, Day Of The Week, Date, Month And Year Information. Months With Less Than 31 Days Will Have The End Of The Month Automatically Adjusted, Including Corrections For Leap Years.
- The Working Format Of The Clock Can Be 24-Hour Or 12-Hour Format With /Am/Pm Indication. Provides Two Programmable Calendar Alarms And A Programmable Square Wave Output. Address And Data Are Transmitted Serially Through The L2c Bidirectional Bus. A Temperature-Compensated Voltage Reference And Comparator Circuit Monitors Vcc Status, Detects Power Supply Failures, Provides A Reset Output, And Automatically Switches To Backup Power When Necessary.
- The Rst Monitor Pin Can Be Used As A Manual Input To Generate An Mp Reset. In Addition To Its High Timing Accuracy, The Ds3231 Also Has Several Other Features That Expand The System Host'S Additional Capabilities And Options. The Device Integrates A Very Digital Temperature Sensor Which Can Be Accessed Via The I2c x Interface (As Well As The Time). The Accuracy Of This Temperature Sensor Is ±3°C.
- On-Chip Control Circuitry Enables Automatic Power Supply Detection And Manages Power Switching Between Primary Power And Backup Power (I.E., Low-Voltage Battery). If The Main Power Supply Is Lost, The Device Continues To Provide Timing And Temperature With Unaffected Performance. An On-Chip Reset Function Can Be Used To Restart The System Microprocessor When The Main Power Supply Is Re-Applied Or The Voltage Value Returns To The Acceptable Range.
2X DS3231 AT24C32 IIC Module Precision Clock Module Memory 3.3V/5V Temperature Sensor Portable Module Περιγραφή
The DS3231 Is A Low-Cost, High-Precision I2c Real- Clock (Rtc) With Integrated Temperature-Compensated Crystal Oscillator (Tcxo) And Crystal. The Device Contains A Battery Input To Maintain Timing When Mains Power Is Removed. Integrated Crystals Improve Device Longevity And Reduce Component Count In Production Lines.
S3231 Is Available In Commercial And Industrial Temperature Ranges And Is Available In A 16-Pin 30omil So Package. The Rtc Stores Seconds, Minutes, Hours, Day Of The Week, Date, Month And Year Information. Months With Less Than 31 Days Will Have The End Of The Month Automatically Adjusted, Including Corrections For Leap Years.
The Working Format Of The Clock Can Be 24-Hour Or 12-Hour Format With /Am/Pm Indication. Provides Two Programmable Calendar Alarms And A Programmable Square Wave Output. Address And Data Are Transmitted Serially Through The L2c Bidirectional Bus. A Temperature-Compensated Voltage Reference And Comparator Circuit Monitors Vcc Status, Detects Power Supply Failures, Provides A Reset Output, And Automatically Switches To Backup Power When Necessary.
The Rst Monitor Pin Can Be Used As A Manual Input To Generate An Mp Reset. In Addition To Its High Timing Accuracy, The Ds3231 Also Has Several Other Features That Expand The System Host'S Additional Capabilities And Options. The Device Integrates A Very Digital Temperature Sensor Which Can Be Accessed Via The I2c x Interface (As Well As The ). The Accuracy Of This Temperature Sensor Is 3C.
-Chip Control Circuitry Enables Automatic Power Supply Detection And Manages Power Switching Between Primary Power And Backup Power (I.E., Low-Voltage Battery). If The Main Power Supply Is Lost, The Device Continues To Provide Timing And Temperature With Unaffected Performance. An -Chip Reset Function Can Be Used To Restart The System Microprocessor When The Main Power Su
Λεπτομέρειες
| OPC | PT2RHBW |
|---|---|
| Μάρκα | Exogio |
| Κωδικοί | 6032125170058 (EAN) |
Στοιχεία Προϊόντος
| Height | 4cm |
|---|---|
| Width | 2cm |
| Length | 6cm |
| Weight | 0.01kg |
| Colour | As Shown |
| Material | PCB |
