2X DSP Emulator Programmer XDS100 XDS100V2 JTAG Debugger Suitable for TI ARM9 A8 TMS320 TI DSP CCS5-CCS10

2X DSP Emulator Programmer XDS100 XDS100V2 JTAG Debugger Suitable for TI ARM9 A8 TMS320 TI DSP CCS5-CCS10 Περιγραφή

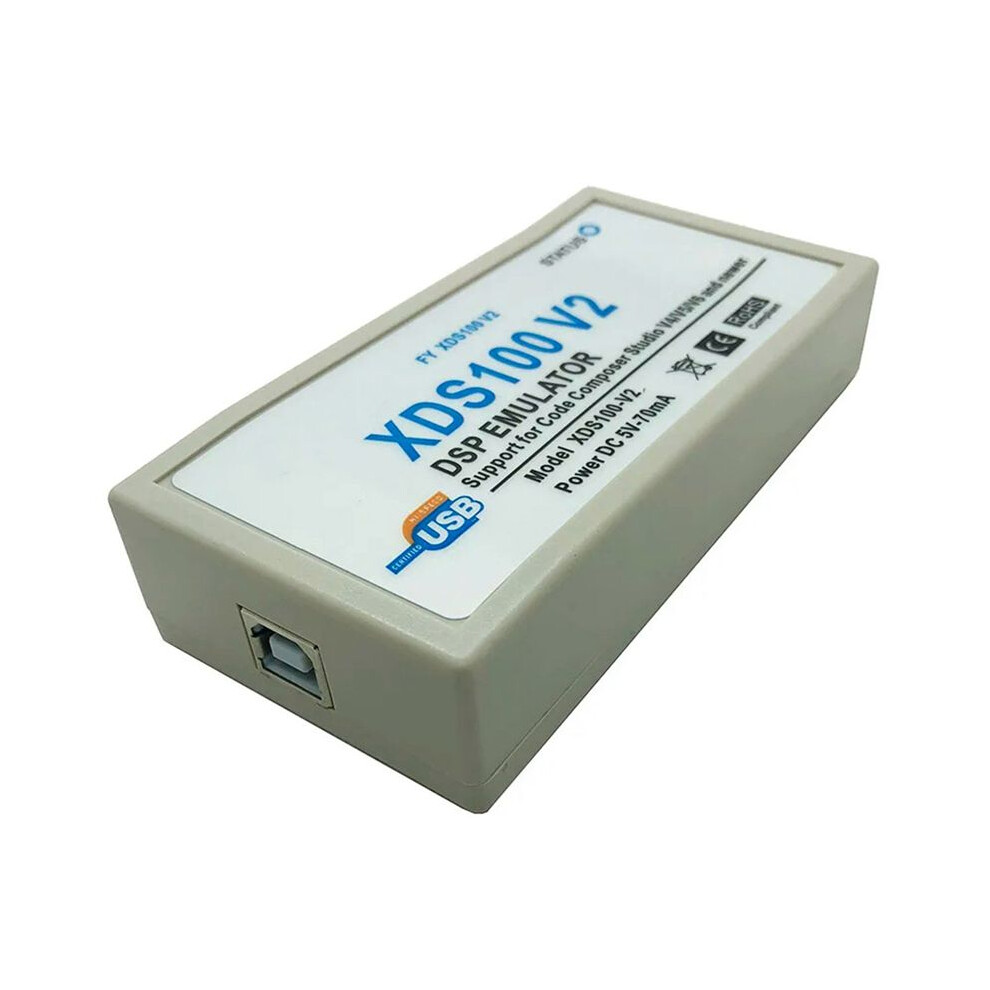

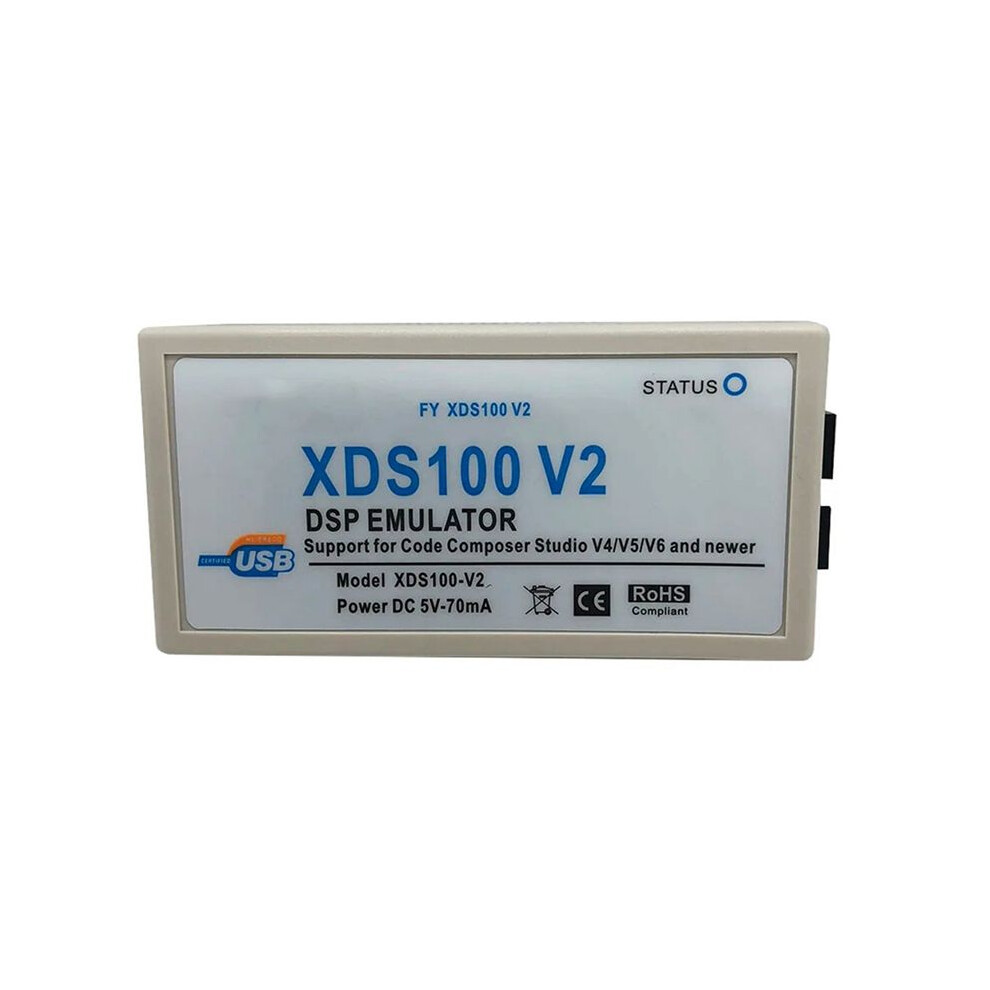

The XDS100v2 emulator is the second version of the XDS100 JTAG emulation technology and supports various chip debugging for TI.
Support USB2.0 high-speed interface, theoretical speed to 480M/s, through the 14PIN interface for simulation debugging,
Code Composer Studio (CCS) V4, V5,V6,V7,V8,V9,V10 and later is supported.
It can be used in Windows 2000, XP, Vista, WIN7/8, WIN10 and other operating systems.
The XDS100V2, which follows the official scheme, has the same performance in terms of speed and compatibility. The supported devices are the same.

Features
Support for the following processor cores: TMS320C28x, TMS320C54x, TMS320C55x, TMS320C64x+, TMS320C674x, ARM 9, ARM Cortex R4, and ARM Cortex A8.
Debugging function(connect / disconnect, read / write memory, read the register, load the program, run, stop steps to support the breakpoint debugging, real- mode)
Supports -Chip Flash Programmer(e.g. C2000)

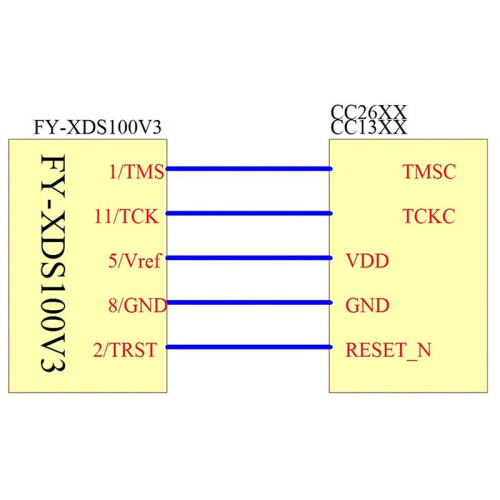

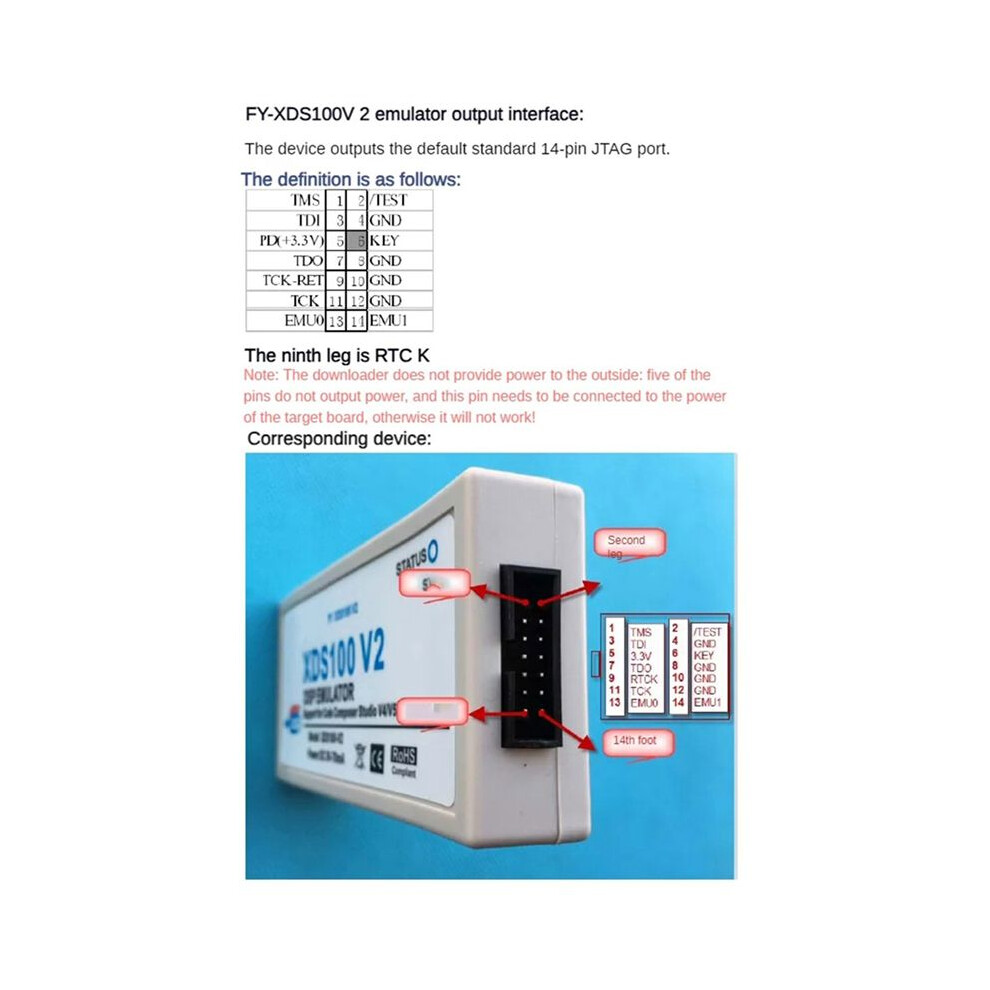

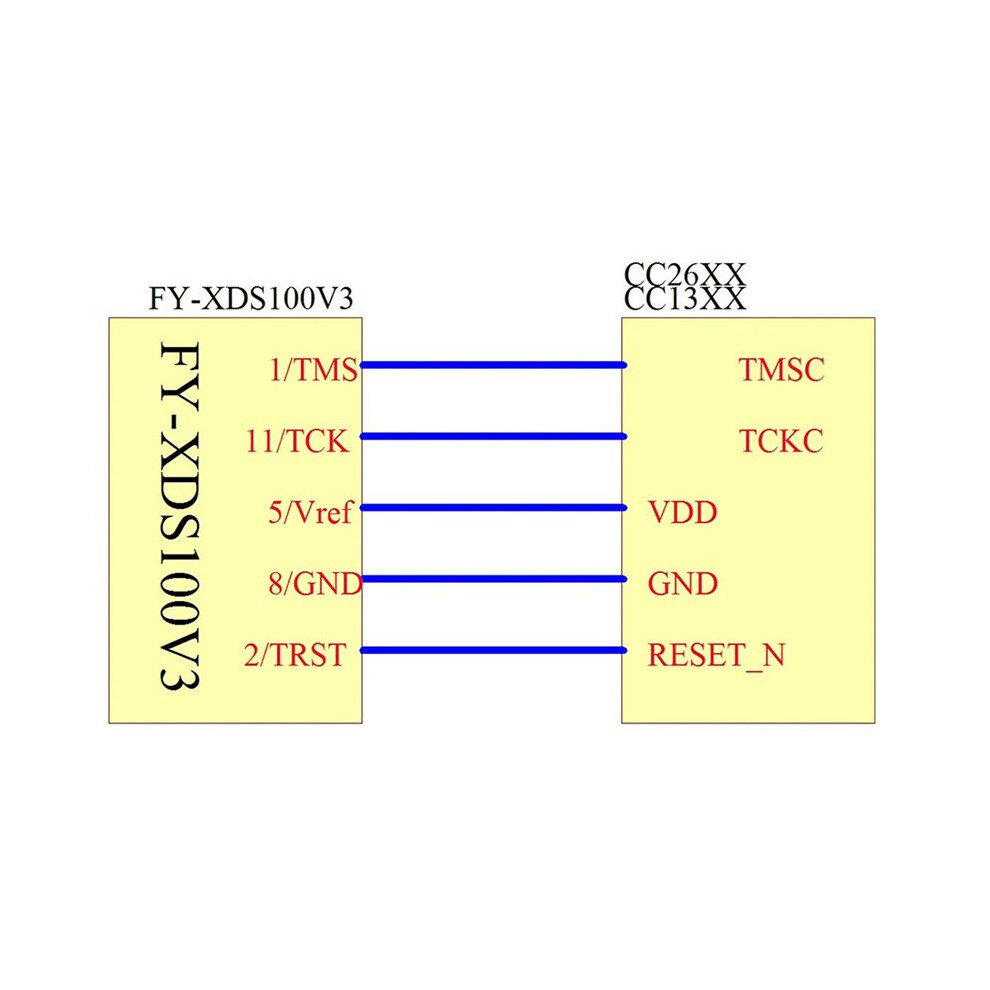

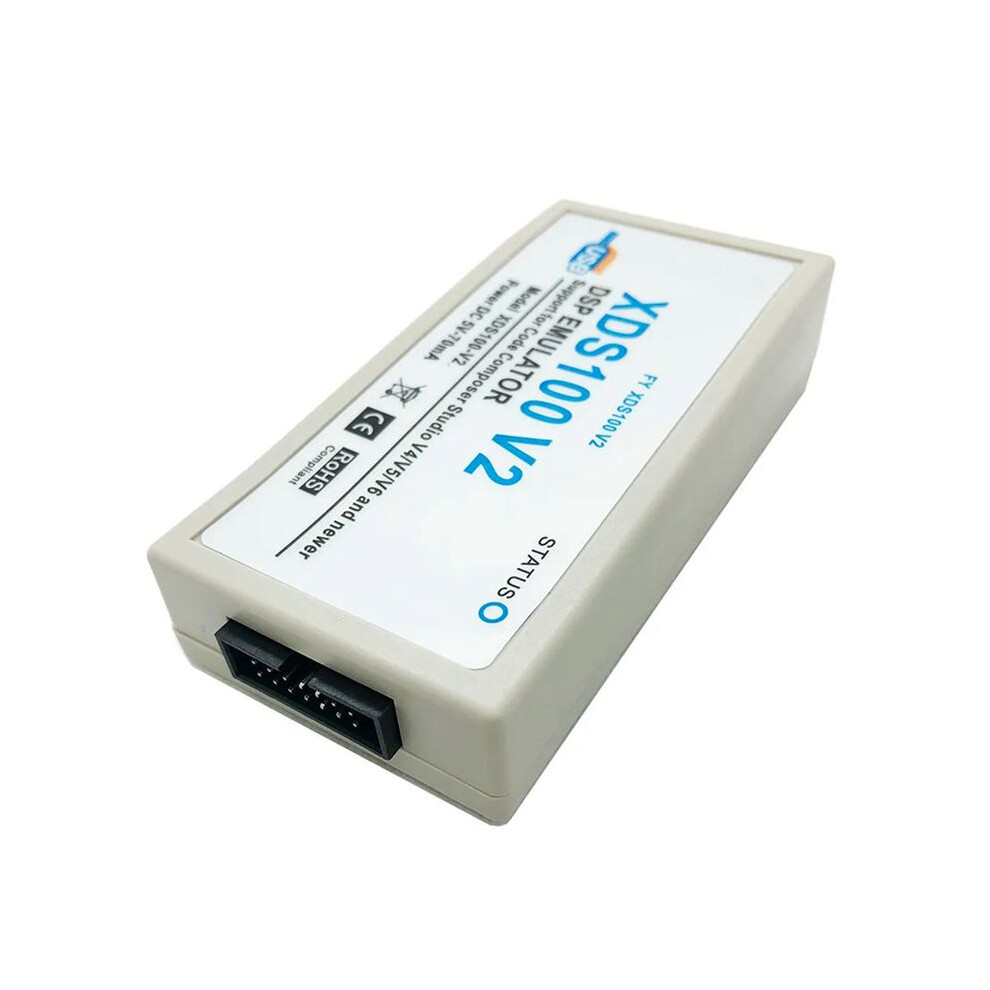

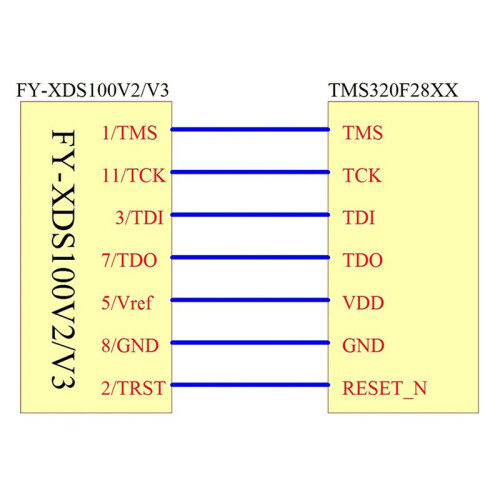

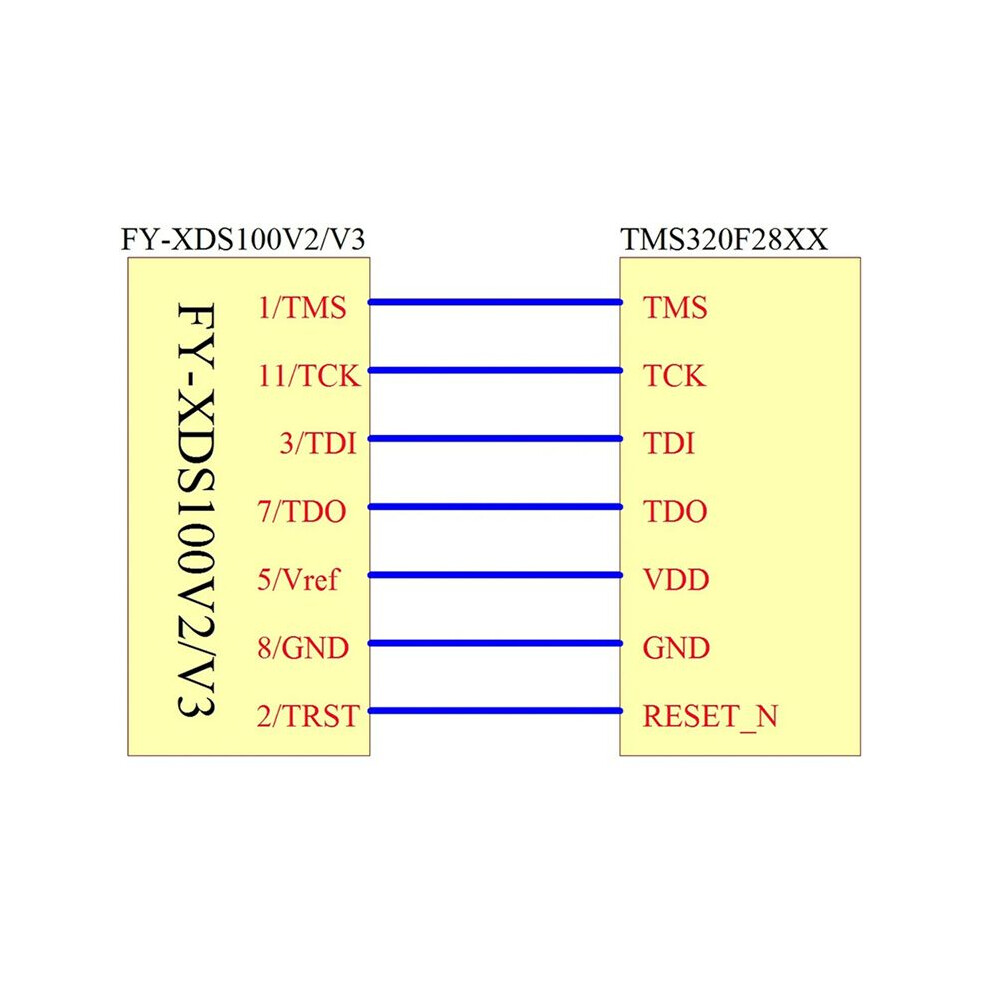

Support targets with 14-pin TI JTAG connector as used by Texas Instruments embedded processors.
Support for USB2.0 High Speed (480 Mbit/s)
Support for Code Composer Studio v4 and newer (Does not support Code Composer Studio v3.3)
Support CCS5.2
Support for power-off test and Adaptive Clock
Support for Windows XP/Vista/Win7
Material: abs
colour: As shown

Package Contents:

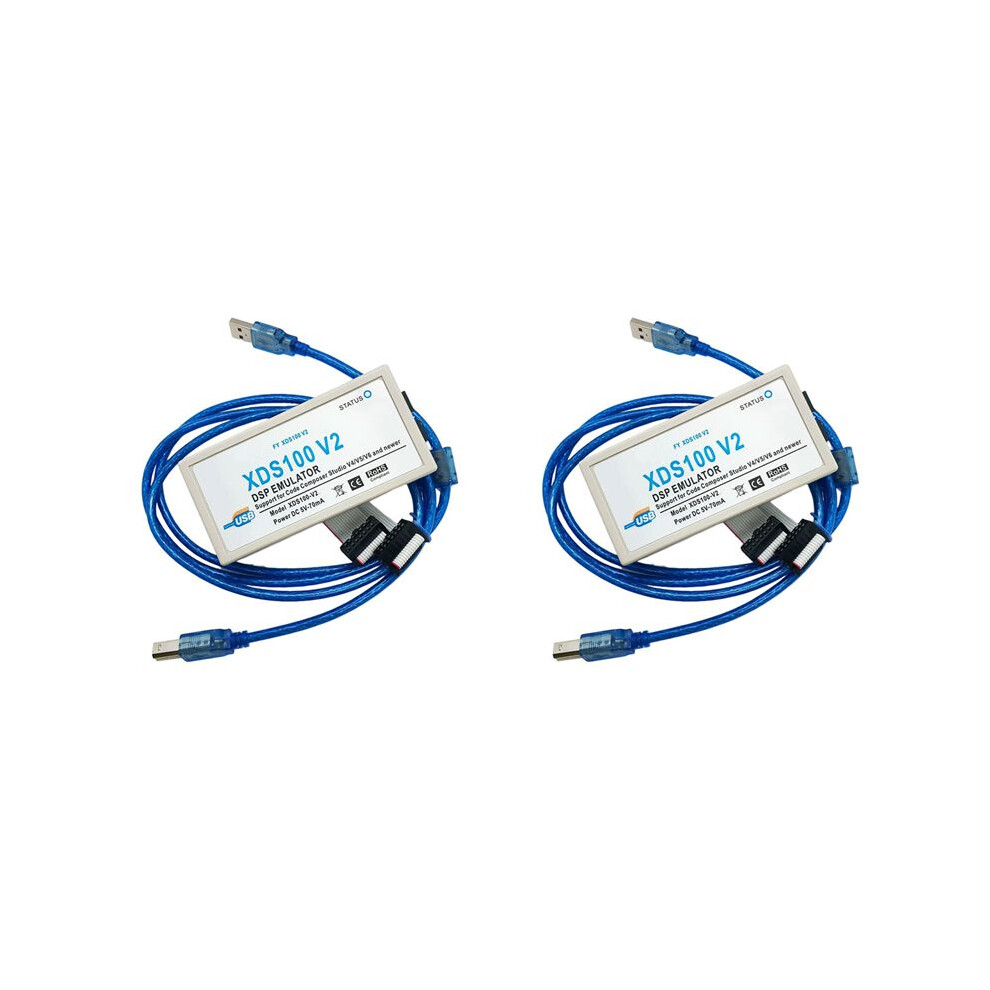

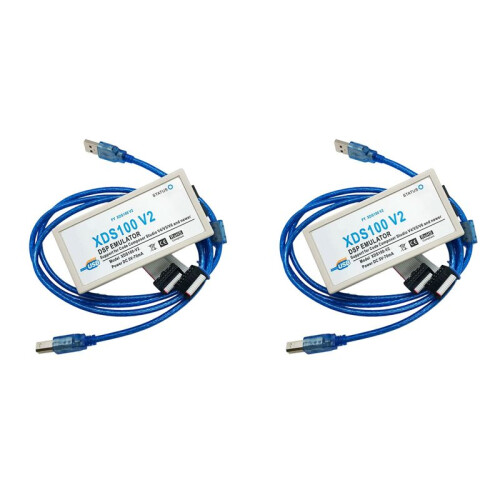

2 set x DSP emulator
