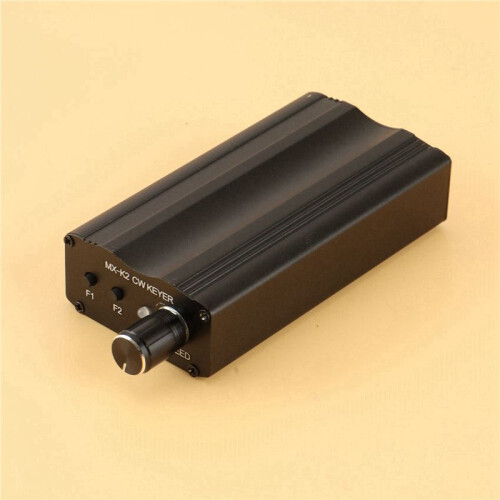

2X MX- CW Keyer Automatic Key Controller Morse Code Auto Memory Key Controller for Radio Amplifier

2X MX- CW Keyer Automatic Key Controller Morse Code Auto Memory Key Controller for Radio Amplifier Περιγραφή

With storage and segmented memory function, commonly uses statements for storage.
Only two buttons and a for easy operation.
Includes power-off protection function, super power saving.
Adjustable speed , the potentiometer of the control board can be adjusted anytime.
Power Supply: 2 x AAA Batteries (NOT Included)

How to use:
J1:buzzer mute
L/R:di/da or da/di
F1 key can remember 60 words ,and it has power-off protection fuction.
F2 key can remember 50 words , it doesn't protect the data when the power fails.
R3 key is for speed control, speed getting fast when the value of R3 getting down.
Record: Keep pressing F1 /F2 for more then half second, you will hear 'M', now it records CW automatically.
When it is all done, press F1/ f2, you will hear "S".
It will remind you by "F" if you exceed the volume, and the extra par
t will noe be recorded.
Message: Every message can not only be storaged by a long memory, it also can be separate into several
parts by inputing EOM (End of Message)at the end of every segmentation.
the segmentations: If you want the second segmentation, just press the memory key 2 times; if you want the third one,
then press the key 3times, et cetera .
Command mode:press F1 AND F2 at the same , you will hear "C",now it is under the mode of command
End command mode: press F1 and F2 at same again, or you can input "D" by pressing the auto key
Colour: black
Material: metal

Package Contents:
2 x Morse Code Auto Memory Key Controller
