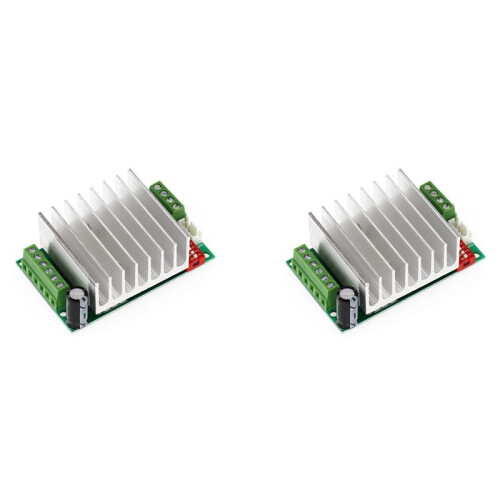

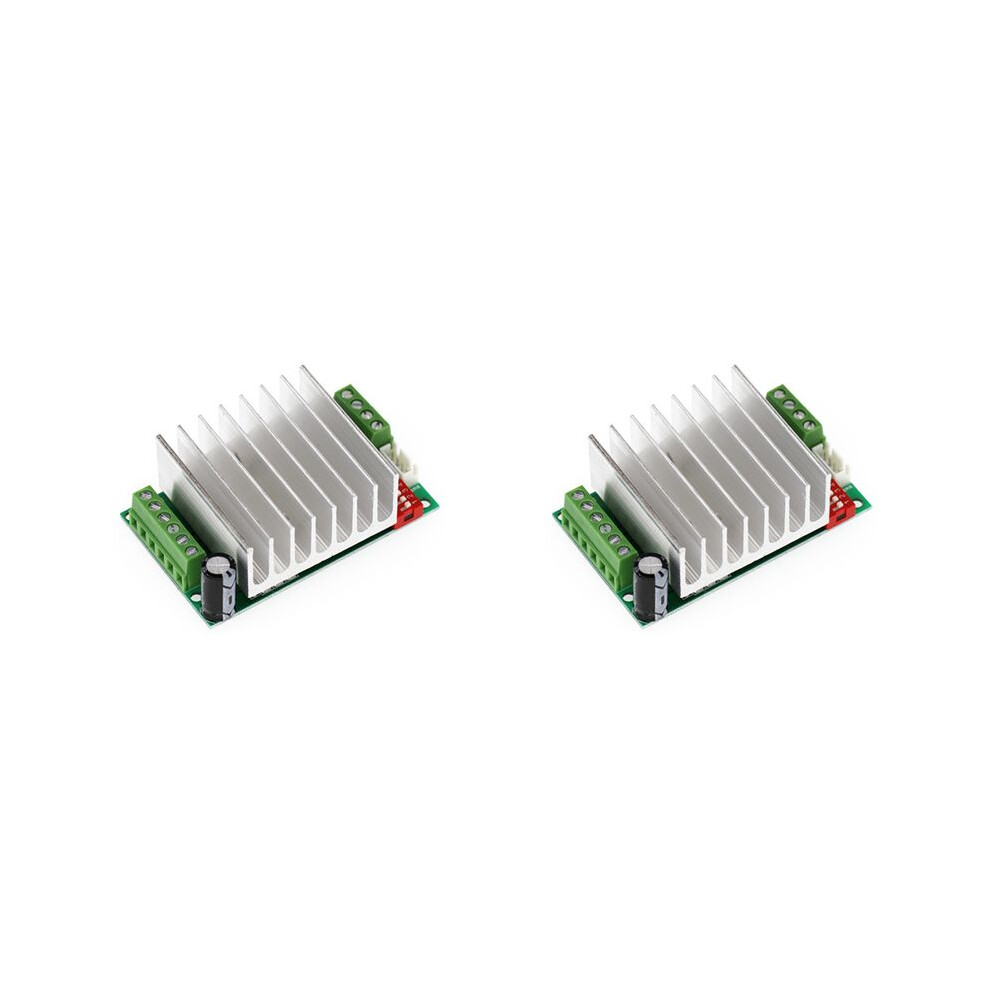

2X TB6600 4.5A Stepper Motor Driver Board Controller Replace TB6560 Engraving Machine Single Axis Controller 10-45V

2X TB6600 4.5A Stepper Motor Driver Board Controller Replace TB6560 Engraving Machine Single Axis Controller 10-45V Περιγραφή

1. The output current is steplessly adjustable to meet your various application needs.
2. Automatic semi-flow function. And it is equipped with an automatic half-flow , which is easy to use.
3. 6N137 high-speed optical coupling is used to ensure high-speed without losing step.
4. The subdivision setting instructions are printed the back of the board.
5. Adopt enlarged radiator for good heat dissipation. With output short circuit protection function, worry-free use. Adopt common anode input mode, there are two input terminals, wiring is more convenient.

1) Working voltage 10V-45V. It is recommended to use a switching power supply DC32V for power supply.
2) 6N137 high-speed optical coupling is used to ensure high-speed without losing step.
3) Using 's new high-current, high-voltage TB6600HG new original chip, there are low-voltage shutdown, overheating shutdown and overcurrent protection circuits, and short circuit protection is added compared to TB6560.
4) Rated maximum output: 4.5A.
5) Suitable for 42, 57, 86 two-phase/four-phase/four-wire/six-wire stepper motors within 4.2A.
6) Automatic half-flow function.
7) Subdivision: full step, half step, 1/4 step, 1/8 step, 1/16 step, 16 subdivisions.
size: 50 x 82 x 35MM
Material: PCB
colour: green + silver

Package Contents:
2 x TB6600 Stepper Motor Driver Board
