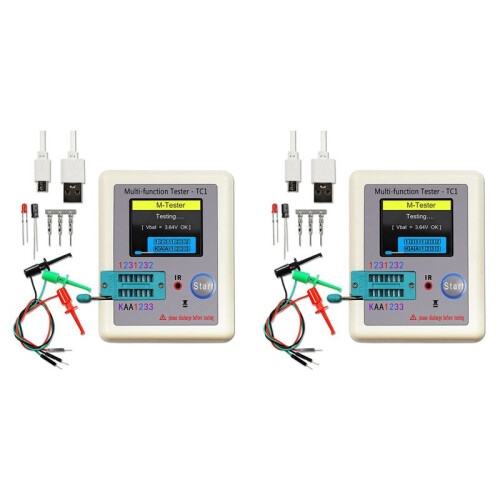

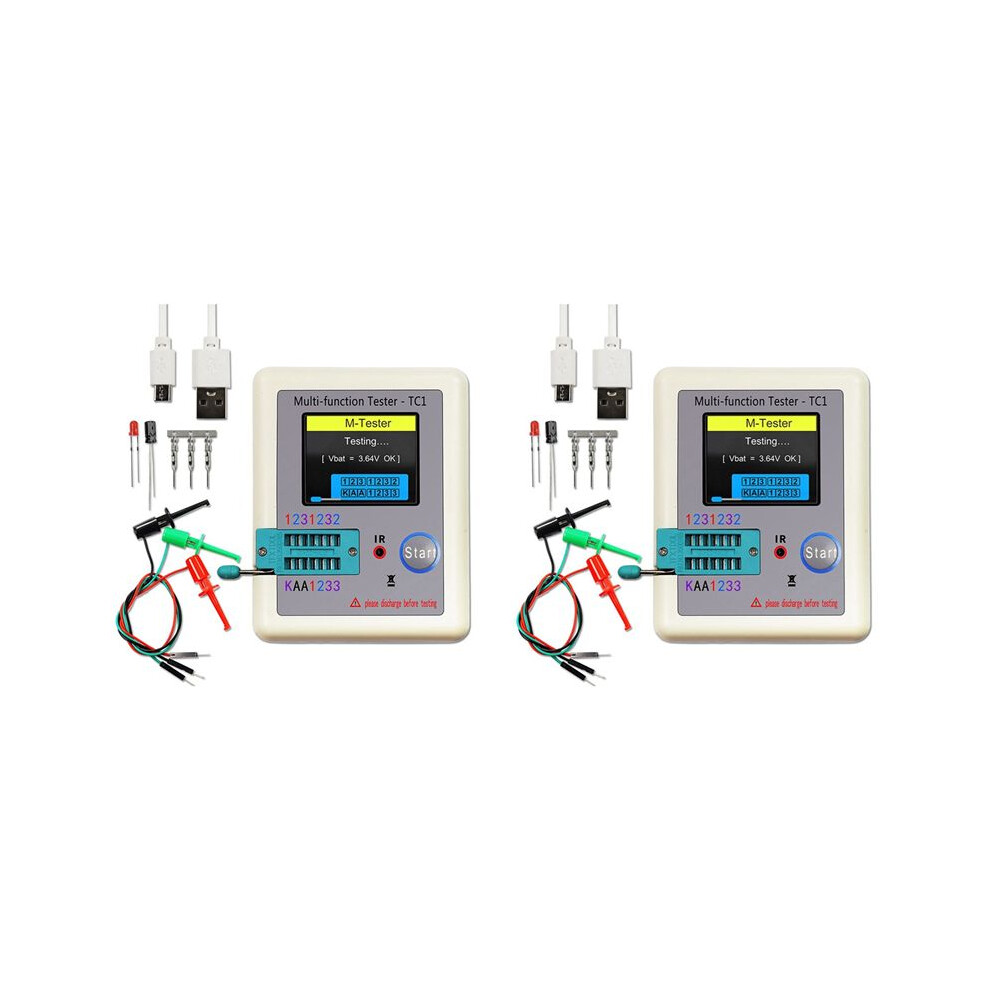

2X -TC1 TC1 Display Multifunctional TFT Backlight Transistor Tester for Diode Triode Capacitor Resistor Transistor
Σε απόθεμα
Γιατί θα λατρέψεις τις αγορές στην OnBuy :
- Κέρδισε Επιστροφή Ποσού σε κάθε αγορά – ξόδεψε το άμεσα στην επόμενη παραγγελία σου
- Δωρεάν παράδοση – σε εκατομμύρια προϊόντα σε όλο το site
- Οι πελάτες μας λατρεύουν – 132,000 κριτικές με βαθμολογία « Άριστα »
Οι τιμές για τα είδη που πωλούνται από την OnBuy περιλαμβάνουν ΦΠΑ.
Διαθέσιμες άτοκες επιλογές πληρωμής
Δες την πλήρη περιγραφή & λεπτομέρειες του προϊόντος
Παράδοση: Κανονικό (10,05 €) | Τρι 1 - Δευ 7 Σεπ
Πωλείται από: BUBLBUshop
Επιστροφές: 30 ημέρες
Προστασία πληρωμής 180 ημερών
Περίληψη
- Transistor Detection: After the power-off state or test is completed, put the test component into the transistor test area of the test socket, press the lock handle, press the multi-function key, the tester automatically measures, and the measurement result is displayed at the end of the test.
- Warning: Always discharge the capacitor before connecting them to the tester! The tester may be damaged before you turn it on!
- Warning: We do not recommend using a tester to measure the battery! The battery voltage must be less than 4.5V, otherwise the tester may be damaged!
- For Diode Triode Capacitor
- Resistor Transistor
2X -TC1 TC1 Display Multifunctional TFT Backlight Transistor Tester for Diode Triode Capacitor Resistor Transistor Περιγραφή
Transistor Detection: After the power-off state or test is completed, put the test component into the transistor test area of the test socket, press the lock handle, press the multi-function key, the tester automatically measures, and the measurement result is displayed at the end of the test.
Warning: Always discharge the capacitor before connecting them to the tester! The tester may be damaged before you turn it !
Warning: We do not recommend using a tester to measure the battery! The battery voltage must be less than 4.5V, otherwise the tester may be damaged!
Feature:
Self test with automatic calibration
Display:TFT Screen, Color Screen
Diode Range: less than 4.5V
Zener Diode:Transistor Detect Area: 0.01-4.5V
Zener Diode Detect Area: 0.01-30V
Triac Range: IGT less than 6mA
Capacitance: 25pF-100mF
Resistor: 0.01-50MΩ
Inductance: 0.01mH-20H
Power Voltage: 3.7V
Power: Built-in Rechargeable Lithium Battery
Measurement results using TFT graphic display (160x128)
One-button operation
Auto power off (timeout setting)
Built-in high-capacity rechargeable lithium-ion battery
Lithium-ion battery voltage detection
Support Chinese and English
Warning: Built-in lithium-ion battery, it is strictly forbidden to immerse the tester in water or near heat source!
Warning: For your personal safety, please strictly observe the specifications and precautions for using lithium-ion batteries!
Material: Plastic
colour: As shown
Package Contents:
2 x -TC1 Transistor Tester Kit
Λεπτομέρειες
| OPC | PXPRSDC |
|---|---|
| Κωδικοί | 4714202388595 (EAN) |
| Πληροφορίες προϊόντος και ασφάλειας |
Στοιχεία Προϊόντος
| Height | 6cm |
|---|---|
| Width | 10cm |
| Length | 16cm |
| Weight | 0.202kg |
| Colour | As Shown |
| Material | Plastic |
