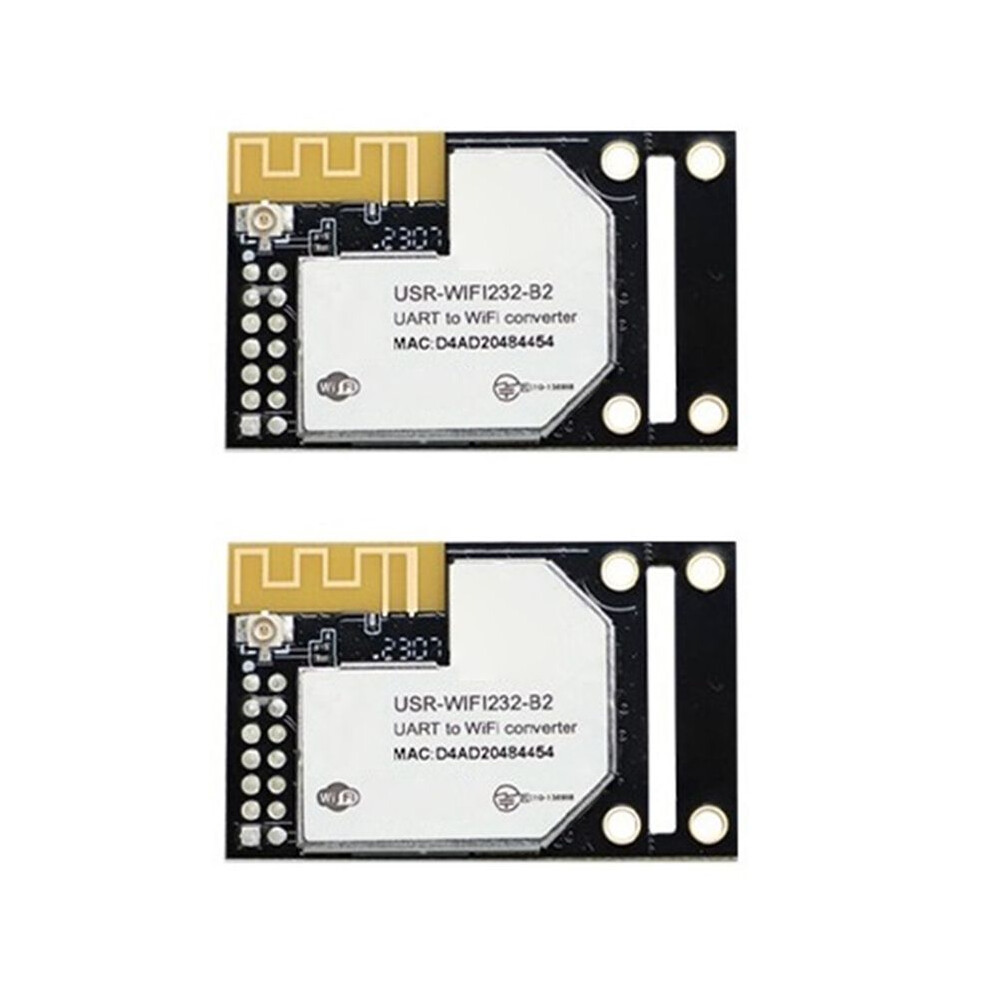

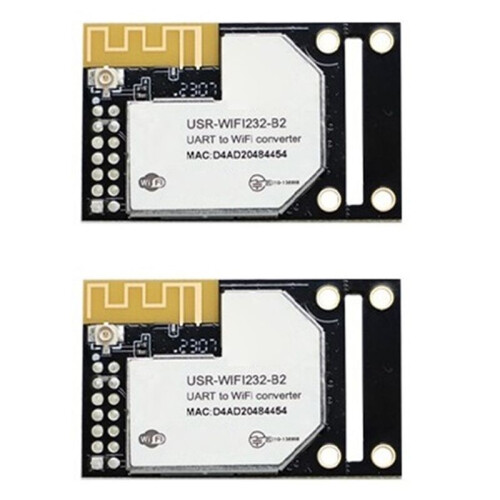

2X USR-WIFI232-B2 UART to WiFi/Ethernet Modules Embedded TTL Serial to Wifi Module Support Modbus RTU to Modbus TCP
Σε απόθεμα
Γιατί θα λατρέψεις τις αγορές στην OnBuy :
- Κέρδισε Επιστροφή Ποσού σε κάθε αγορά – ξόδεψε το άμεσα στην επόμενη παραγγελία σου
- Δωρεάν παράδοση – σε εκατομμύρια προϊόντα σε όλο το site
- Οι πελάτες μας λατρεύουν – 131,000 κριτικές με βαθμολογία « Άριστα »
Οι τιμές για τα είδη που πωλούνται από την OnBuy περιλαμβάνουν ΦΠΑ.
Διαθέσιμες άτοκες επιλογές πληρωμής
Δες την πλήρη περιγραφή & λεπτομέρειες του προϊόντος
Παράδοση: Κανονικό (9,04 €) | Τρι 25 - Δευ 31 Αυγ
Επιστροφές: 30 ημέρες
Προστασία πληρωμής 180 ημερών
Περίληψη
- USR-WIFI232-B2 is an embedded 802.11 b/g/n UART WiFi module. It can connect traditional serial device and MCU controlled device with wifi network to realize control and management.The module has an Ethernet port. It can realize mutual data transmission among wifi, serial and Ethernet.
- Converts UART(3.3V TTL) to wifi or Ethernet
- Supports TCP server/client, UDP server/client,https client, Virtual COM
- Supports Modbus RTU to Modbus TCP
- Supports multiple networking mode with 1 RJ45 ethernet port
2X USR-WIFI232-B2 UART to WiFi/Ethernet Modules Embedded TTL Serial to Wifi Module Support Modbus RTU to Modbus TCP Περιγραφή
USR-WIFI232-B2 is an embedded 802.11 b/g/n UART WiFi module. It can connect traditional serial device and MCU controlled device with wifi network to realize control and management.The module has an Ethernet port. It can realize mutual data transmission among wifi, serial and Ethernet.
Converts UART(3.3V TTL) to wifi or Ethernet
Supports TCP server/client, UDP server/client,https client, Virtual COM
Supports Modbus RTU to Modbus TCP
Supports multiple networking mode with 1 RJ45 ethernet port
1 TTL Serial Supporting Data Rates of to 460.8Kbps
32 simultaneous client connections to Soft AP interface
Support 802.11b/g/n wireless standard
Support TCP/IP/UDP network protocol
Support UART/GPIO/Ethernet data interface
Support work as STA/AP/AP+STA mode
Support router and bridge mode
External antenna Version
Support transparent transmission mode
Provide AT+ instruction set for configuration
Provide friendly web configuration page
Support heartbeat signal and wifi connection indication
Support UART auto-frame function
3.3V power supply
Max transmission distance: 280 meters (open horizon, 3dbi antenna)
Application Field:
WiFi remote control and monitoring, TCP/IP and WiFi coprocessor
WiFi remote control toy such as aircraft and cars
WiFi Internet radio, camera, digital photo frame
instrument, data acquisition, handheld device
WiFi fatness testing machine, card terminal, Home
Instrument, equipment parameter monitoring, wireless POS machine
Modern agriculture, military field and other wireless related secondary development applications
Different batches may have different appearance, which does not affect use.
Colour:Black
Material:PCB+electronic components
Package Contents:
2 x UART to WiFi
Λεπτομέρειες
| OPC | PV9WNCS |
|---|---|
| Κωδικοί | 4714214255502 (EAN) |
| Πληροφορίες προϊόντος και ασφάλειας |
Στοιχεία Προϊόντος
| Height | 2cm |
|---|---|
| Width | 3cm |
| Length | 4cm |
| Weight | 0.01kg |
| Colour | Black |
| Size | USR-WIFI232-B2 |
| Material | PCB+Electronic Components |
