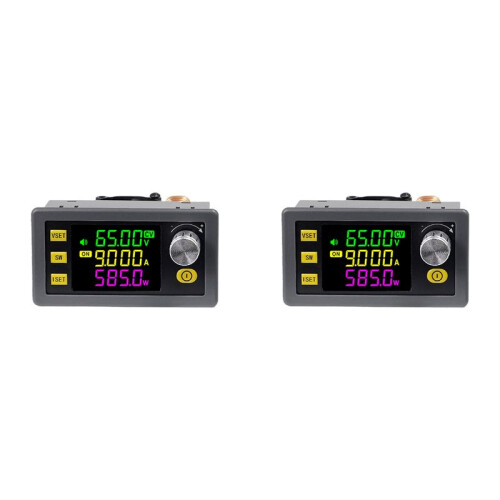

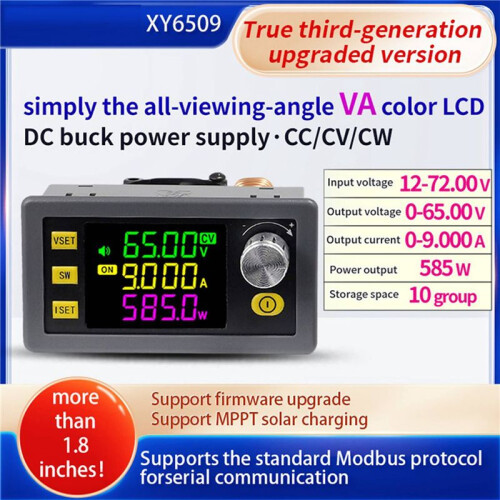

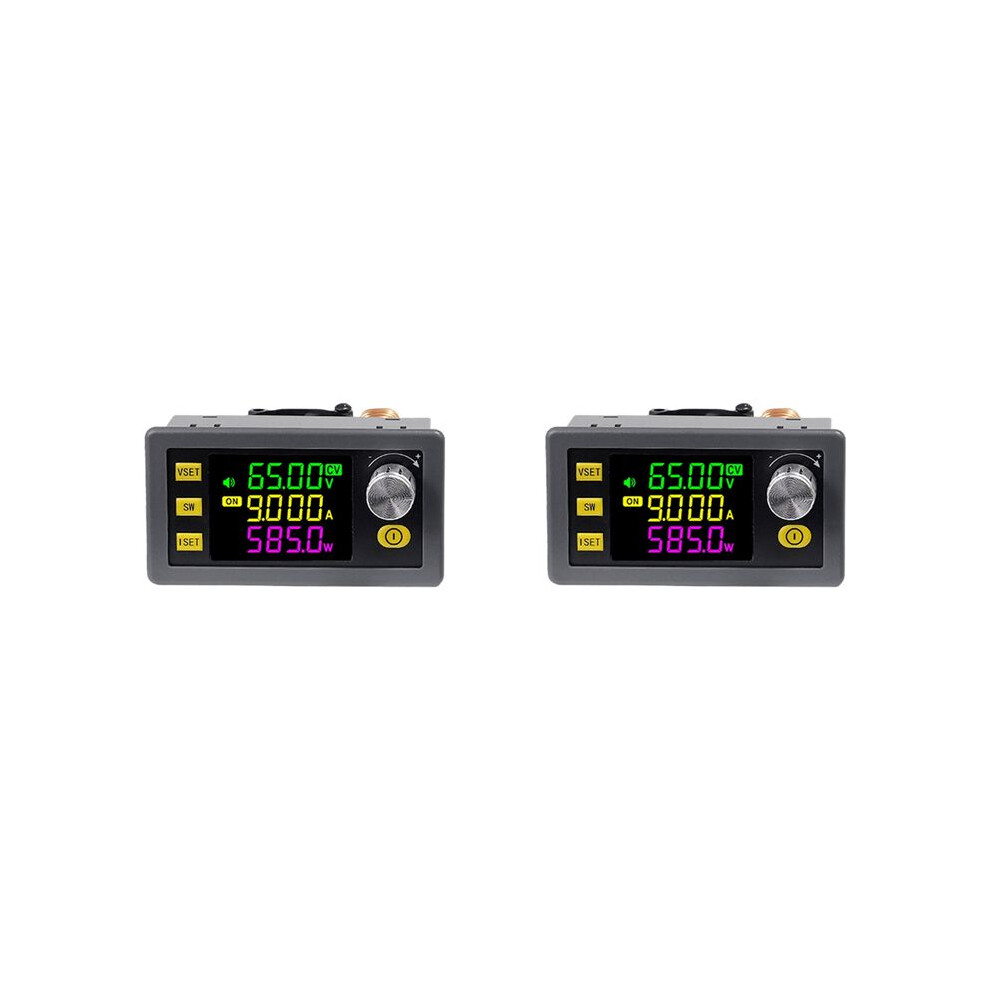

2X XY6509 Buck Boost Converter Adjustable Voltage Regulated Power Supply 65V 9A 585W Constant Voltage Current Module

2X XY6509 Buck Boost Converter Adjustable Voltage Regulated Power Supply 65V 9A 585W Constant Voltage Current Module Περιγραφή

1. The use of high-quality materials, quality assurance, greatly improving the service life of the product.

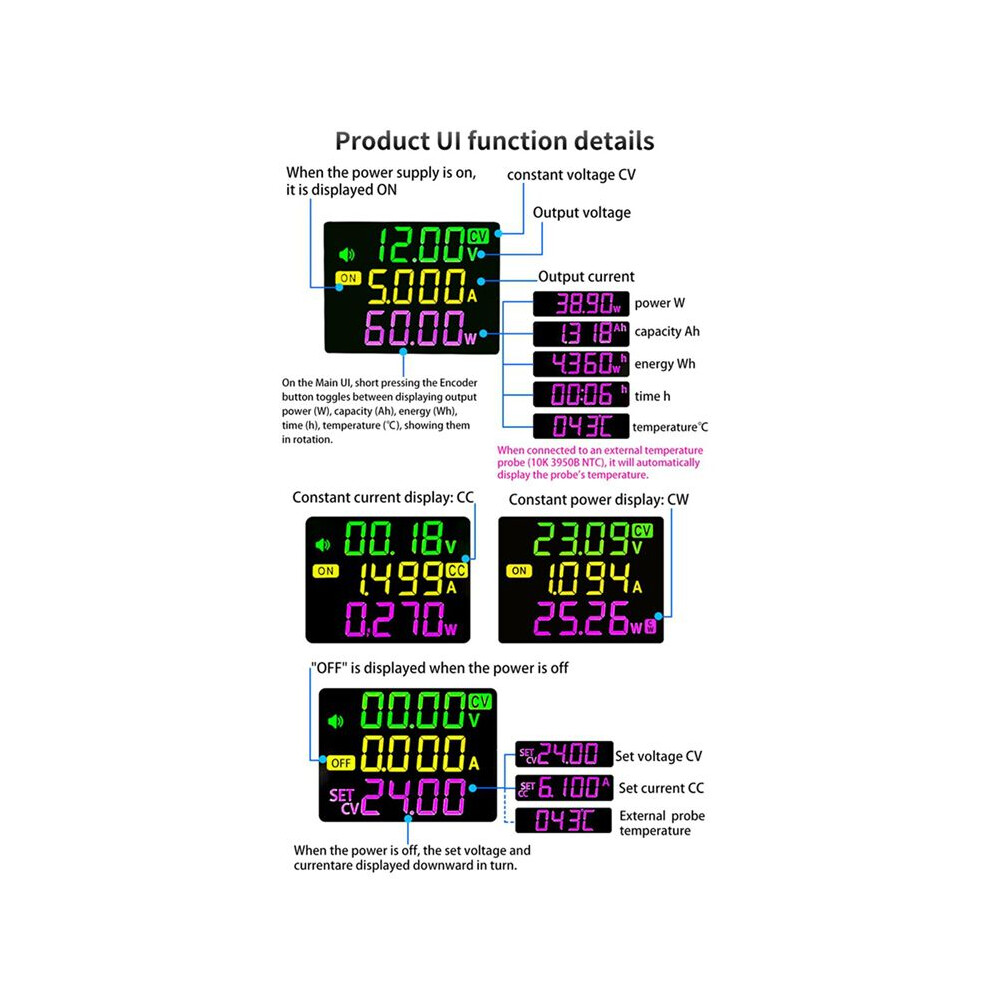

2. LCD screen layout is reasonable, the font is large and full of rounded, professional power supply LCD screen, you want the function it has!

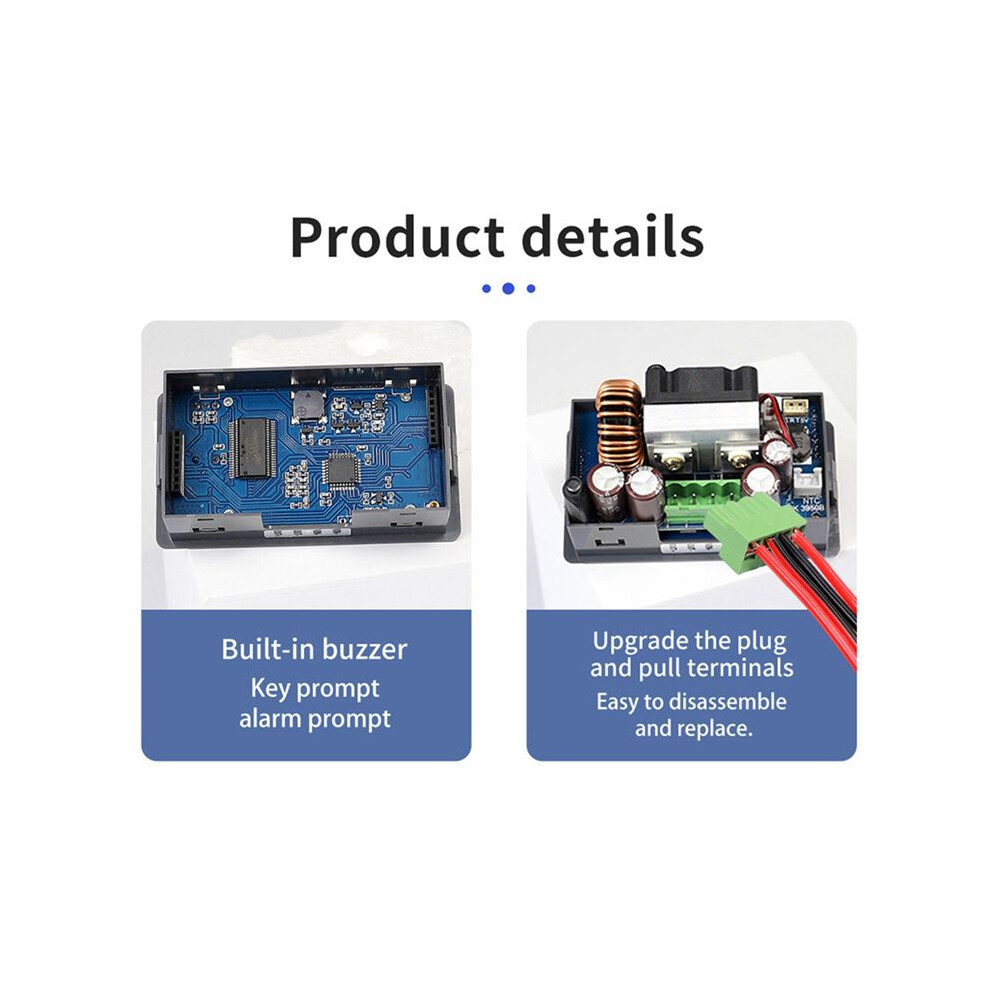

3. Built-in buzzer, key prompts, alarm prompts, safer and more assured use of the product.

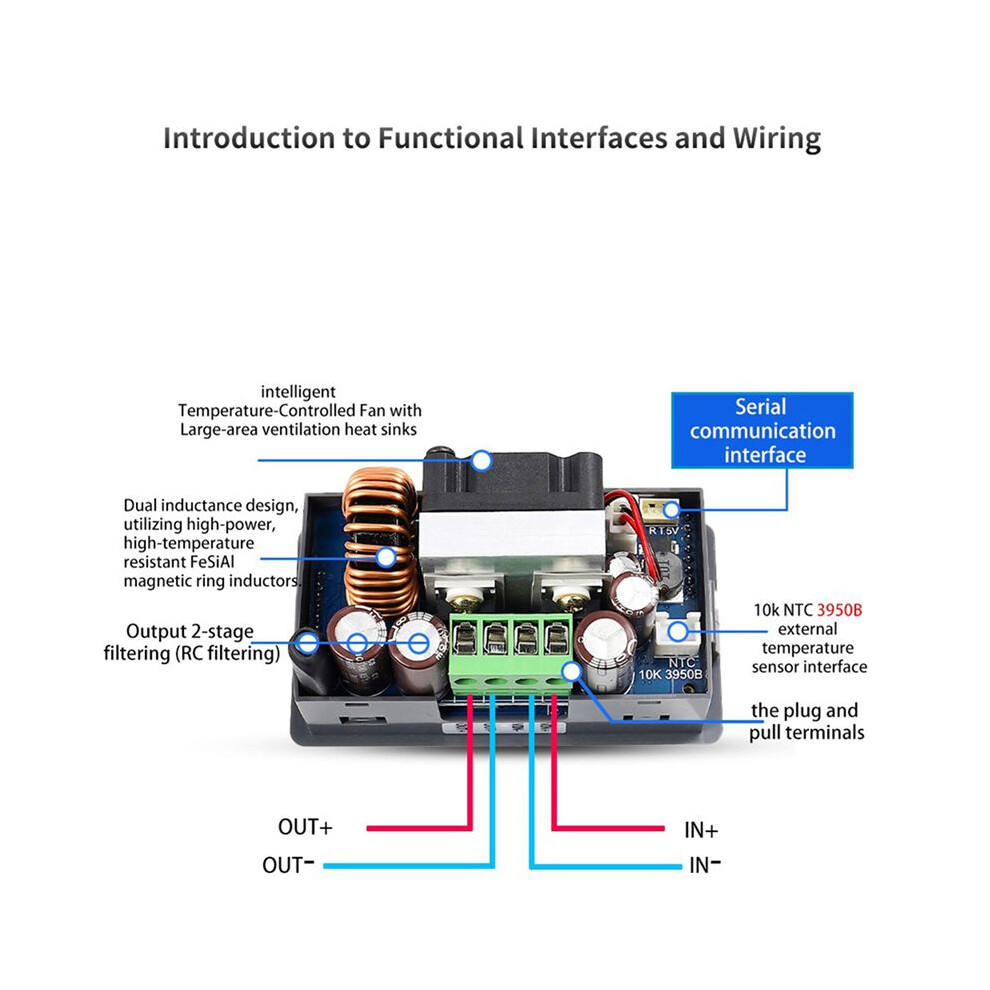

4. Upgraded plug-in terminals, easy to disassemble and replace.

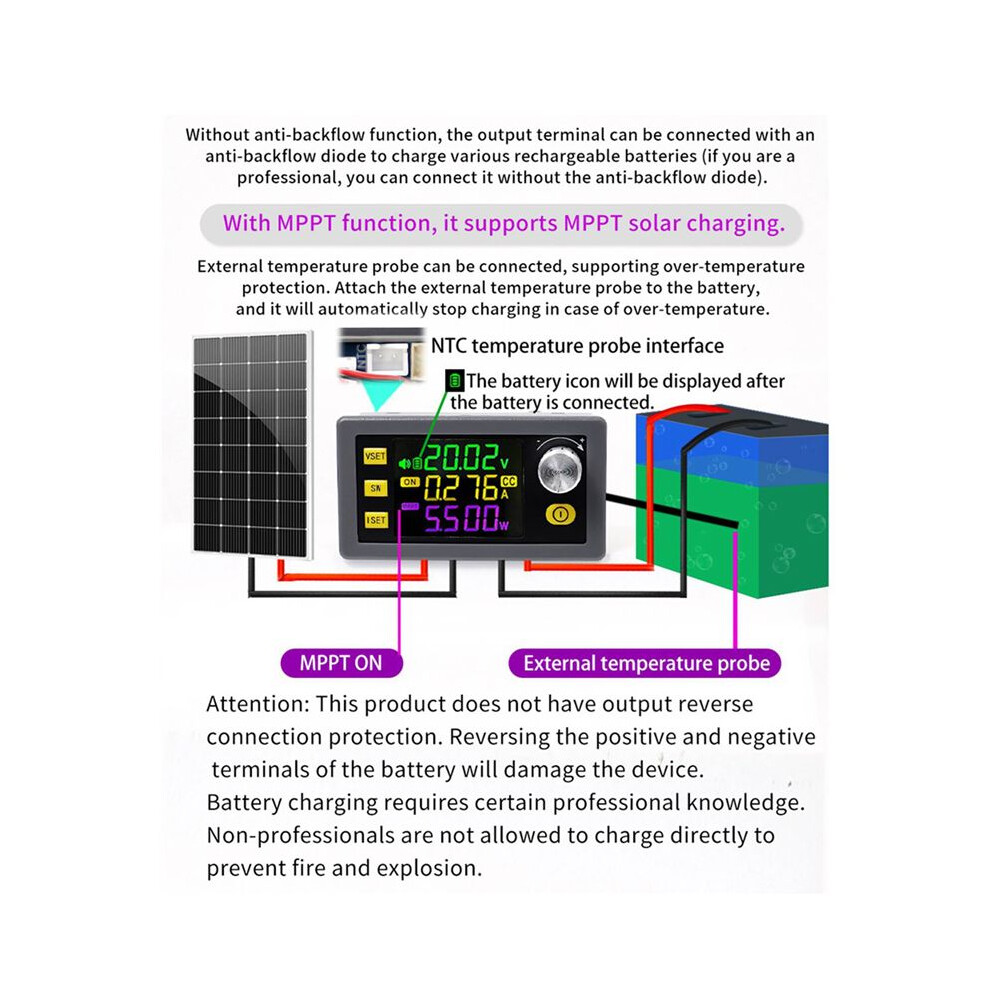

5. The product has a wide range of applications, with MPPT function, support for MPPT solar charging, can be connected to the external temperature probe to support over-temperature protection.

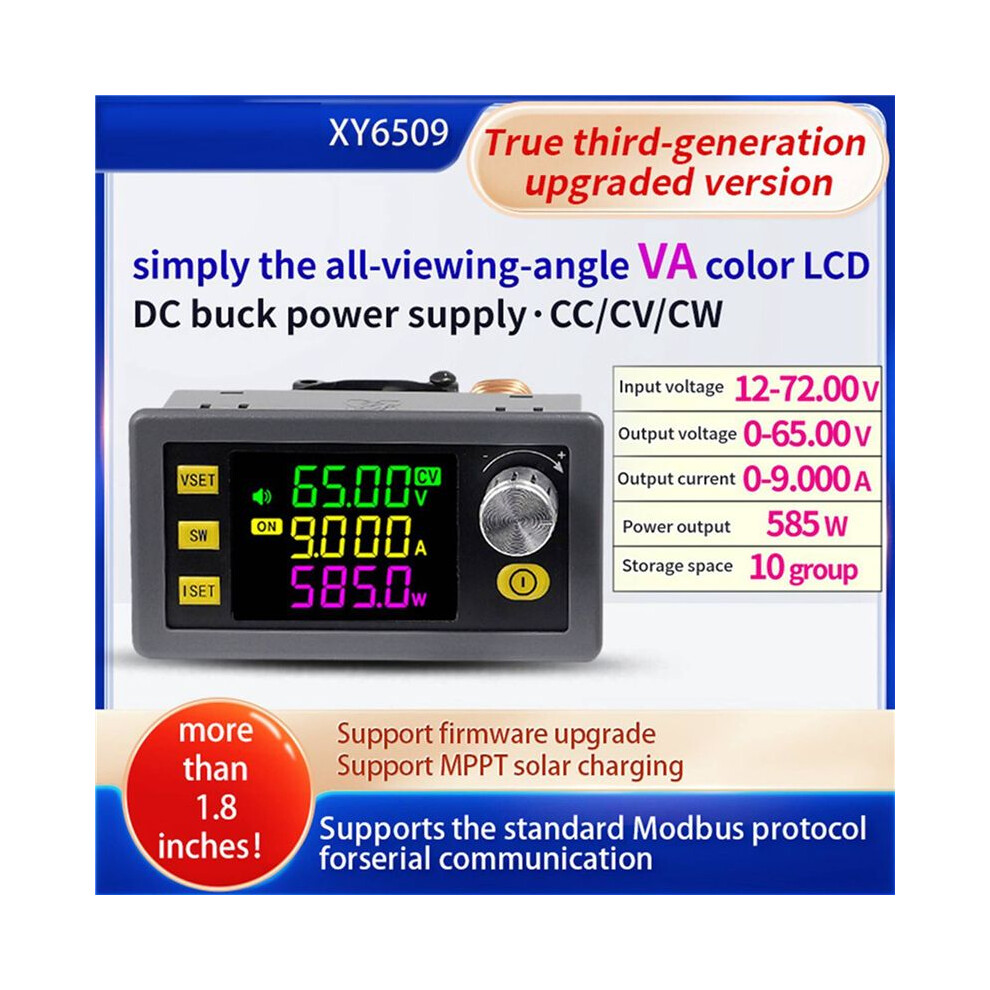

Parameter:
Input voltage: 12-72.00V
Output current: 0-9.000A
Output power: 585W
Voltage resolution: 0.01V
Output Voltage: 0-65V
Voltage accuracy: 0.5%+1 word
Current accuracy: 0.5%+3 words
Current resolution: 0.001A
Storage data group: 10 groups

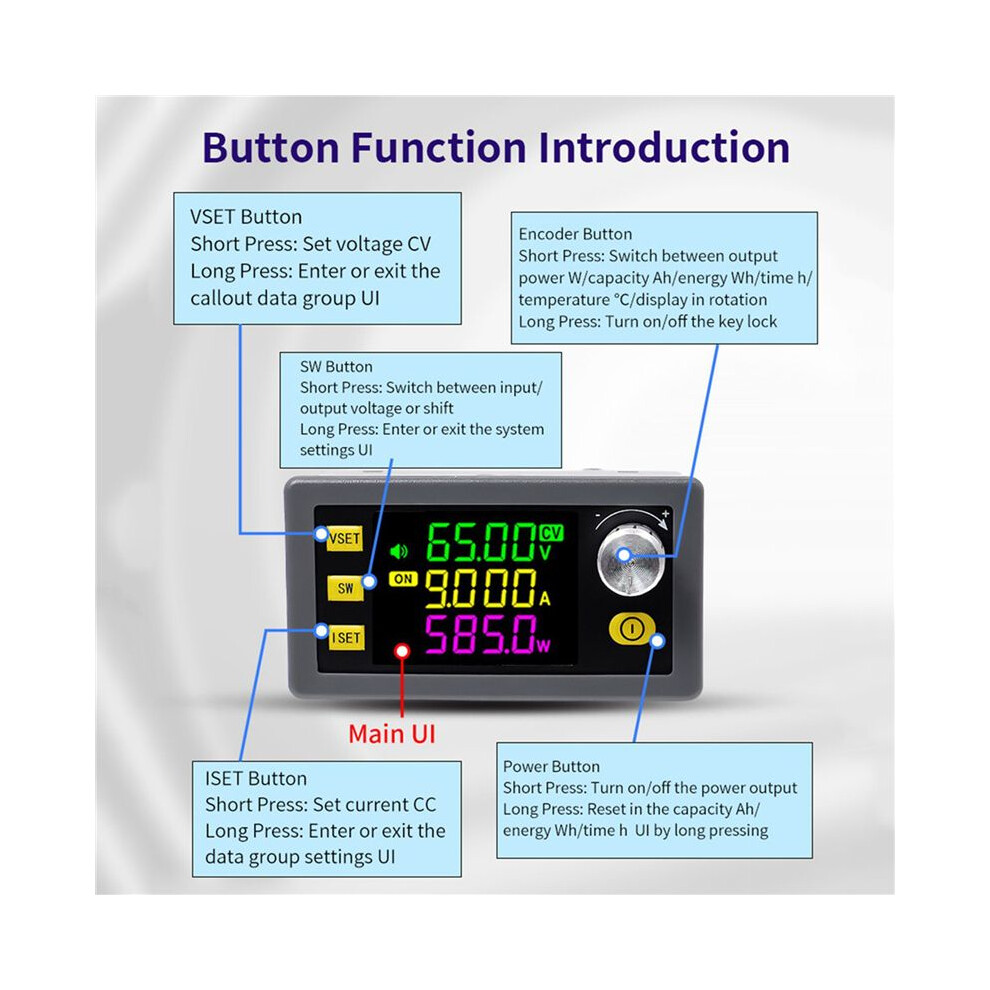

Number of buttons: 5

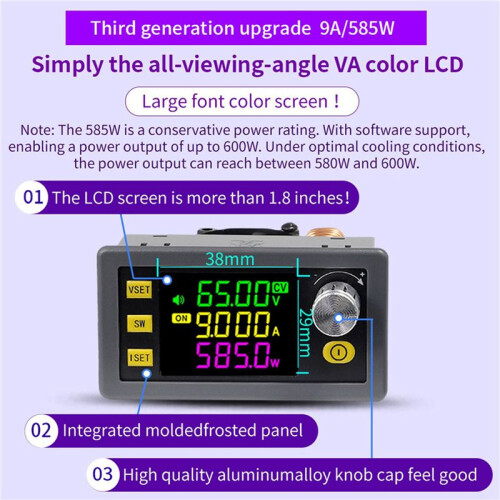

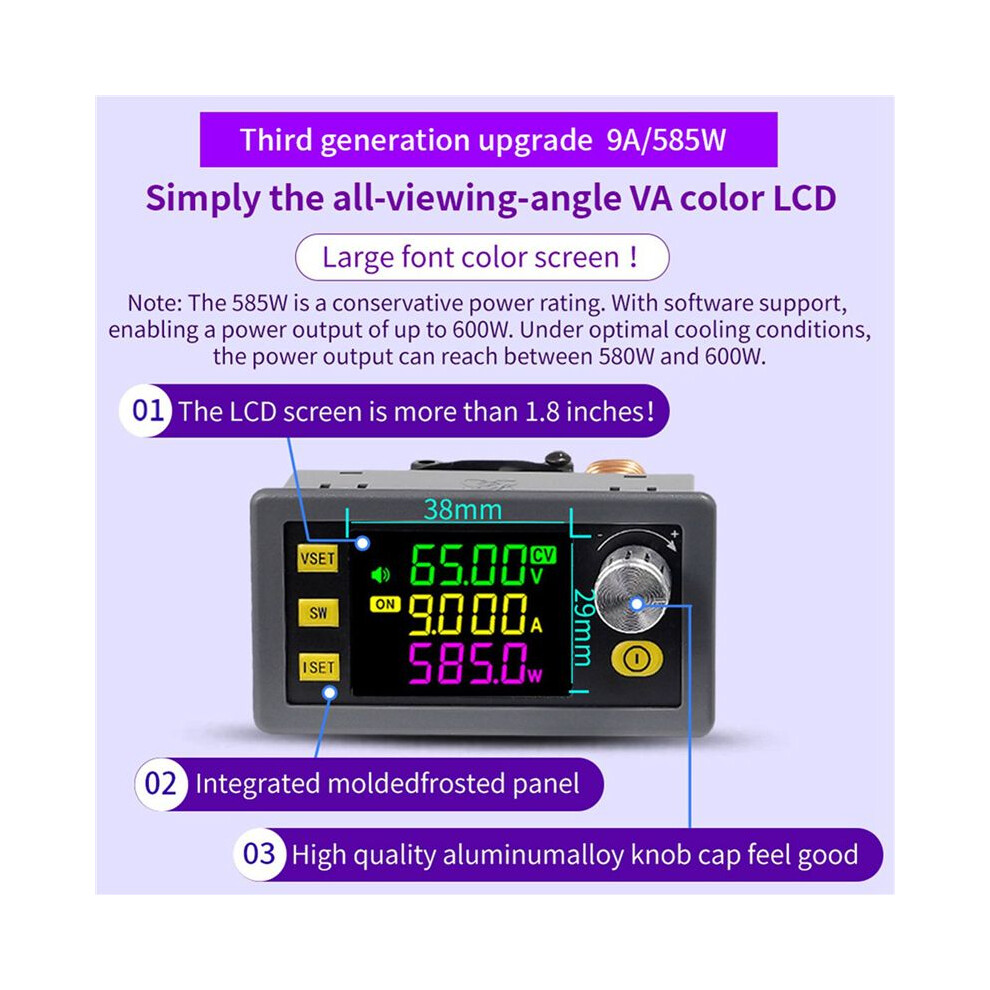

Screen size: Over 1.8-inch LCD with a viewable area of 38 x 29mm
Buzzer: Yes
Soft start: Yes
Output ripple typical value:vpp-150mv
Efficiency of conversion: About 95%
MPPT function: Support MPPT solar charging
Protection mechanism:
Input anti-reverse connection: Yes
Output anti-reverse: Yes
Input undervoltage protection: 10-75V adjustable, default 10V
Output over-voltage protection: 0-67V adjustable, default 67V
Output overcurrent protection: 0-9.2A adjustable, default 9.2A
Output over power protection: 0-650W adjustable, default 600W
Over-temperature protection: 0-110C adjustable, default 95C
Timeout protection: 1 minute -99 hours 59 minutes, default off
Over capacity protection: 0-9999AH adjustable, default off
Super protection: 0-4200KWH adjustable, default off
Colour:Dark Gray
Material:plastic
The actual product may have sligh
