3 Pack Waterproof DS18B20 Temperature Sensor Probes with 2 Pack 4.7K Ohm Resistors for Raspberry Pi DIY

3 Pack Waterproof DS18B20 Temperature Sensor Probes with 2 Pack 4.7K Ohm Resistors for Raspberry Pi DIY Περιγραφή

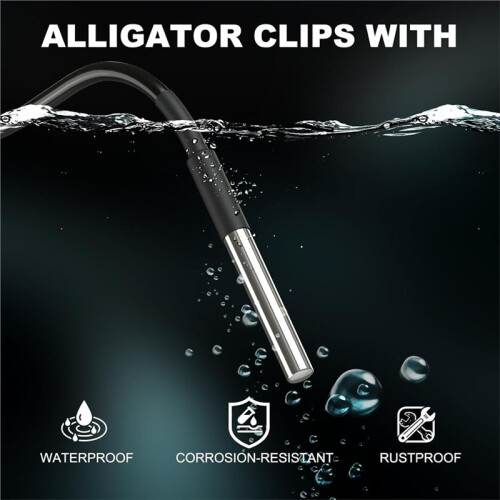

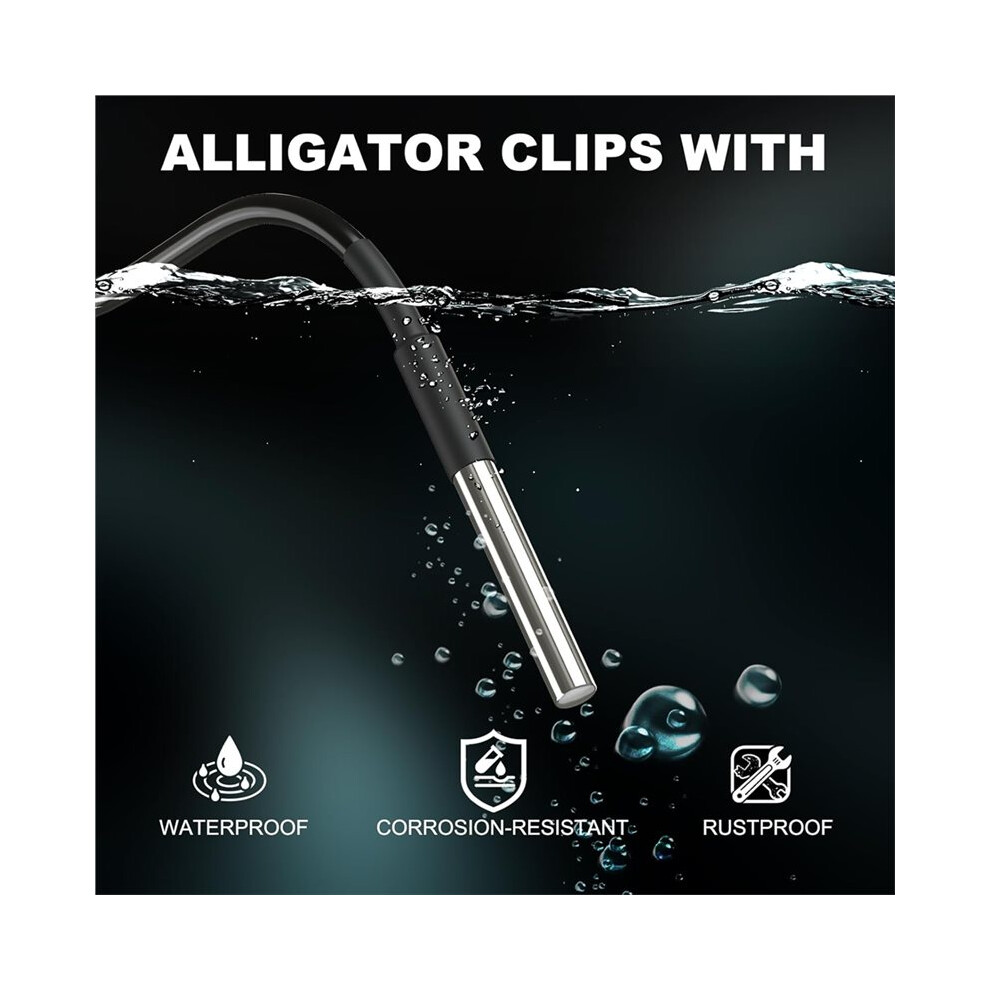

Waterproof & Durable Probe: Encased in waterproof, corrosion-resistant, rustproof with highly thermally conductive sealant. Perfect for continuous submersion, wet environments, and harsh conditions.
High Accuracy & Wide Temperature Range: Delivers precise temperature readings from -55C to +125C (-67F to +257F) with an accuracy of 0.5C. Ideal for demanding applications.
Simple Wiring & Quick Integration: Features clearly separated red (VCC), yellow (Data), and black (GND) wires with heat shrink tubing. Easily connects to popular platforms like for , for Raspberry Pi, for ESP32, and for STM.
Low Power & Flexible Voltage Operation: Efficiently operates a wide voltage range of 3.0V to 5.5V, ensuring compatibility with various microcontrollers and development boards without complex power regulation.
Reliable 1-Wire Interface & Tip: Utilizes the robust for Dallas 1-Wire protocol for simplified communication. For optimal stability, use a 4.7K resistor between Data (Yellow) and VCC (Red).

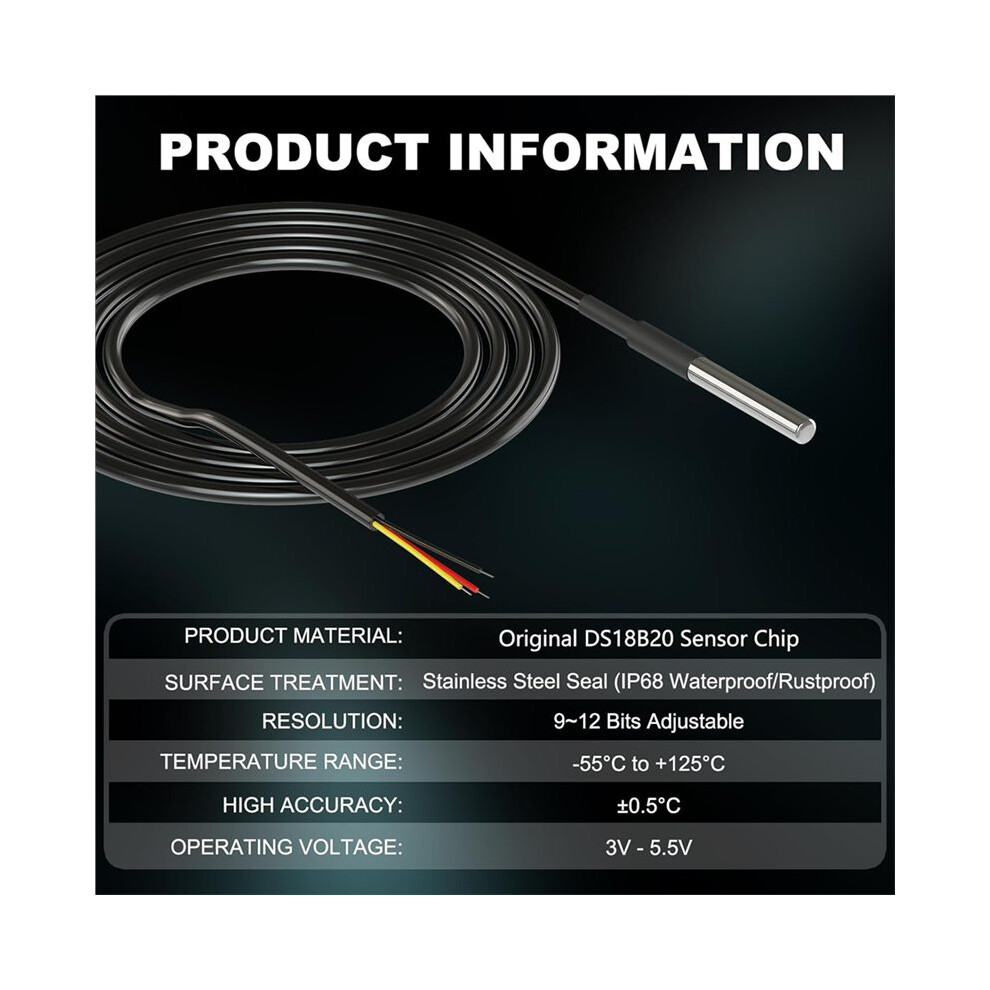

SURFACE TREATMENT: Stainless Steel Seal
RESOLUTION: 9~12 Bits Adjustable
TEMPERATURE RANGE: -55C to +125C
HIGH ACCURACY: 0.5C
OPERATING VOLTAGE: 3V - 5.5V

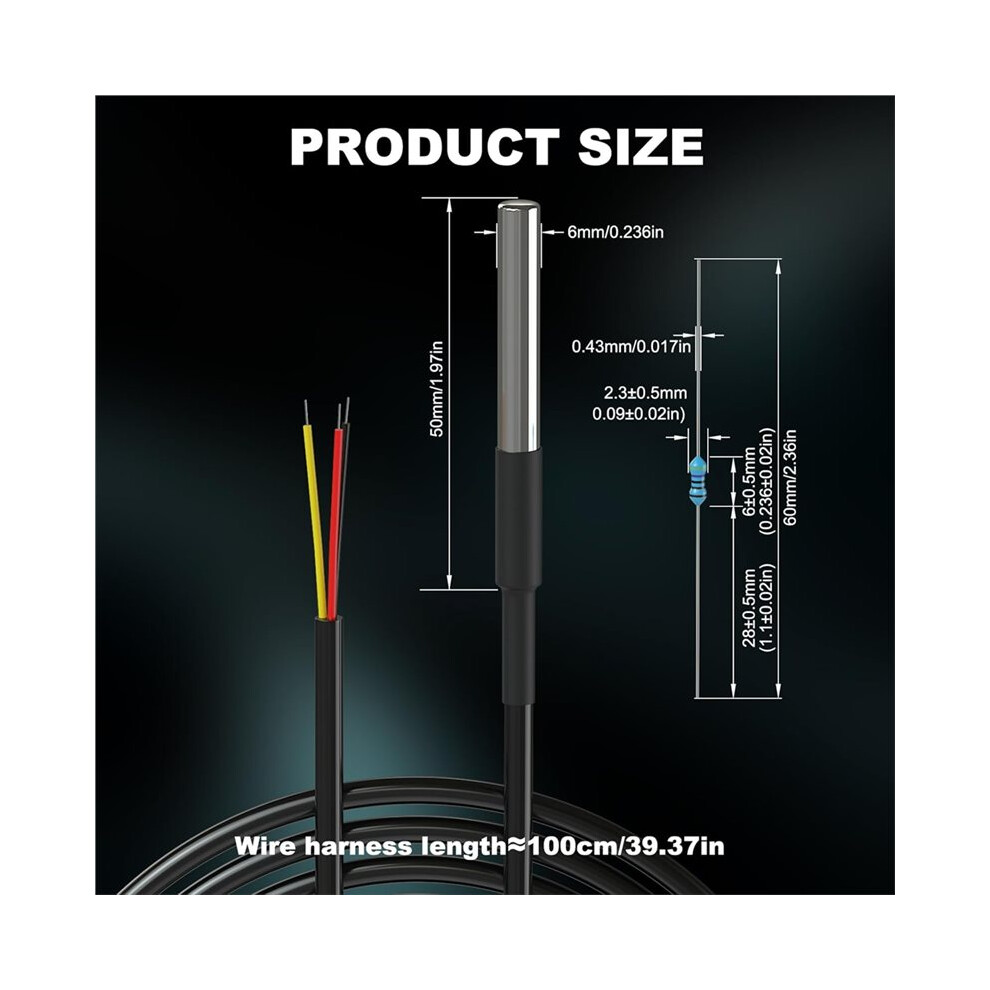

LENGTH:1m

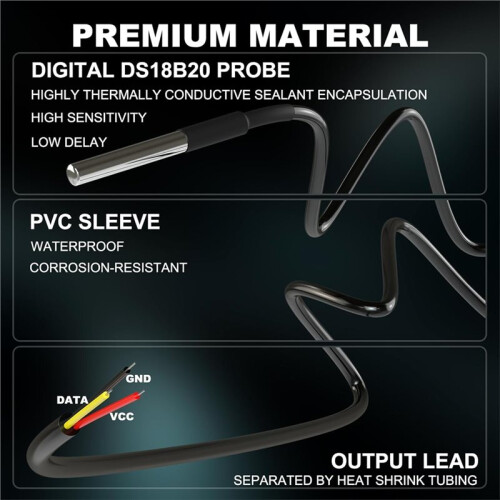

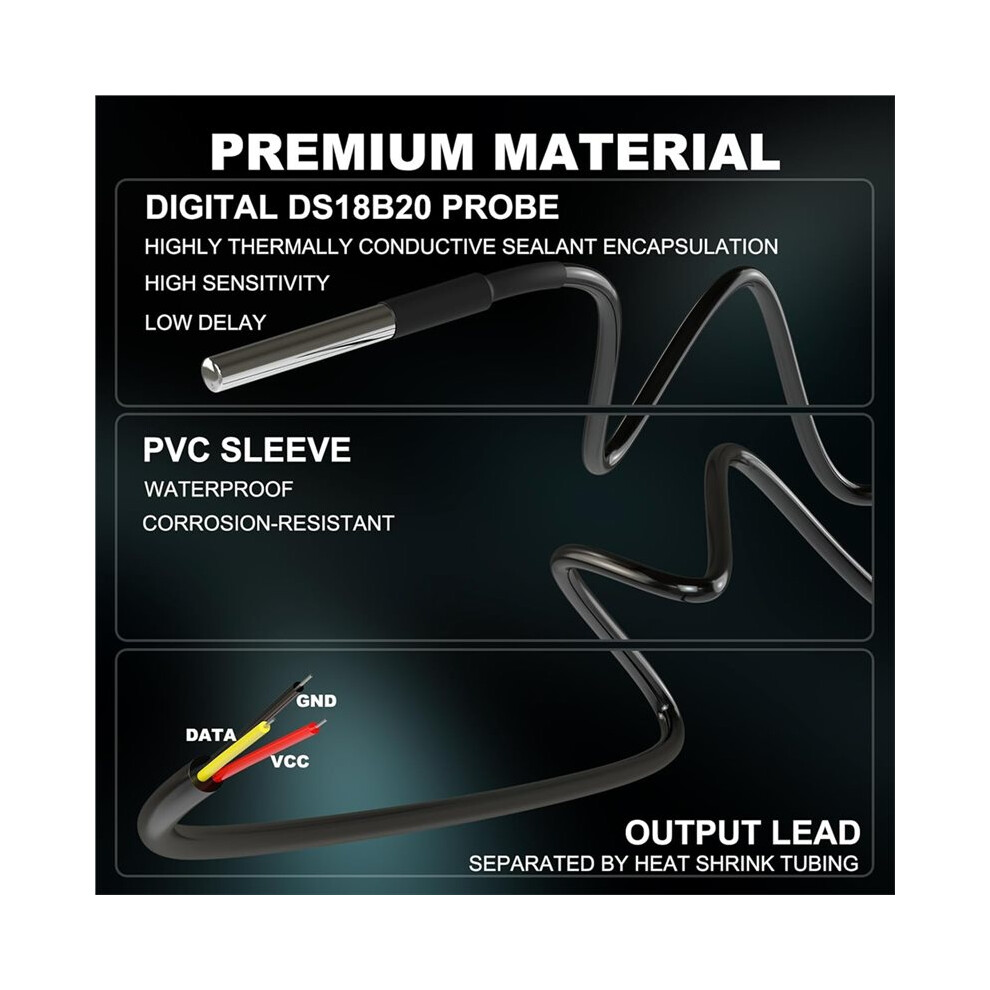

WIRING: Red (VCC), Yellow(DATA), Black (GND), Separated by Heat Shrink Tubing

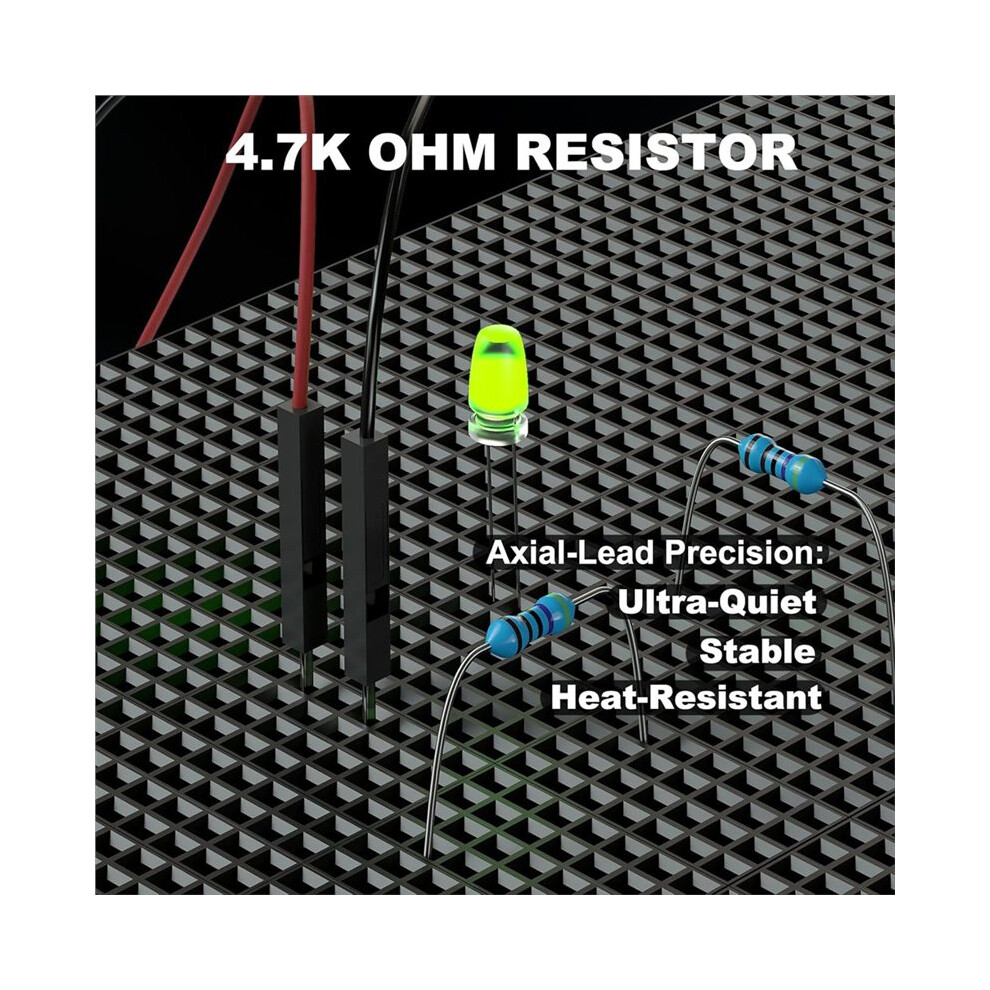

Using a 4.7K resistor between the Data and VCC will make the testing easier.
Color: As Shown
Material: plastic
Specification: 3 pieces

Package Contents:
1 set * ds18b20 temperature sensor
