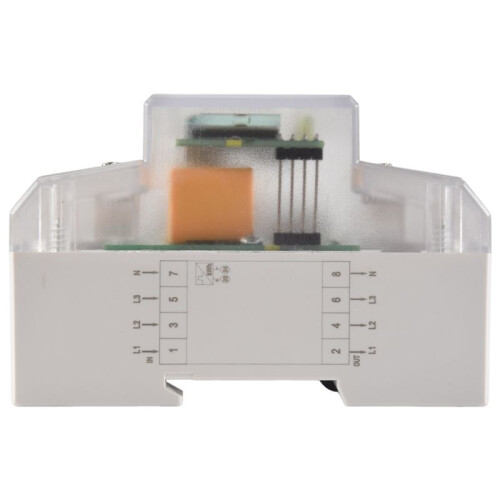

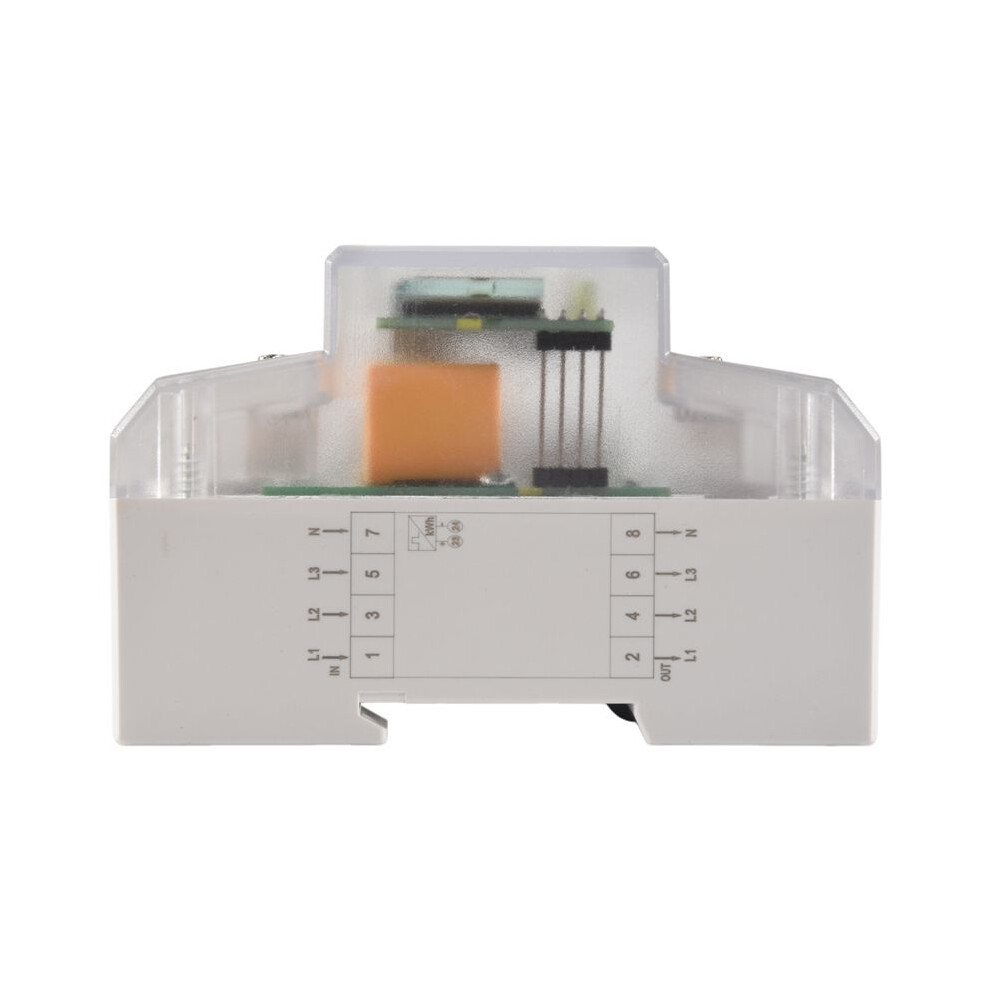

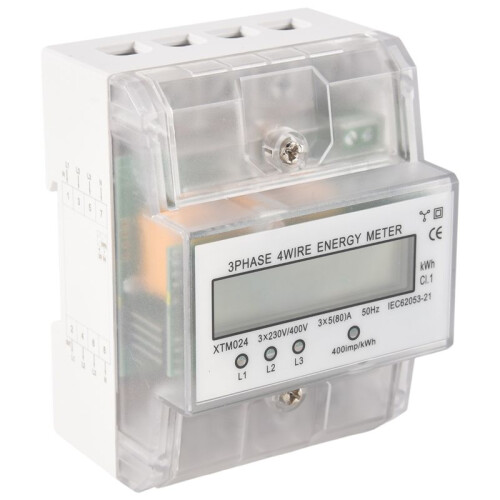

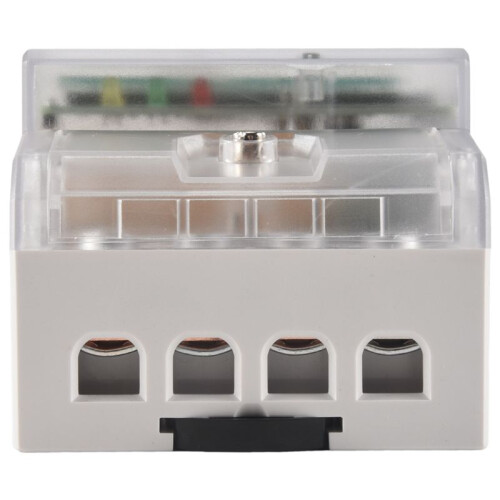

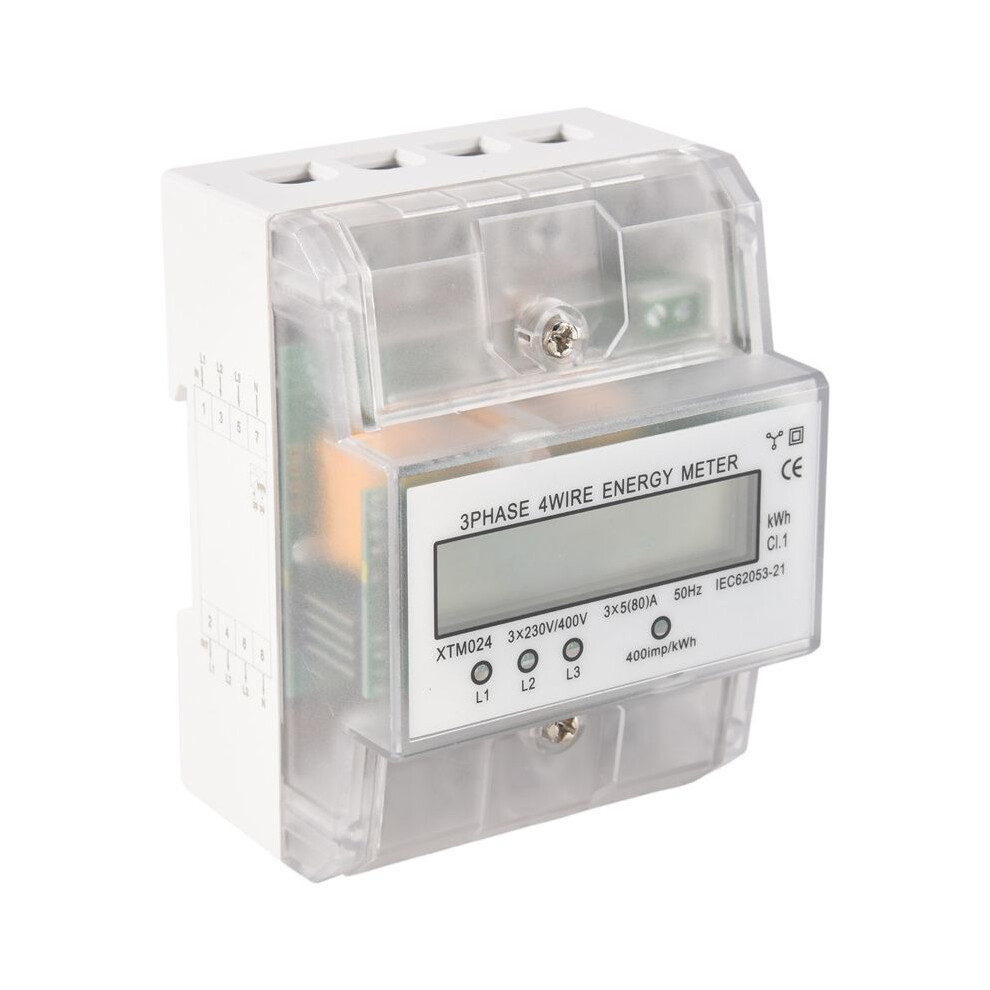

3 Phase 4 Wire Meter 220/380V 5-80A Consumption KWh Meter DIN Rail Installation Digital Power Meter

3 Phase 4 Wire Meter 220/380V 5-80A Consumption KWh Meter DIN Rail Installation Digital Power Meter Περιγραφή

3-phase 4-wire meter with high accuracy is designed for the measurement of rated frequency 50 or 60Hz single-phase AC active electricity.
High-quality flame retardant ABS case, with good impact resistance, heat/ cold resistance, insulativity and durability.
With 6+2 digits backlight LCD display, the meter accurately counts and clearly displays the consumption.

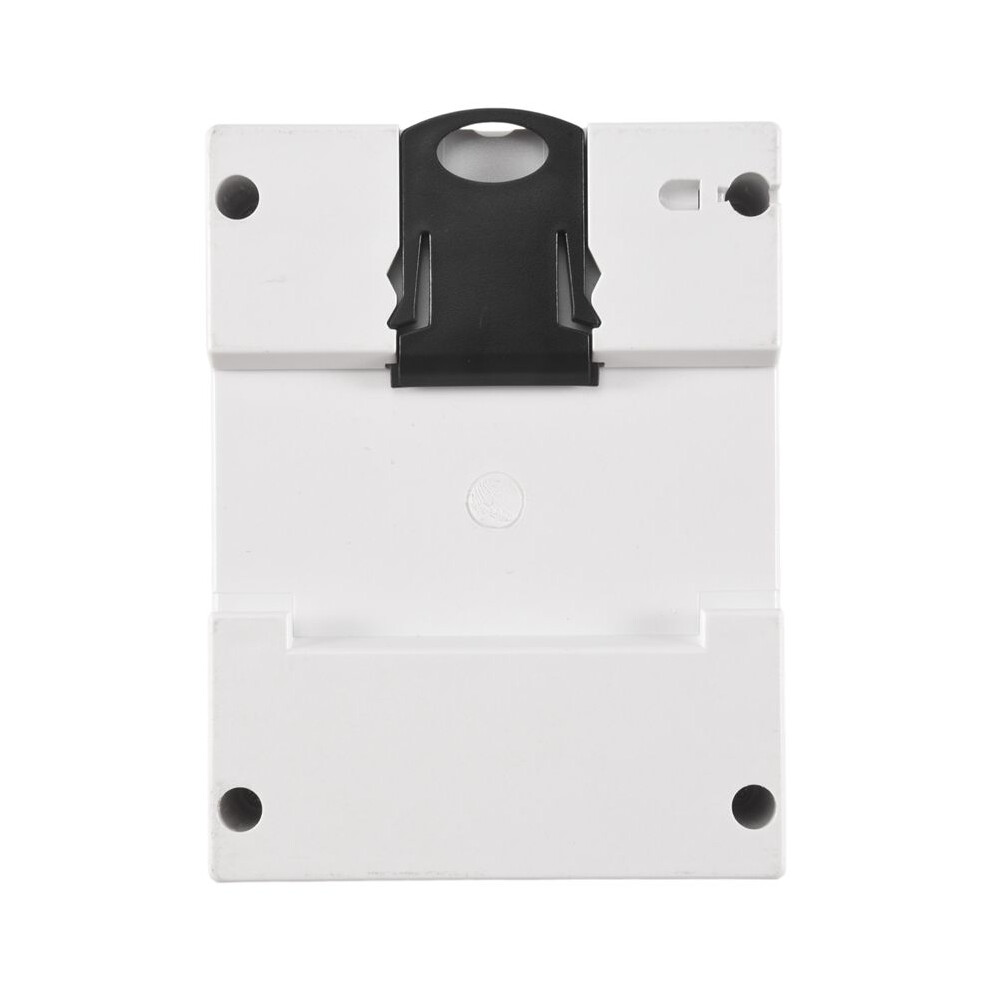

Adopts 35mm DIN standard guide rail installation, compact size and light weight make installation easier.
Pure copper wiring terminal with excellent conductivity and corrosion resistance can ensure large current during long- performance.

It's a simple three phase four module DIN rail meter with flame retardant ABS case, which is widely used in sub-metering system. It's of concise appearance, compact size and good quality, durable to use.
Specifications:
Display: LCD Display with Backlight
Current: 3x5(80)A
Voltage: 3x220/380V
Accuracy Class: 1.0
Standard: IEC62053-21
Frequency: 50/ 60Hz
Impulse Constant: 400imp/kWh
Power Consumption: 2W
Starting Current: 0.004lb
Working Temperature: -20~55 Celsius
Storage Temperature: -25~70 Celsius
Colour:Transparent
Material:Flame-retardant ABS+metal

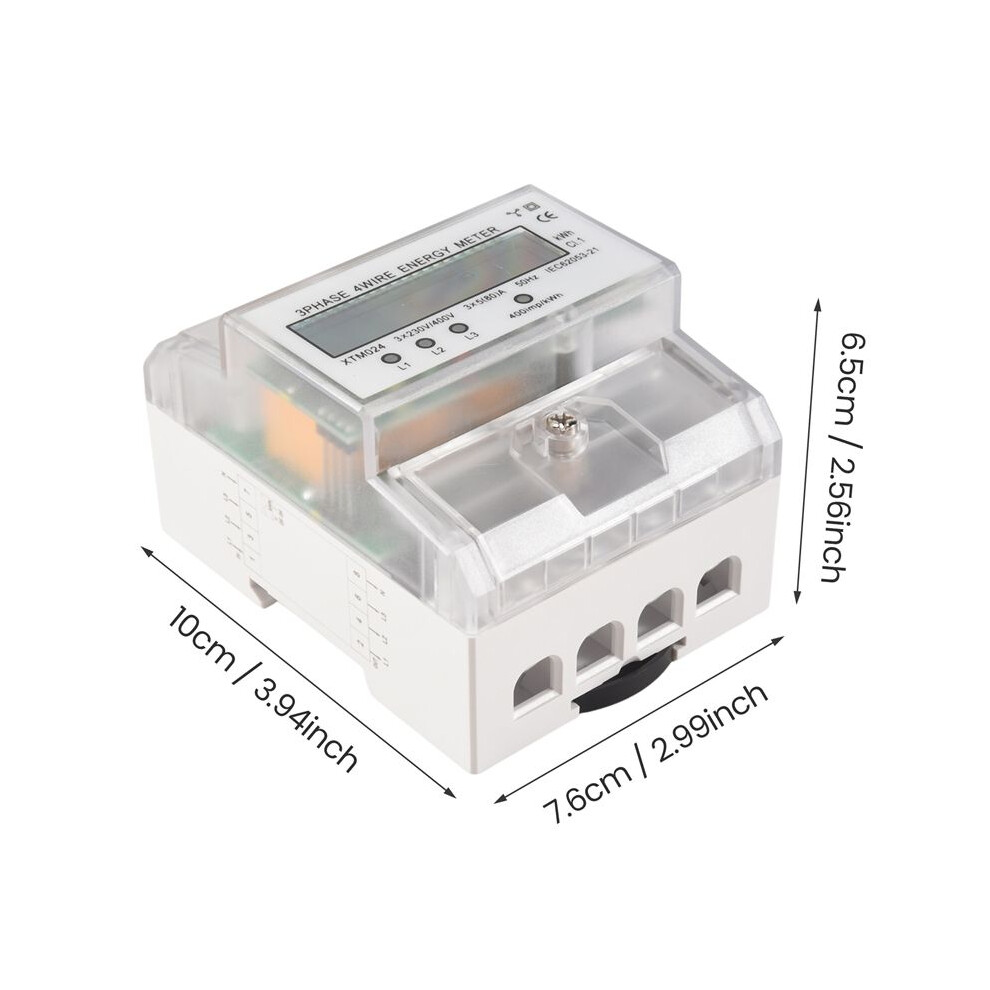

Size:100 x 76 x 65mm

Package Contents:
1 * 3 Phase 4 Wire Meter
For different batches, the symbol the product may be different from the picture, which does not affect the use
