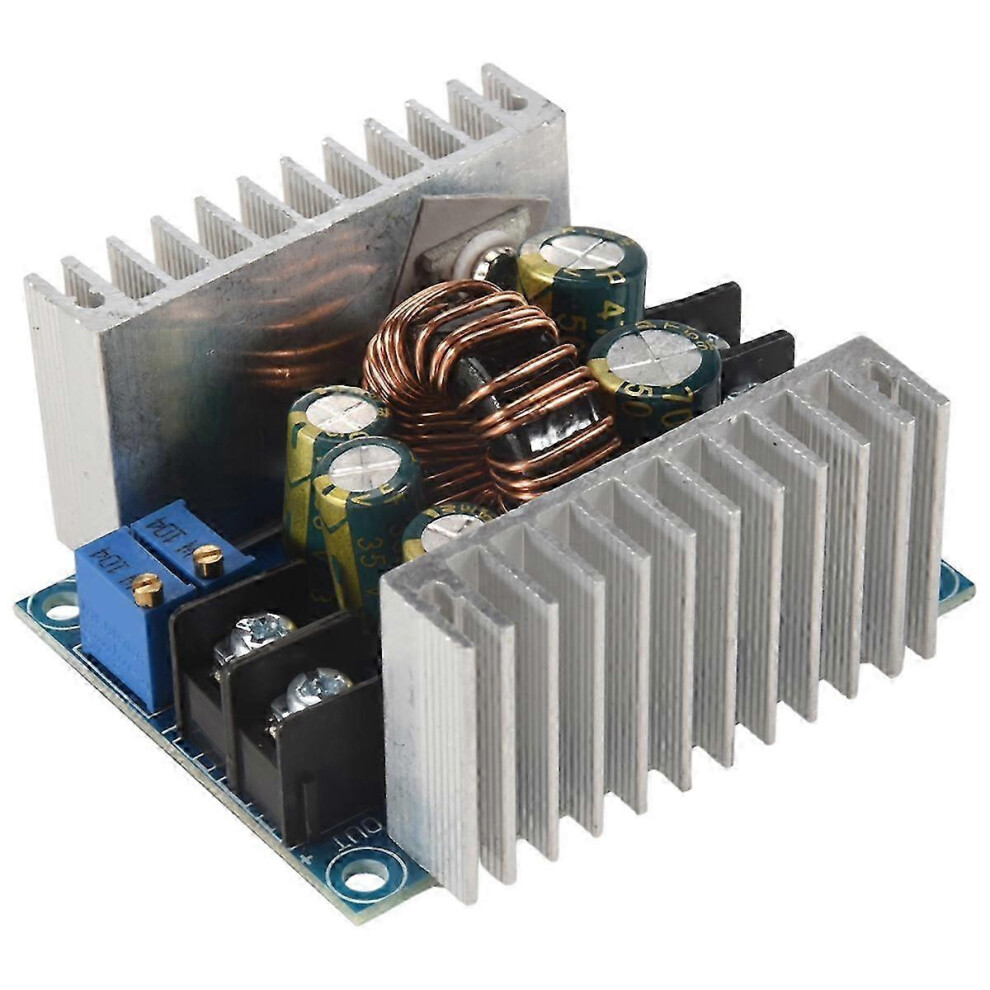

300W 20A Step Down Buck Converter DC-DC Power Regulator Module 6-40V Input 1.2-36V Output

300W 20A Step Down Buck Converter DC-DC Power Regulator Module 6-40V Input 1.2-36V Output Περιγραφή

Product Details 1. Wide input voltage range from 6V to 40V DC (10V to 40V suggested) allows accurate adjustment of output voltage and current 2. High efficiency up to 95% (measured at 24V to 12V, 20A) for energy saving during power conversion 3. Equipped with 75V/80A large current dual MOS tube and 2 heat sinks to enhance heat dissipation performance 4. Input and output use high frequency low resistance electrolytic capacitor, ensuring low ripple (less than or equal to 50mV) and stable output 5. Convenient wiring with large current 30A screw terminals for easy installation Specification 1. Material: PC+Metal 2. Size: 60 x 53 x 27mm / 2.36 x 2.08 x 1.06inch 3. Colour: As shown 4. Input Voltage: 6V to 40V DC (10V to 40V suggested) 5. Output Voltage: 1.2V to 36V DC 6. Output Current: 20A (max.), 15A (suggested) 7. Efficiency: 95% (24V to 12V, 20A) 8. Output Ripple: less than or equal to 50mV 9. Wiring Method: Terminal 10. Short Circuit Protection: Self-recovery (cannot short circuit for long time) Package Contents 1. 1 x 300W 20A Step Down Buck Converter Warm Tips 1. When there is a big difference between input and output voltage, please decrease power and current 2. Light shooting and different displays may cause the colour of the item in the picture a little different from the real thing 3. The measurement allowed error is +/- 1-3cm 4. When input and output is common grounded, no-load CV output constant voltage, CC output constant current 5. EN: Enable, low voltage level shut off output; suspension, high voltage level is effective
