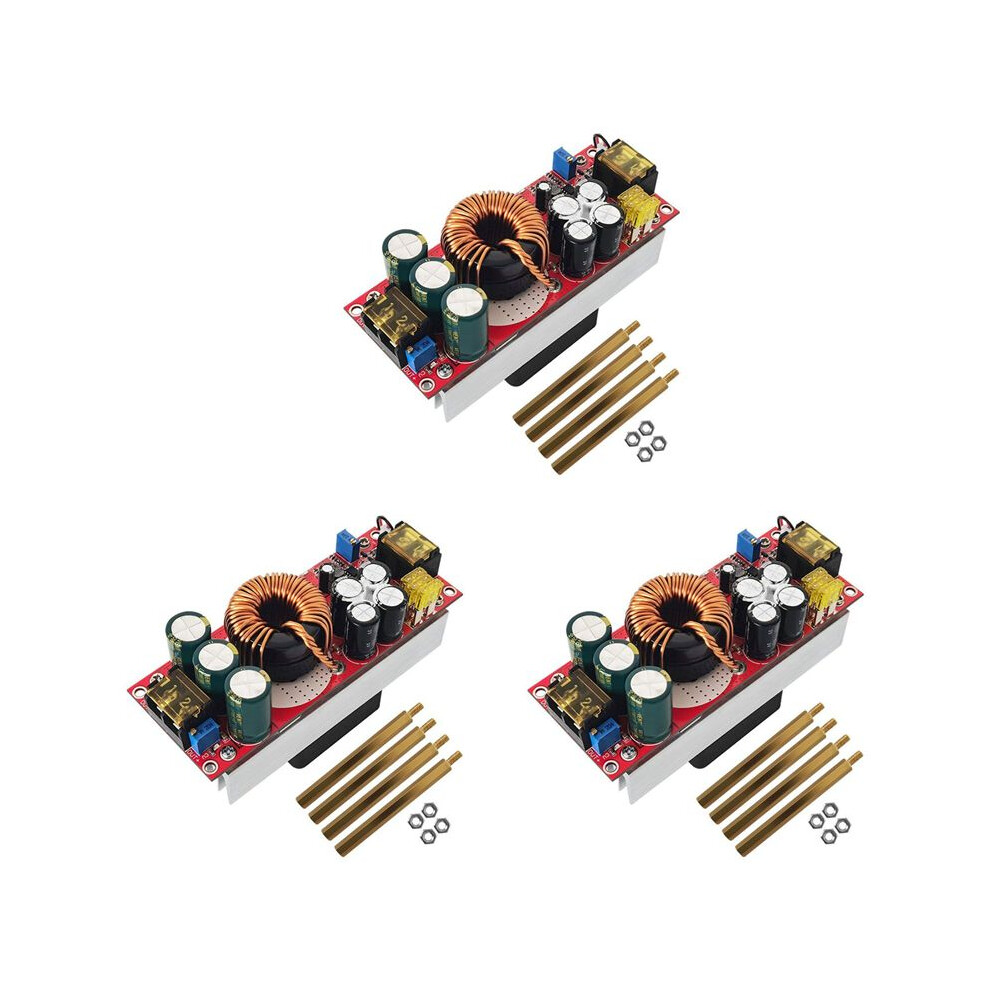

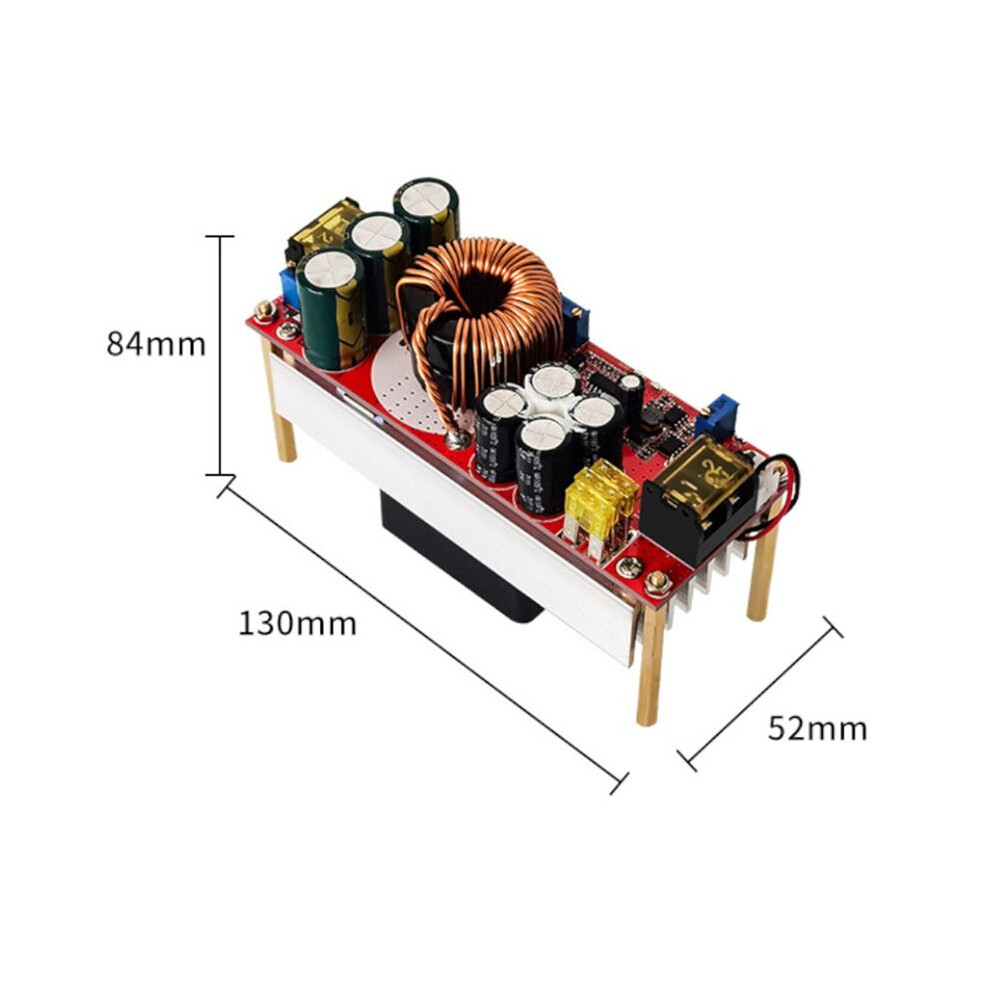

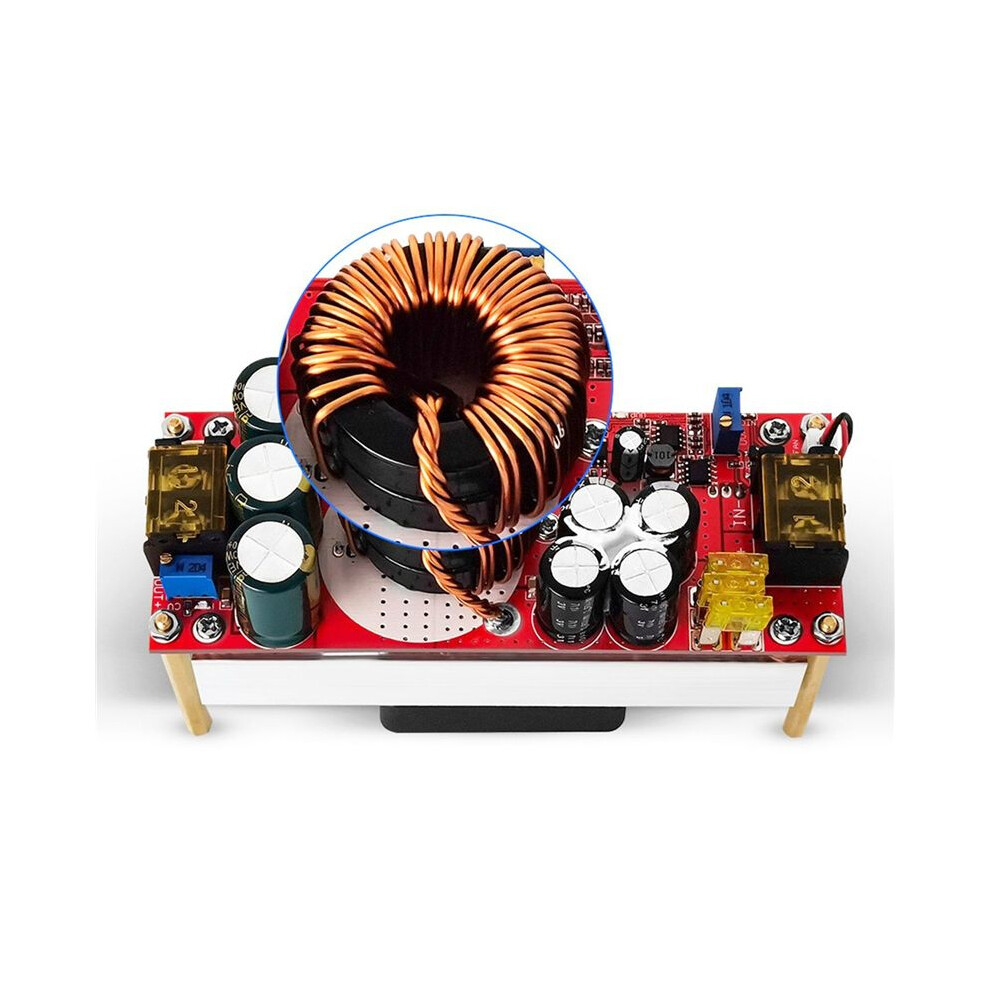

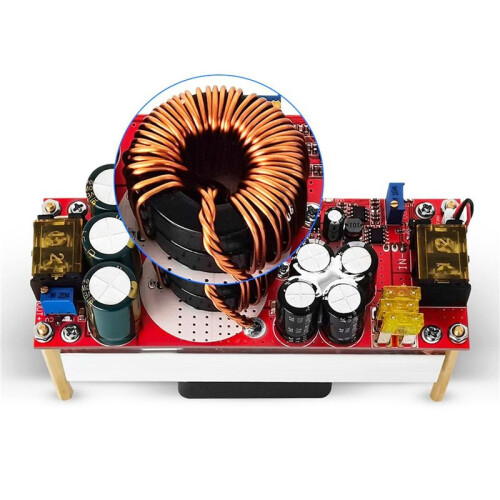

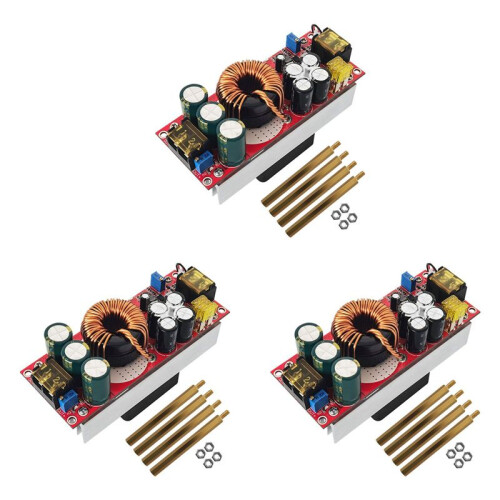

3X 1500W - Boost Module 12-48V to 24-72V 30A Adjustable Constant Voltage and Current Electric Power Supply Module

3X 1500W - Boost Module 12-48V to 24-72V 30A Adjustable Constant Voltage and Current Electric Power Supply Module Περιγραφή

Features: This is a non-isolated power converter module with long service life.
High power and stable output, it converts 10-60VDC to 12-97VDC.High quality components ensures high conversion efficiency, to 97%.

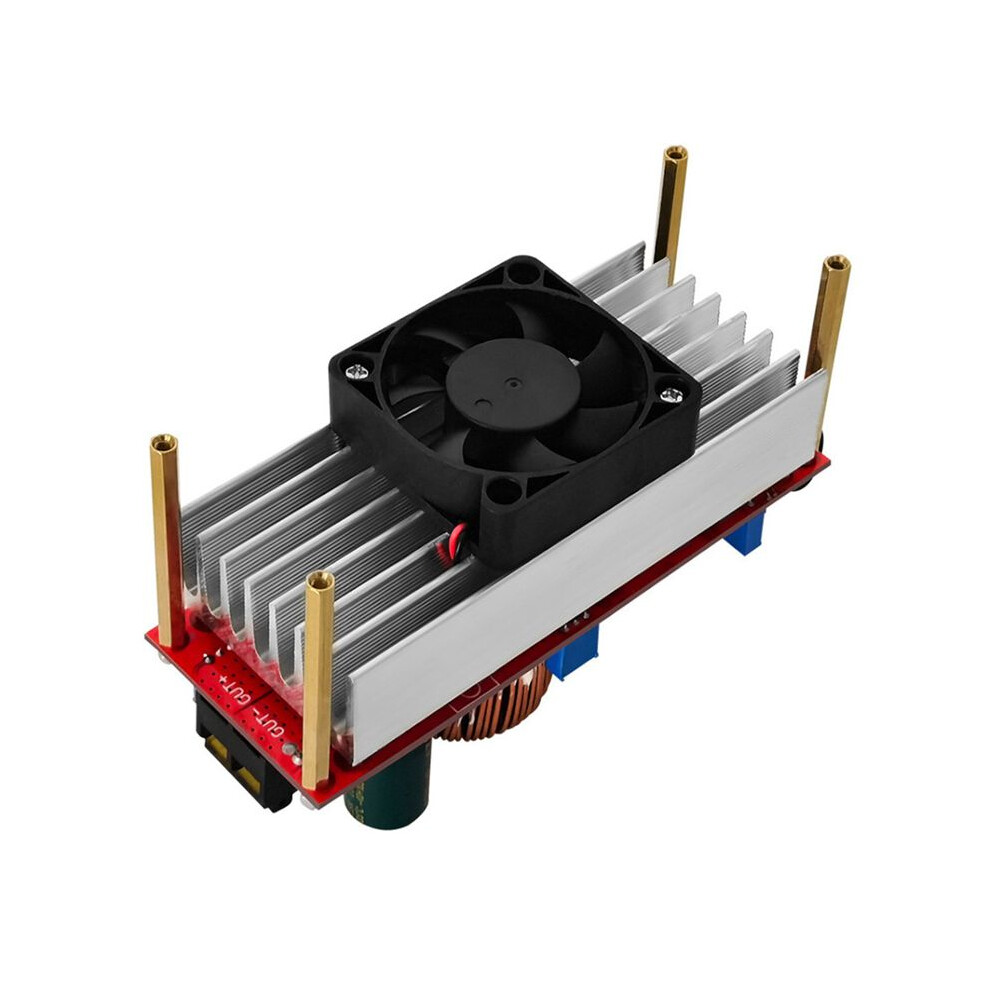

Designed with temperature control fan, which will automatically work when temperature reaches about 60, and stop when temperature drops below 60.
Widely used for high power solar street lamp driving, various LED lighting CV driving, vehicle-mounted and mobile device power supply, DIY adjustable CV CC power supply, solar power charging, and various batteries charging.
Conversion Efficiency: 92% to 97% (Efficiency is related to input/output voltage, current and voltage difference. The smaller difference is, the higher efficiency will be); Wiring Method: Terminal blocks (Please use large current copper wire)

Spec:
Name: 1500W step constant current module
Type: Non-isolated step- module (BOOST)
Input Voltage: DC10V to 60V
Input Current: 10V-30V input voltage, maximum current is 35A-40A; 31-60V input voltage, maximum current is 30A-35A
Quiescent Current: 15mA(when convert 12V to 20V, higher output voltage will increase quiescent current)
Output Voltage: 12-97V continuously adjustable (cannot be used to step down voltage)
Output Current: 22A (related to the input and output voltage difference, the greater voltage difference is, the smaller output current will be. please enhance heat dissipation when current is over 15A)
Constant Current Range: 0.8-22A(+/-0.3A)
Reverse Input Protection: Yes (150A power MOS reverse protection)
Input Low Voltage Protection: Yes (10V-50V adjustable, self-recovery)
Operating Temperature: -40to 85(if temperature is too high, please enhance heat dissipation)
Frequency: 150KHz
Input Over Current Protection: Yes (automatically
