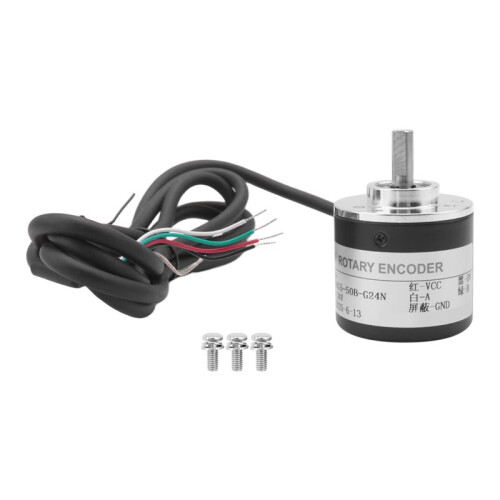

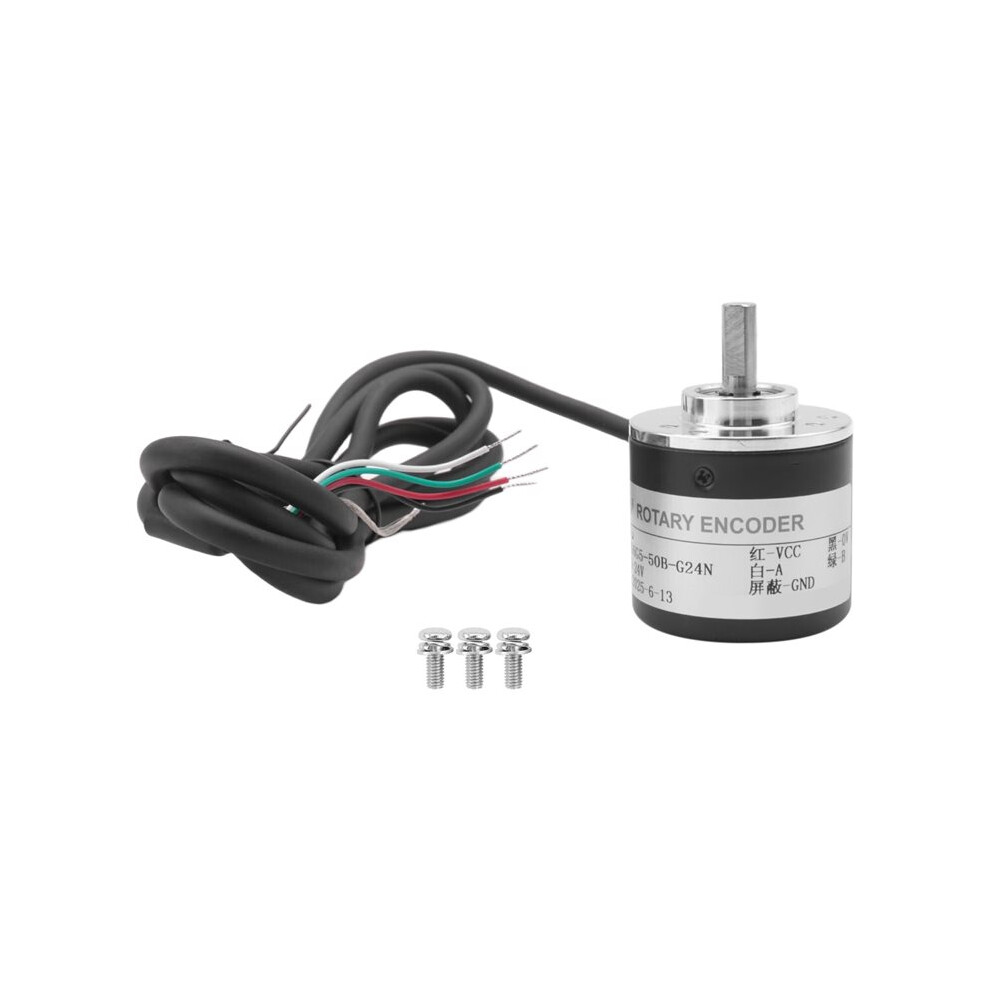

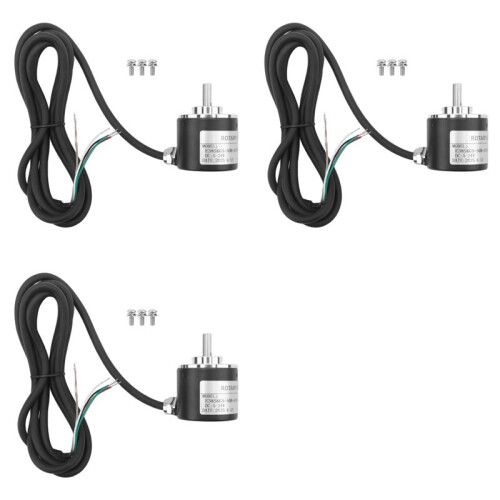

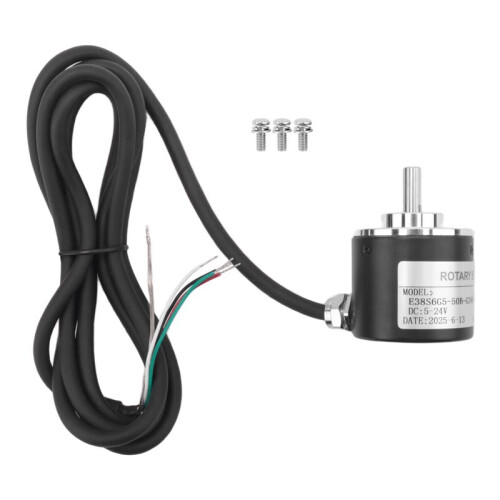

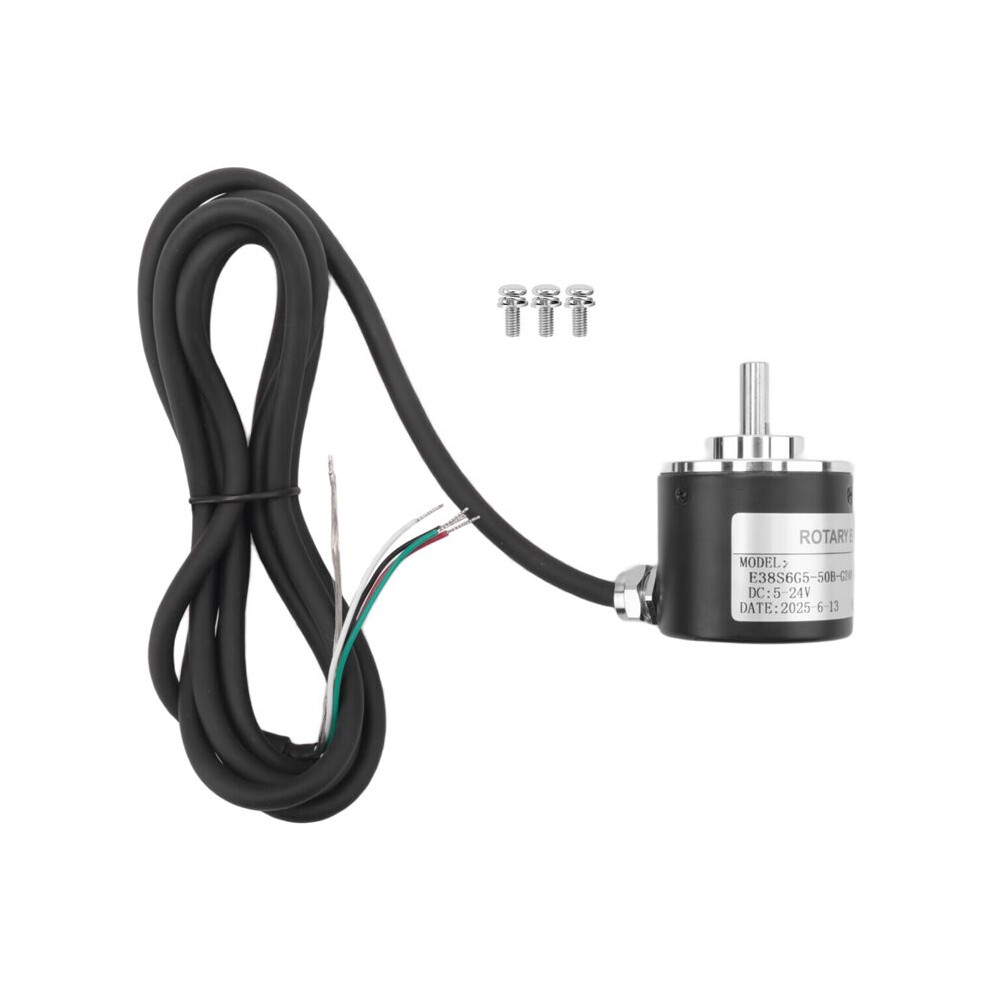

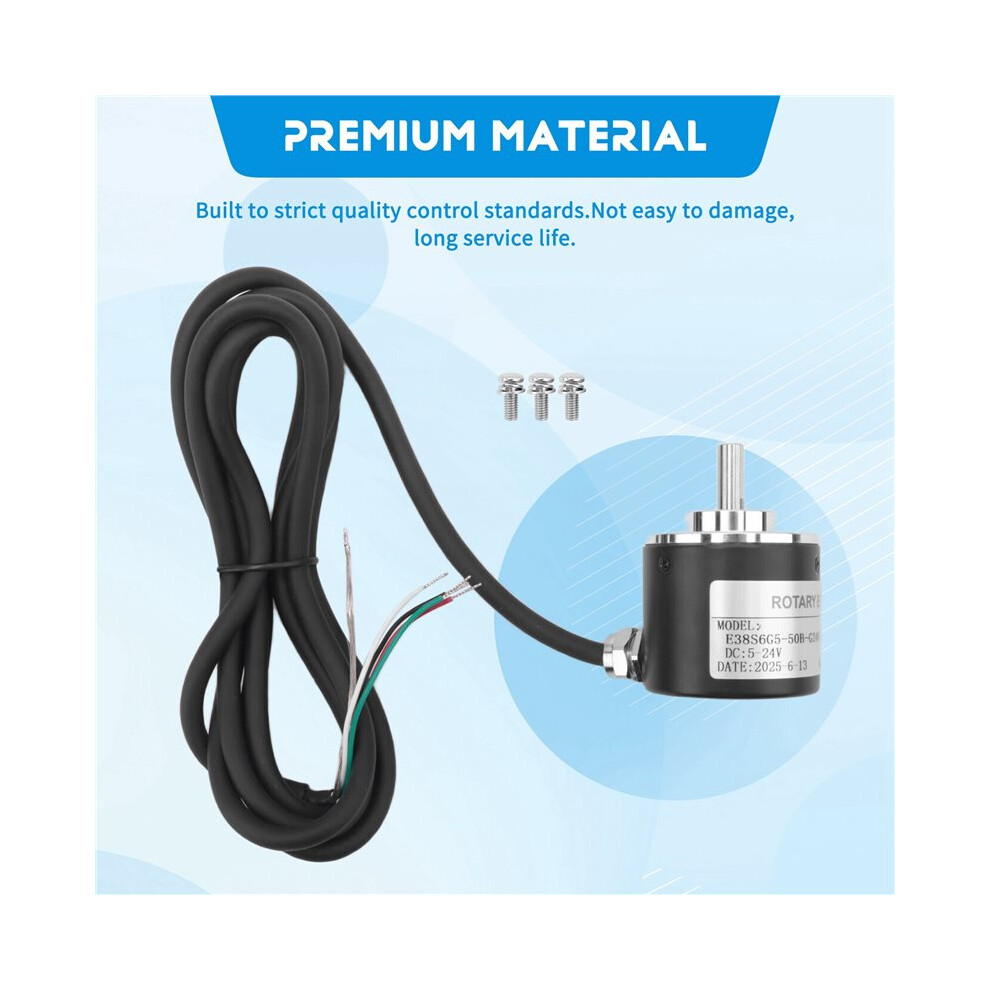

3X Rotary Incremental Encoder 38S6G5-B-G24N AB 2-Phase Connection 50P/R 5-24V Solid Shaft Open Collector NPN Output

3X Rotary Incremental Encoder 38S6G5-B-G24N AB 2-Phase Connection 50P/R 5-24V Solid Shaft Open Collector NPN Output Περιγραφή

1. This produet is composed of precision components, so please use it carefully and do not drop it.
2. When installing this product, if the eccentricity or deviation angle is too large, its service life will be shortened.
3. Do not use it in strong impact, vibration, corrosiveness, large magnetic field, high temperature, high humidity and acid-alkaline environment.
4. The error in the number of pulses may be caused by the power or OFF. After the power is turned , there is a delay of 0.5S.
5. After the product is fixed, do not pull the cable with a force of more than 29.4N.

When there are high-voltage lines or power lines nearby, please cover the cables with conduits.
When wiring, be careful not to short-circuit between the terminals, and ensure that the wiring is correct, Wrong wiring will damage the internal circuit, It is recommended to conduct insulation protection for the unconnected wires.
The shielded wire should be grounded.
Do not disassemble the product by yourself.
Safety Precautions:
1: The encoder and the shaft should not be rigidly connected, use elastie connectors, the photoelectrie encoder is a high-precision sensor, and it is strictly forbidden to knock during installation.
2: Please do not wind the eneoder output and power together or output in the same slot. and do not place it near the switchboard.
3: Wrong wiring will burn out the internal circuit, When wiring, please connect according to the encoder label,and turn it after checking.
Colour:As Shown
Material:Metal

Package Contents:

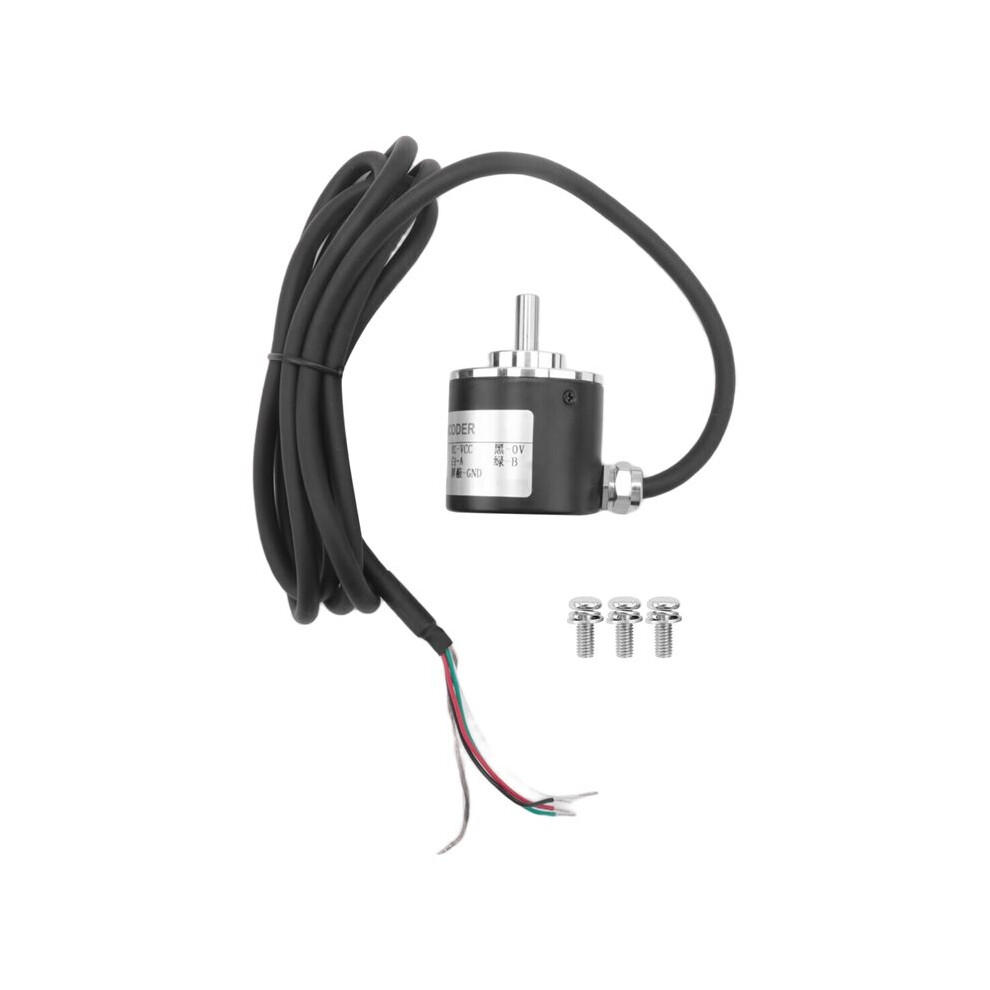

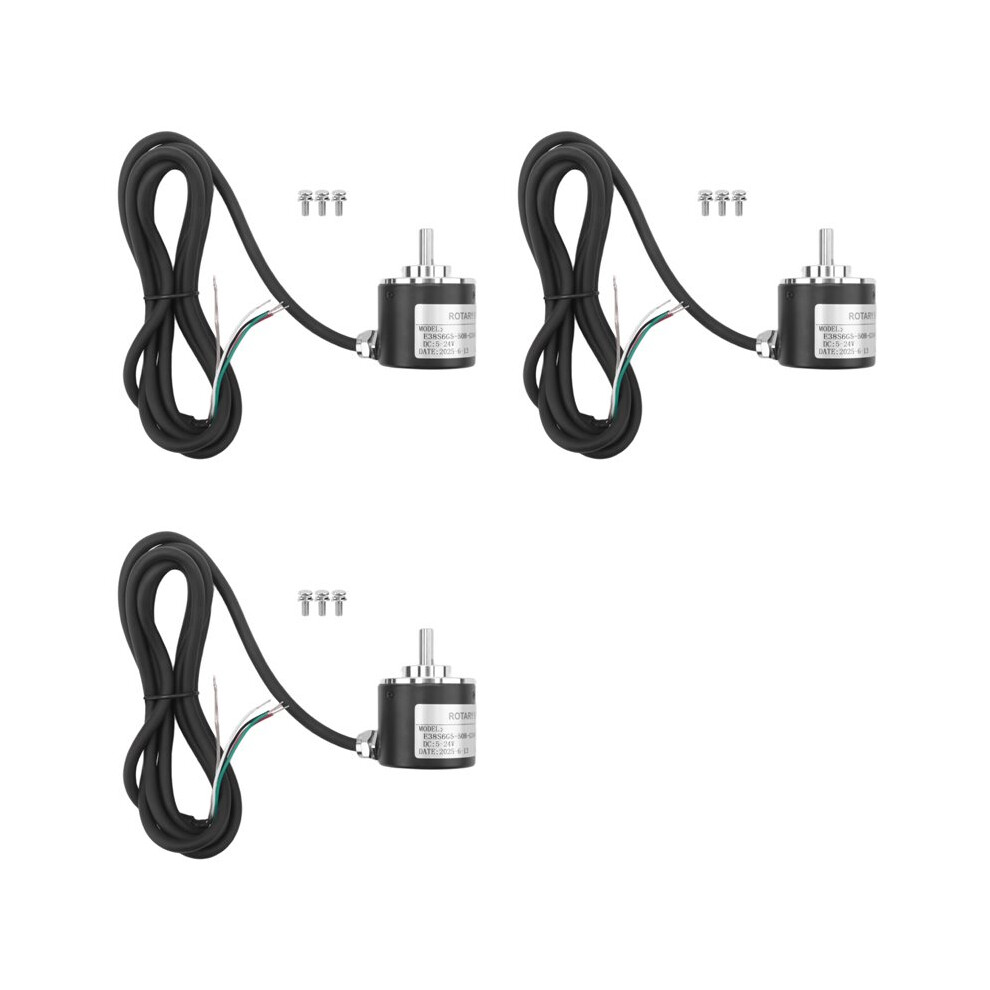

3 x Rotary Incremental Encoder
3set x screw
