4X ESP32-P4 10.1inch Development Board IPS LCD Module HMI Screen Display Touch Panel JC8012P4A1 Camera WIFI

4X ESP32-P4 10.1inch Development Board IPS LCD Module HMI Screen Display Touch Panel JC8012P4A1 Camera WIFI Περιγραφή

Reserve the TF card interface, to more IO available, this module supports development in for IDE, ESP IDE, for Micropython and for LVGL
The Module includes LCD display screen, backlight control circuit, touch screen control circuit
JC8012P4A1 use ESP32-P4NRW32 & ESP32-C6--1U-N4 as the controller, the main controller(ESP32-P4NRW32) is a dual-core MCU, ESP32-C6--1U-N4 integrated WI-FI and functions, the main frequency can reach 400MHz, 768KB_HP 16KB_LP , 128KB ROM, 32M PSRAM, Flash size is 16MB, 10.1 inch display resolution is 800 x 1280, with Capacitive Touch Panel
Advanced Connectivity: Equipped with WiFi and capabilities, this module allows for easy integration with other devices and online platforms, enhancing its functionality in IoT projects

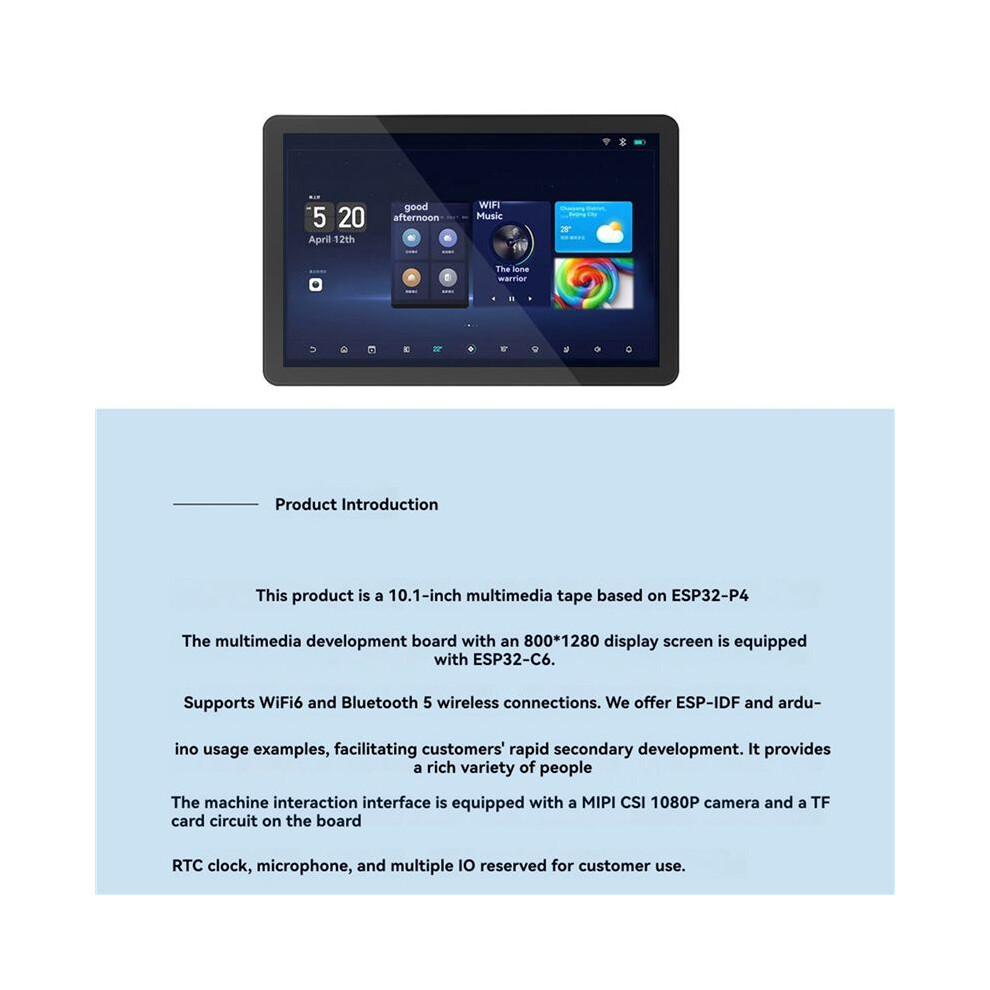

This product is a multimedia development board based ESP32-P4 with a 10.1-inch 800 x 1280 display. It is equipped with ESP32-C6 and supports WiFi 6 and 5 wireless connections. We provide examples of using ESP-IDF and for ardu-ino to facilitate customers' rapid secondary development. It provides a rich human-computer interaction interface, with a MIPI CSI 1080P camera, TF card circuit, RTC clock, microphone, and multiple IOs reserved for customers
Product Parameters
Display Color: 16.7M Color
SKU: Capacitive Touch Panel: JC8012P4A1C
Display Size: 10.1 Inch
Dispolay Type: TFT
Resolution: 800x1280(Pixel)

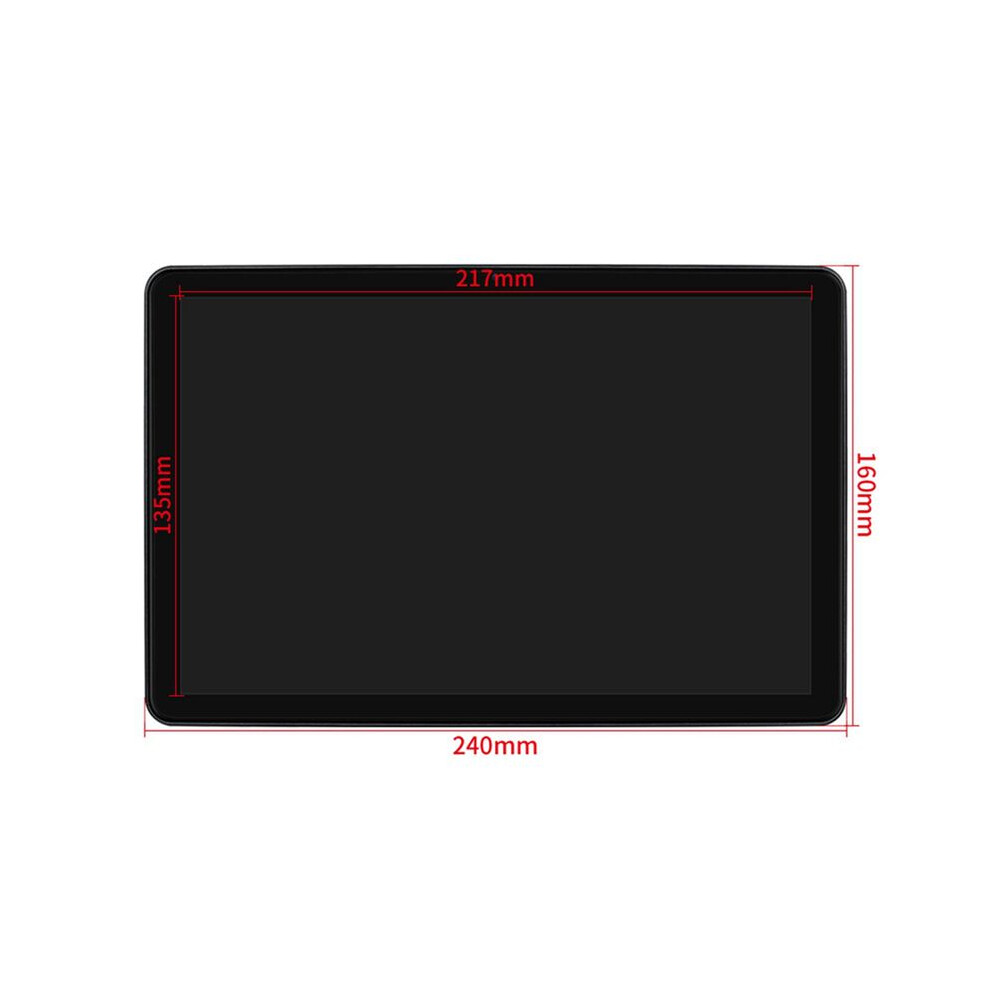

Module Size: 160.00x 240.00(mm)
View Angle: IPS Full Angle
Operating Temperature: -20-70
Storage Temperature: -30-80
Operating Voltage: 5.0V
Power Consumption: About 800mA
(The product appearance and printed words may vary depending the batch, but this does not affect use)
Color:As Shown
Material:PCB+LCD

Package Contents:
4 x 10.1inch Development Board(
