4X for Heltec T114 V2 Tracker NRF52840 SX1262 LoRaWAN LoRa 1.14 Inch Display Devboard Low Power BLE Meshtastic

4X for Heltec T114 V2 Tracker NRF52840 SX1262 LoRaWAN LoRa 1.14 Inch Display Devboard Low Power BLE Meshtastic Περιγραφή

Mesh Node T114 is a development board based nRF52840 and SX1262, supports LoRa and 5.0.
It integrated a variety of power interfaces (5V USB, lithium battery and solar panel), with 1.14 inch TFT display and GPS module as accessories, and has powerful long-distance communication capabilities, scalability, and low power design.
Its six-layer PCB architecture and optimized RF circuit design make it especially suitable and durable for LoRa/LoRaWAN applications such as device tracking and remote monitoring systems.
The T114 enables development through environment like for and PlatformIO, offering full compatibility with well-known open-source projects like Meshtastic and MeshCore.

Main Features:
MCU nRF52840 (), LoRa chipset SX1262.
Powerful display function, onboard 1.14 inch TFT-LCD display contains 135(H)RGBx240(V) dots and can display to 262k colors
Low power consumption, 11 uA in deep sleep
Powerful display function, onboard 1.9-inch TFT-LCD display contains 170 (RGB)X320 dots and can display to 262k colors.
Operation condition: -20 ~ 70, 90%RH(No condensing).
Type-C USB interface with a complete voltage regulator, ESD protection, short circuit protection, RF shielding, and other protection measures
Various Interfaces: 1.25 x 2P LiPo connector, 1.25 x 2P Solar panel connector, 1.25 x 8P GNSS module connector, which greatly increase the extensibility of the board.
Color: As Shown
Material: plastic

Package Contents:

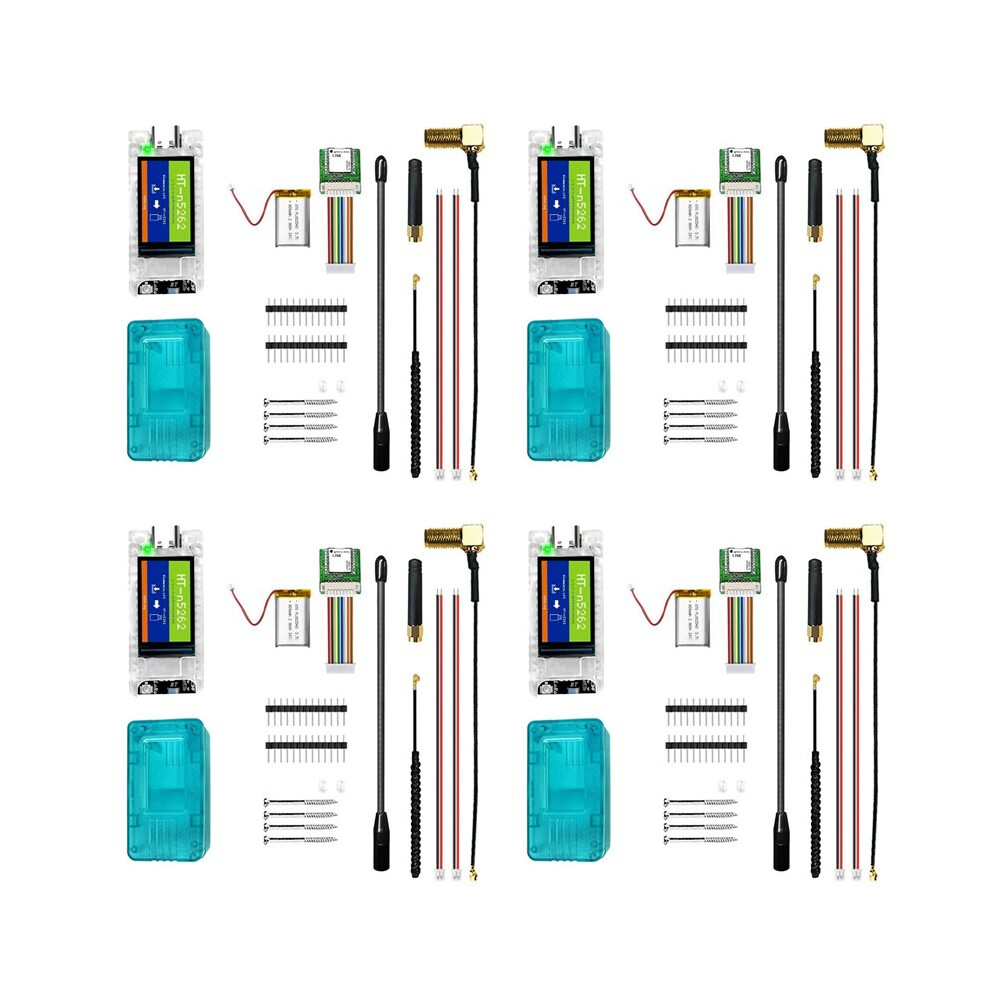

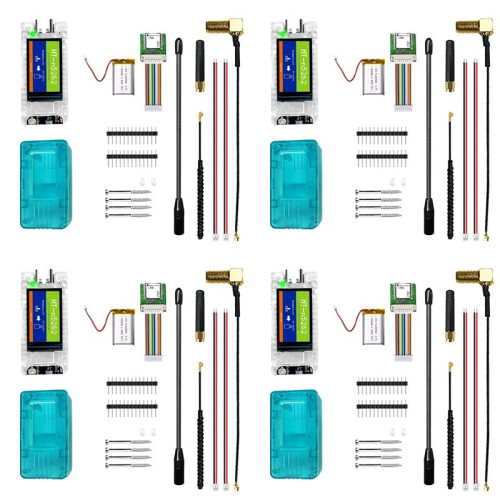

4 x T114 V2 Tracker kit
