4x Vector Network Analyzer Calibration Kit for Analyzers for 6GHz 50Ω Shorted Open SMA Load Termination

4x Vector Network Analyzer Calibration Kit for Analyzers for 6GHz 50Ω Shorted Open SMA Load Termination Περιγραφή

1. The BNC connector is made of new environmentally friendly copper material.
2. Suitable for high-frequency signal transmission
3. The general SMA/TNC/N connector models can be divided into the following four types of names: the internal needle of the internal screw is called the male SMA-J; the internal hole of the internal screw is called the reverse polarity male RP-SMA-J; the internal screw of the external screw is called the male connector RP-SMA-J; The hole is called the female SMA-K; the outer screw and the inner needle are called the reverse pole female RP-SMA-K.
4. The interfaces of commonly used 2.4G WIFI routers and wireless network cards are generally external screws and internal pins RP-SMA
5. All-copper RF converter from N female to SMA male, SMA male to BNC female

Model: SMA to BNC-JKSMA male to BNC female
White insulation: polytetrafluoroethylene PTFE (high temperature resistance)
Impedance: 50 ohms
Frequency: 0-6GHZ
Note:
Different Batches May Have Differences In Product Appearance, Color, And Printed Characters, Which Will Not Affect The Use
Colour:As Shown
Material:copper

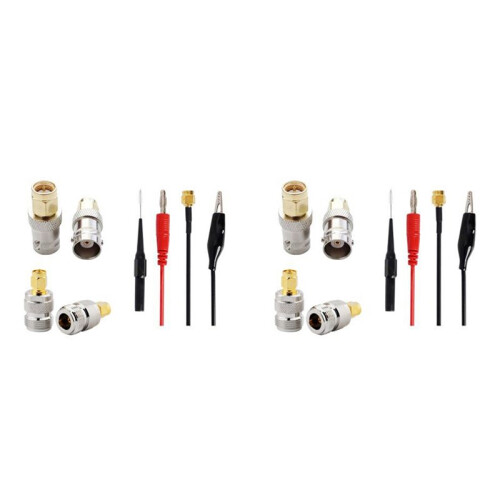

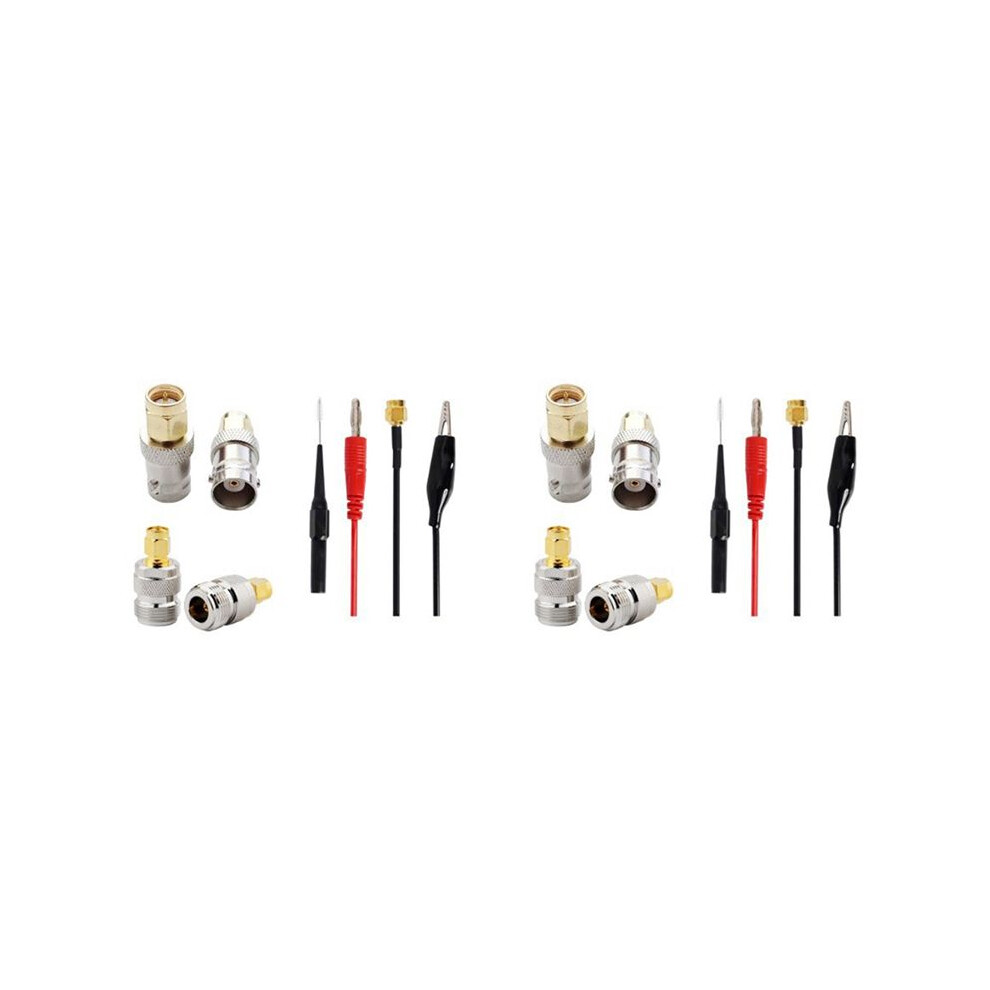

Package Contents:
4 x All-copper RF converter N female to SMA male
4 x SMA male to BNC female
2 x SA6 spectrum analyzer SMA test probe
