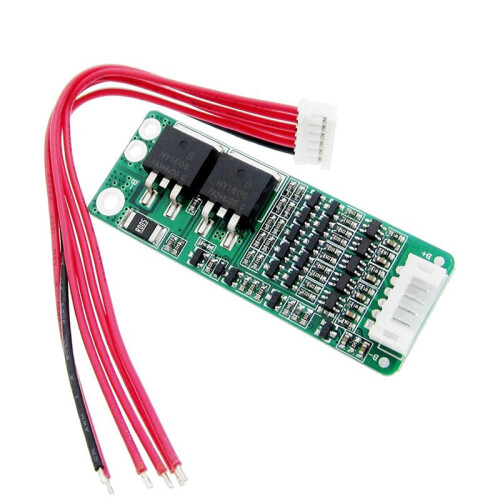

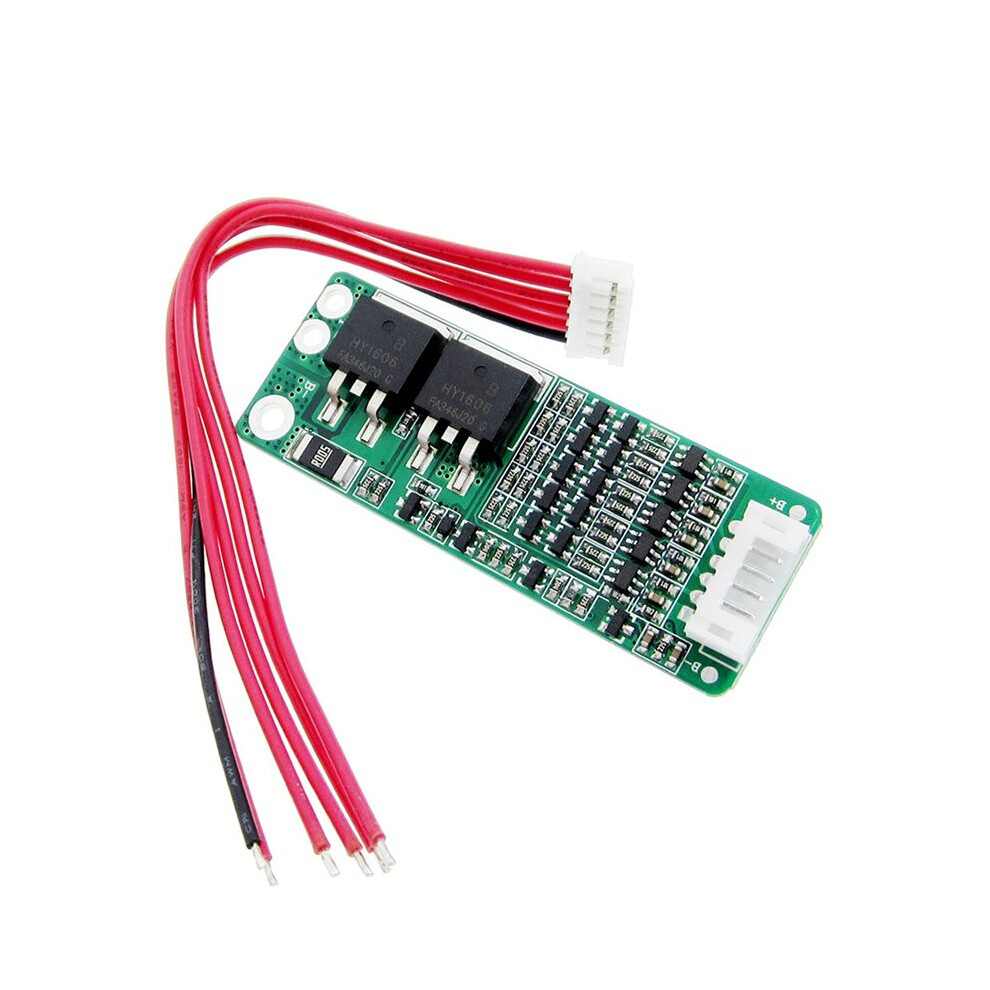

5S 21V 56A Lithium-Ion Battery Charging Protection Board+Cable Supporting Short Circuit/Overload/Over Current Protection
Σε απόθεμα
Γιατί θα λατρέψεις τις αγορές στην OnBuy :
- Κέρδισε Επιστροφή Ποσού σε κάθε αγορά – ξόδεψε το άμεσα στην επόμενη παραγγελία σου
- Δωρεάν παράδοση – σε εκατομμύρια προϊόντα σε όλο το site
- Οι πελάτες μας λατρεύουν – 134,000 κριτικές με βαθμολογία « Άριστα »
Οι τιμές για τα είδη που πωλούνται από την OnBuy περιλαμβάνουν ΦΠΑ.
Διαθέσιμες άτοκες επιλογές πληρωμής
Δες την πλήρη περιγραφή & λεπτομέρειες του προϊόντος
Παράδοση: Προτεραιότητα (Δωρεάν) | Τρι 29 Σεπ - Πεμ 1 Οκτ
Πωλείται από: JJBRDZ
Επιστροφές: 30 ημέρες
Προστασία πληρωμής 180 ημερών
Μπορεί επίσης να σου αρέσουν
Περίληψη
- Name: Lithium battery charger charging protection board
- Size: about 60 x 23 mm
- Color: as shown in the figure
- Charging voltage: 21 V
- Charging MOS pressure value: 35 V
5S 21V 56A Lithium-Ion Battery Charging Protection Board+Cable Supporting Short Circuit/Overload/Over Current Protection Περιγραφή
Name: Lithium battery charger charging protection board
Size: about 60 x 23 mm
Color: as shown in the figure
Charging voltage: 21 V
Charging MOS pressure value: 35 V
Discharge MOS pressure value: 35 V
Charging current: 56A
Continuous discharge current: 1
Overcurrent protection: 50/55/60 A
Overcurrent protection delay: 20/25/30mS
Single self consumption: 30uA
Power consumption between single sections: 3uA
Single section overcharge detection voltage: 4.18 -/4.22V
Overcharge recovery voltage 4.05~4.15 V
Overcharge detection delay: 0.5/1.0/2.0S
Single section over discharge detection voltage: 2.75-2.85 V
Overdischarge recovery voltage: 2.90-3.20 V
Overdischarge detection delay: 0.5-2.0S
Short circuit/overload/overcurrent protection recovery Short circuit/over discharge/overcurrent protection, automatic recovery after load removal
Short circuit protection delay 200/500/600uS
Normal working state of B to P resistance: 5m Ω
Continuous 1 current temperature rise: 25
Working environment (humidity) Relative humidity: greater than equal 98% (humidity is stable for a long )
Working environment (temperature) - 30~80 (stable for a long in a lower temperature range)
Colour:green
Material:PCB
Package Contents:
1 x battery protection board
1 x flat cable
Λεπτομέρειες
| OPC | PVXVHY6 |
|---|---|
| Μάρκα | Torribaly |
| Κωδικοί | 4714095909686 (EAN) |
| Πληροφορίες προϊόντος και ασφάλειας |
Στοιχεία Προϊόντος
| Height | 2cm |
|---|---|
| Width | 7cm |
| Length | 11cm |
| Weight | 0.011kg |
| Colour | Green |
| Material | PCB |
