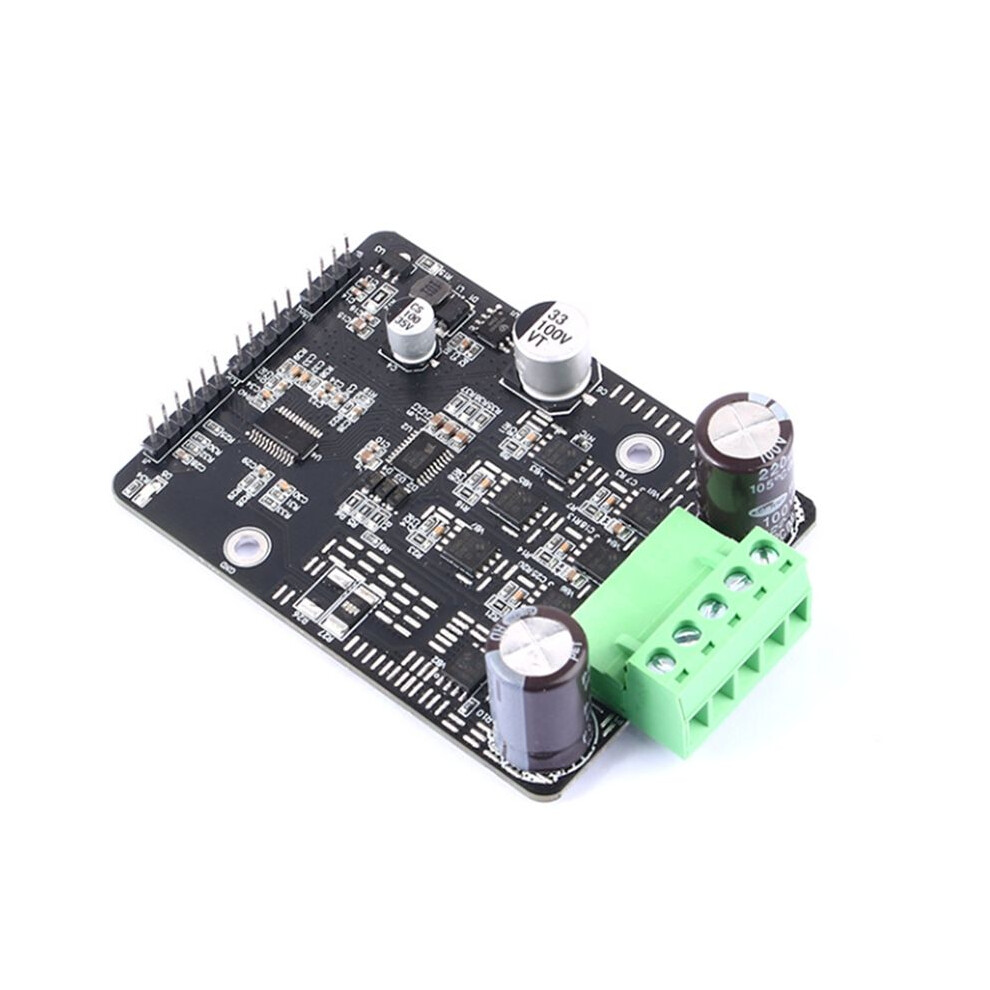

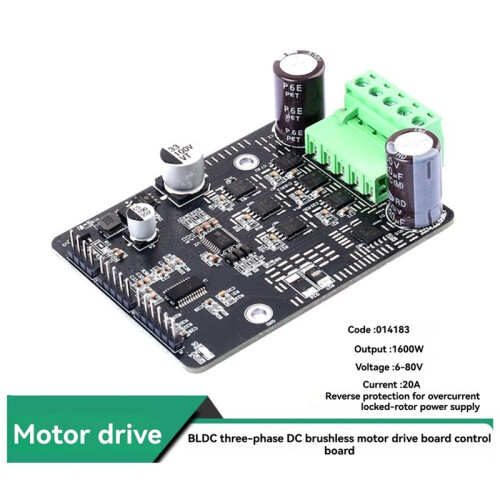

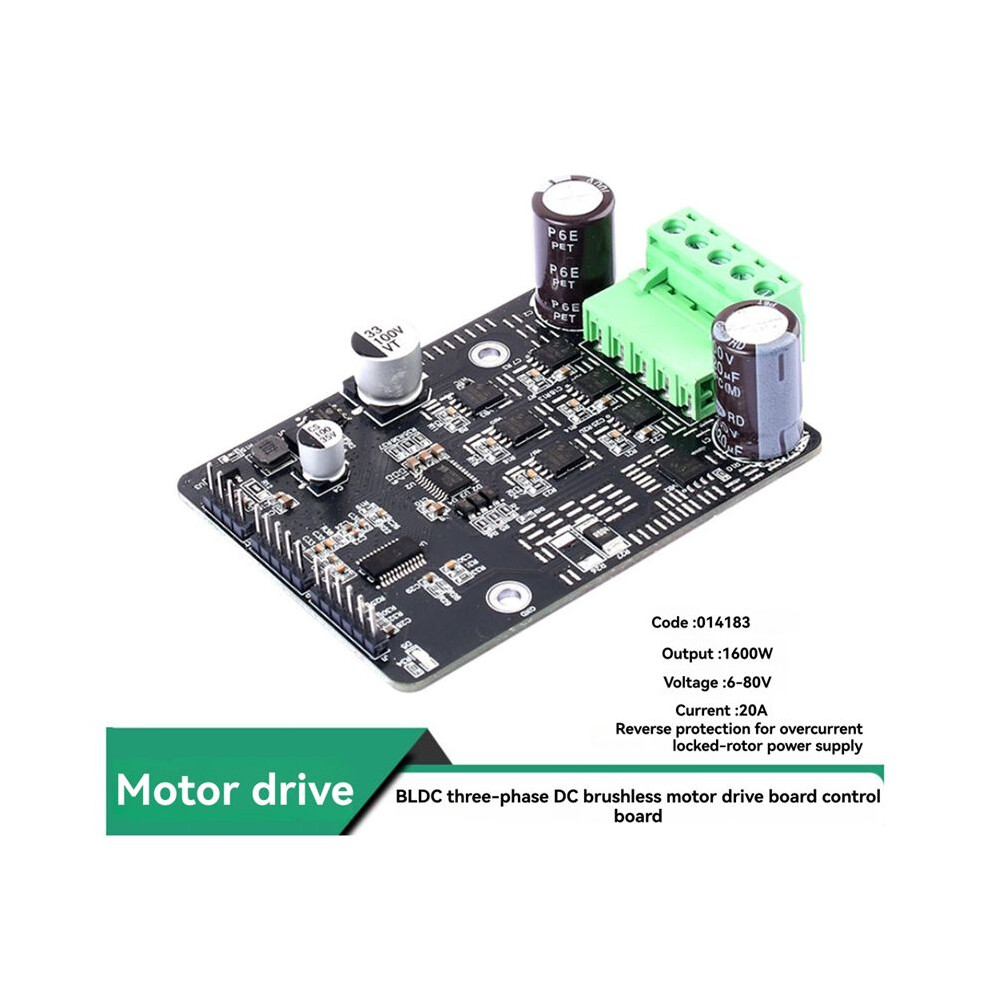

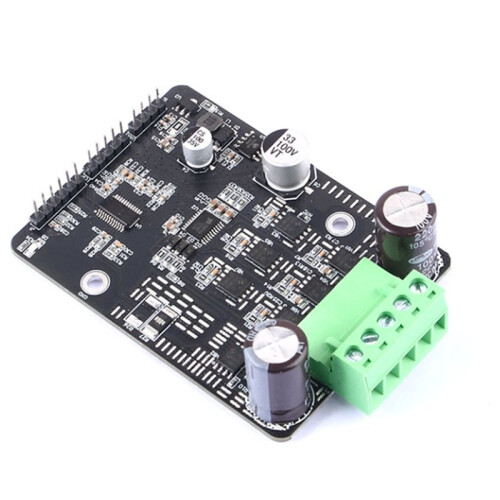

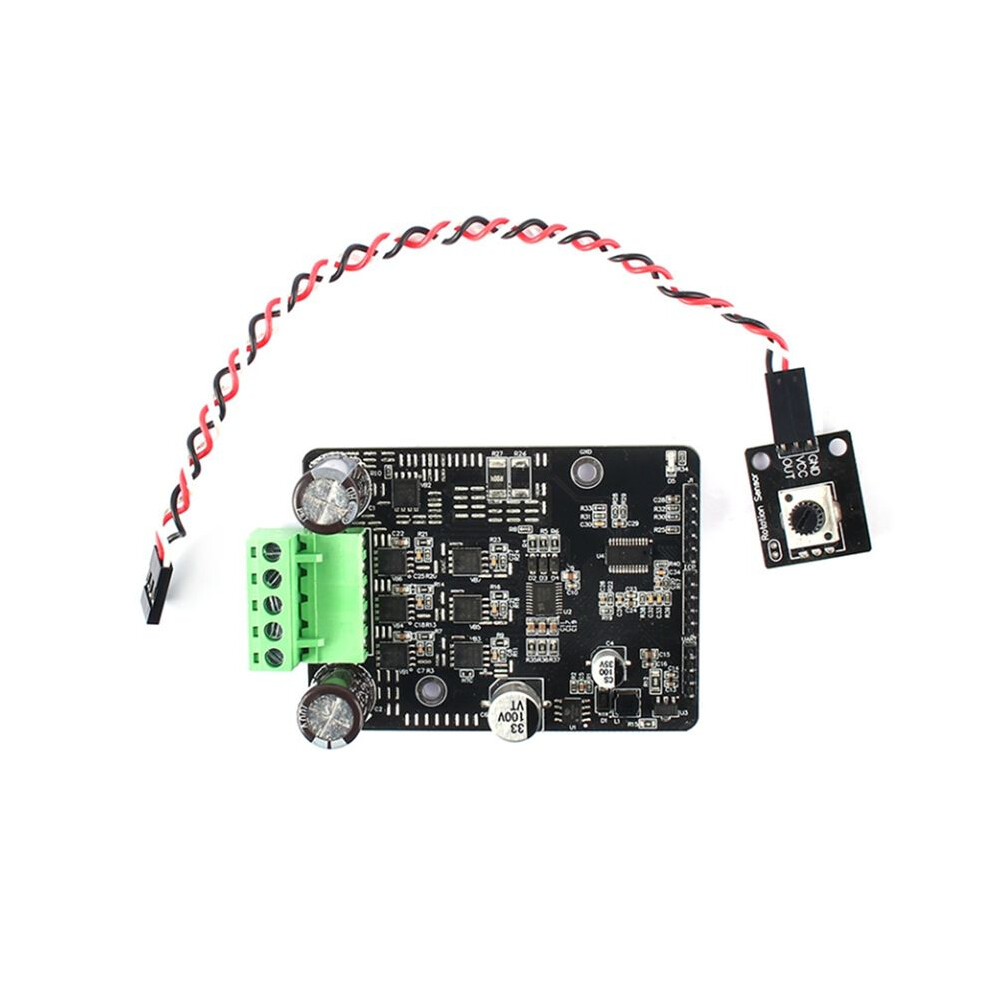

6-80V BLDC Three Phase Brushless Motor Controller 1600W Motor Control Driver Board Motor Regulator No Hall
Μάρκα Torribaly
Νέο
Σε απόθεμα
Γιατί θα λατρέψεις τις αγορές στην OnBuy :
- Κέρδισε Επιστροφή Ποσού σε κάθε αγορά – ξόδεψε το άμεσα στην επόμενη παραγγελία σου
- Δωρεάν παράδοση – σε εκατομμύρια προϊόντα σε όλο το site
- Οι πελάτες μας λατρεύουν – 130,000 κριτικές με βαθμολογία « Άριστα »
29,06 €
34,54 €
Έκπτωση 16%!
ΔΩΡΕΑΝ Παράδοση
1%
Τι είναι το άμεσο Cashback;
Μάθετε περισσότερα
Οι τιμές για τα είδη που πωλούνται από την OnBuy περιλαμβάνουν ΦΠΑ.
Διαθέσιμες άτοκες επιλογές πληρωμής
Δες την πλήρη περιγραφή & λεπτομέρειες του προϊόντος
Παράδοση: Προτεραιότητα (Δωρεάν) | Τρι 18 - Πεμ 20 Αυγ
Πωλείται από: JJBRDZ
Επιστροφές: 30 ημέρες
Προστασία πληρωμής 180 ημερών
Μπορεί επίσης να σου αρέσουν
Περιγραφή & Λεπτομέρειες
Περίληψη

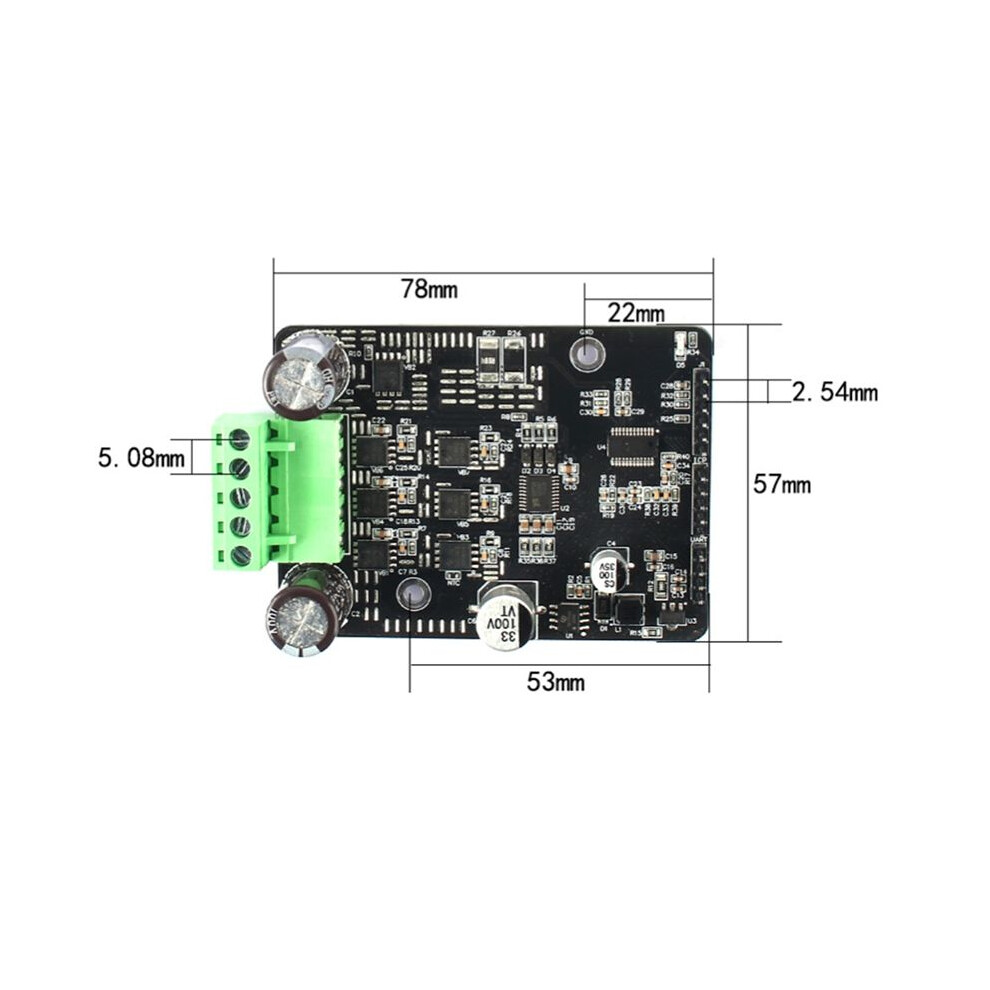

- Forward and reverse switching, stop brake, potentiometer (PWM) speed regulation, LED motor status indication, Motor protection: MOS power-on self-test, MOS over-temperature protection, stall protection, over-current protection, over-undervoltage protection. The drive module is 78x57mm long and wide, the plate thickness is 1.6mm, the working voltage is 6-80V, and it supports anti-reverse connection protection, and the module will not be damaged by reverse connection of the power cord.

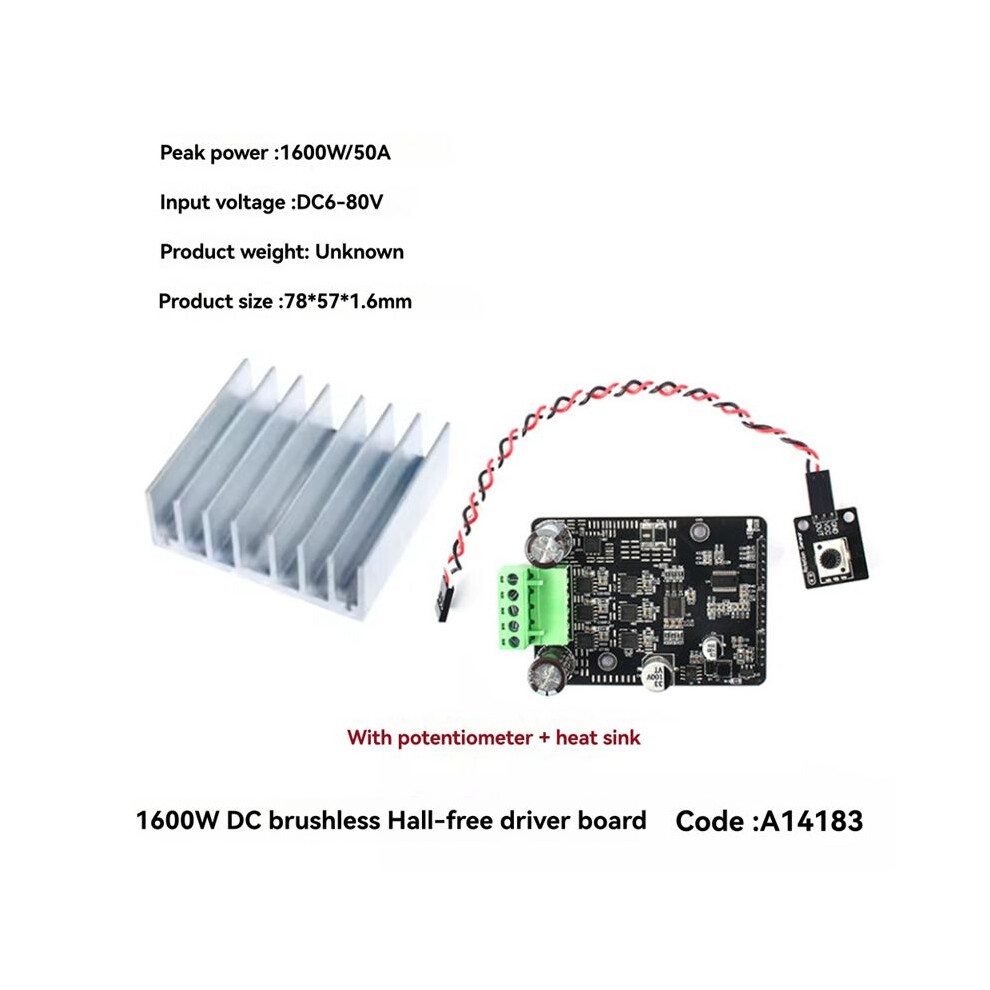

- The module defaults to a bare board. If the motor driving the current below 5A does not need forced heat dissipation, it only needs to ensure normal ventilation. If the driving current exceeds 5A, forced heat dissipation must be forced. The heat sink provided by our company can work continuously at 20A current. The onboard LED indicator is used for standby, working, error and other states.

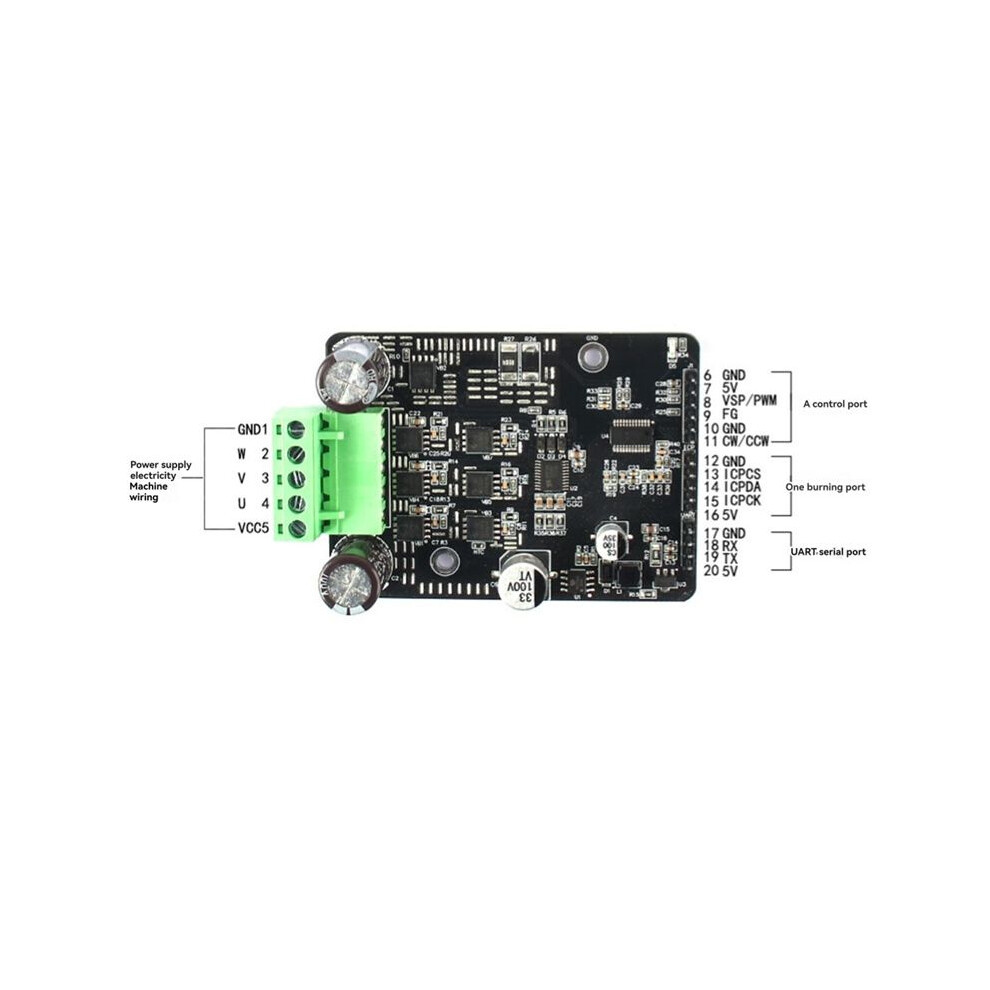

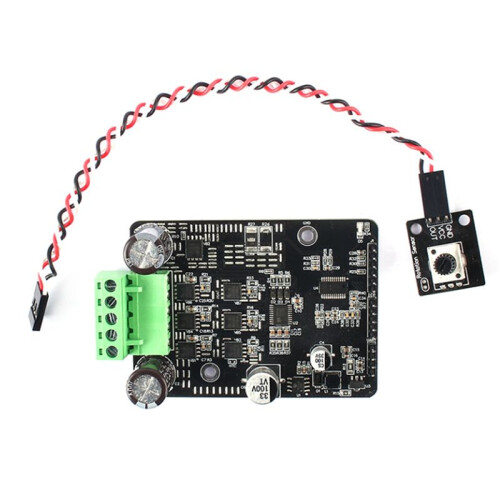

- Onboard potentiometer (0.5~5V), PWM speed regulation interface (frequency 1~20KHz), duty cycle 10~100%. Onboard FG speed feedback interface, calculate speed RPM=FG frequency Hz * 60/pole pair number. Onboard CWICCW steering control interface, hanging for clockwise CW, shorting GND for counterclockwise CCW steering.
- Application areas: pumps, medical equipment, various compressors, various fans/blowers, electric screwdrivers, electric curtains, automatic doors, hydraulic oil pumps, air pumps, refrigerator DC brushless compressors, lawn mowers, sprayers, underwater thrusters, etc.
- SNR8503M is a 32-bit core MCU, which is very convenient for development and simulation debugging. In order to facilitate users to quickly realize the driving of sensorless BLDC motors, our company has completed the underlying software core algorithm. Users only need to carry out secondary development based on this software to quickly complete product development.
6-80V BLDC Three Phase Brushless Motor Controller 1600W Motor Control Driver Board Motor Regulator No Hall Περιγραφή
Forward and reverse switching, stop brake, potentiometer (PWM) speed regulation, LED motor status indication, Motor protection: MOS power- self-test, MOS over-temperature protection, stall protection, over-current protection, over-undervoltage protection. The drive module is 78x57mm long and wide, the plate thickness is 1.6mm, the working voltage is 6-80V, and it supports anti-reverse connection protection, and the module will not be damaged by reverse connection of the power cord.
The module defaults to a bare board. If the motor driving the current below 5A does not need forced heat dissipation, it only needs to ensure normal ventilation. If the driving current exceeds 5A, forced heat dissipation must be forced. The heat sink provided by our company can work continuously at 20A current. The onboard LED indicator is used for standby, working, error and other states.
Onboard potentiometer (0.5~5V), PWM speed regulation interface (frequency 1~20KHz), duty cycle 10~. Onboard FG speed feedback interface, calculate speed RPM=FG frequency Hz * 60/pole pair number. Onboard CWICCW steering control interface, hanging for clockwise CW, shorting GND for counterclockwise CCW steering.
Application areas: pumps, medical equipment, various compressors, various fans/blowers, electric screwdrivers, electric curtains, automatic doors, hydraulic oil pumps, air pumps, refrigerator brushless compressors, lawn mowers, sprayers, underwater thrusters, etc.
SNR8503M is a 32-bit core MCU, which is very convenient for development and simulation debugging. In order to facilitate users to quickly realize the driving of sensorless BLDC motors, our company has completed the underlying software core algorithm. Users only need to carry out secondary development based this software to quickly complete product development.
Product name: SNR8503M
Is it Ha
Λεπτομέρειες
| OPC | PVPCMBJ |
|---|---|
| Μάρκα | Torribaly |
| Κωδικοί | 6033701983918 (EAN) |
| Πληροφορίες προϊόντος και ασφάλειας |
Στοιχεία Προϊόντος
| Height | 3cm |
|---|---|
| Width | 6cm |
| Length | 15cm |
| Weight | 0.0655kg |
| Colour | As Shown |
| Material | PCB |
