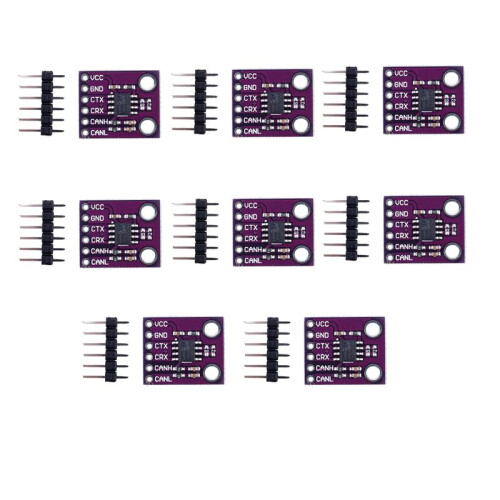

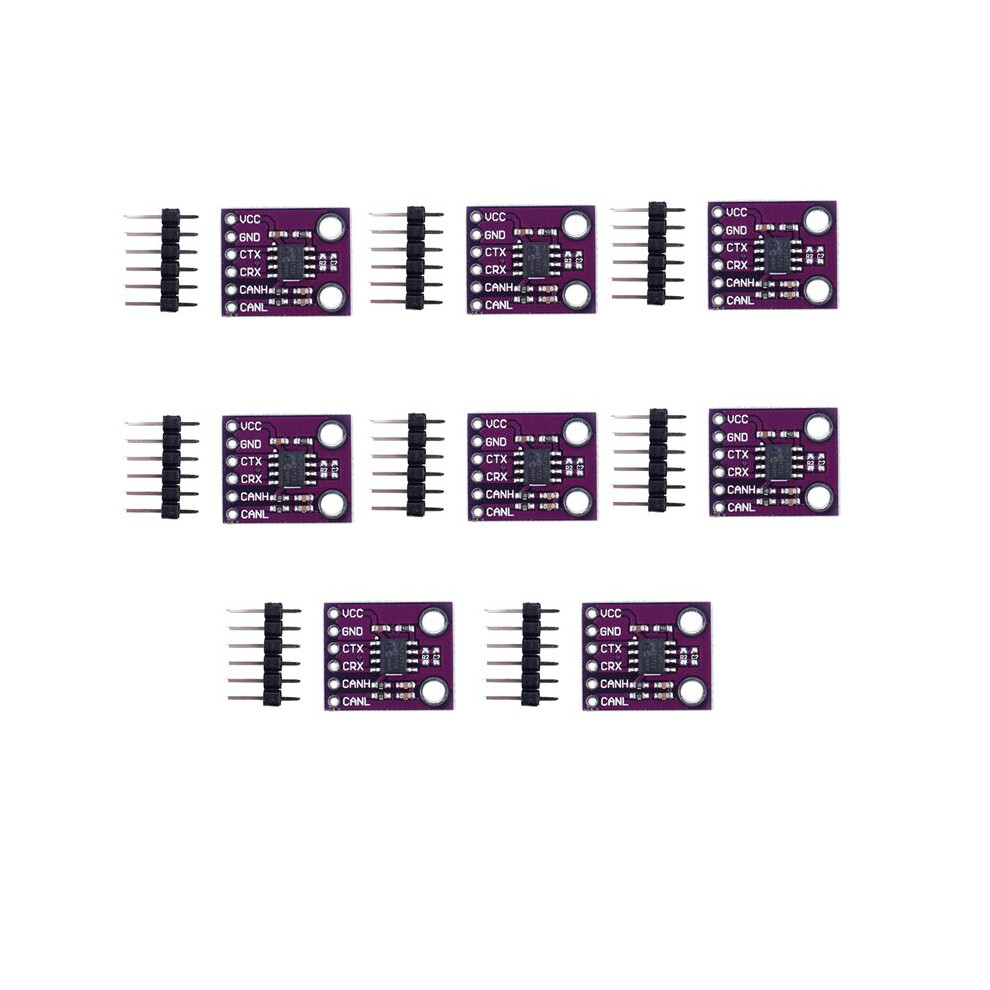

8X CJMCU-2551 MCP2551 High Speed CAN Communication Protocol Controller Bus Interface Module

8X CJMCU-2551 MCP2551 High Speed CAN Communication Protocol Controller Bus Interface Module Περιγραφή

The CJMCU-2551 is a fault tolerant high-speed CAN device that acts as a CAN protocol controller and a physical bus interface. The MCP2551 provides differential transceiver capability for the CAN protocol controller, which fully complies with the ISO-11898 standard, including 24V voltage requirements.
Typically, each node the CAN system must have a device that converts the digital signal generated by the CAN controller into a signal suitable for bus transmission.
It also adds buffers between the CAN controller and the high voltage spikes the CAN bus, which may be generated by external devices.

Support 1MB / S operating rate.
Meet the ISO-11898 standard physical layer requirements.
Suitable for 12V and 24V systems. Slope External Control, Reduced RFI.
Automatically detects a ground fault at the TXD input.
Power- reset and voltage event undervoltage protection.
No power- node or undervoltage does not affect the CAN bus.
Low current standby operation.
to 112 nodes can be connected.
Material: Metal
size: 18 x 15mm
Colour:
Quantity: 8 pcs

Package Contents: 8 x CAN Communication Protocol Controller Bus Interface Module
