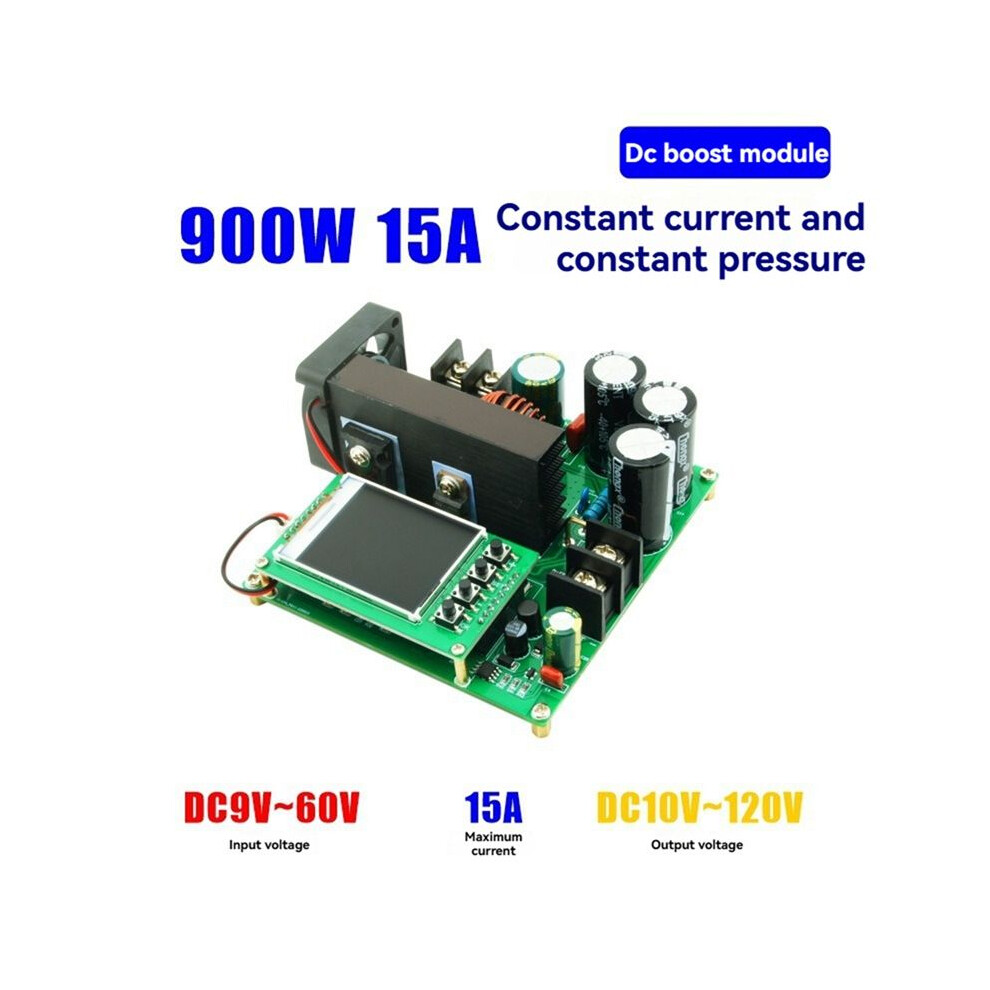

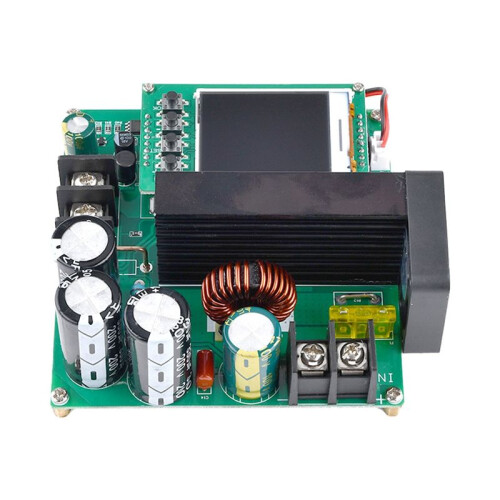

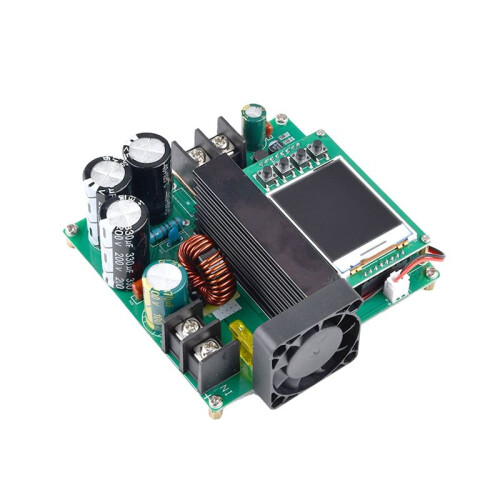

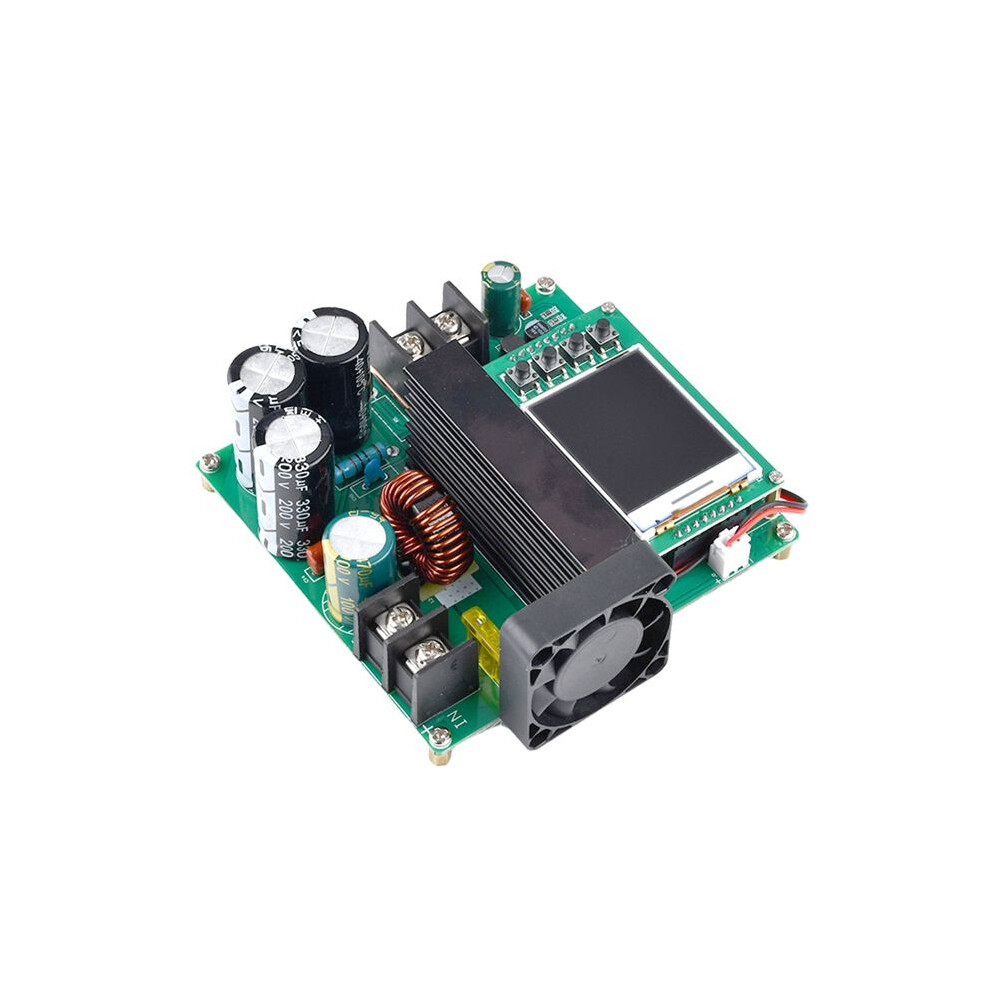

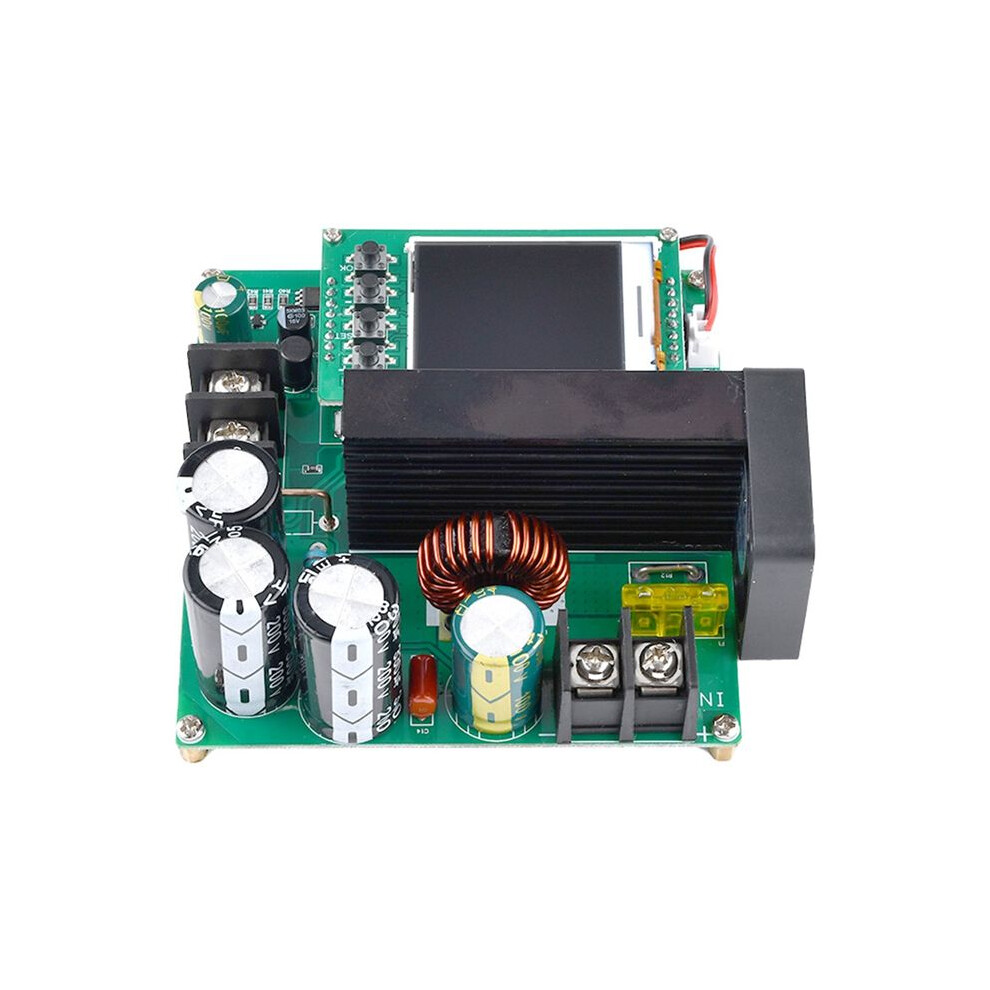

900W 15A Step Module TFT Digital Display - Step Converter Booster 9-60V to 10-120V Constant Current Voltage

900W 15A Step Module TFT Digital Display - Step Converter Booster 9-60V to 10-120V Constant Current Voltage Περιγραφή

1. Adjustable boost converter, with input voltage of DC9V~60V and output voltage of 10V~120V, which can be used for ordinary boost module with overcurrent protection, adjustable battery charger, LED driver, etc.
2. Voltage and current adjustment function.
3. Conversion efficiency: 85%
4. Safety protection: continuous operation of active cooling input fan, short circuit protection, under-voltage protection.

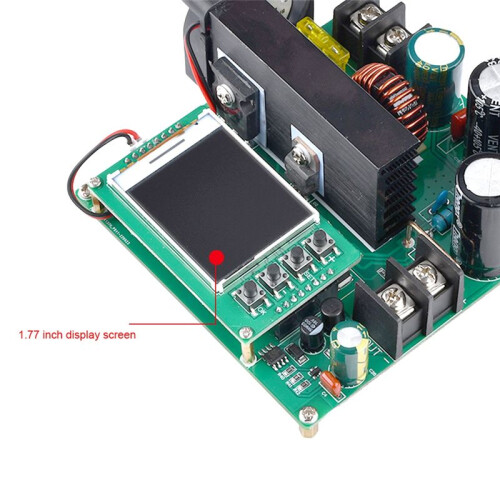

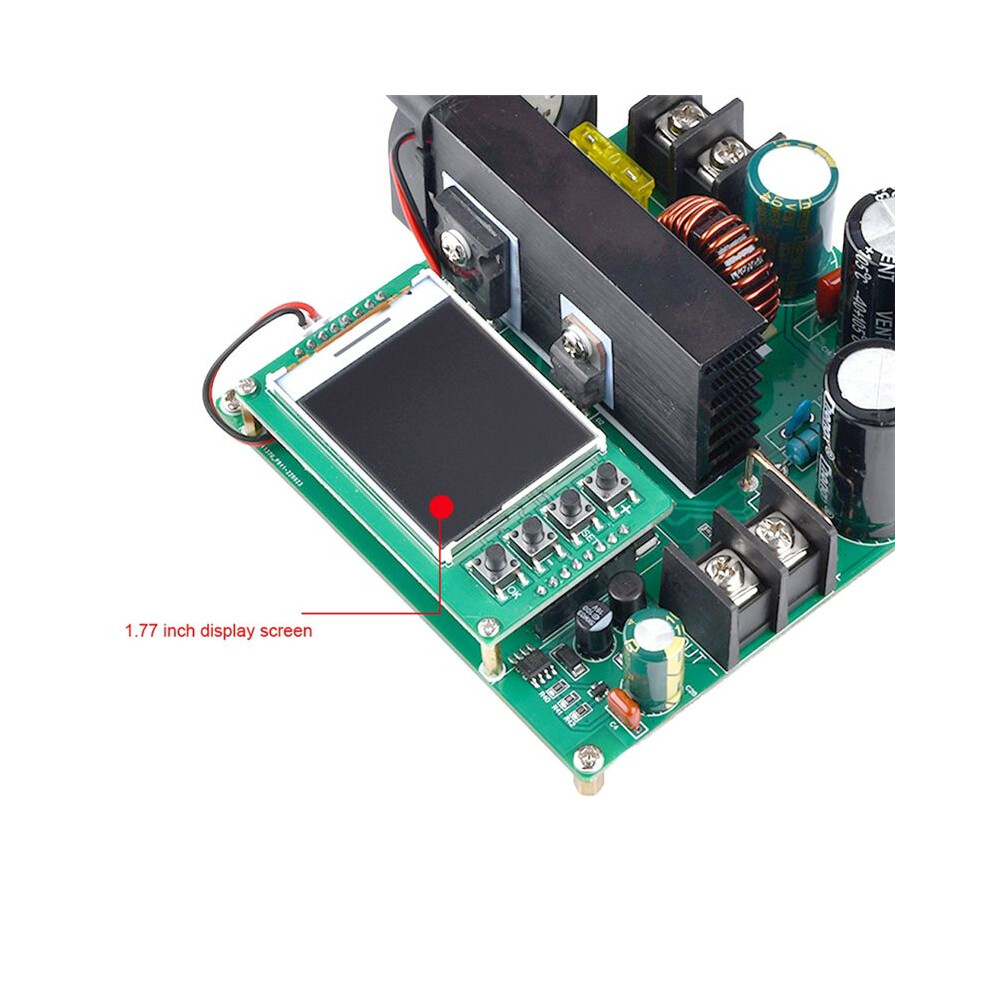

5. CNC+ color screen display

Output current: 0~15A
Storage array: 10 groups
Input voltage (U-IN): DC9V~60V.
Input current: 0~15A

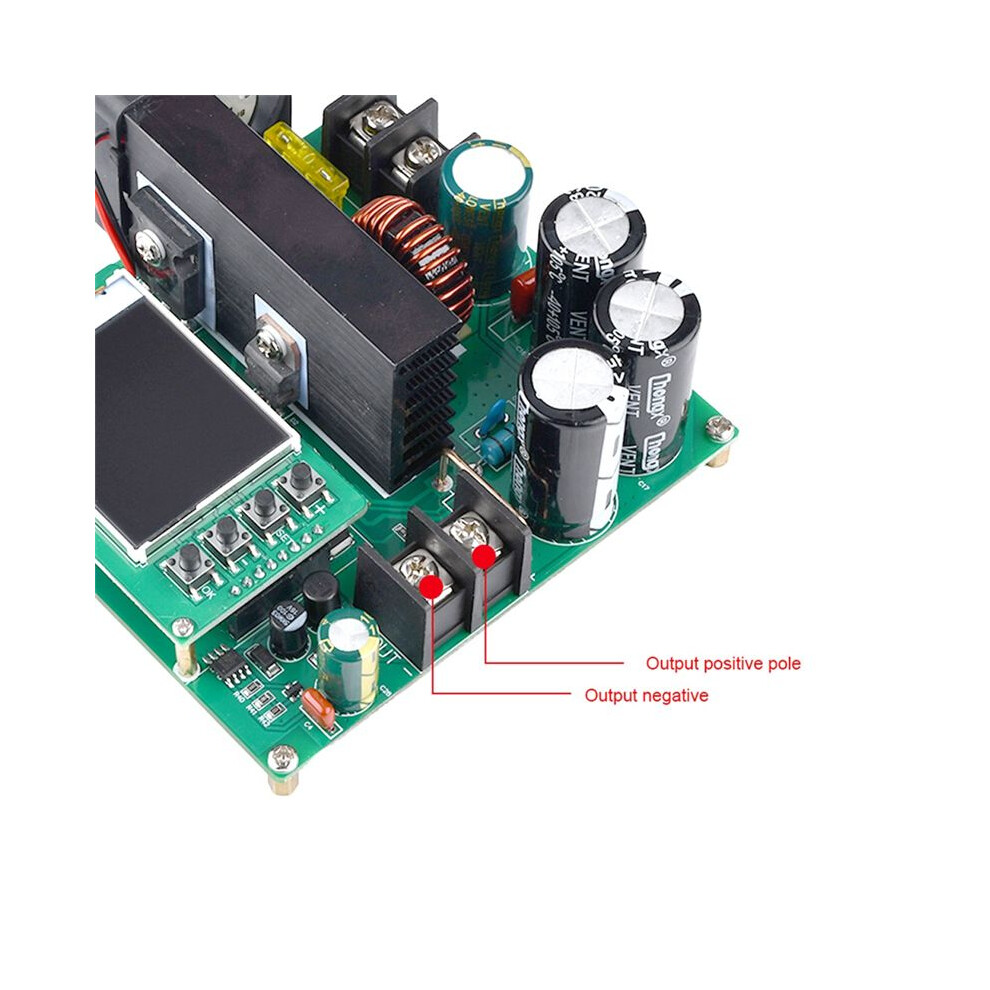

Output voltage (U-OUT): 10V~120V.
Output current: 0~15A
Conversion efficiency: 85%
Operating frequency: 150KHZ

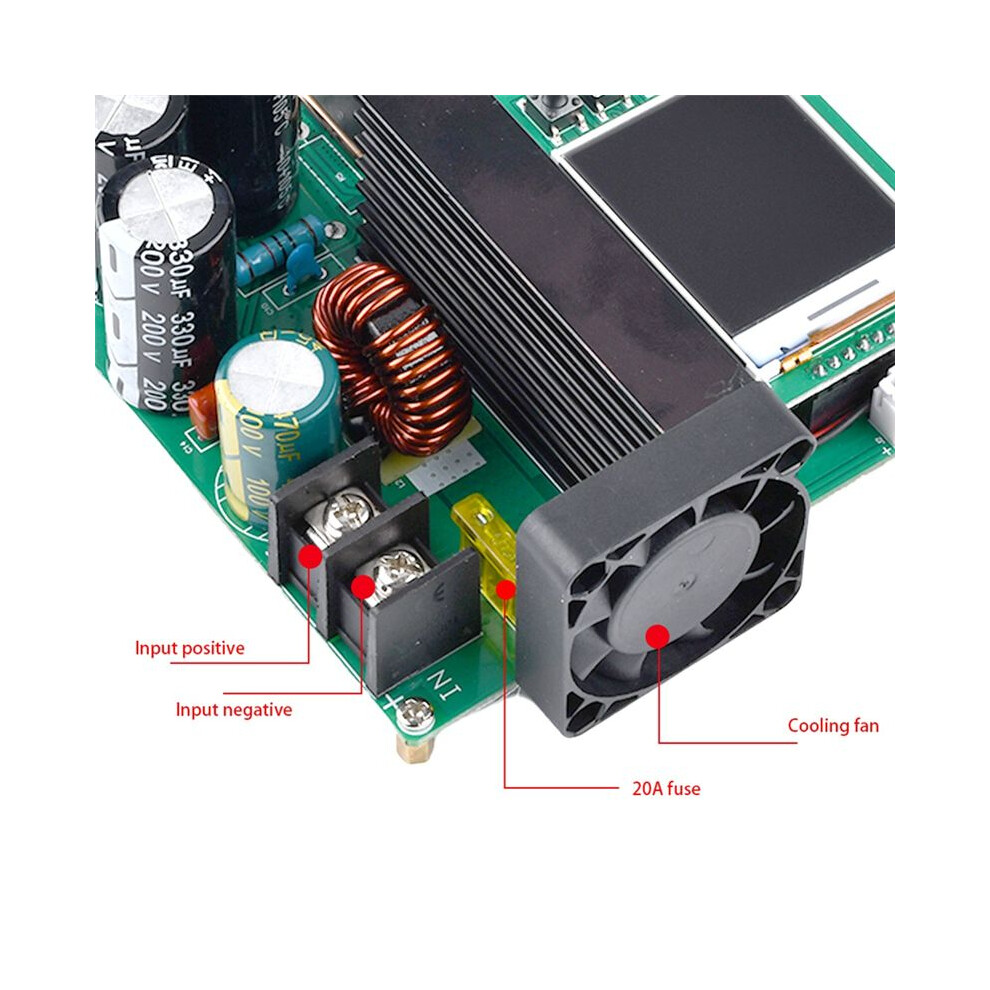

Short circuit protection: 20A fuse (non-self-recovery)
Working temperature:-40 ~85
Heat dissipation mode: the input fan of the active radiator runs continuously.
Control mode: numerical control+color display
Voltage adjustment display: 009.0V ~ 120.0V.
Current regulation display: 00.01A~15.00A
Output ripple: 50mV
Storage array: 10 groups
Standby power consumption: less than 150mA (measured when 12V is input).
note:
After the input is connected, the output terminal always outputs electricity, and the voltage is equal to the real- output voltage displayed the interface.
(Due to different factory batches, if there are slight differences in the actual appearance and color, it will not affect the use)
Color: Green & Black
Material: PCB+Metal

Package Contents:
1 * Step Module
