AD8495 Amplifier Module Compatible with K Type Thermocouples Analog Output 3.3V 5V DC Input Temperature Measurement

AD8495 Amplifier Module Compatible with K Type Thermocouples Analog Output 3.3V 5V DC Input Temperature Measurement Περιγραφή

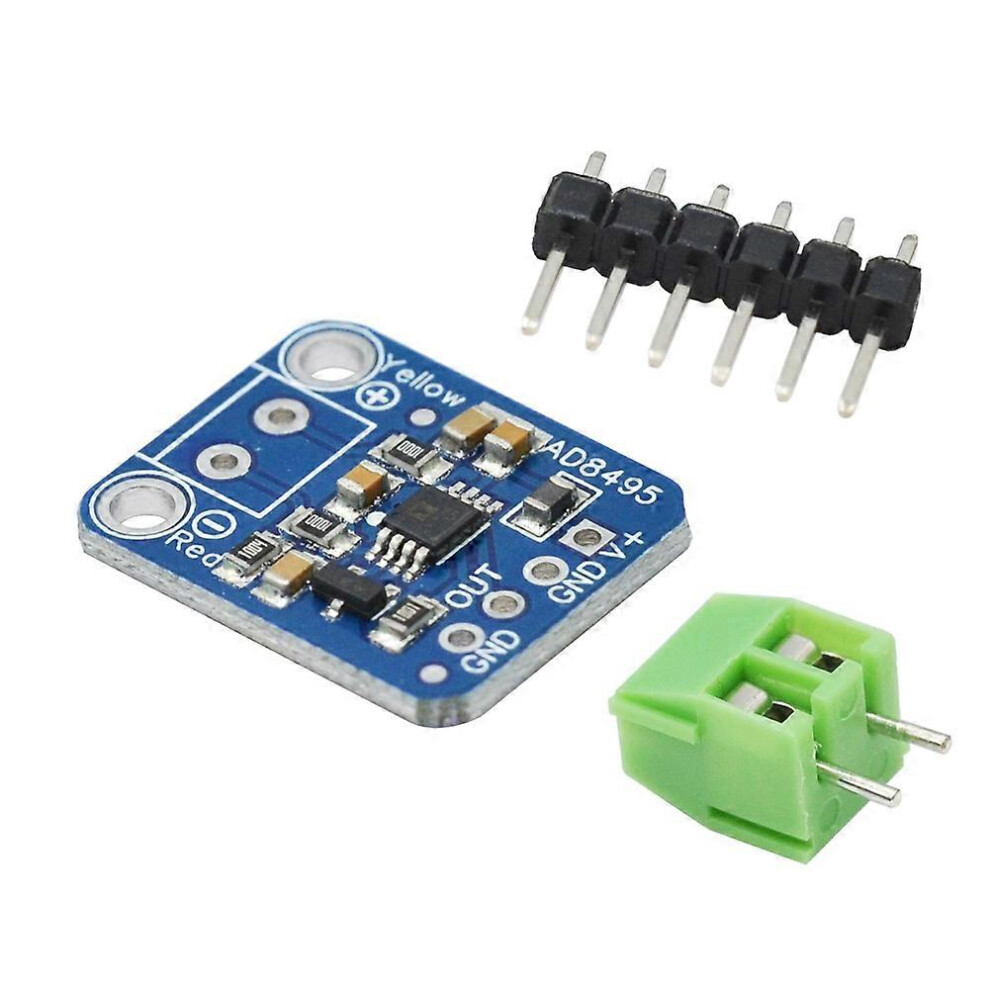

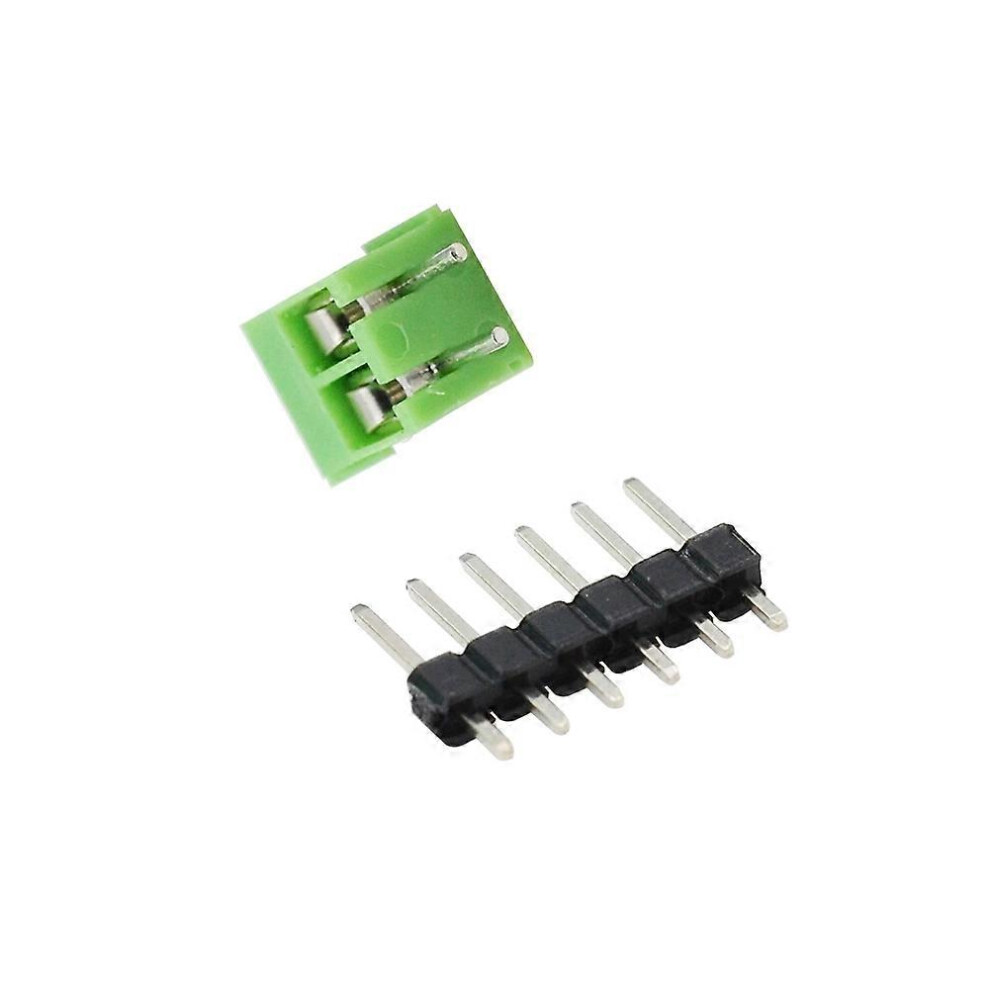

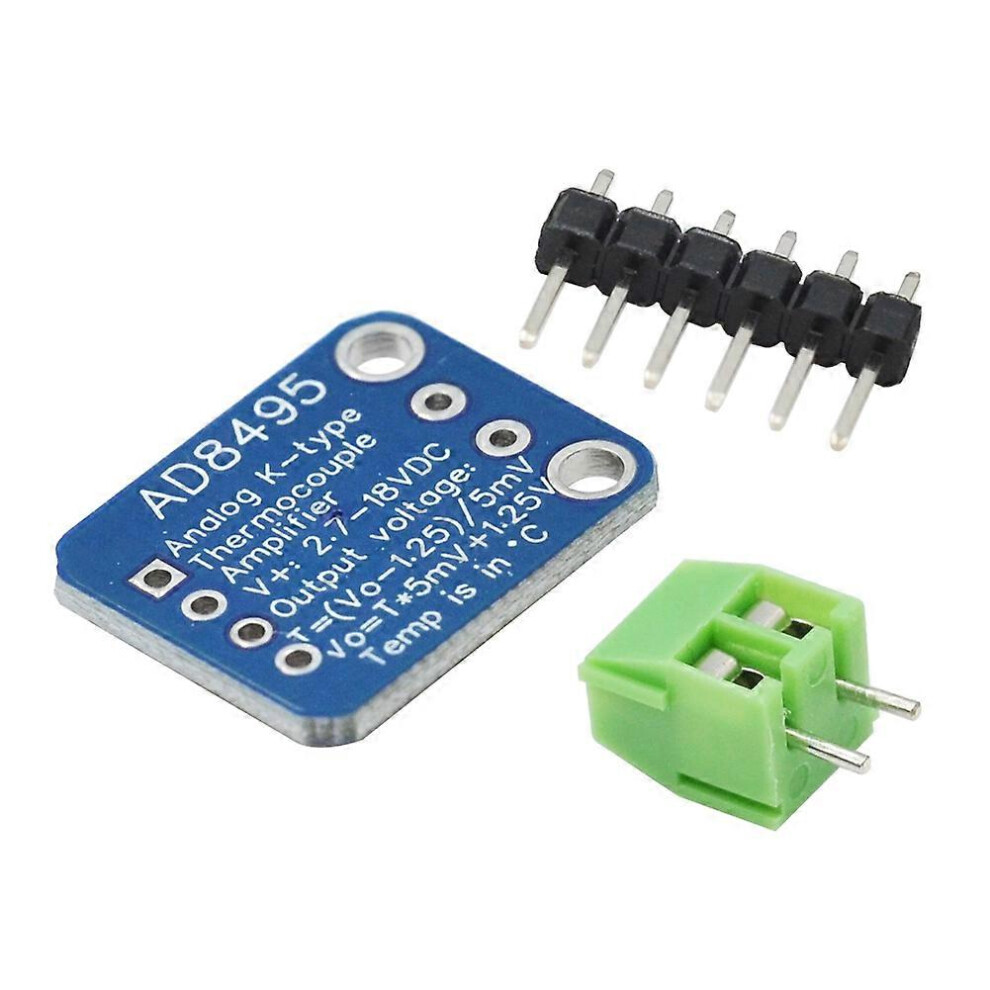

Product Details 1. Designed for Type K thermocouples, providing reliable temperature measurement with analog output 2. Simple operation - power with 3-18VDC and measure output on OUT pin for easy temperature reading 3. Equipped with AD8495ARMZ chip to ensure accurate readings within specified temperature ranges 4. Compact PCB module, suitable for integration into various electronic devices Specifications 1. Compatibility: Compatible with Type K thermocouples 2. Power Supply: 3.3V and 5V inputs 3. Temperature Range: -250C to +750C (with 5V power supply, 0 to 5VDC output); -250C to +410C (with 3.3V power supply, 0 to 3.3VDC output) 4. Pin Configuration: V+ (Power supply pin), GND (Common ground pin), OUT (Output voltage pin), RED- (Red/negative thermocouple wire connection), YELLOW+ (Yellow/positive thermocouple wire connection) 5. Temperature Calculation Formula: Temperature = (Vout - 1.25) / 0.005V 6. Color: Blue 7. Material: Plastic Package Contents 1. 1PCS AD8495 Amplifier Module Warm Tips 1. Ensure correct connection of thermocouple wires to corresponding pins (RED- for red/negative wire, YELLOW+ for yellow/positive wire) 2. Use appropriate power supply voltage (3.3V or 5V) according to required temperature measurement range 3. Calculate temperature using the provided formula based on measured output voltage from OUT pin
