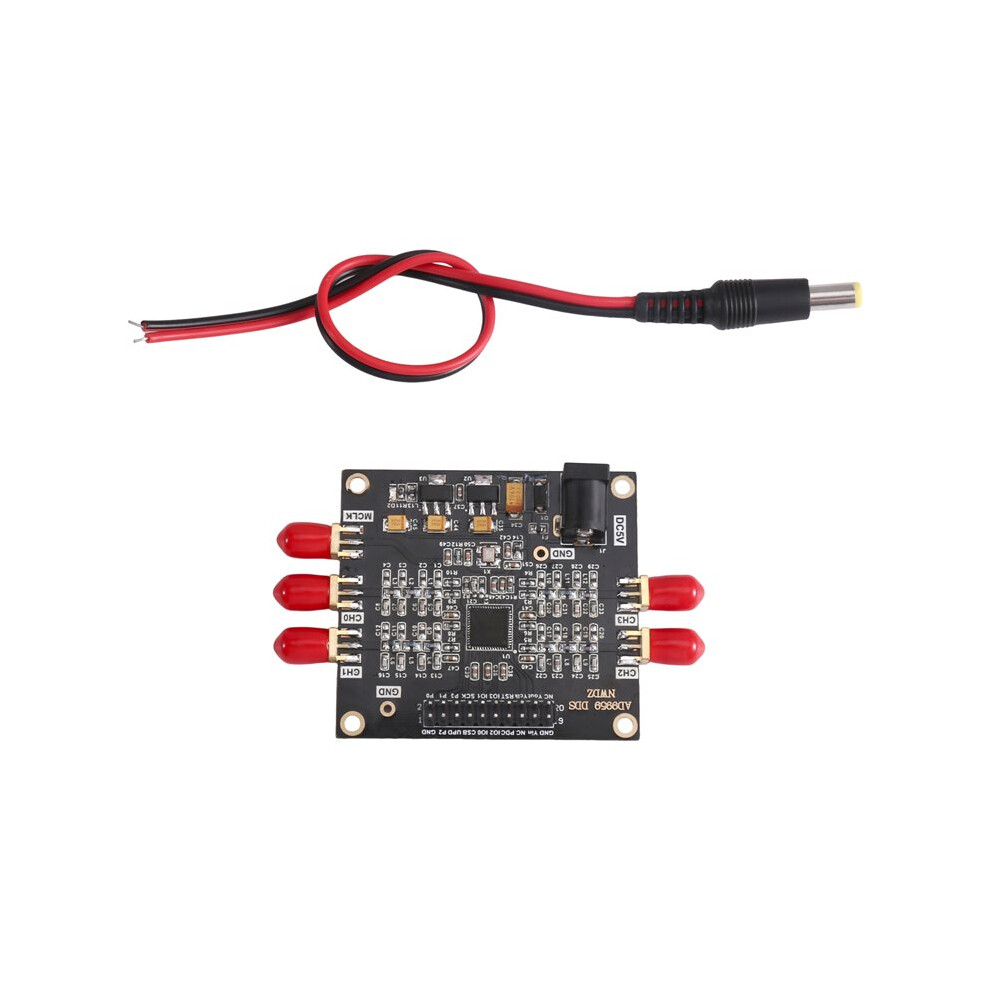

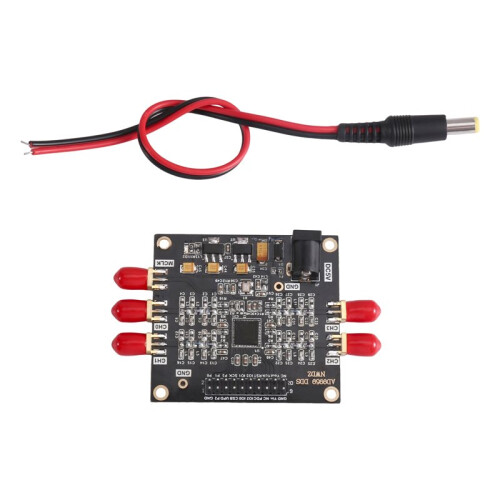

AD9959 Module Digital Frequency Synthesizer DDS 4-Channel Independen Adjustable Signal Source

AD9959 Module Digital Frequency Synthesizer DDS 4-Channel Independen Adjustable Signal Source Περιγραφή

Module parameters

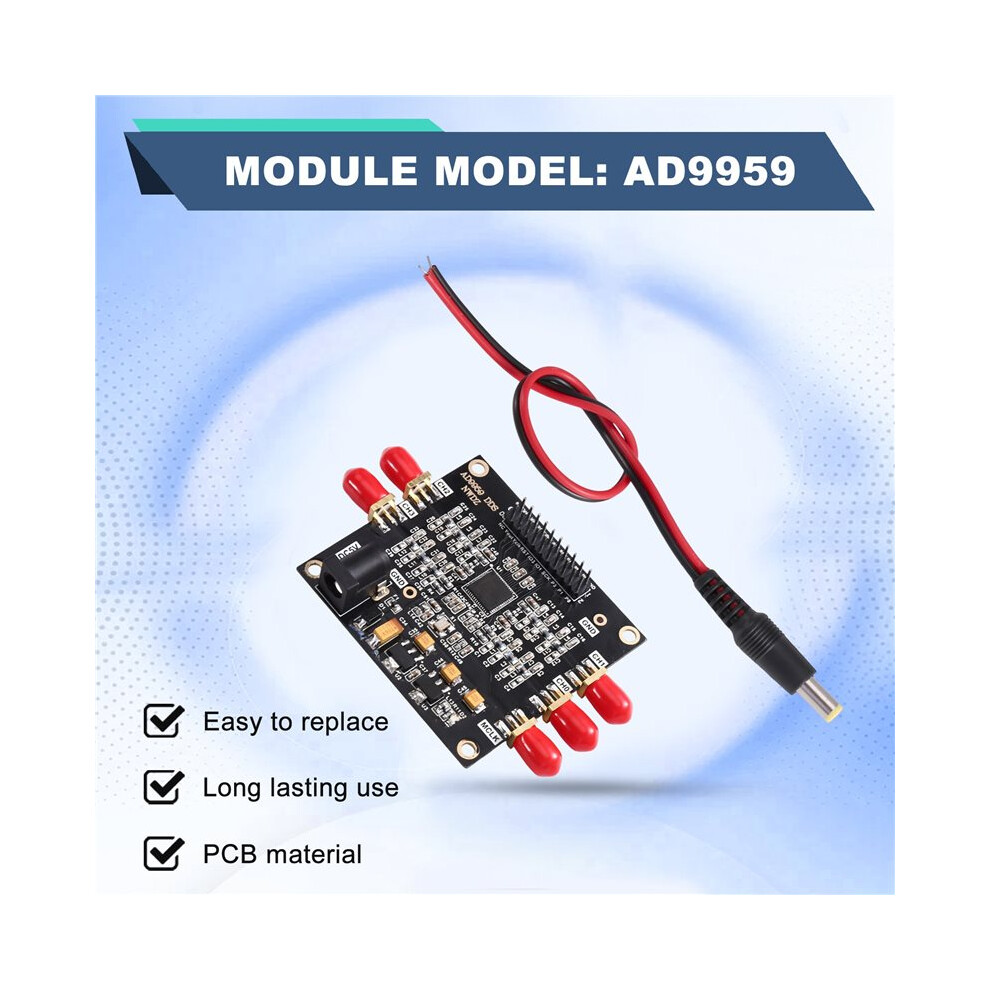

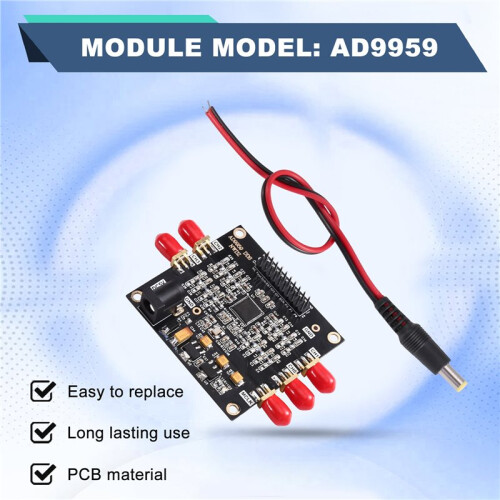

Module model: AD9959

Module type: digital synthesis frequency source

Module power supply: -5V

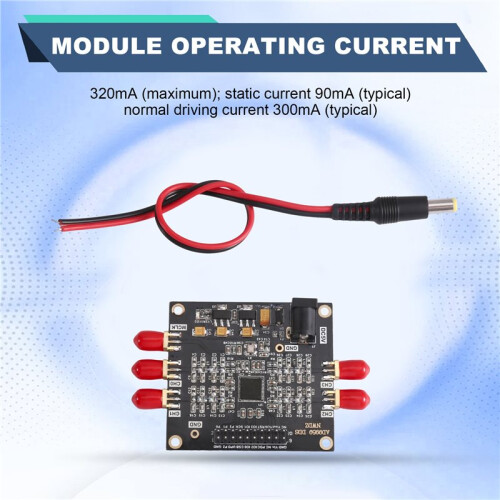

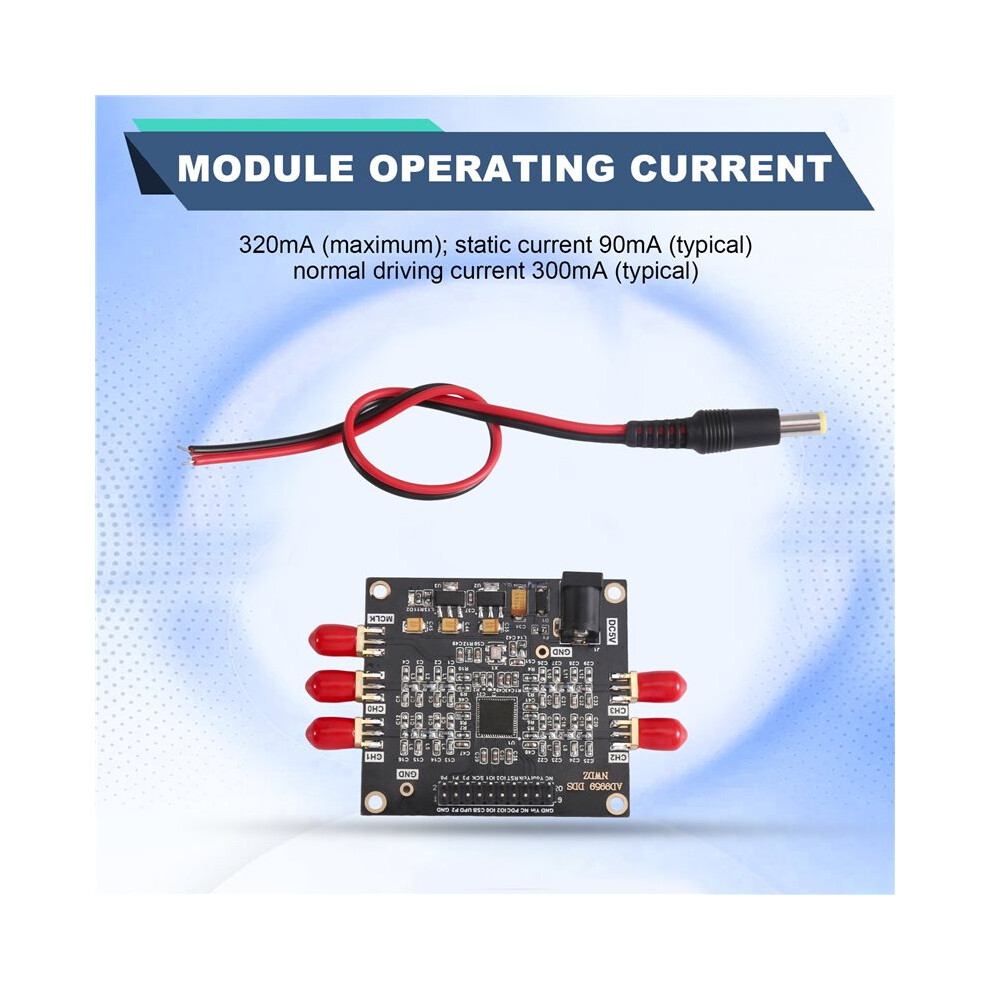

Module current: 320mA (MAX); quiescent current 90mA (TYP) normal drive current 300mA (TYP)

Module communication protocol: SPI serial

Module provides routines: STM32F103RCT6

Routine platform: STM32F103X-M3; KEIL5 version source code

Module system frequency: 500MHz (MAX)

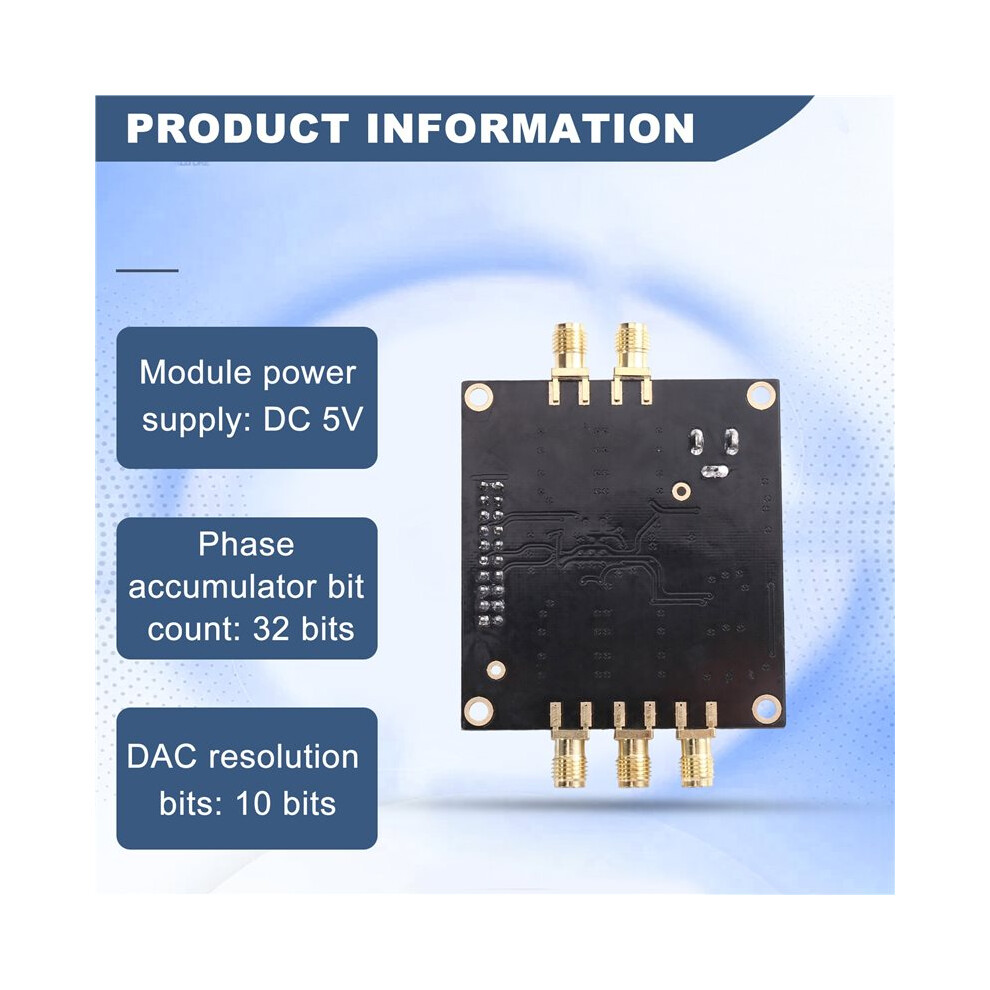

DAC resolution digits: 10 digits

Phase accumulator bits: 32 bits

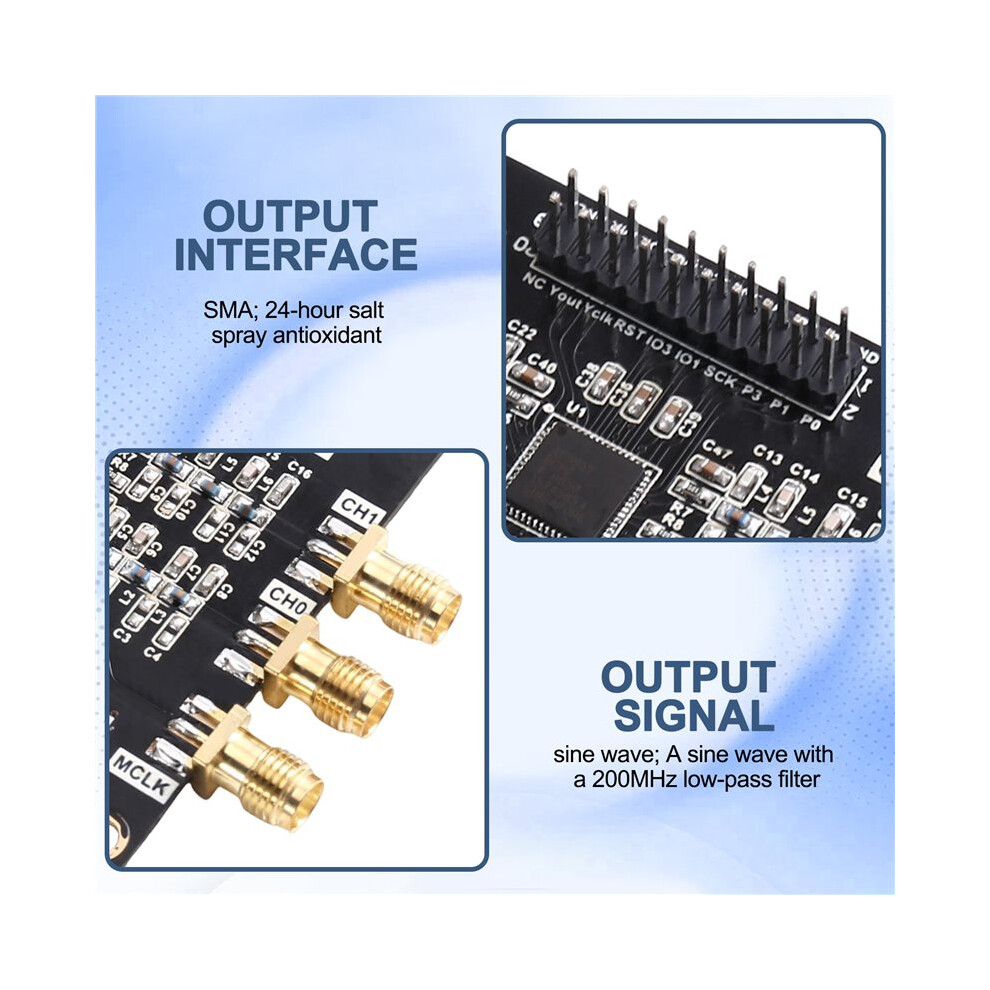

Module output interface: SMA; 24-hour salt spray anti-oxidation

Module output signal: sine wave; sine wave with 200MHz low-pass filter.

Module output channels: 4 channels; each channel and independent adjustment of frequency, amplitude, phase.

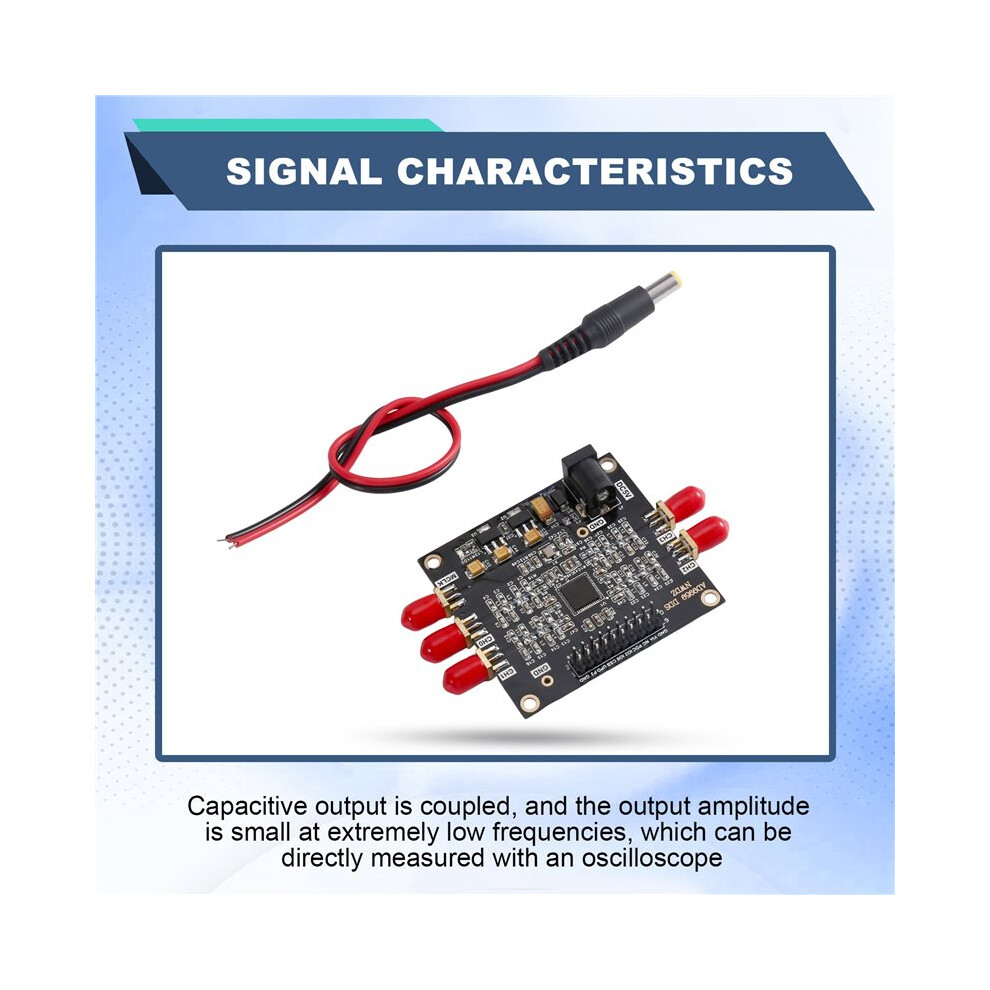

The signal characteristics of the module: the sine wave has no coupling output; the module is coupled through the capacitive output, and the output amplitude at the very low frequency is small, which can be directly measured with an oscilloscope.
Color: Black
Material: PCB

Package Contents:
1*AD9959 Module
