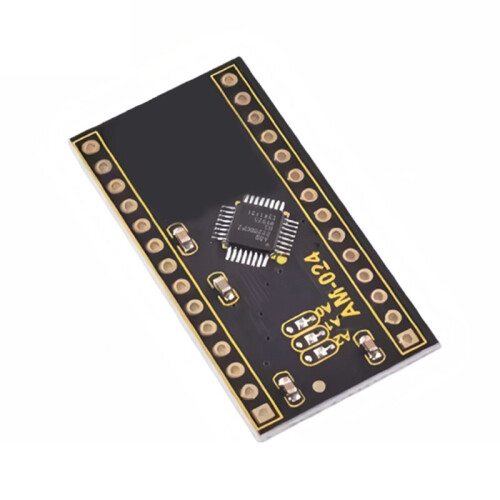

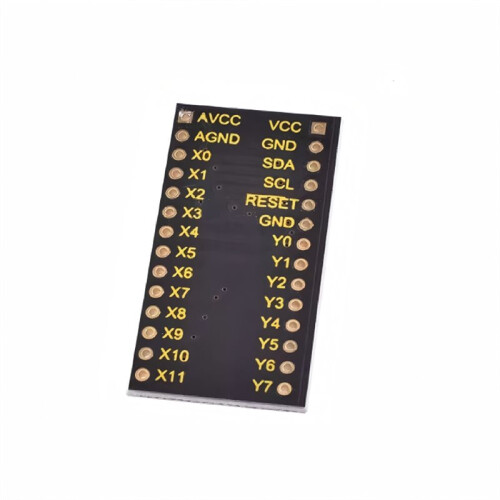

ADG2128 8x12 Analog -Point Array Switching Module, Programmable Analog Matrix Sub-Panel for Signal Routing

ADG2128 8x12 Analog -Point Array Switching Module, Programmable Analog Matrix Sub-Panel for Signal Routing Περιγραφή

8x12 Analog -Point Array supports to 96 -points, allowing any of 8 inputs to be routed to any of 12 outputs for highly configurable signal paths.
Programmable Analog Matrix suitable for dynamic switching, multiplexing, and routing of analog signals in complex circuits.
Wide application range ideal for audio signal routing, sensor signal selection, test and measurement systems, automated test equipment (ATE), and lab instruments.

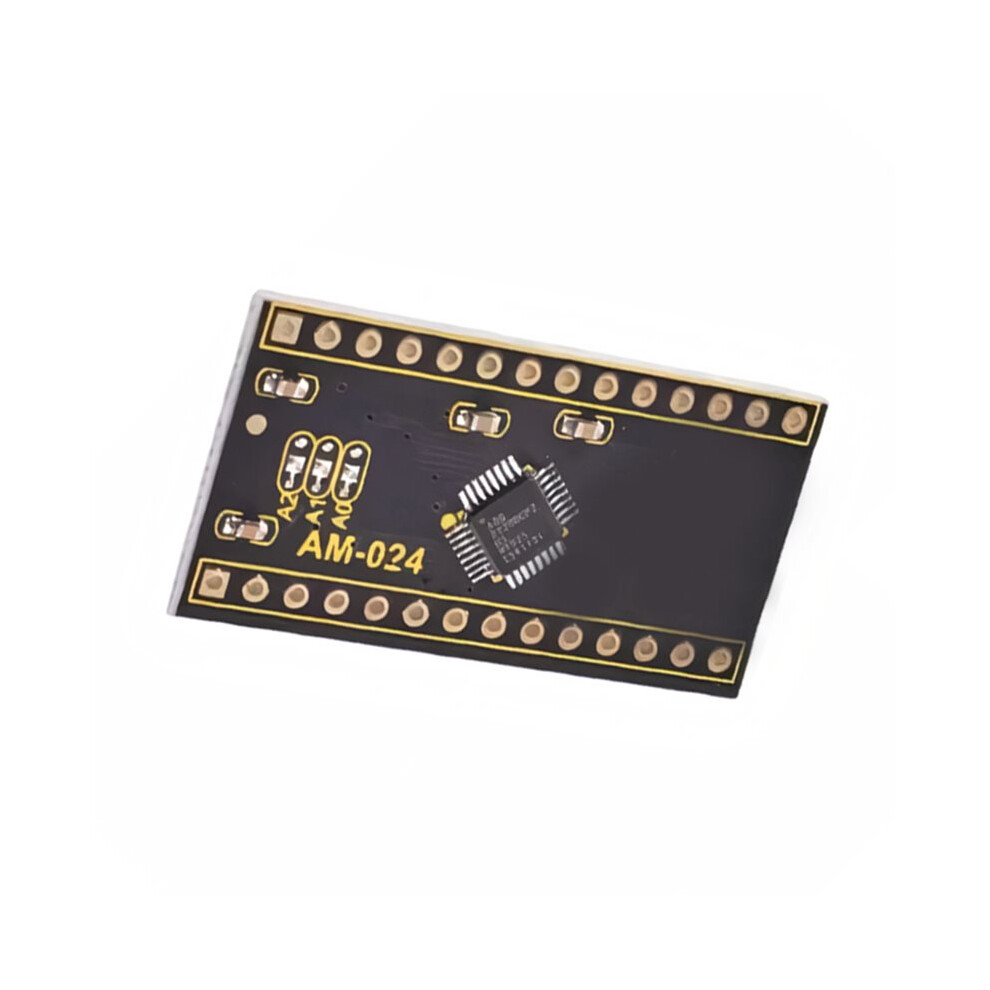

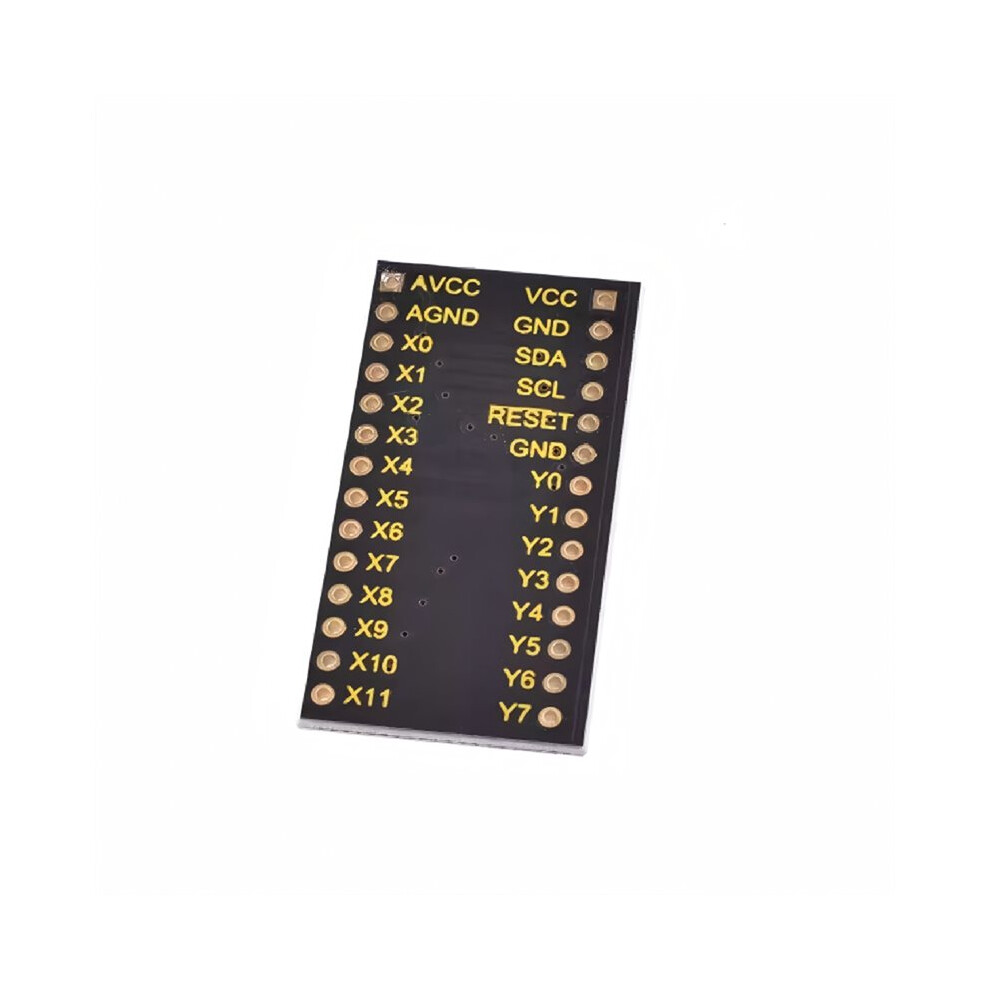

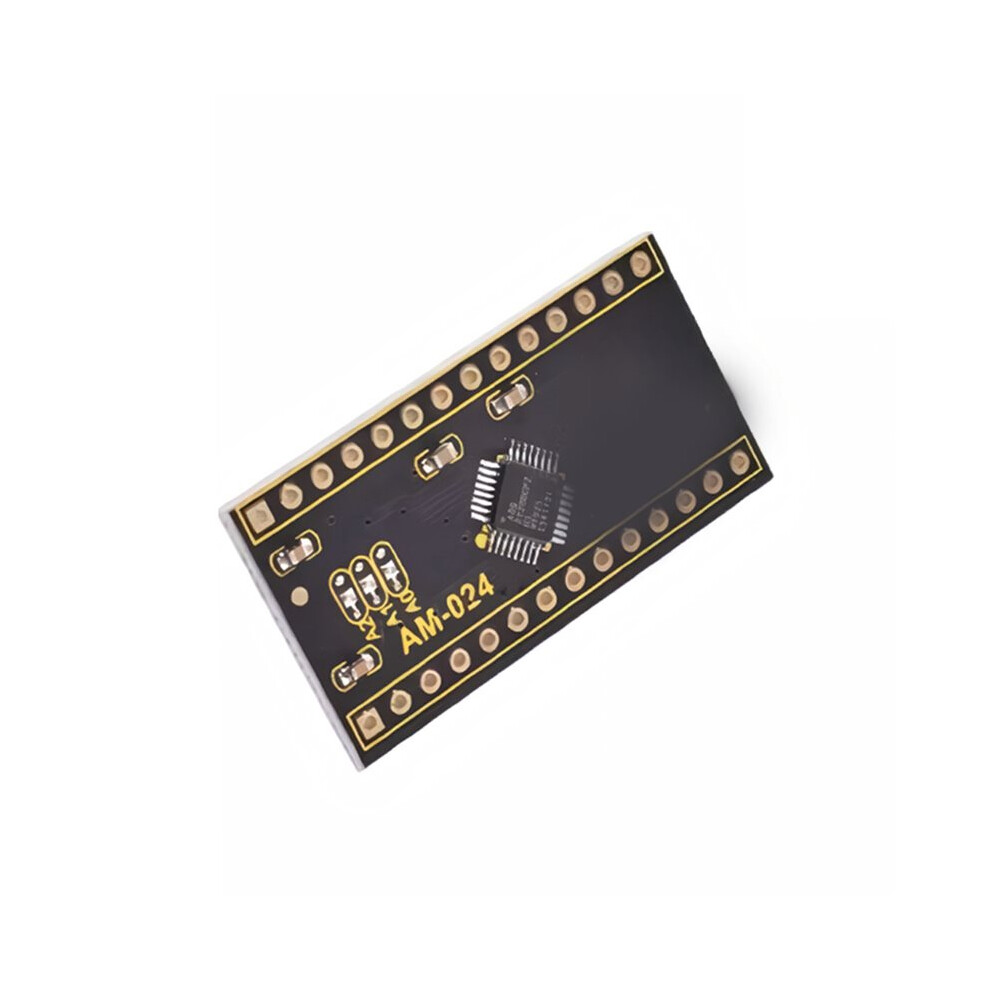

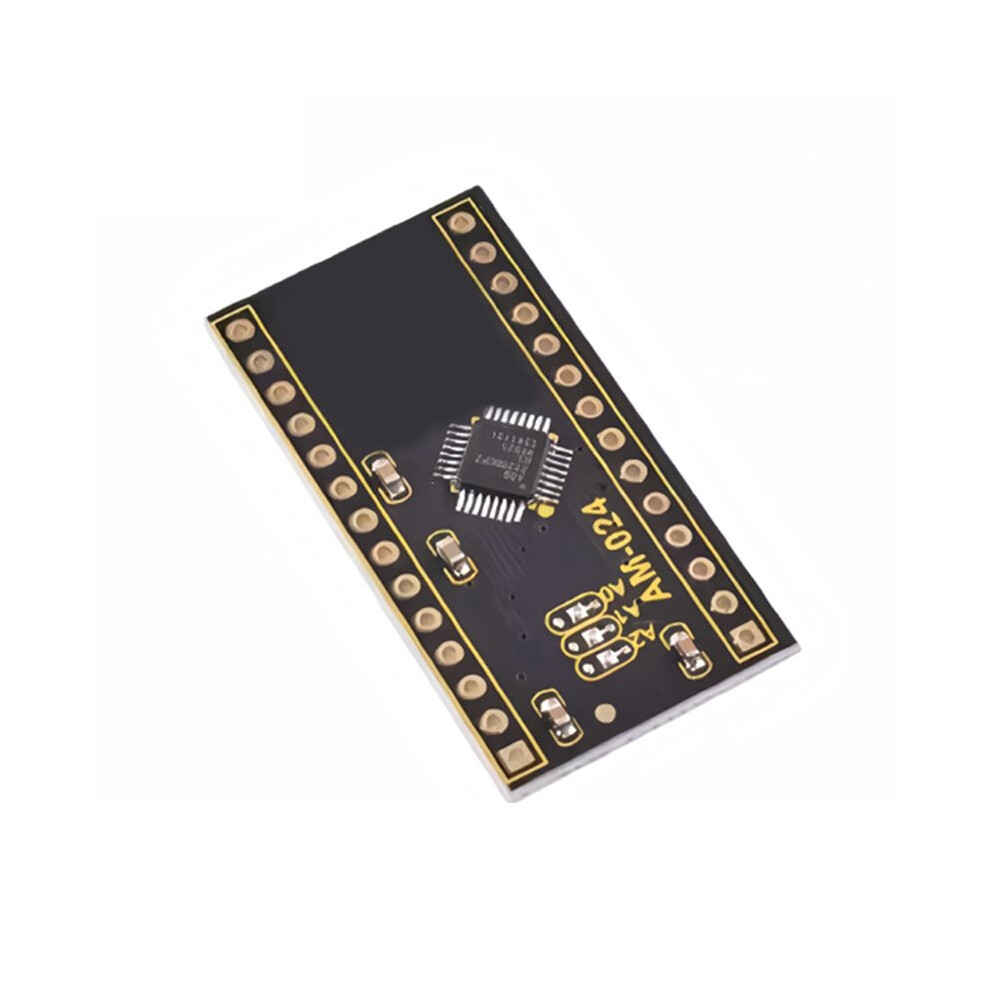

Sub-panel design as a compact PCB module that can be easily integrated as a sub-board into larger systems or experimental platforms.
Stable analog performance based the ADG2128, offering low -resistance and low distortion for high-quality analog signal transmission. Suitable for electronics enthusiasts, education labs, and engineering prototypes requiring flexible multi-channel analog switching.
The 8x12 Analog -Point Array supports to 96 -points, allowing any of 8 inputs to be routed to any of 12 outputs for highly configurable signal paths. It is ideal for audio signal routing, sensor signal selection, test and measurement systems, automated test equipment (ATE), and lab instruments. The compact PCB module can be easily integrated as a sub-board into larger systems or experimental platforms. It offers stable analog performance based the ADG2128, ensuring low -resistance and low distortion for high-quality analog signal transmission. Typical uses include signal routing in audio processing and multi-channel mixer systems, automatic test and measurement setups with multiple input/output channels, sensor selection and multi-point data acquisition, R&D laboratories, and teaching demonstrations for analog switching.
Color: Black
Material: Metal

Package Contents:
1*Analog tap board
