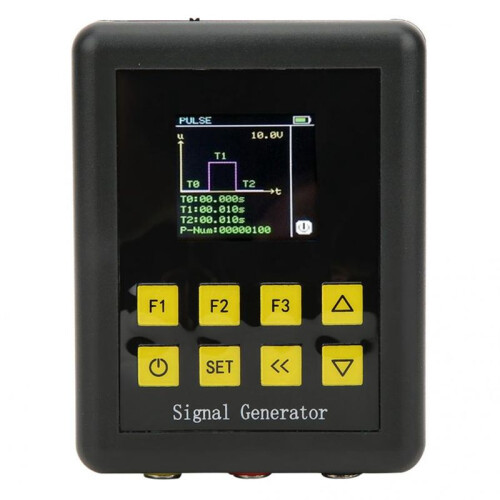

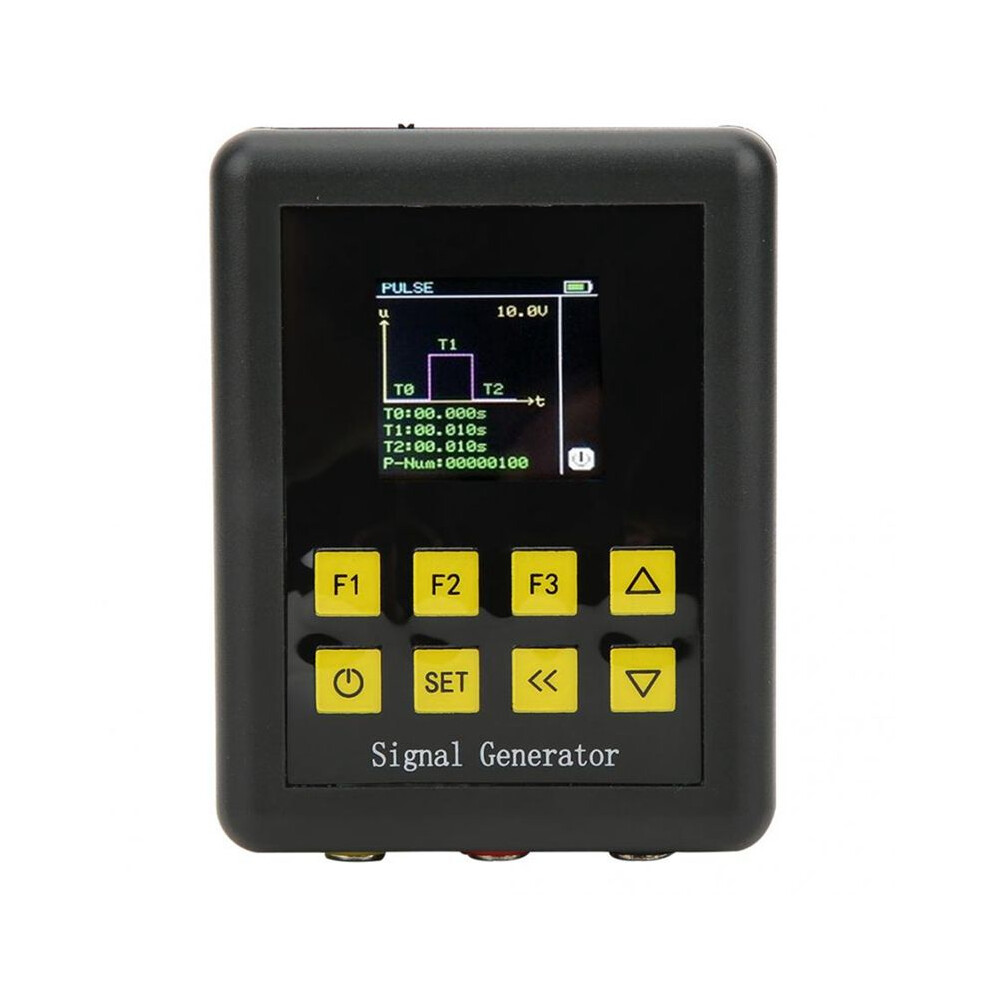

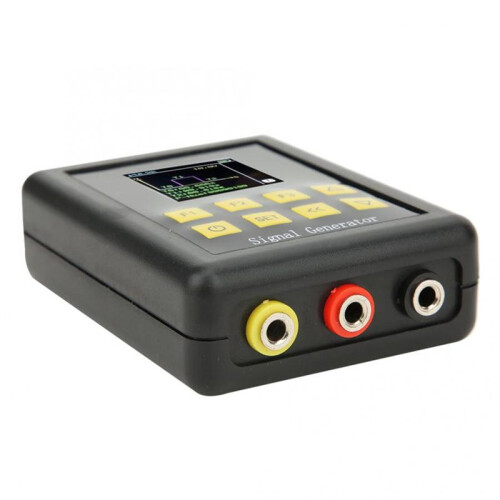

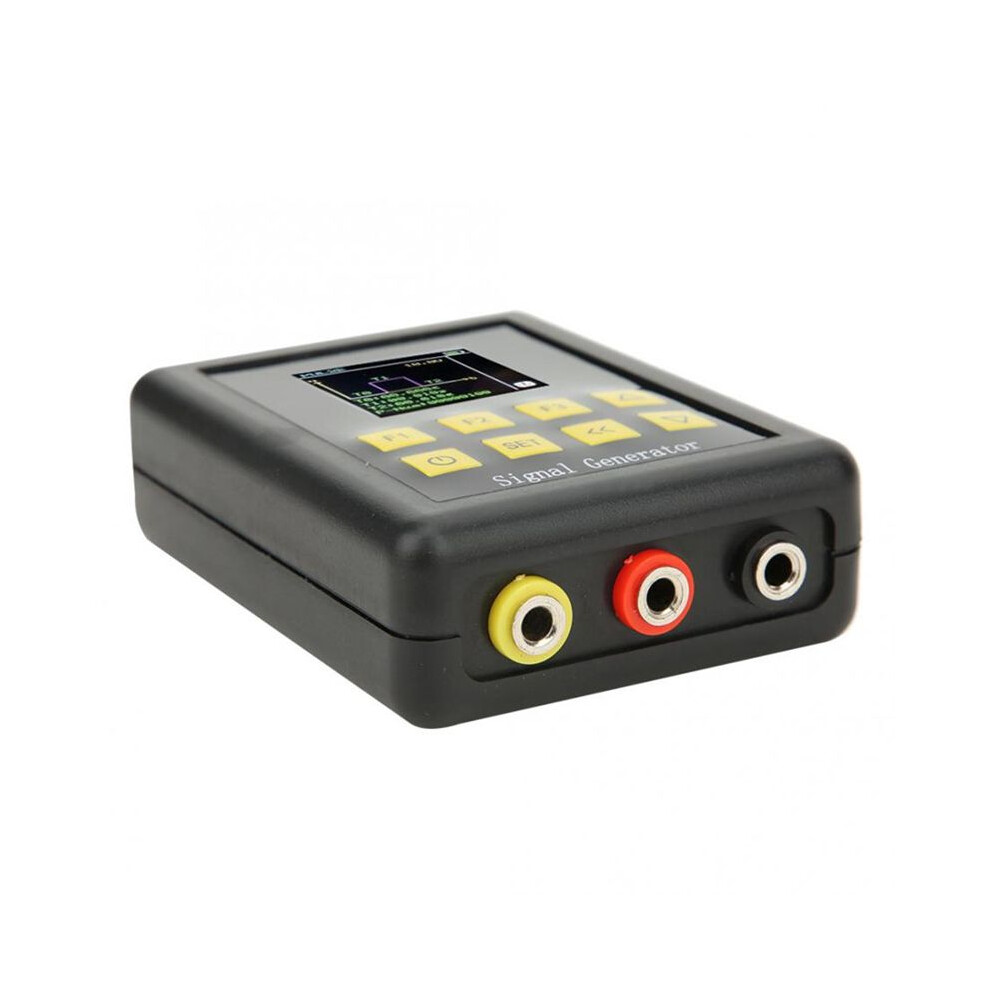

Adjustable Handheld Signal Generator PWM Pulse Rectangular Sine Triangular Wave 4-20MA 2-10V PWM Pulse Wave Source

Adjustable Handheld Signal Generator PWM Pulse Rectangular Sine Triangular Wave 4-20MA 2-10V PWM Pulse Wave Source Περιγραφή

Feature: 1. The signal generator supports multiple adjustable modes including PWM mode, pulse mode, signal source mode, sine mode.
2. Hand-held signal generator is easy to carry, easy to operate and practical.
3. Built-in 1000mAH, 3.7V rechargeable lithium battery, it can work continuously for 8 hours after the battery is fully charged.
4. The voltage, frequency and duty cycle are all adjustable at PWM mode, with a high accuracy of 0.1%.
5. Frequency of sine and triangular can be adjusted in a wide range.

Specification:
Item Type: Signal Generator
Power Supply Voltage: USB 5V
Product Function: PWM mode, pulse mode, signal source mode, sine mode
PWM Mode: Voltage, frequency, duty cycle are adjustable, frequency accuracy of 0.1%; voltage range: 1-24v, frequency range: 1-150khz, duty cycle range: 0-
Pulse Mode: Initial delay t0: 0-60s, high level t1: 0-60s, low level t2: 0-60s, pulse number p-n: 1-99999999, resolution: 0.001 s
Signal Source Mode: Voltage source 2-10V adjustable, current source 4-20mA adjustable
Sine Mode: 1-999999HZ adjustable (triangular adjustable range is the same)
Signal Load Capacity: Output current maximum 20mA (Note: This product is output is a signal source, can not directly drive high-power load)
Environment Temperature: -10 ~ +70
Built-in Battery: 3.7V lithium battery, 1000mAH
Material: plastic
colour: black

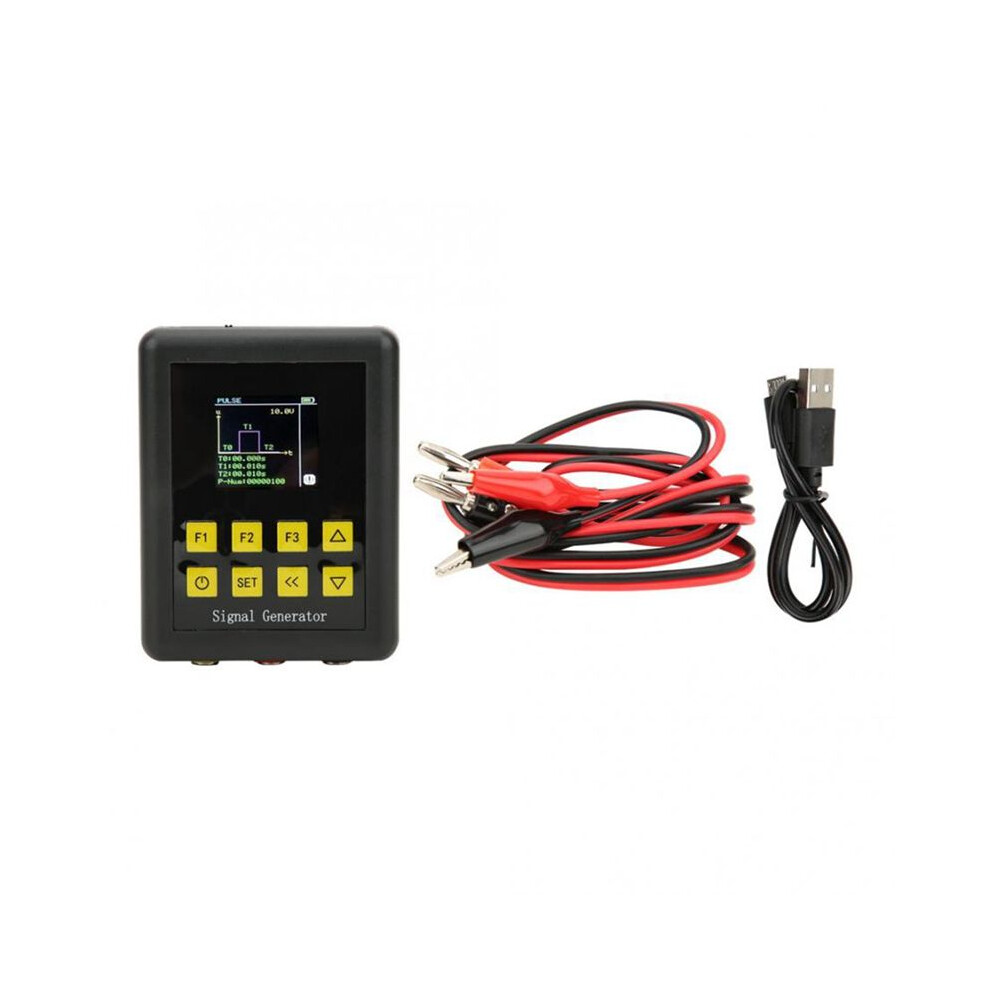

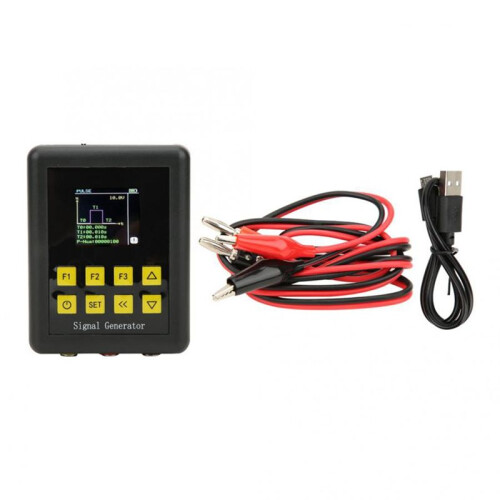

Package Contents:
1 x Signal Generator
1 x USB Charging Cable

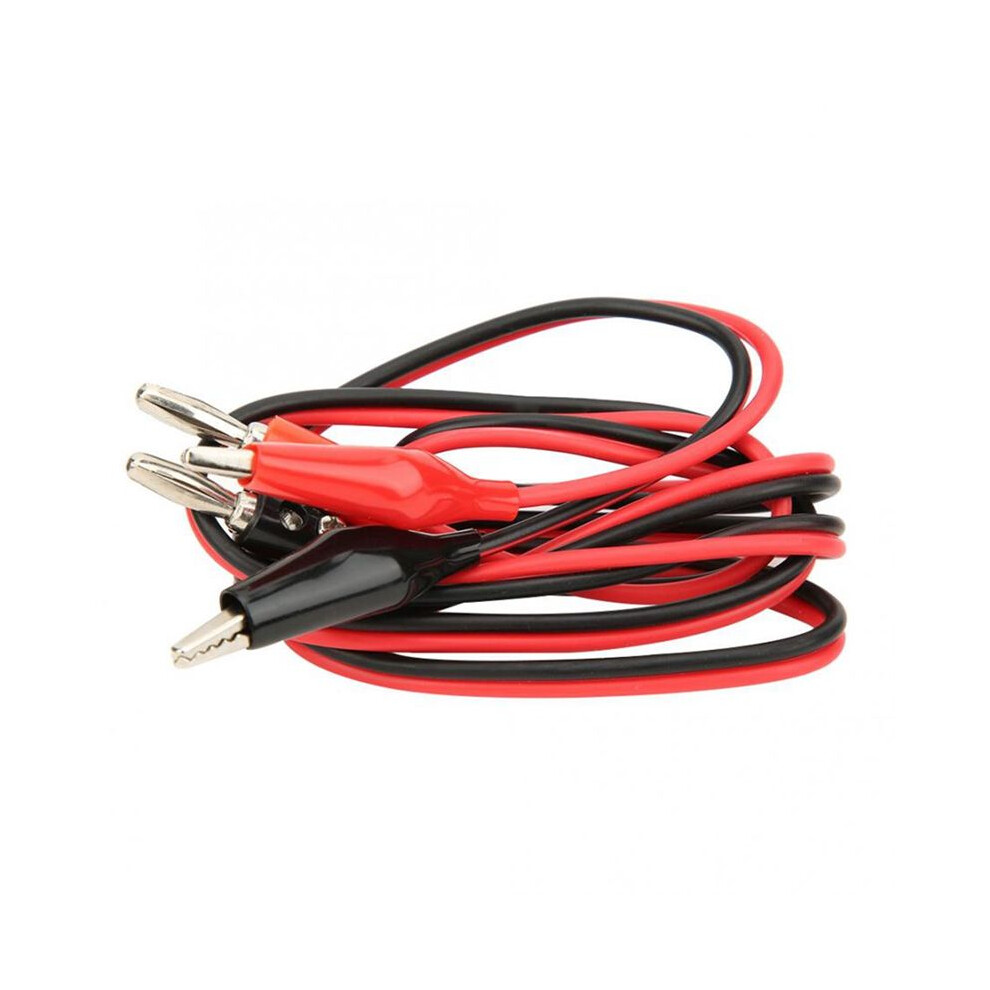

1 x Banana to Crocodile Clip 2P Red Black Cable
