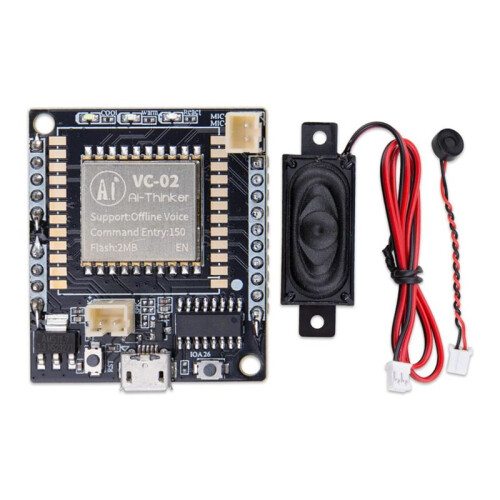

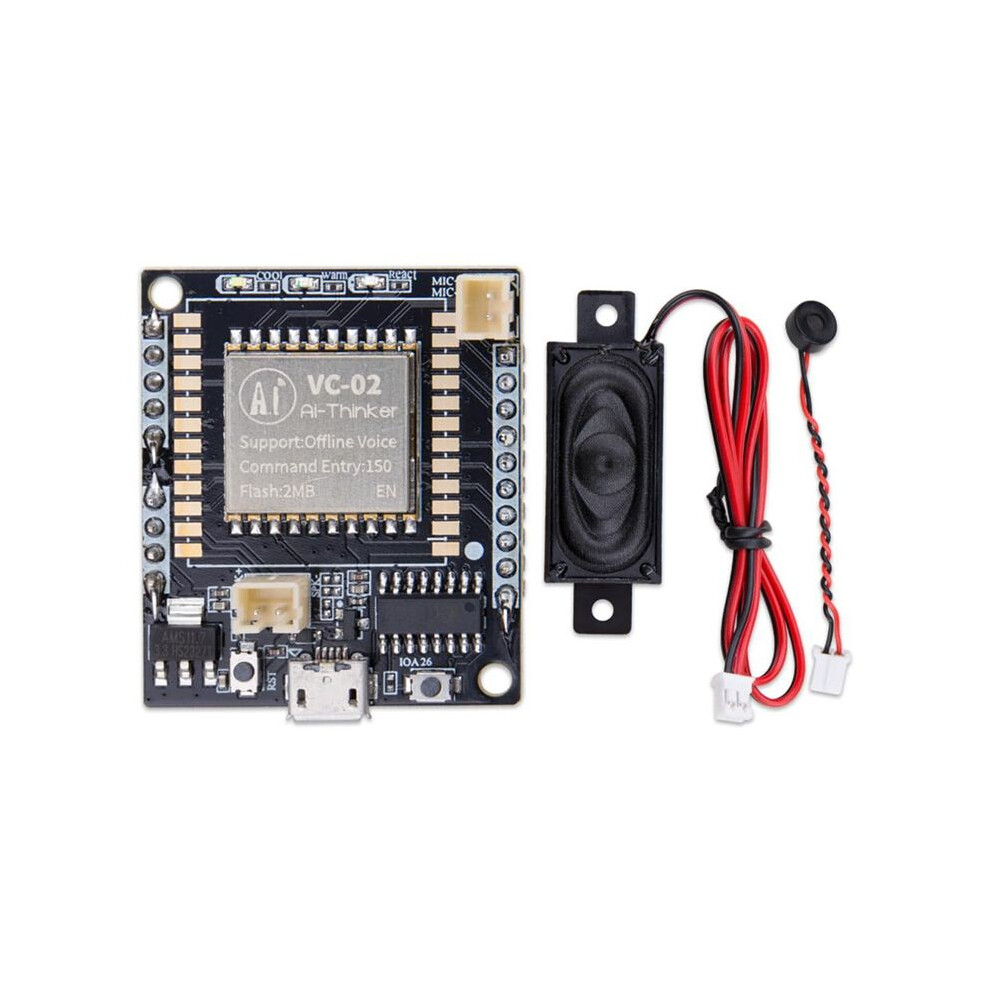

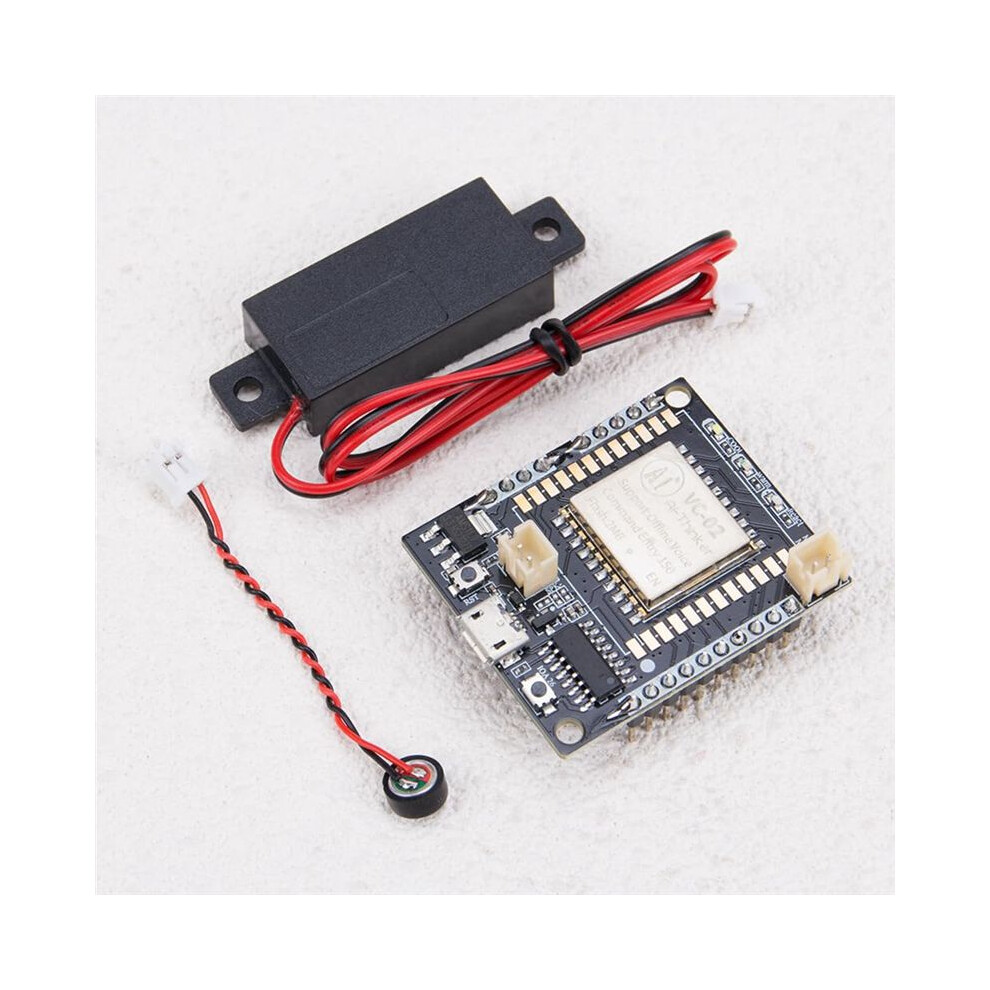

AI Voice Recognition Module Kit Intelligent Offline Sound Control Development Board with 2MB Flash for Home

AI Voice Recognition Module Kit Intelligent Offline Sound Control Development Board with 2MB Flash for Home Περιγραφή

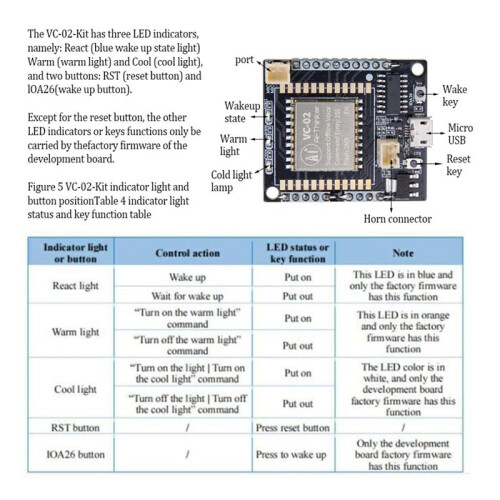

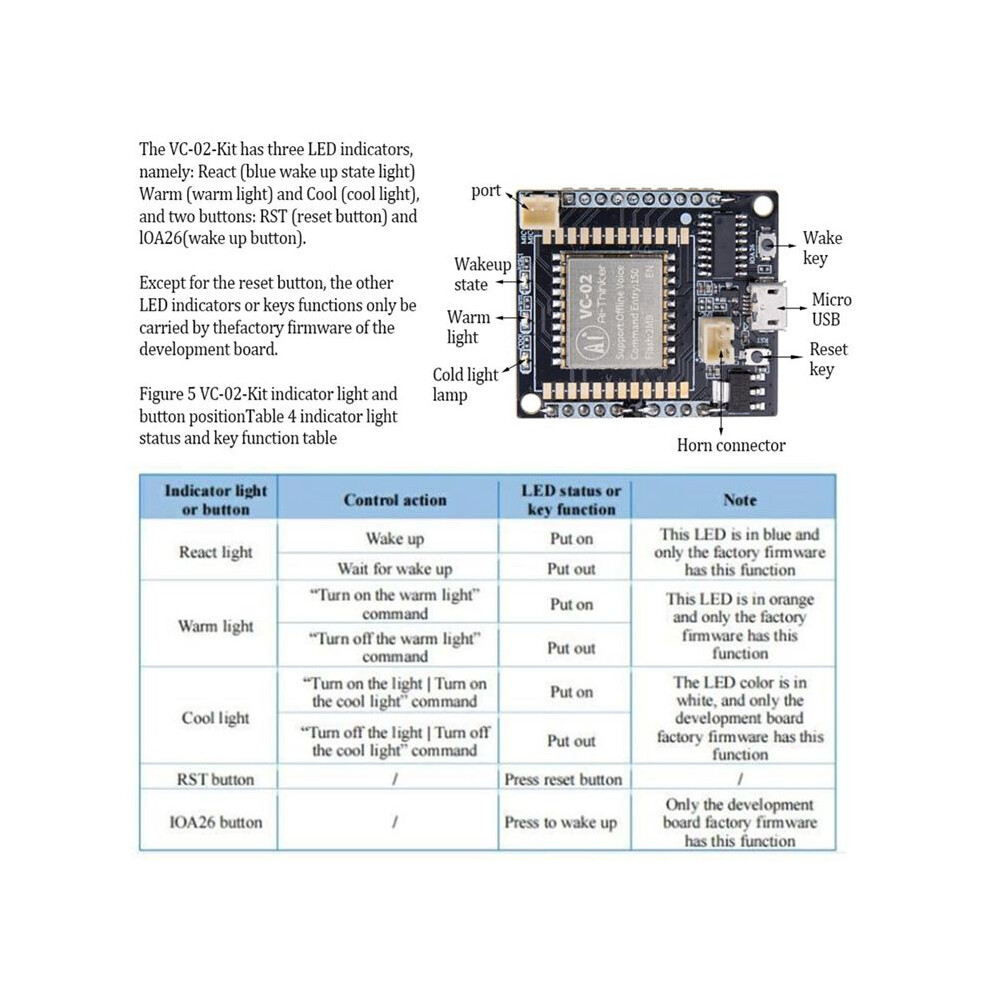

The development board integrates the CH340C serial-to-USB chip, providing basic debugging interface and USB upgrade interface; the design of the wake- light and the cold and warm light provides status indication and control indication, and is convenient for debugging simple control functions
Low-cost pure offline voice recognition module. This module uses the voice chip US516P6 launched by Yunzhisheng, continuously optimizes and innovates algorithms in voice recognition technology, and deeply integrates offline recognition algorithms with chip architecture to provide customers with ultra-low-cost offline voice recognition solutions

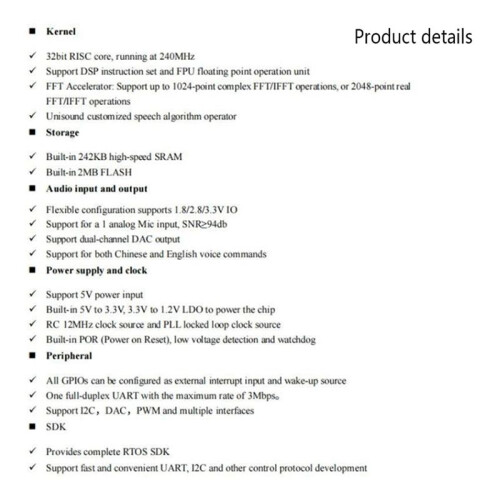

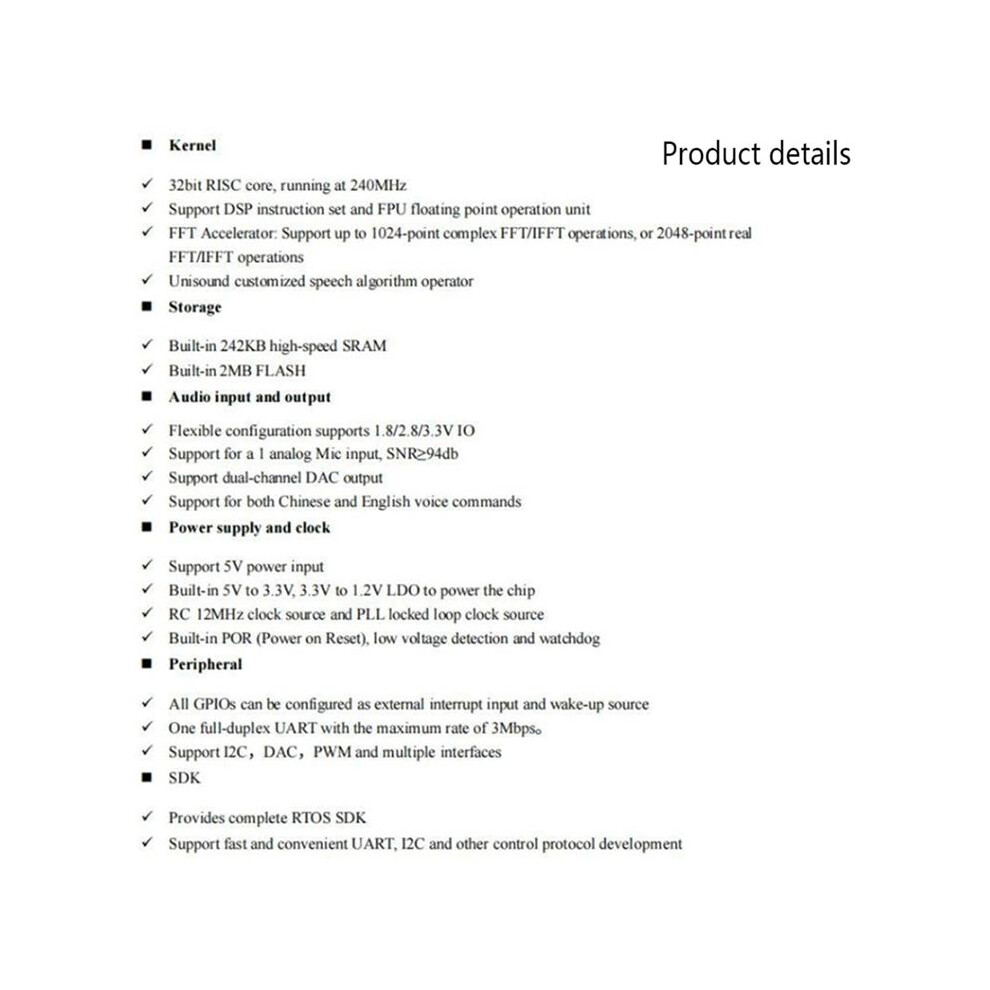

The US516P6 chip uses a 32-bit RSIC architecture core, and adds a DSP instruction set specifically for signal processing and voice recognition, an FPU operation unit that supports floating-point operations, and an FFT accelerator
Supports offline recognition of 150 local instructions, supports RTOS system, has rich peripheral interfaces, and simple and friendly customization tools
Can be widely and quickly applied to homes, various small appliances, 86 boxes, toys, lamps and other products that require voice control

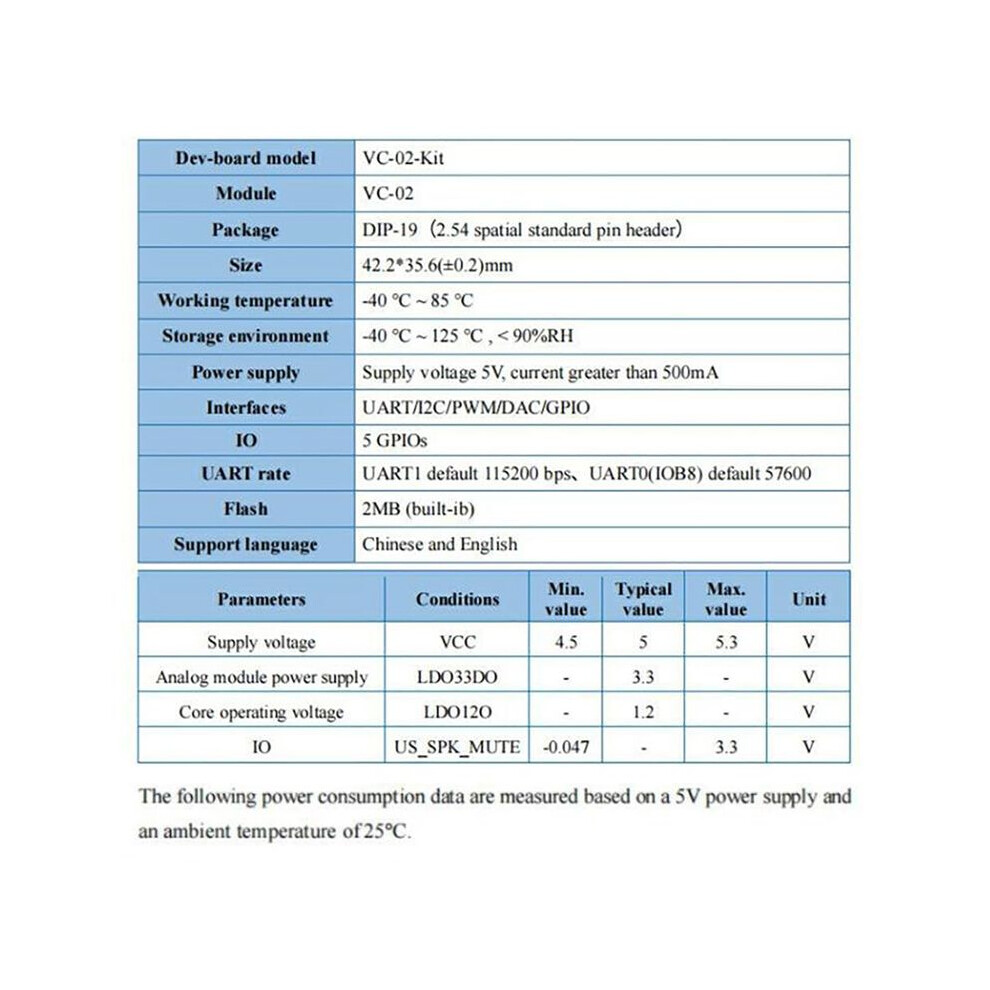

Dev-board model:VC-02-Kit

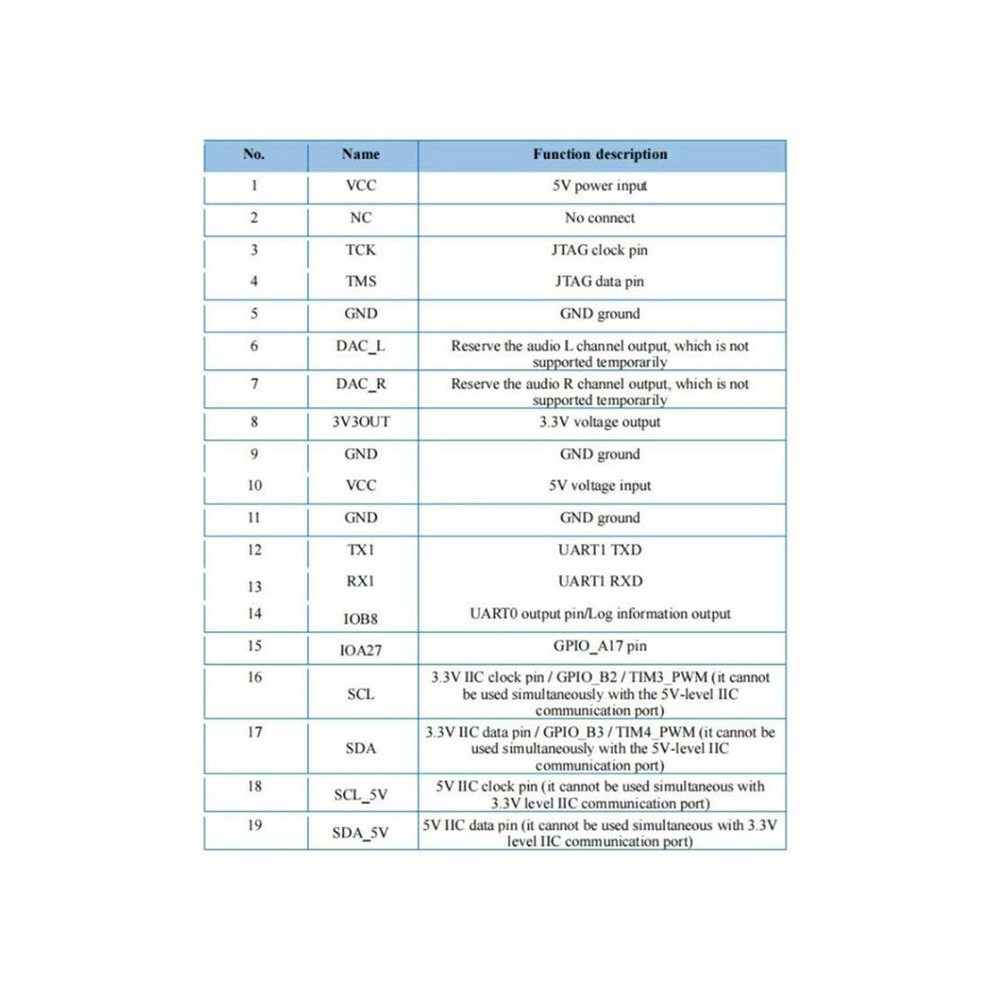

Package:DIP-19 (2.54 spatial standard pin header)
Working temperature:-40 - 85
Storage environment:-40- 125 ,Less than 90%RH
Power supply:Supply voltage 5V, current greater than 500mA Interfaces:UART/I2C/PWM/DAC/GPIO
IO:5 GPIOs
UART rate:UART1 default 115200 bps, UART0(IOB8) default 57600
Flash:2MB(built-ib)
Support language:Chinese and English
The product appearance and printed words may vary depending the batch, but this does not affect use
Colour:Black
Material:PCB

Package Contents:
1 x Development Board Kit
