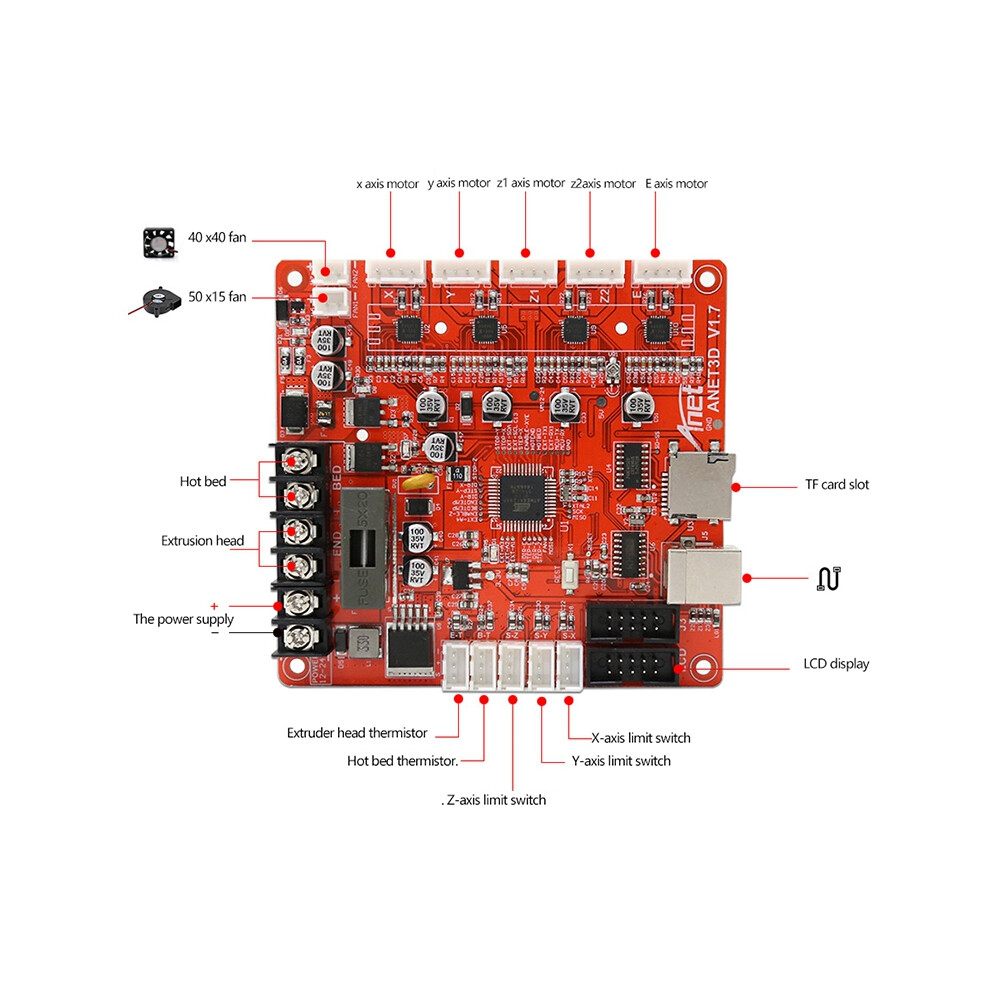

Anet E16 Mainboard A1284-Base V1.7 Base Control Board Board for RepRap 3D Printer Part 3D Printer Accessories

Anet E16 Mainboard A1284-Base V1.7 Base Control Board Board for RepRap 3D Printer Part 3D Printer Accessories Περιγραφή

1. The highly integrated all-in-one board solves the cumbersome and easy-to-fail problems of Ramps1.4 combination interface.
2. Optimized layout and heat dissipation design make the performance of the whole board more stable.
3. It supports automatic leveling of proximity probes, and customers can debug and add automatic leveling by themselves.
4. USB, the connection is more stable, the interface is more concise, the connection is more convenient, the work is more stable, and the life is longer.
5. Adopt onboard 4-way A4988 16 subdivision stepping drive board motor drive (two motor interfaces for Z axis).

6. 3 PWM outputs (1 high current, 3 medium current, 2 low current).
7. Using high-performance and low-resistance Mos tube to drive, the heat dissipation effect is better.
8. Adopt ST power chip, support 12V-24V power input, solve the heating problem of Ramps voltage conversion chip.
9. It can accept 24V input. Under the same system power, the hot bed current can be reduced to 1/4, which effectively solves the heating problem of the hot bed MOS tube.
10. The open source firmware Marlin can be used, and the configuration is exactly the same as Ramps1.4, which can directly replace Ramps1.4.
11. It can be directly connected to Ramps1.4, 2004LCD control board and 12864LCD control board (without L-shaped adapter board).
Colour:red
Material:PCB
Size:12 x 11 x 3cm

Package Contents:
1 * E16 motherboard for 3D printer
