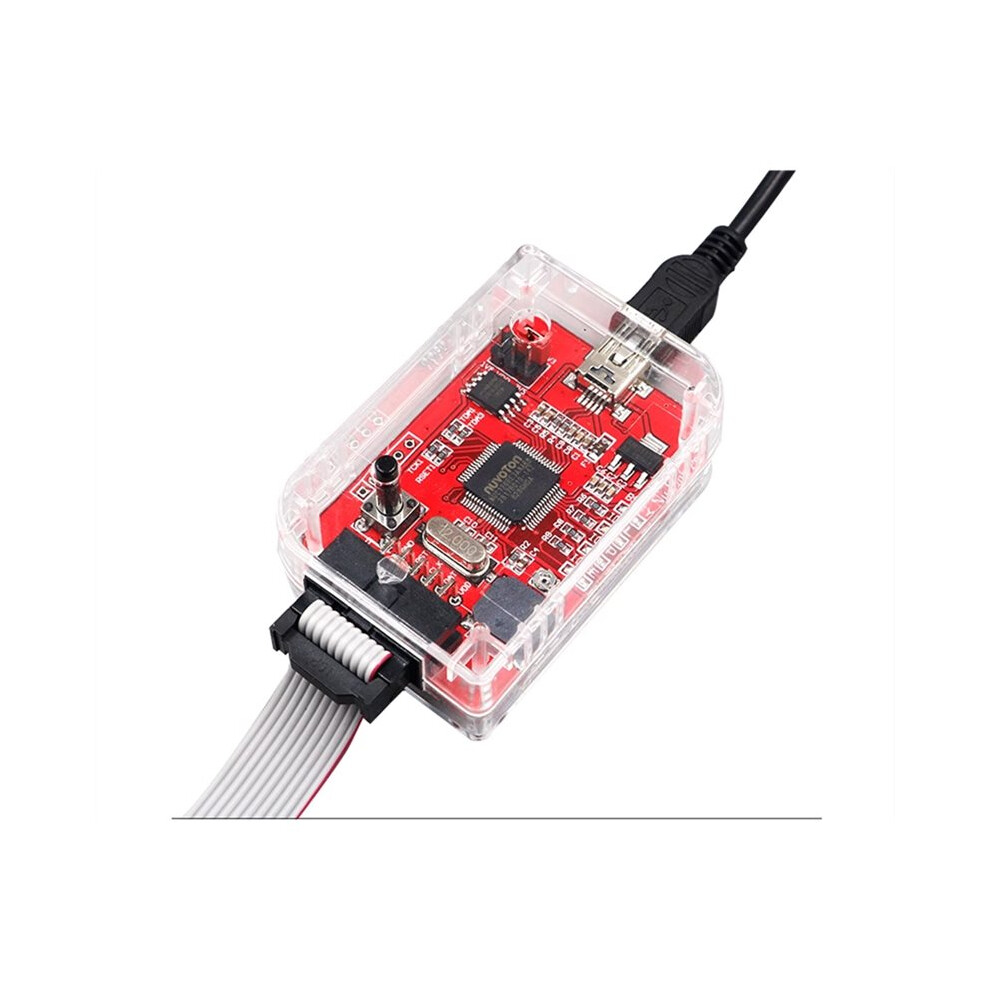

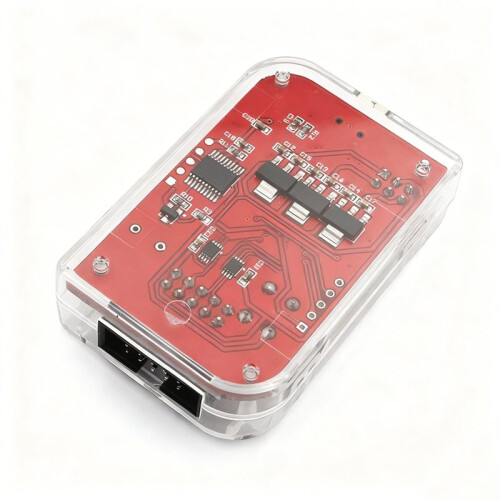

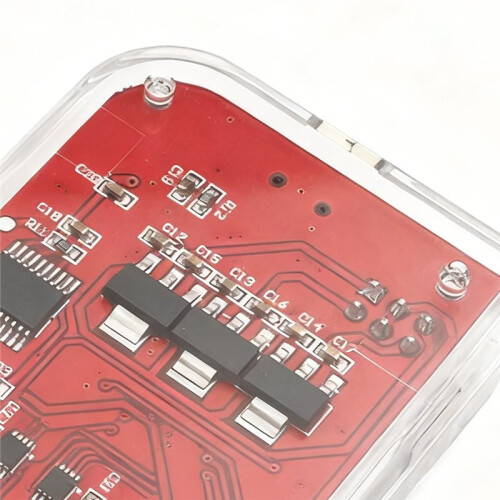

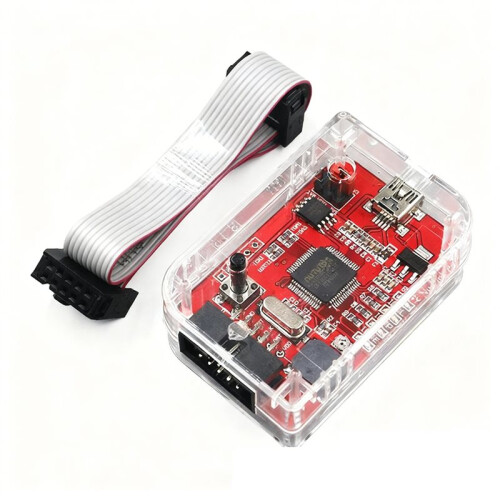

ARM Cortex-M Microcontroller Nu Link Pro Emulator/Downloader

ARM Cortex-M Microcontroller Nu Link Pro Emulator/Downloader Περιγραφή

Link-Pro, Nu-Link and Nu-Link-Me three specifications, collectively referred to as the Nu-Link Adapter (sold in this store for the N-Link emulator is fully compatible with Nuvoton Nu-Link emulator.
For the convenience of description, the following unified to Nu-Link description). However, Nu-Link-Me does not support offline programming.
Nu-Link is an emulator and programmer based SWD interface with emulation, online programming and offline programming for Nuvoton NuMicroFamily chips.
Nu-Link supports ICP (In-Circuit Programming) programming based SWD interface.
Users can use Nuvoton NuMicroICP Programming Tool software to update the chip firmware.

It is also suitable for mass production programming.
Nu-Link is not only an emulator, but also an in- and off- programmer, which is a 3-in-1 tool from R&D to mass production.
n76e616, n76e884, n76e885)
Support emulator firmware upgrade to support new chip
USB connection, driver-free, plug and
SWD interface for Nuvoton official standard
Support IDE tools such as KEIL, IAR FOR ARM, CooCox CoIDE, etc.
Flash breakpoints, no matter the code is in RAM or ROM, it can be used without limitation.
Flash breakpoints, no matter the code is in RAM or ROM, you can use unlimited breakpoints, not limited by the number of breakpoints the Cortex chip.
Support serial debugging (SWD) for ARM Cortex-M0 based devices.
Supports memory read/write, terminal emulation and serial debugging output during program execution.
Support -chip program upgrade and update, development and production integration, easy to operate
Support for operating systems Win2000/XPNista, Win7
Color: Red
Material: Plastic+Metal

Package Contents:

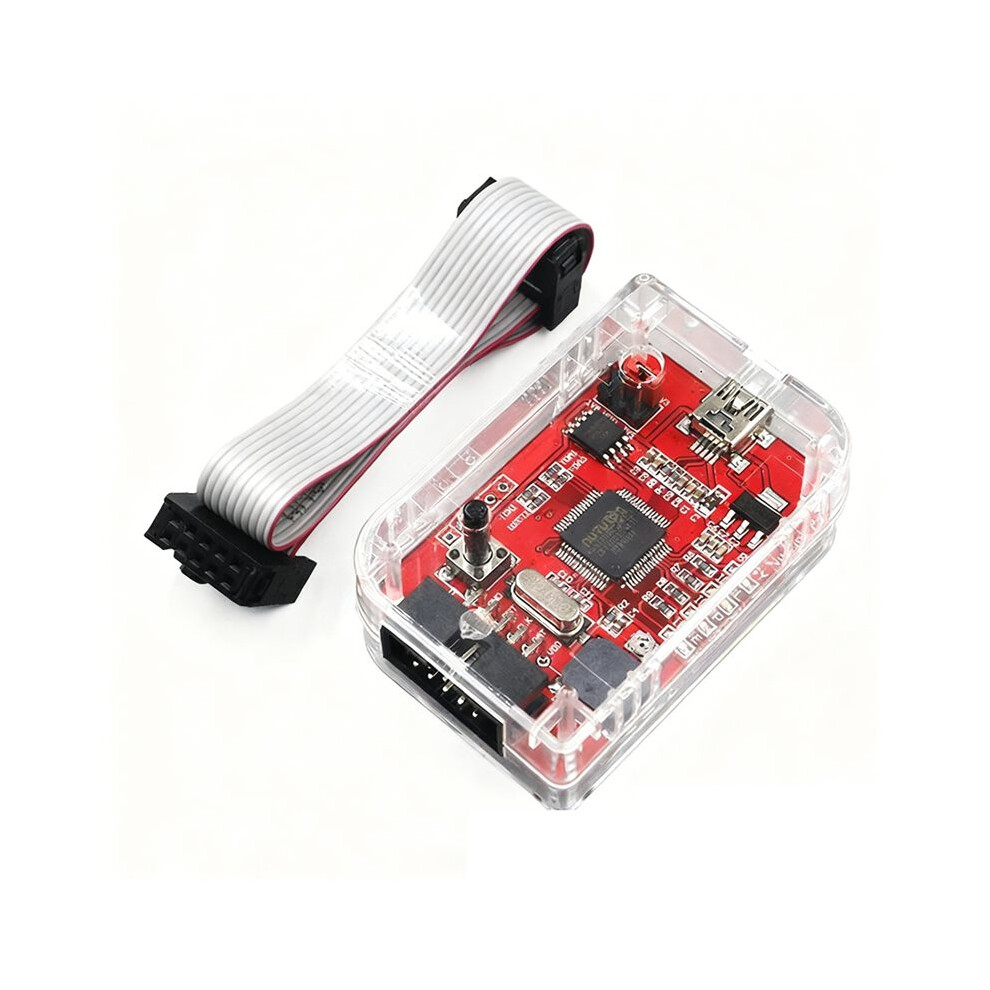

1 * downloader
