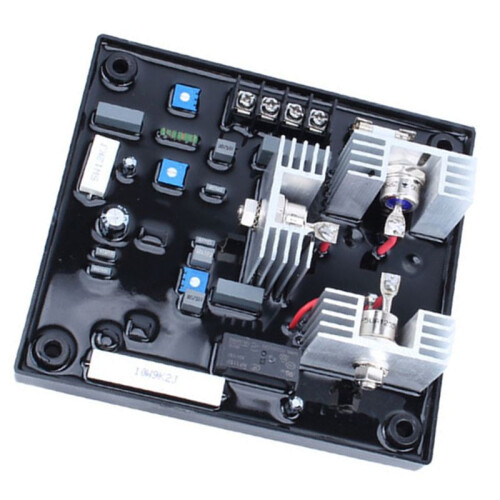

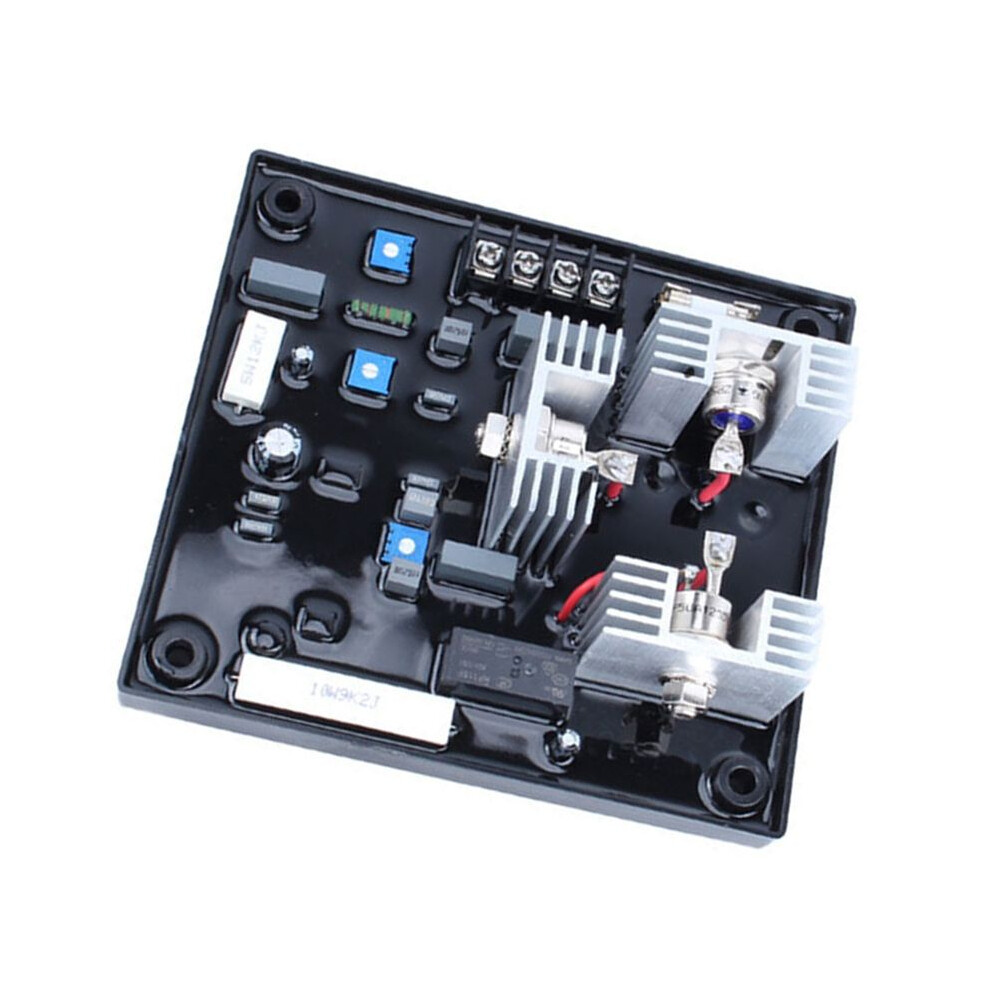

AVR-35A AVR Generator Automatic Voltage Regulator Stabilizer Module Control Board for Brushless Brush Generator Parts
Παρόμοια προϊόντα που πιστεύουμε ότι θα σου αρέσουν
Would you like us to let you know when it's back?
Περίληψη
- Input Voltage: 195-265 Volts min
- Input Frequency: 50/60Hz nominal
- Output Voltage: 0-115 volts-DC at 230volts
- Output Current Continuous: 35A
- Intermittent Current: max 50 A-DC (for 10s)
AVR-35A AVR Generator Automatic Voltage Regulator Stabilizer Module Control Board for Brushless Brush Generator Parts Περιγραφή
Input Voltage: 195-265 Volts min
Input Frequency: 50/60Hz nominal
Output Voltage: 0-115 volts- at 230volts
Output Current Continuous: 35A
Intermittent Current: max 50 A- (for 10s)
Regulation: +/- 2% typical.
Soft star: 2 sec
Under frequency protection: 40-50 Hz
ENVIRONMENTAL :
Operating temperature: -20 to +70 C
Maximum humidity: 95% non-condensing
Storage temperature: -30 to +80 C
The actual product may have slight color differences or differences, which does not affect use.
Colour:Black
Material:plastic
Package Contents:
1 x Generator Automatic Voltage Regulator
Λεπτομέρειες
| OPC | PV88GMS |
|---|---|
| Μάρκα | Typecat |
| Κωδικοί | 6034089911500 (EAN) |
| Πληροφορίες προϊόντος και ασφάλειας |
Στοιχεία Προϊόντος
| Height | 5cm |
|---|---|
| Width | 14cm |
| Length | 18cm |
| Weight | 0.574kg |
| Colour | Black |
| Material | plastic |
