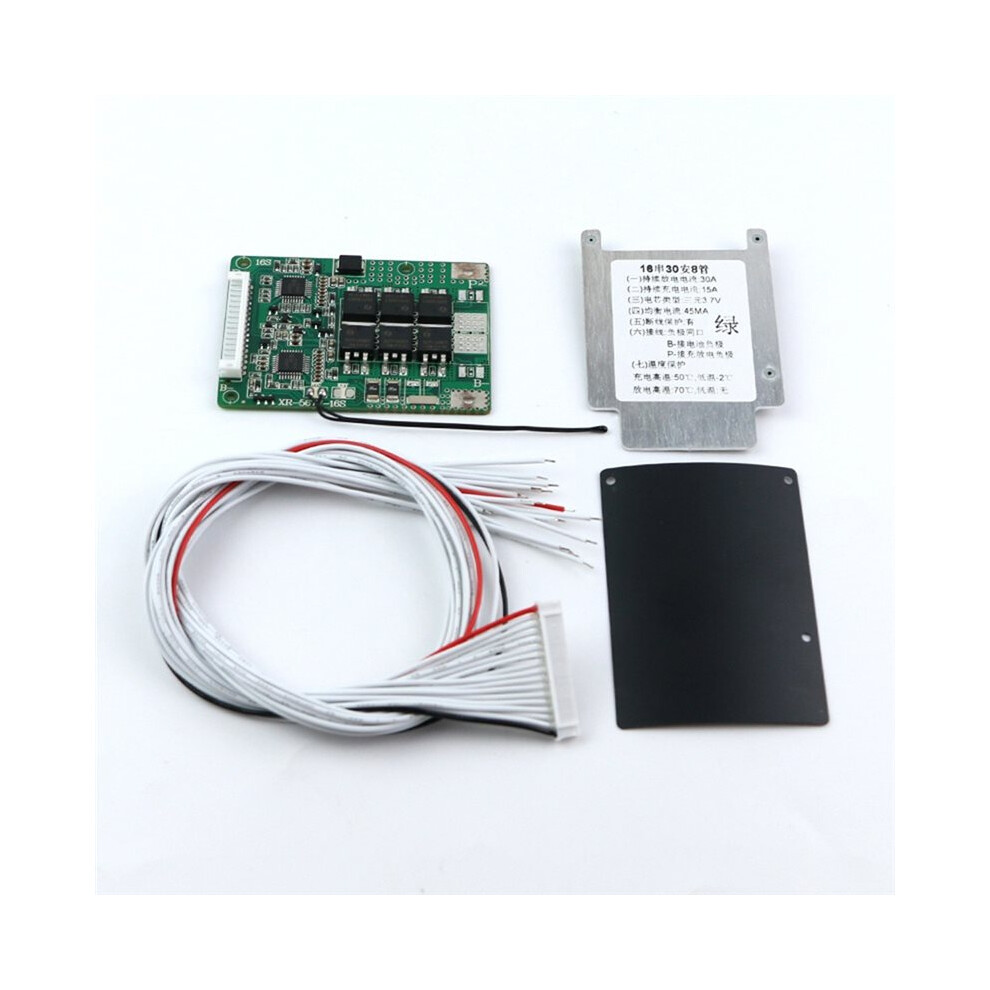

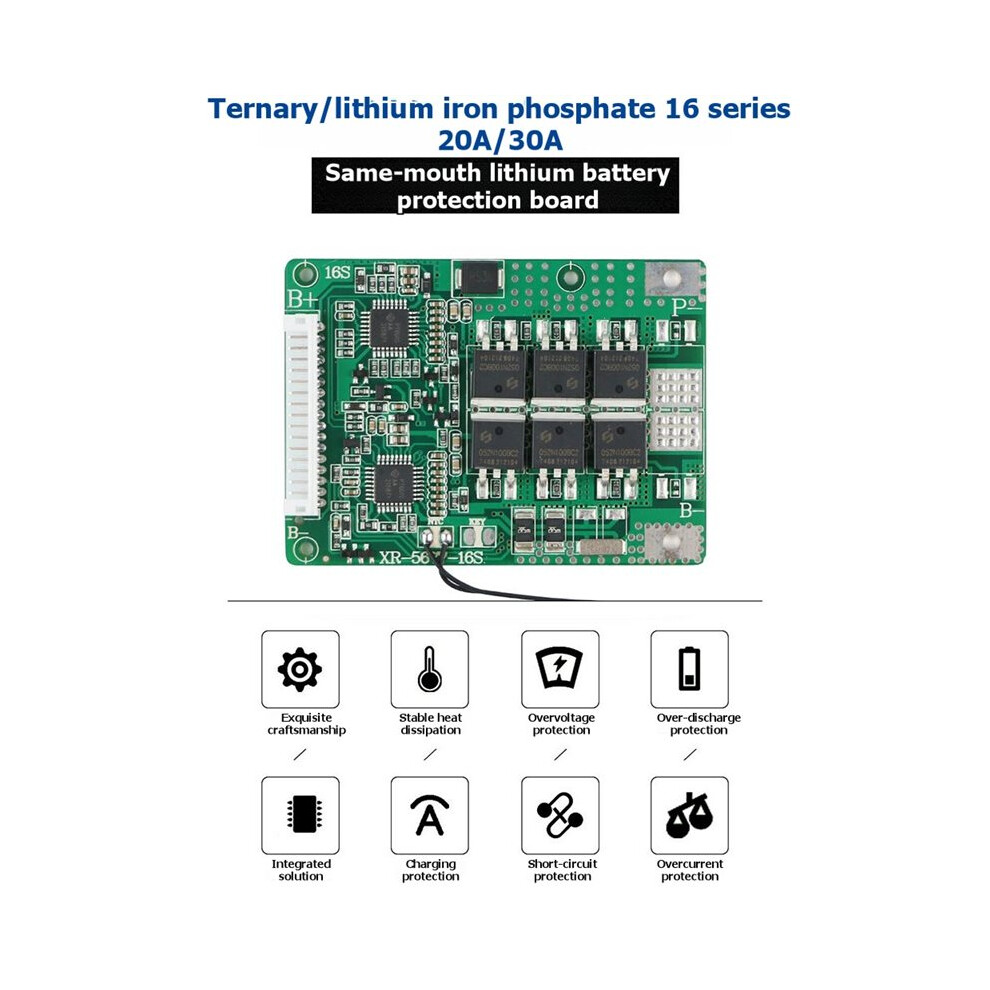

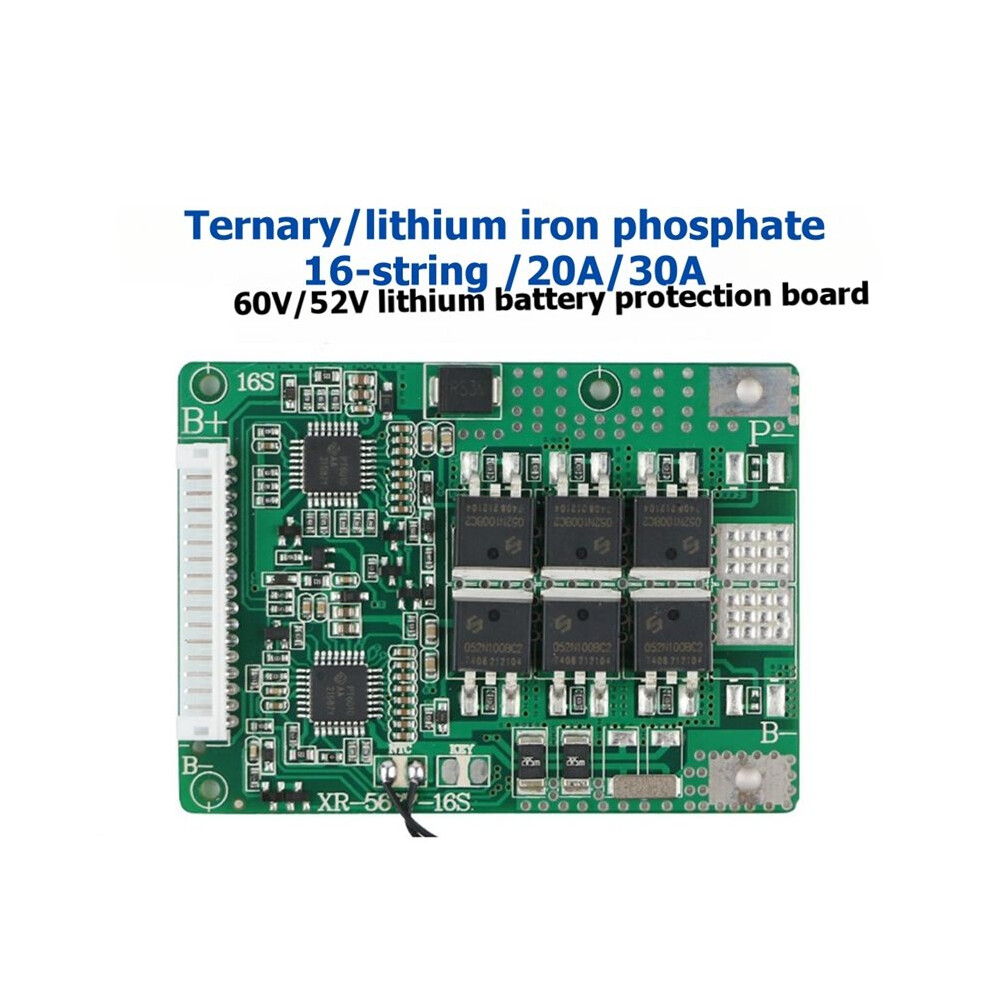

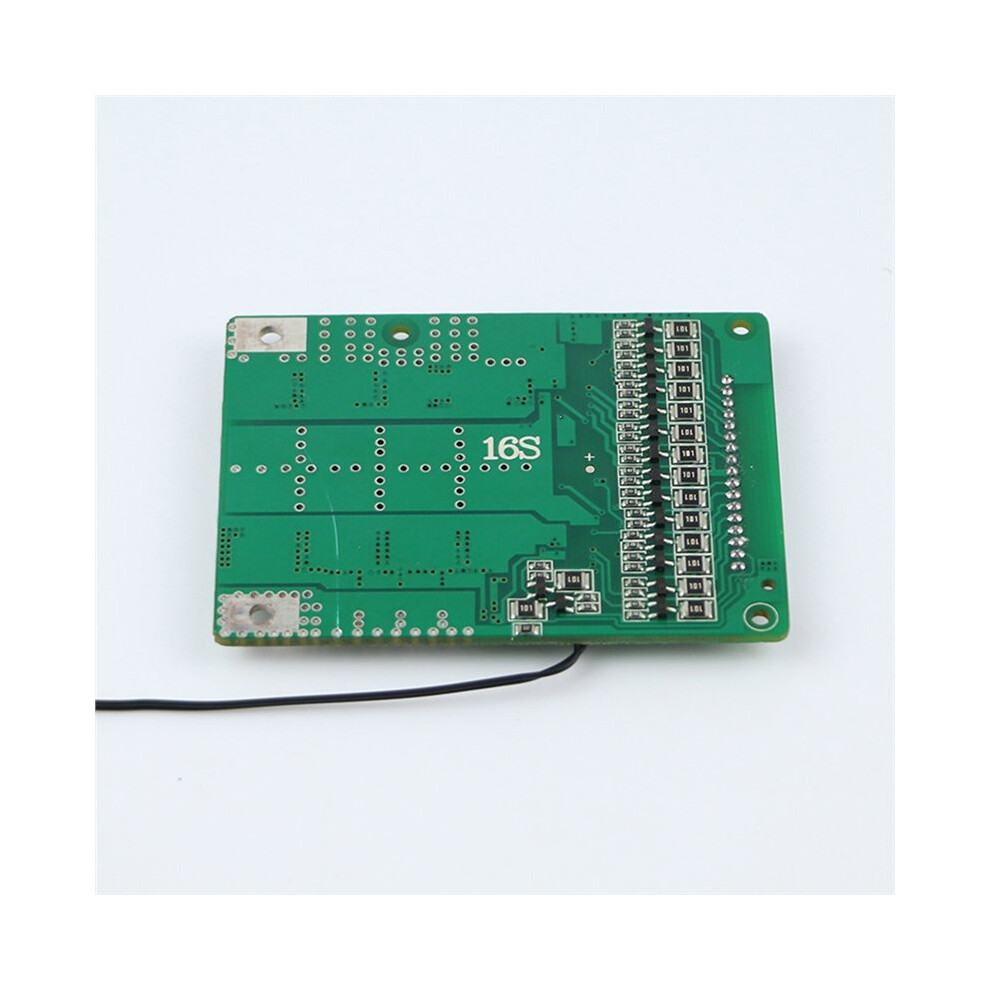

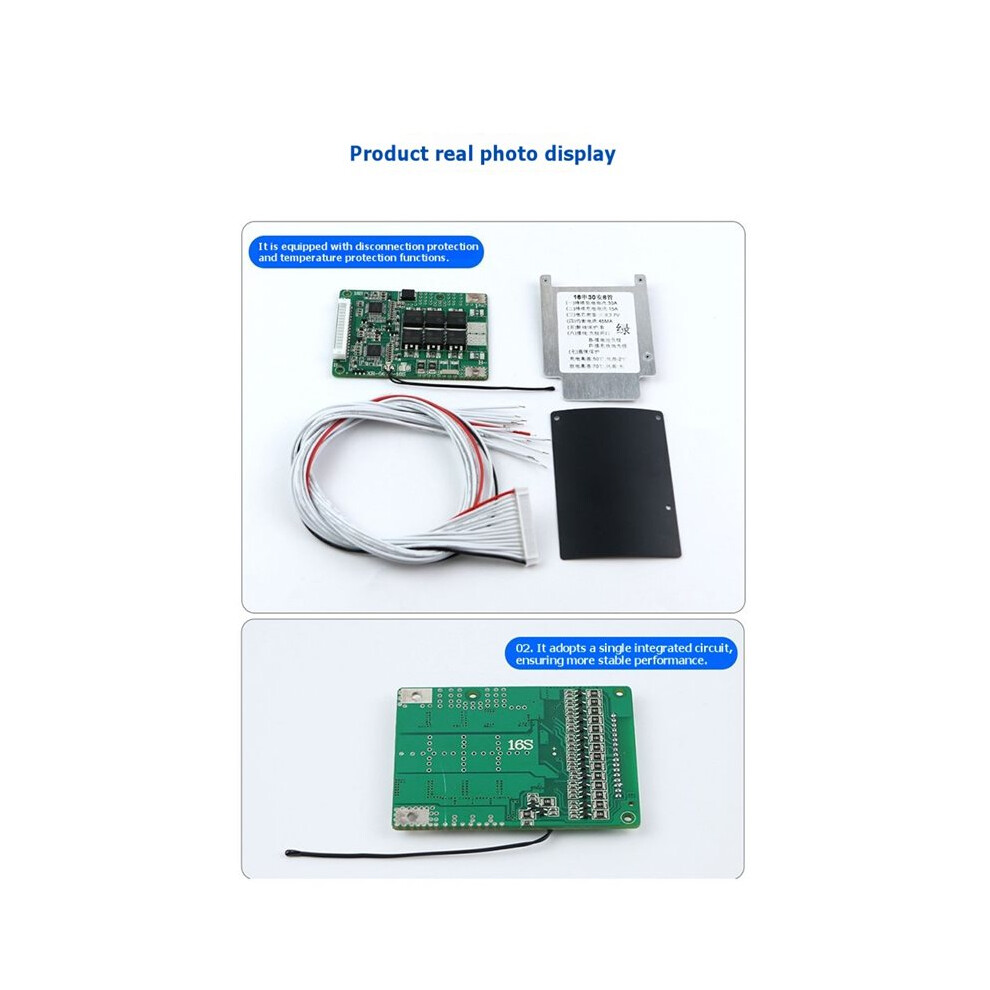

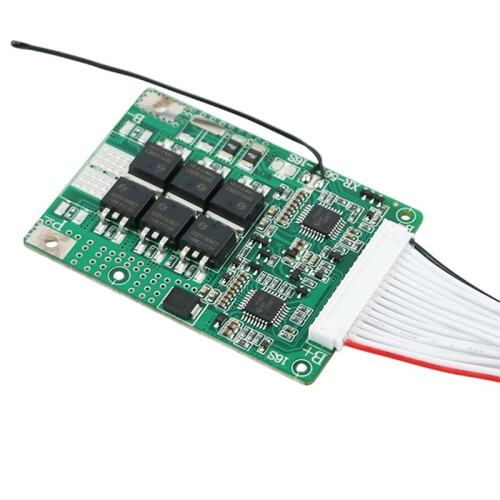

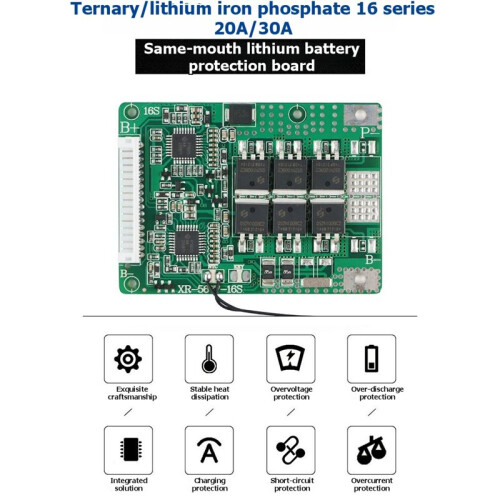

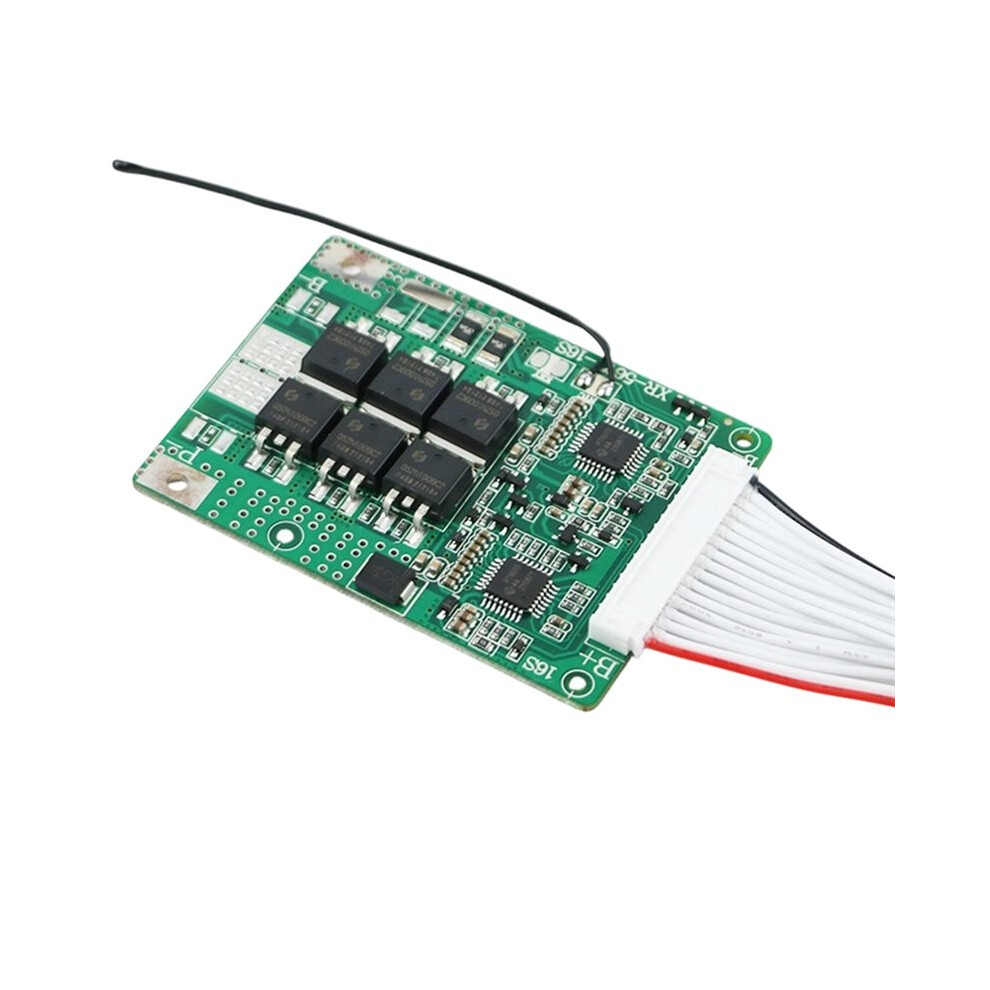

Balancer Version BMS 16S 30A 20A 60V 52V Battery Charge Board Equalizer NTC Temperature Protection for Escooter 20A

Balancer Version BMS 16S 30A 20A 60V 52V Battery Charge Board Equalizer NTC Temperature Protection for Escooter 20A Περιγραφή

Charge Equalization:Includes charge equalization at 4.15V0.025V, maintaining battery balance.
Bms Kicker|Bms Internet|Over-discharge Protection:Features robust over-discharge protection at 2.8V0.08V, ensuring your battery stays safe.
High Continuous Current:Offers a continuous working current of 20A/30A for efficient power management.
Temperature Protection:Equipped with NTC temperature protection, operating from -30 to 70.
Compact Design:Sleek 77*56*10MM size makes it a perfect fit for various e-scooter setups.

Discharge

1. Over-discharge protection voltage: 2.8V0.08V
2. Over-discharge recovery voltage: 3.0V0.08V
3. Continuous working current: 6MOS=20A, 8MOS=30A
4. Instantaneous protection current: 6MOS=85A, 8MOS=115A
5. Overcurrent recovery conditions: charge recovery or disconnect load
6. Short-circuit recovery conditions: charge recovery or disconnect the load

Charge

1. Overcharge protection voltage: 4.25V0.025V
2. Overcharge recovery voltage: 4.15V0.025V
3. Continuous charging current: 6MOS=15A, 8MOS=20A
4. Charge equalization voltage: 4.15V0.025V
5. Charge equalization current: 45MA
6. Charger voltage: 70V (recommended)

Activation Method

(1) B- and C- wires can be short-circuited once
(2) Or charge to activate

Specification

1. Charging over temperature: -2 to 50
2. Discharge over temperature: -30 to 70
3. Working power consumption: 40uA
4. The main circuit conduction internal resistance: 15mΩ
5. Temperature range: -40 to +80
6. Disconnection protection: Yes
7. Wiring mode: same port
B-: connect to the negative electrode of the battery,
P-: Connect to the negative electrode of charge and discharge
8. Cable size: 2.0MM pitch/17 lines/50CM lengt
