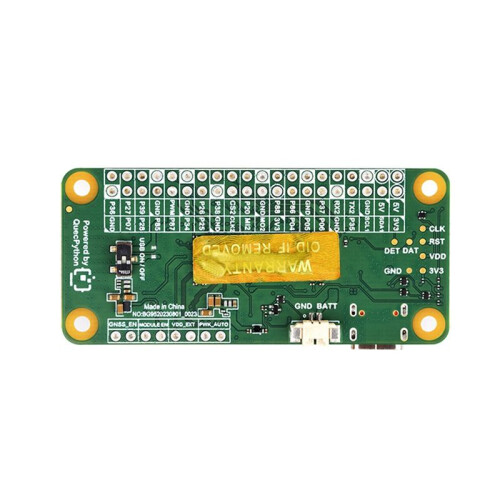

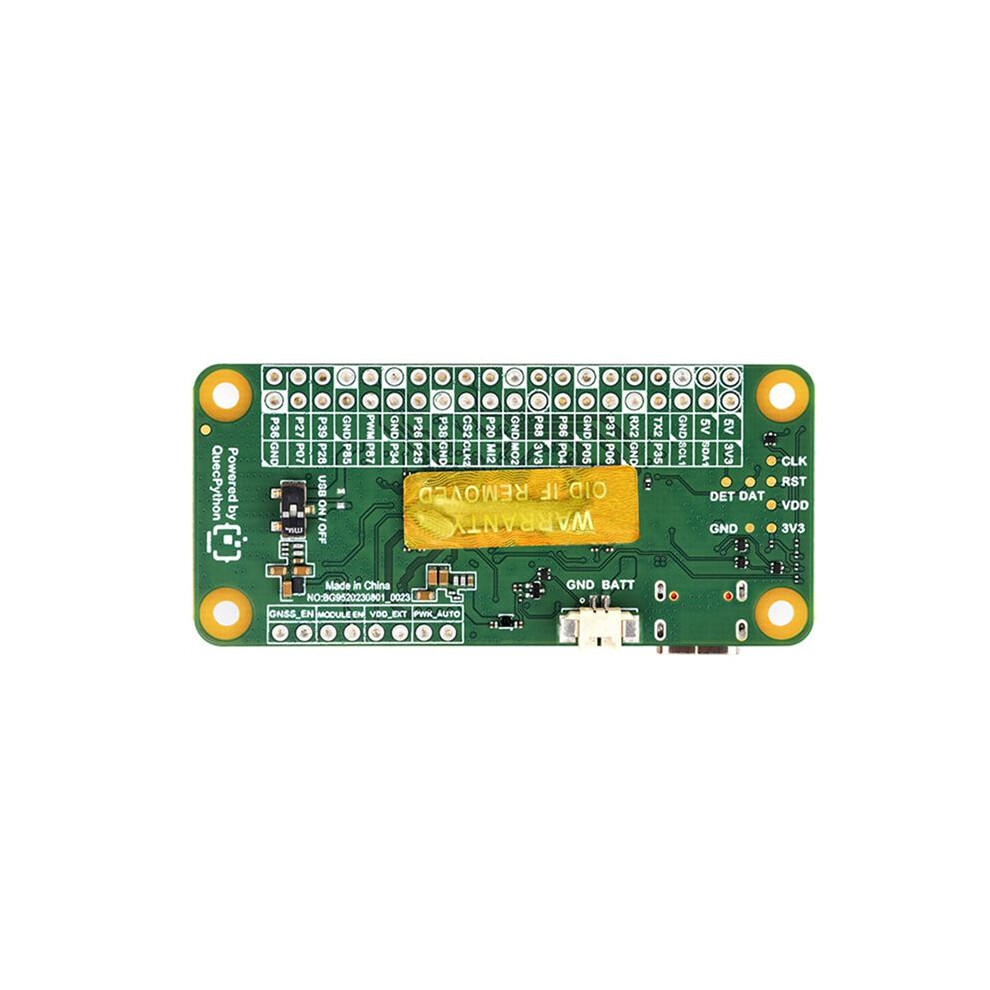

BG95-M3 Zero Development Board Supports LTE/EGPRS and GNSS Positioning IoT QuecPython Development Board

BG95-M3 Zero Development Board Supports LTE/EGPRS and GNSS Positioning IoT QuecPython Development Board Περιγραφή

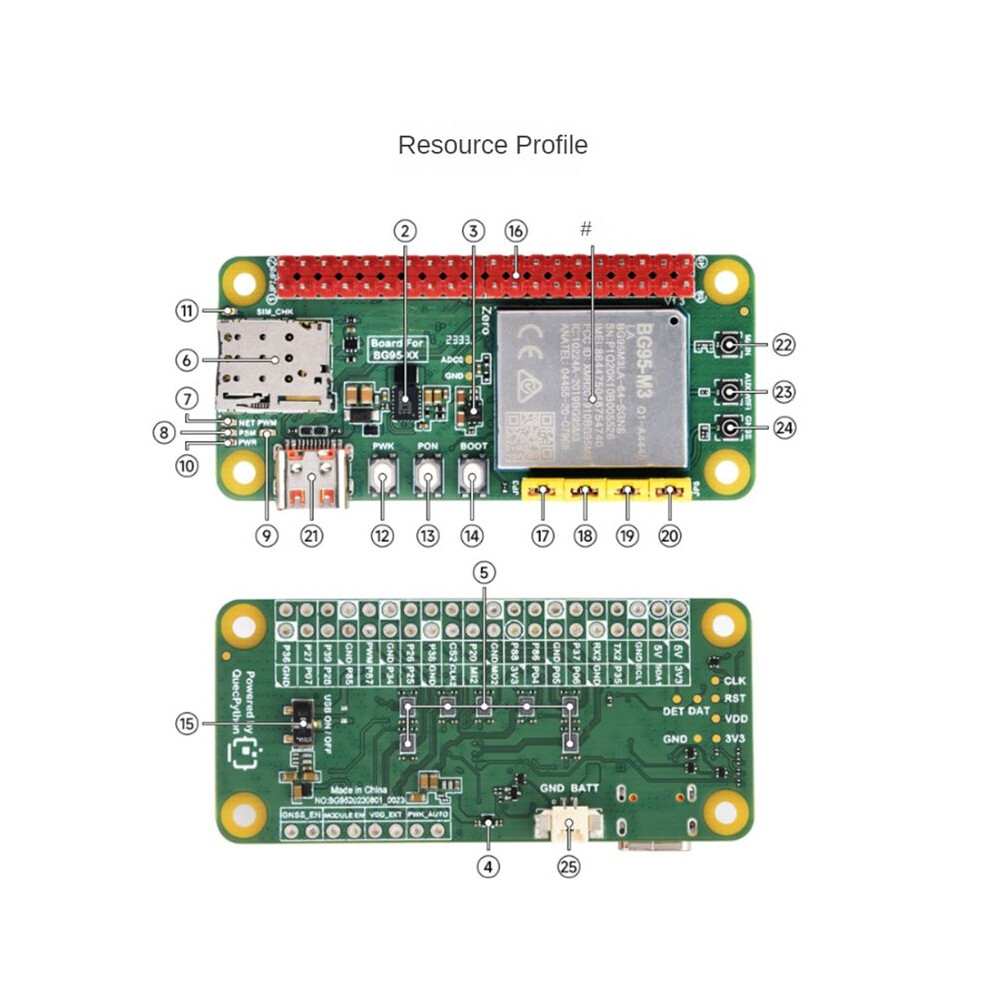

Onboard BG95-M3 main module, supports LTE Cat M1, LTE Cat NB2, EGPRS network, universal worldwide

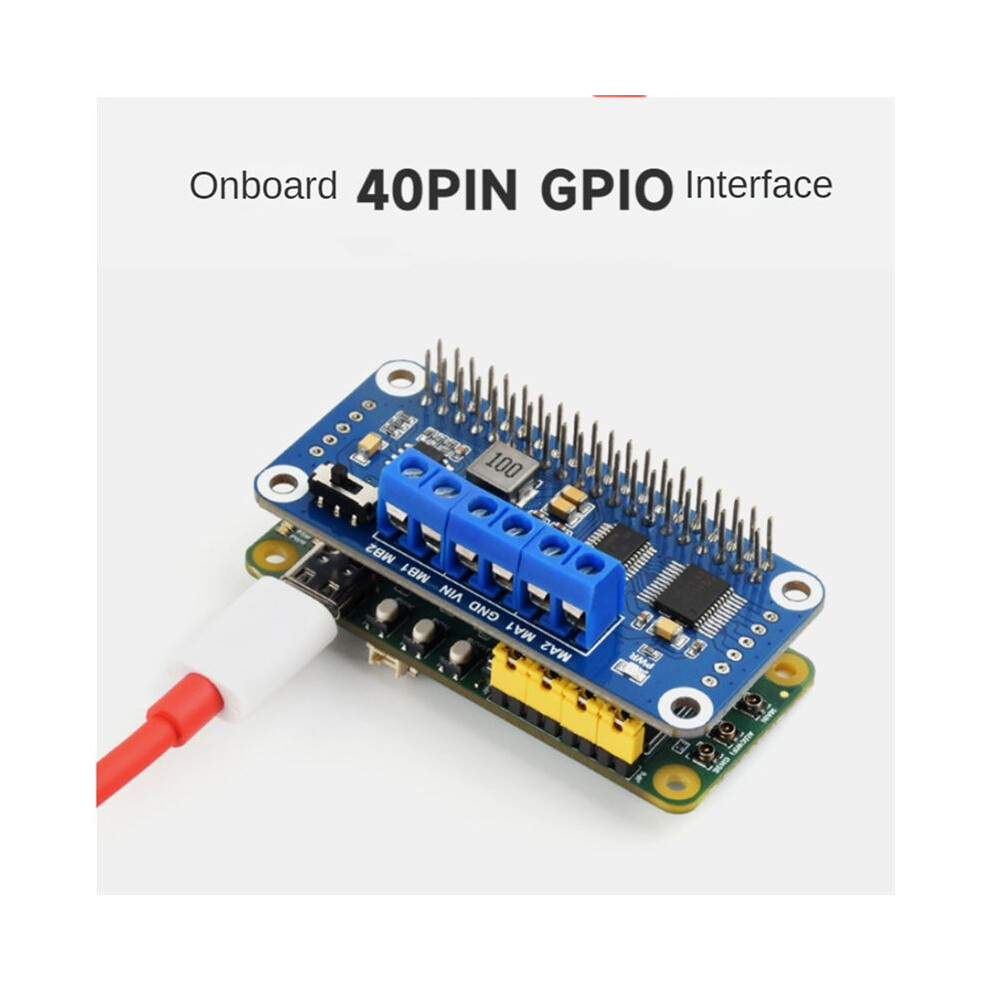

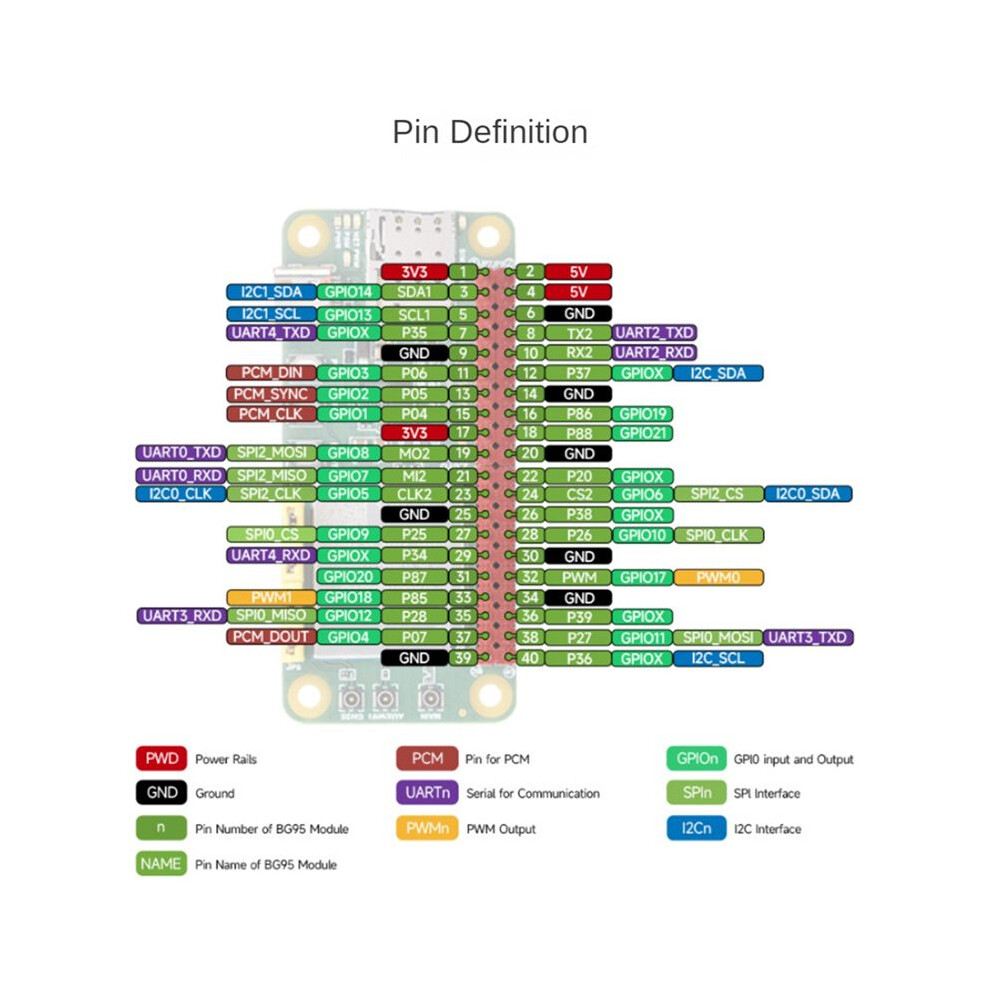

Onboard 40PIN GPIO interface, compatible with most Raspberry Pi HAT expansion boards
Onboard 5 LED indicators, convenient for viewing module operation status

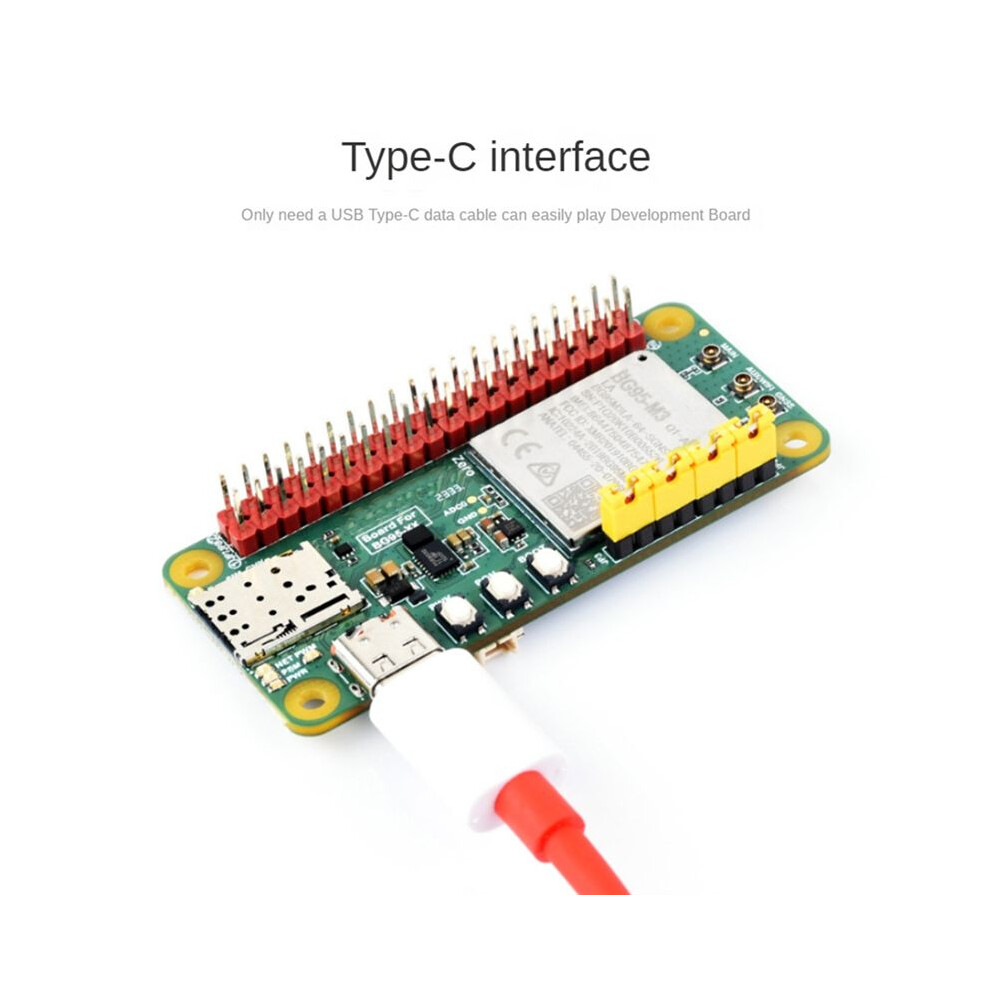

Onboard Type-C interface, only one USB Type-C data cable is needed to easily with the development board
Support PPP, TCP, UDP, SSL, TLS, FTP(S), HTTP(S), NITZ, , MQTT, LwM2M, CoAP, IPv6 and other protocols, support GNSS positioning (GPS, GLONASS, BDS, Galileo, QZSS)

Applicable area: Global
: Not supported
Wi-Fi Scan: Not supported
CAT 1: Not supported
NB-lOT: Cat NB2: Downlink 127 Kbps; Uplink 158.5 Kbps
Cat NB1: Downlink 32 Kbps; Uplink 70 Kbps
Cat-M: Downlink 588 Kbps; Uplink 1119 Kbps
GSM/GPRS/: : Downlink 296 Kbps; Uplink 236.8 Kbps
GPRS: Downlink 107 Kbps; Uplink 85.6 Kbps
USB interface: All supported, can be used to test AT commands, obtain GPS positioning information, upgrade firmware, etc.
Communication protocols: PP, TCP, UDP, SSL, TLS, FTP(S), HTTP(S), NITZ, , MQTT, LwM2M, CoAP, IPV6
SIM card: SIM card (only supports 1.8V)
Antenna interface: LTE main antenna + diversity antenna + GNSS antenna
Operating temperature -30 ~ 75
Storage temperature -45 ~ 90
Colour:As Shown
Material:PCB

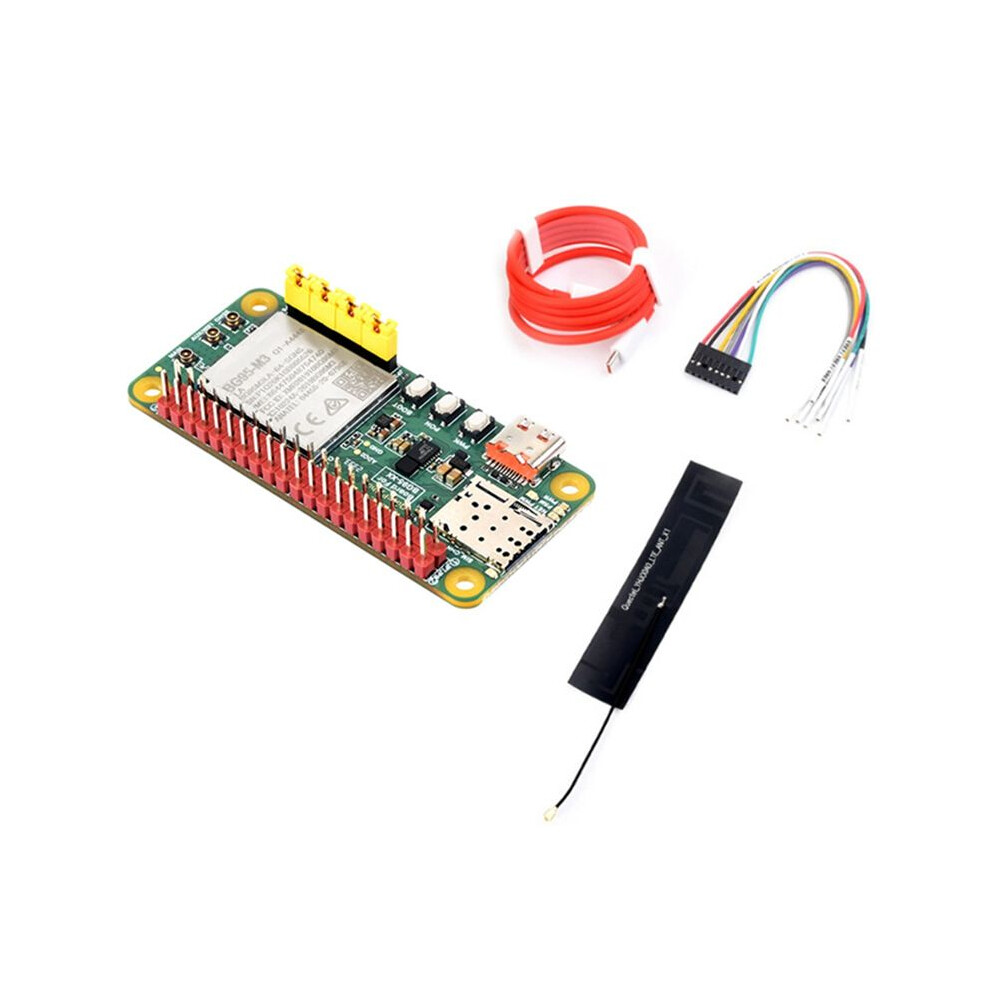

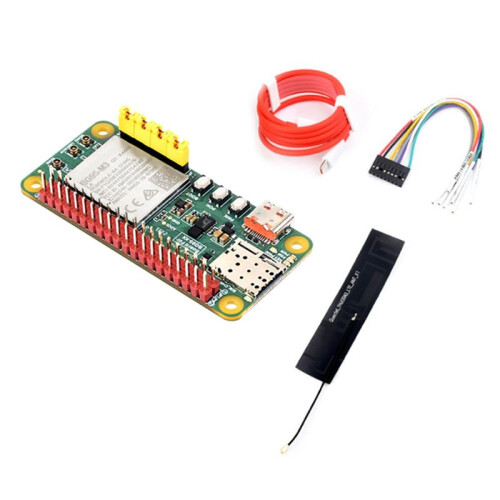

Package Contents:
1x Development Board
1x USB Cable
1x Connecting Cable
1x Antenna

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
