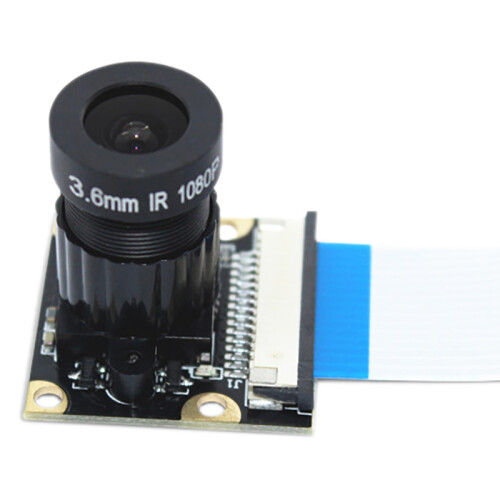

Camera Module 1080P 5 Million Pixels 1.8 Aperture 75 Wide Angle OV5647 Chip for Raspberry Pi 2/4/3B+

Camera Module 1080P 5 Million Pixels 1.8 Aperture 75 Wide Angle OV5647 Chip for Raspberry Pi 2/4/3B+ Περιγραφή

5 million high-definition pixel images are clearer, bringing a pure and delicate image quality experience
75 wide angle, support 1080p30 frame, 720p60 frame video recording
It can be connected to the infrared fill light, the night vision picture is clearer, and it supports manual focusing. You can adjust according to the distance of the object. The Zero v 1.3 conversion cable can be used for Raspberry Pi Zero/Zero W/Zero WH
Application: It is automobile and ship control, electronic equipment, oil field equipment, industrial equipment, remote field monitoring, environmental monitoring, etc., suitable for various machines, as follows: mechanical equipment, all-in-one machines, POS equipment, set-top boxes, TV boxes, Advertising machine, LED display, vending machine, etc.
Suitable for Raspberry pi 2/4/3B+

parameter
Pixel: 5 million pixels
Focus distance: 3.6mm (adjustable shooting focus distance)
Photosensitive chip: OV5647
CMOS size: 1/4 inch
Aperture (F): 1.8
Diagonal field of view: 75 degrees
Sensor pixels: 1080p
Screws: 4 screws can be used to fix the position
Power supply: support 3.3V external power supply
Fill light: support access to infrared light
Size: 25x24x23.8mm
Resolution: 2592x1944
Working temperature: -20C~70C conventional
Material:PCB
colour:Black

Package Contents:
1 x Camera Module

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
