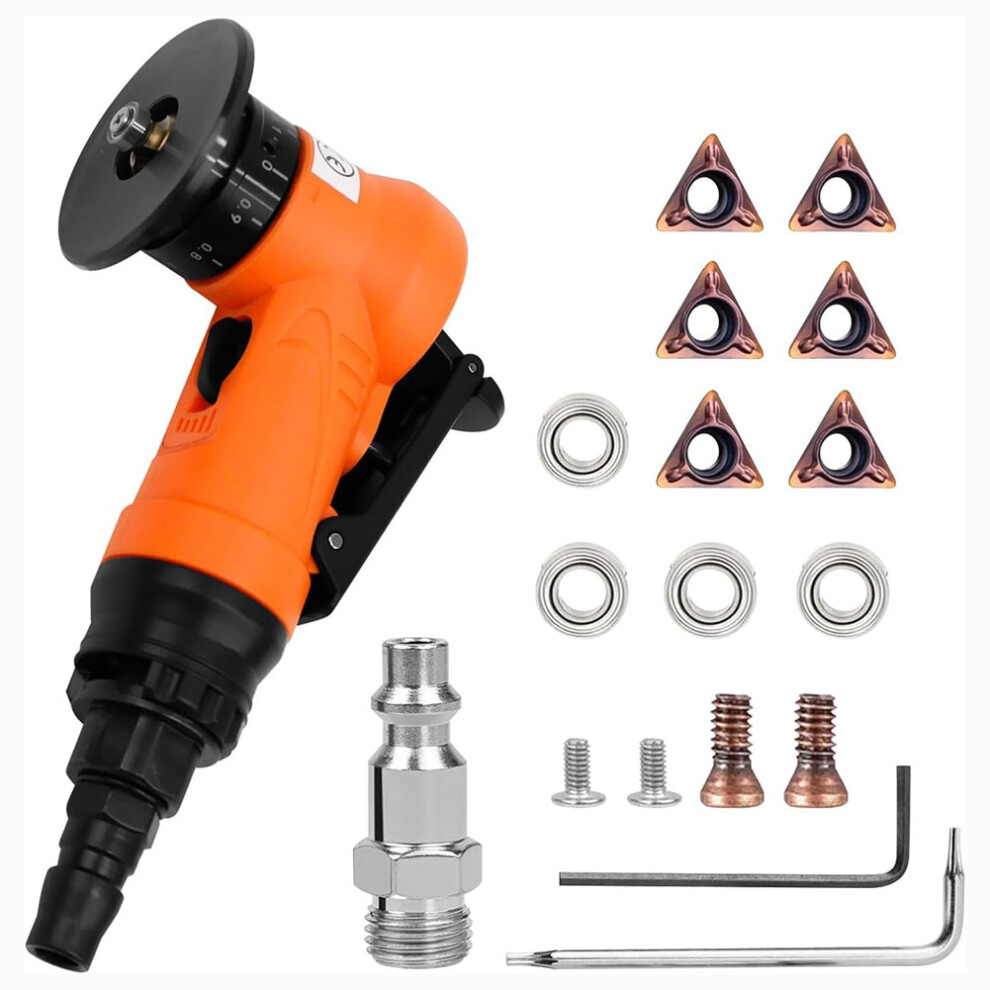

Chamfering Machine,Handheld Air BevelingMachine Pneumatic Tool Air Beveling Tool Beveler Set 1

Chamfering Machine,Handheld Air BevelingMachine Pneumatic Tool Air Beveling Tool Beveler Set 1 Περιγραφή

Efficient Chamfering: With a high rotational speed of 30000RPM, this machine ensures quick and efficient chamfering of metal edges. It can handle chamfering hole diameters of 8mm or larger, providing precise and clean results.
Adjustable Depth and Range: The machine offers adjustable depth settings ranging from 0.1mm to 0.9mm, allowing you to achieve the desired chamfering depth. The chamfer range is to 1.5mm, providing flexibility for various applications.
Versatile: Chamfering Machine is Made from Metal, this chamfering machine is built to withstand heavy-duty use. It can handle chamfer plate thicknesses greater than 3mm, making it suitable for a wide range of metal trimming tasks.

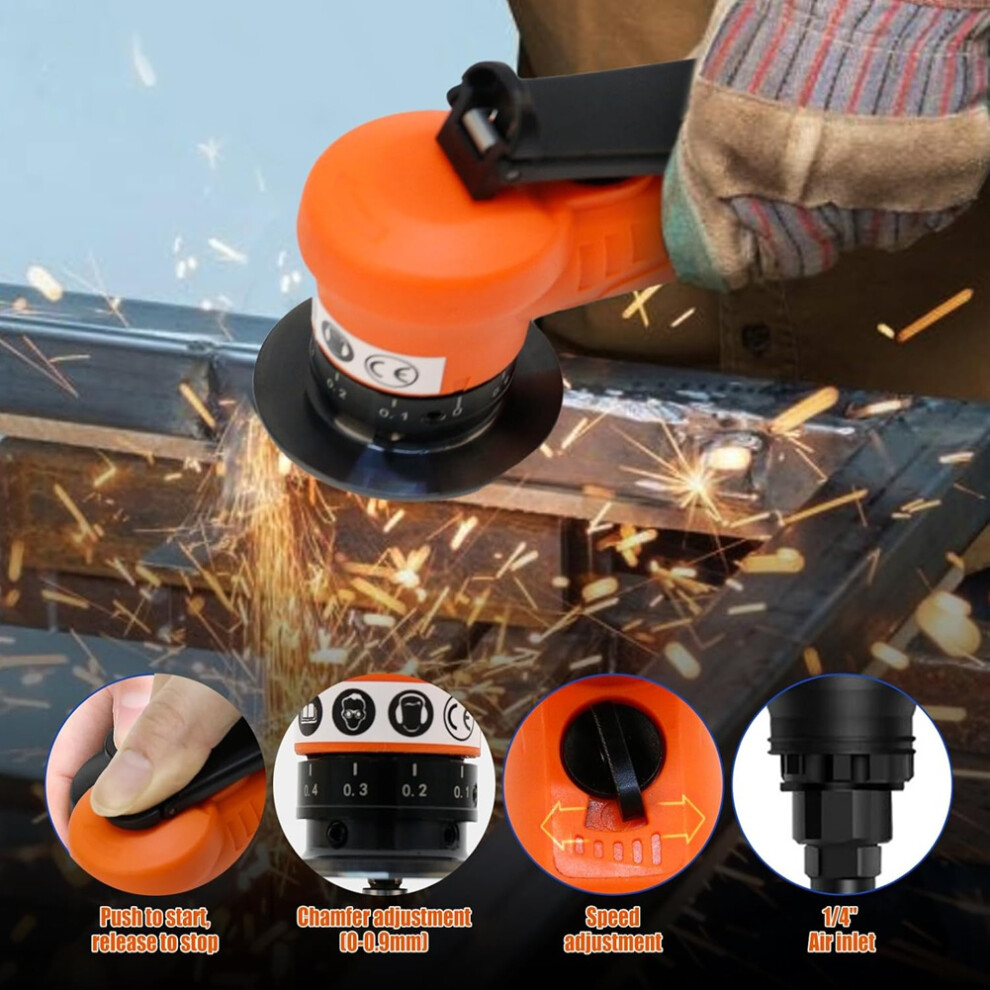

Easy to Use: The handheld design of this air beveling machine ensures ease of use and maneuverability. Simply adjust the parameters according to your requirements, and the machine is ready to deliver precise chamfering results.

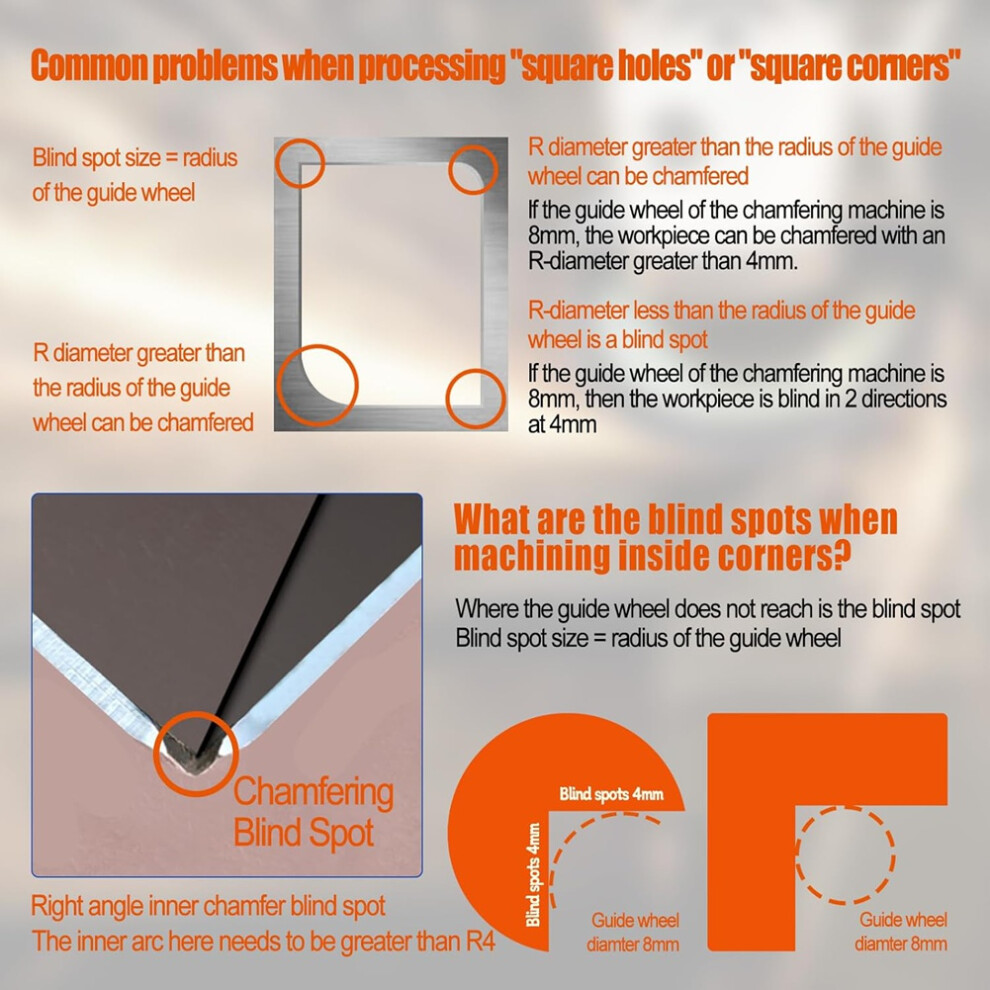

Eliminates Common Machining Issues: This chamfering machine effectively addresses common problems encountered during machining, such as inch square holes inch and inch square corners. It minimizes blind zones by utilizing guide wheels with a radius greater than the workpiece's radius, ensuring comprehensive chamfering coverage.

Chamfering Hole Diametergreater than equal 8mm

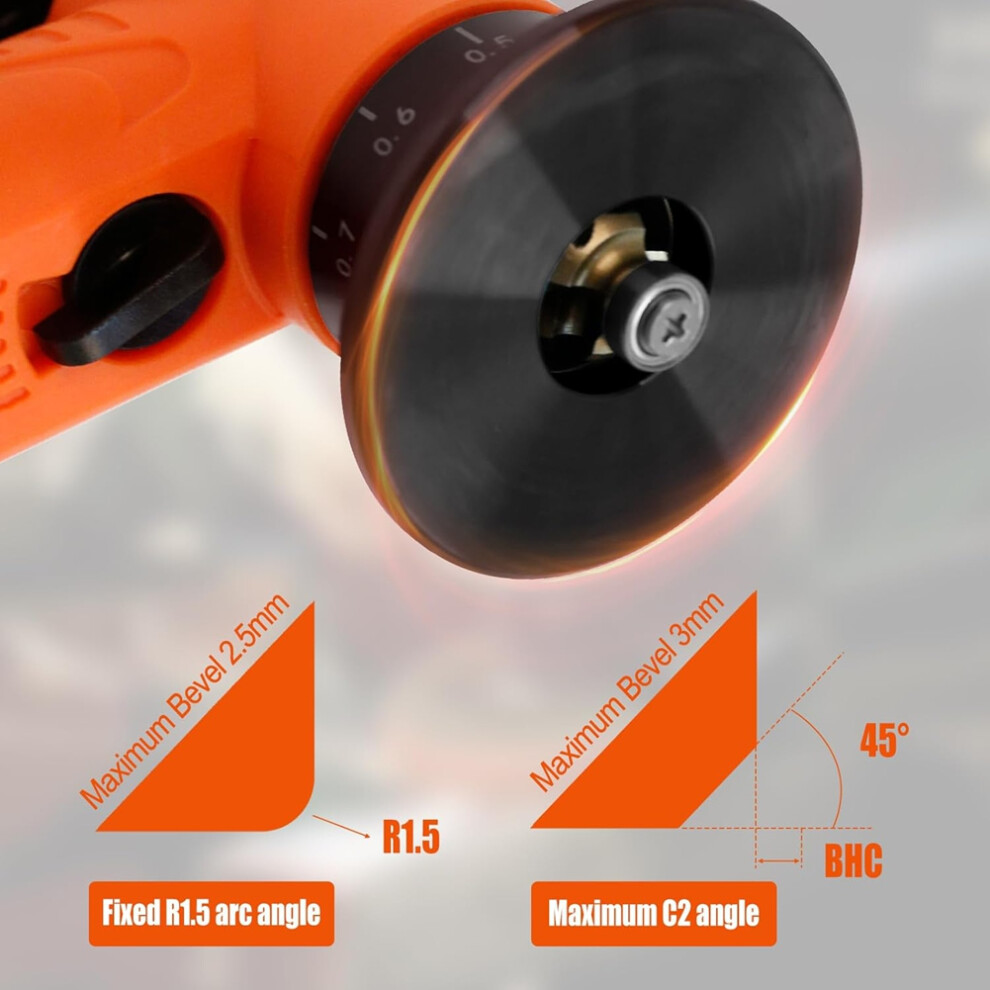

Chamfering Ability: C0.1-C2
ARC cormor:R0.1-R1.5
Rotational Speed: 30000RPM
Working Pressure:0.4-0.6MPA

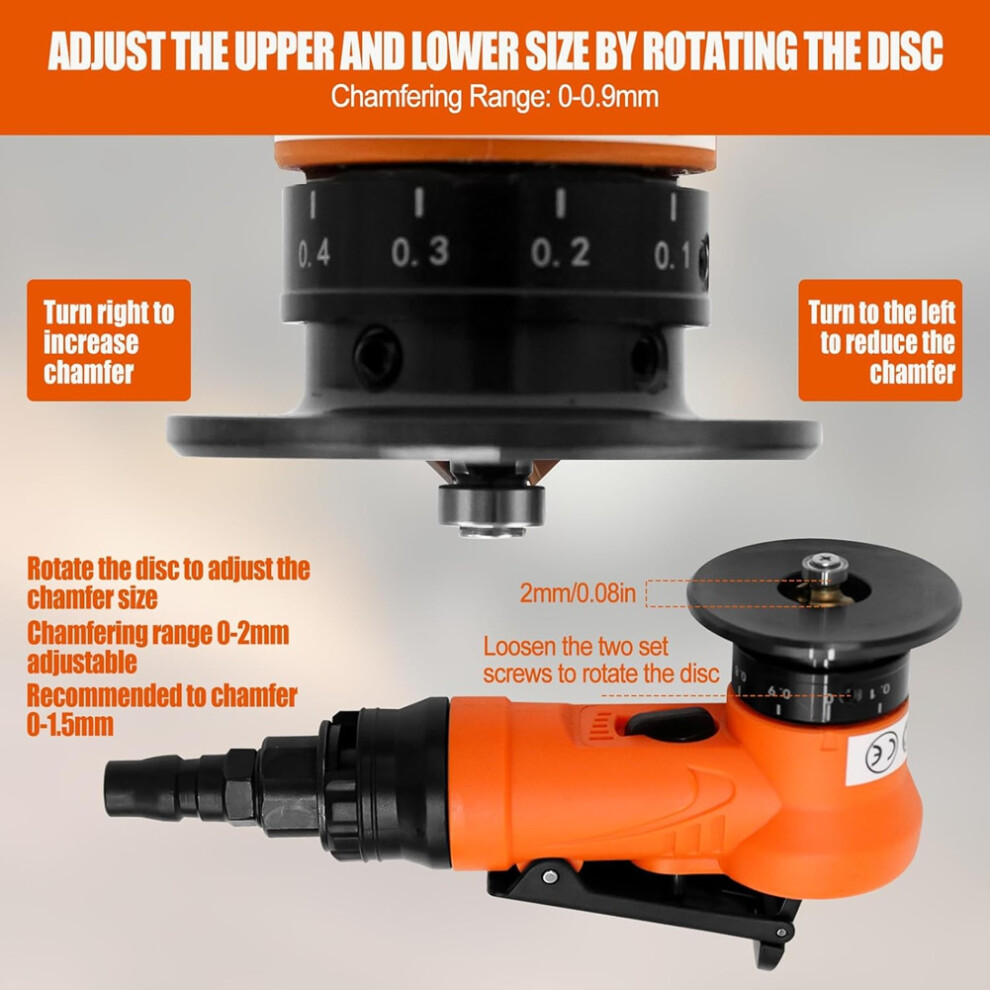

Adjustable Depth: 0.1-0.9mm
Chamfer Plate Thickness: Greater than 3mm
Chamfer range: less than equal 1.5mm
Air consumption: 0.4m³/minute

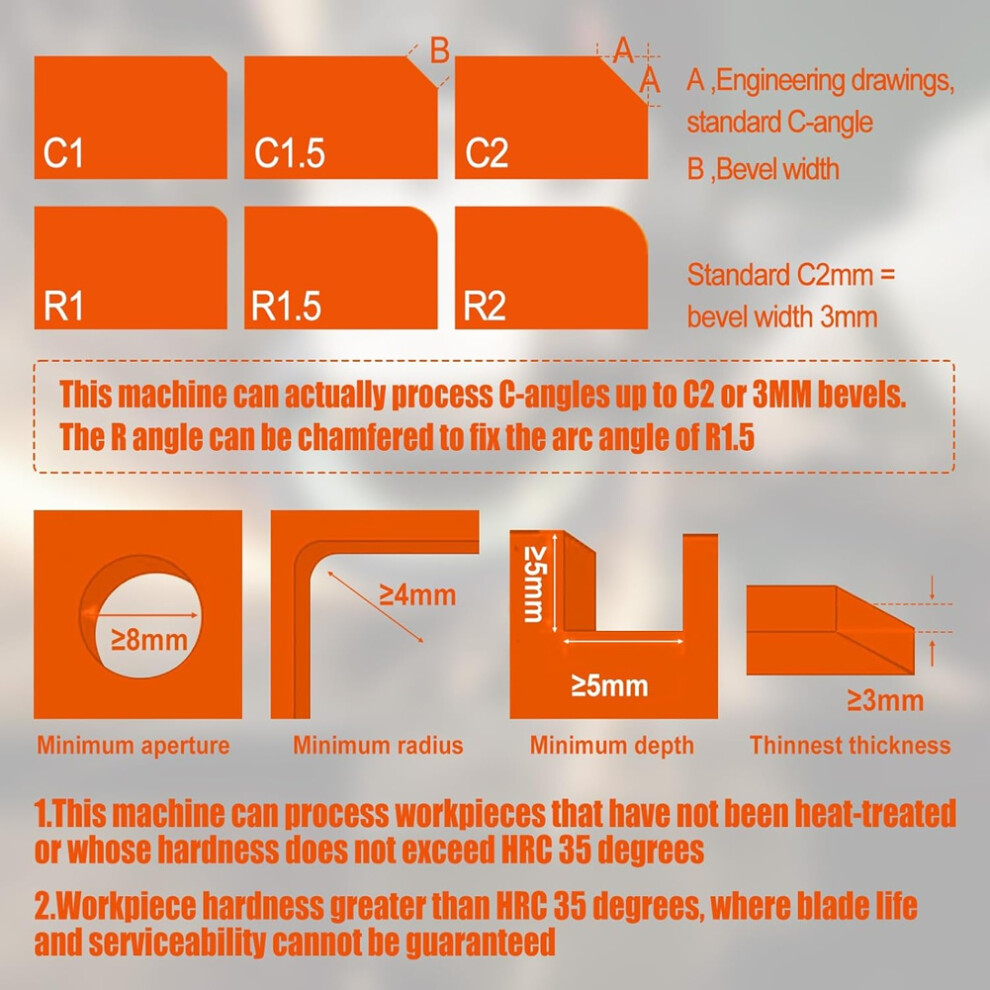

Chamfer range: Minimum aperturegreater than equal 8mm,Minimum aperture greater than or equal to 8mm
Min radiusgreater than equal 4mm, min radius greater than or equal to 4mm
Min depthgreater than equal 5mm, min depth greater than or equal to 4mm
max thicknessgre
