CoreEP4CE6,FPGA Core Board, Features the ALTERA Cyclone IV Chip EP4CE6E22C8N Onboard

CoreEP4CE6,FPGA Core Board, Features the ALTERA Cyclone IV Chip EP4CE6E22C8N Onboard Περιγραφή

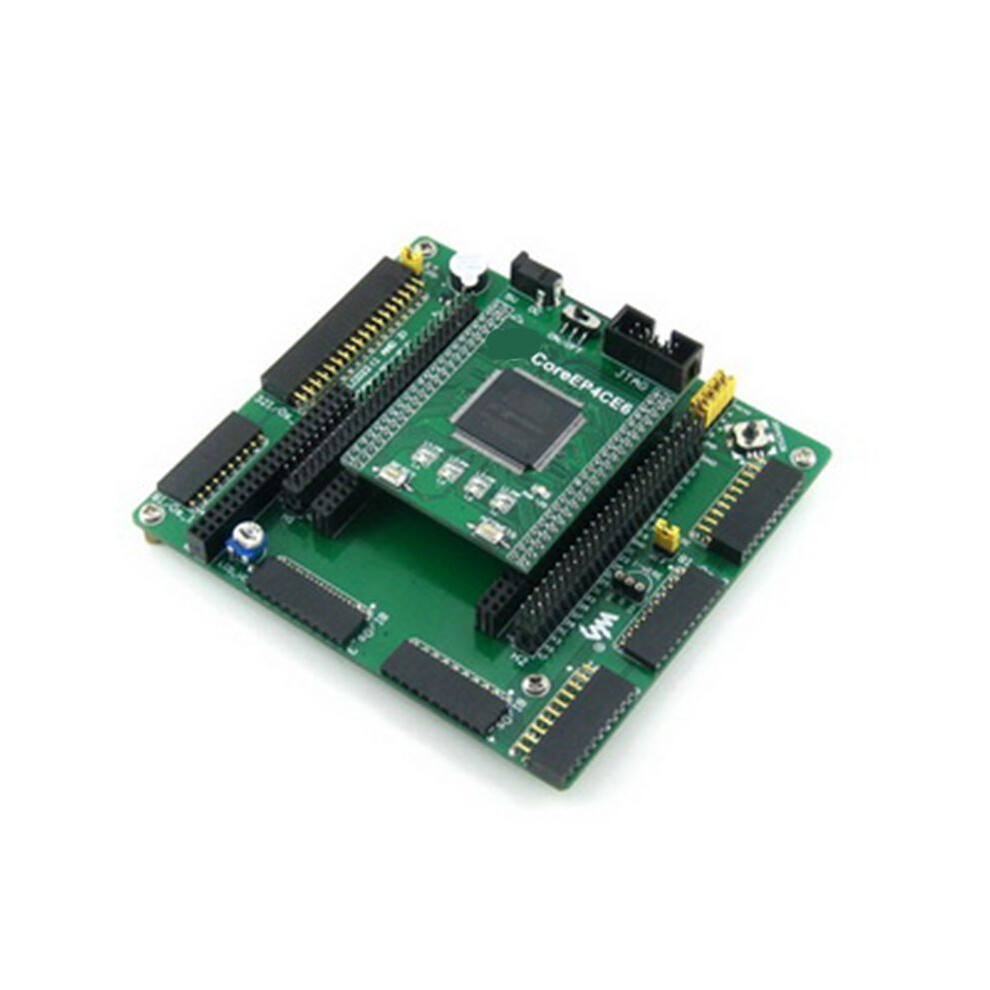

CoreEP4CE6 is an FPGA core board that features an EP4CE6E22C8N device onboard, supports further expansion.
onboard Serial Configuration Device EPCS16SI8N integrated FPGA basic circuit, such as clock circuit onboard nCONFIG button, RESET button, 4 x LEDs all the I/O are accessible the pin headers onboard JTAG debugging/programming interface
2.54mm header pitch design, suitable for being plugged-in your application system

EP4CE6E22C8N:the ALTERA Cyclone IV FPGA device which features:
Operating Frequency: 50MHz
Operating Voltage: 1.15V~3.465V
I/Os: 80
LEs: 6K
RAM: 270kb
PLLs: 2
Debugging/Programming: supports JTAG
AMS1117-3.3, 3.3V voltage regulator
AMS1117-2.5, 2.5V voltage regulator
AMS1117-1.2, 1.2V voltage regulator
EPCS16, onboard serial FLASH memory, for storing code
Power indicator LEDs
Reset button
nCONFIG button: for re-configuring the FPGA chip, the equivalent of power reseting
Power
50M active crystal oscillator
5V jack
JTAG interface: for debugging/programming
FPGA pins expander, VCC, GND and all the I/O are accessible expansion connectors for further expansion
LED jumpers
Note:

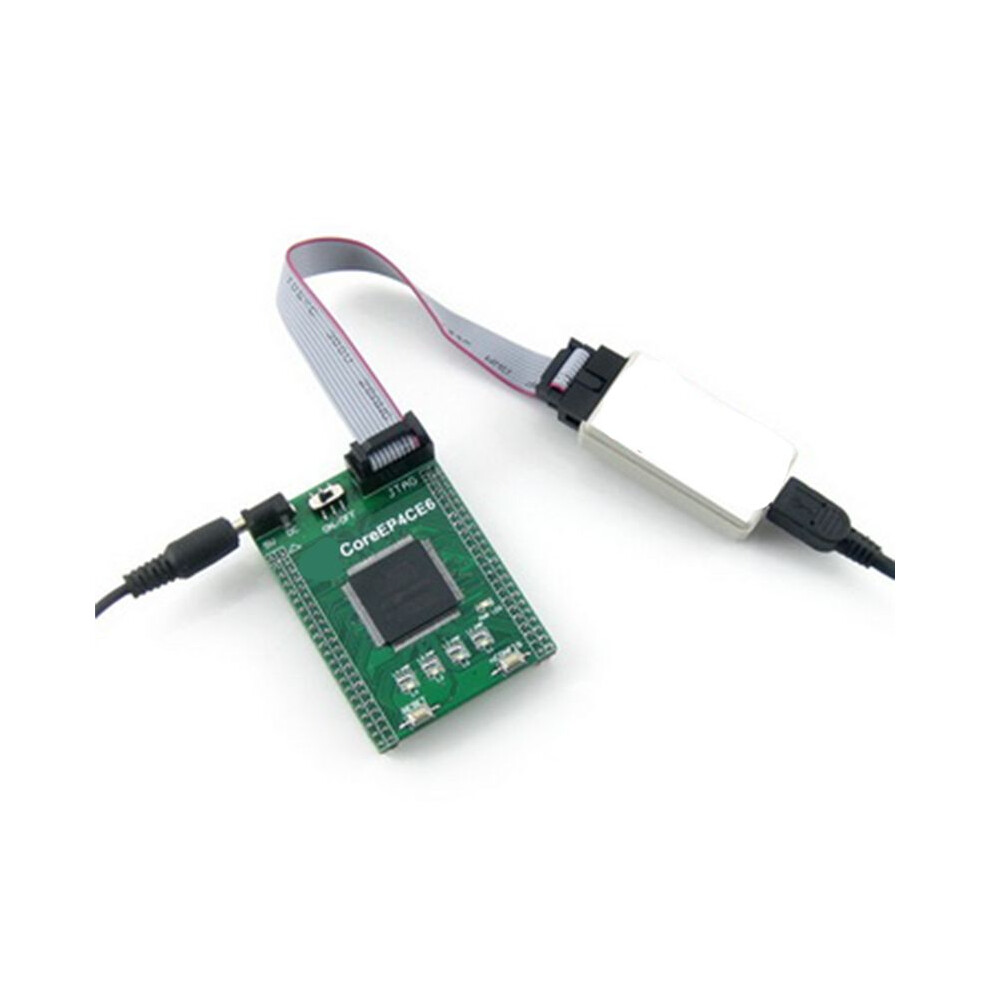

CoreEP4CE6 provides JTAG debugging interface, yet does NOT integrate any debugging function, a debugger is required.
board and programmer/debugger in the photos are NOT included in the price.

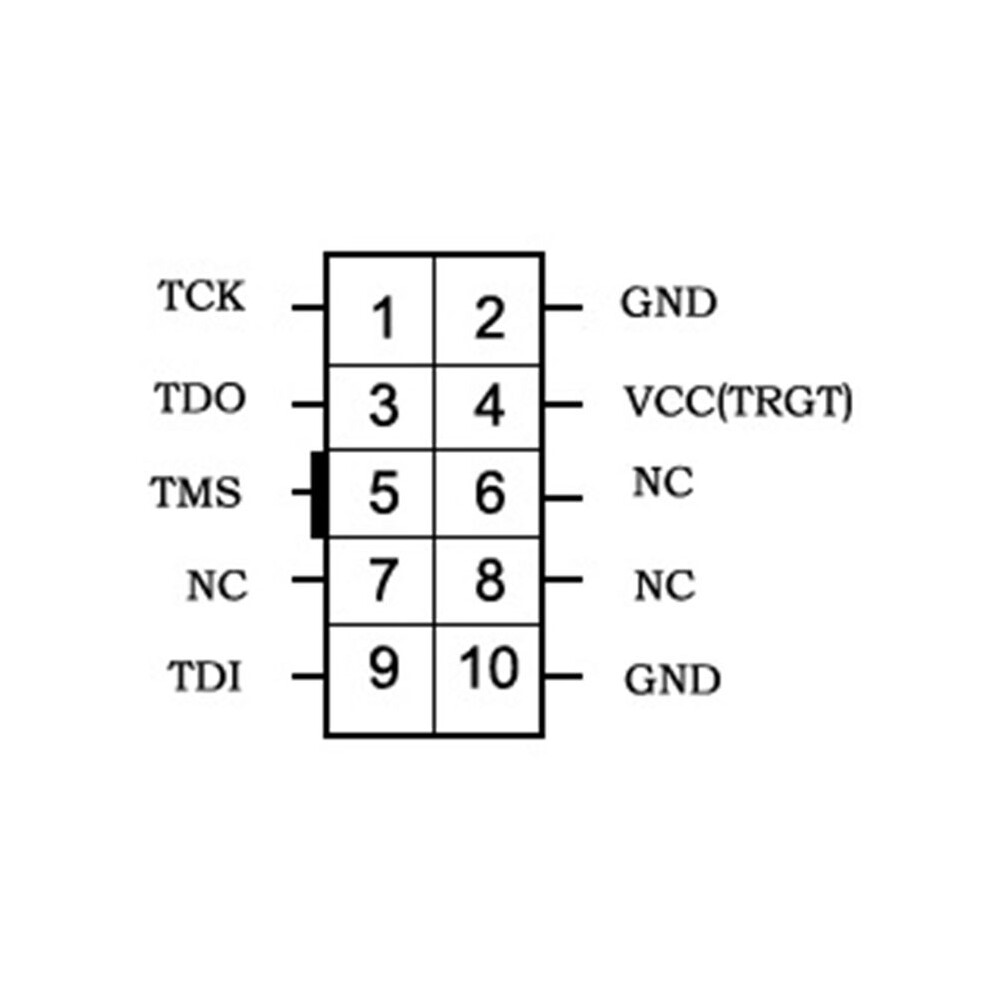

JTAG Header Pinout
Development Resources
Related software (Quaters II, NIOS II etc.)
Demo code (Verilog, VHDL, NIOS II C)
Schematic (PDF)
FPGA development documentations
Material: PC
Color: As shown
Due to different product batches, the appearance may vary, which does not affect the use

Package Contents:
1 x CoreEP4CE6 core board
1 x USB power cable
