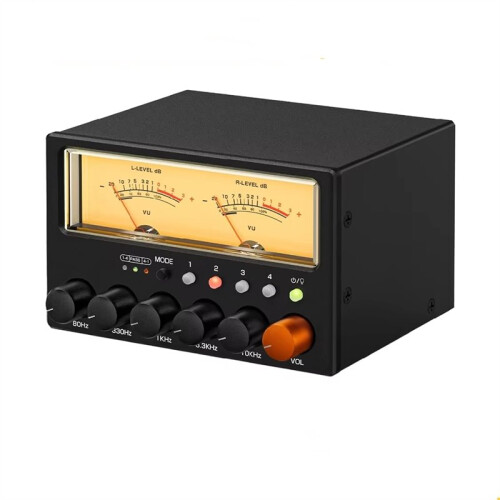

D5 4-Way Audio Switcher Splitter HiFi 5-Band Stereo EQ Preamp Equalizer with VU Meter EU Plug

D5 4-Way Audio Switcher Splitter HiFi 5-Band Stereo EQ Preamp Equalizer with VU Meter EU Plug Περιγραφή

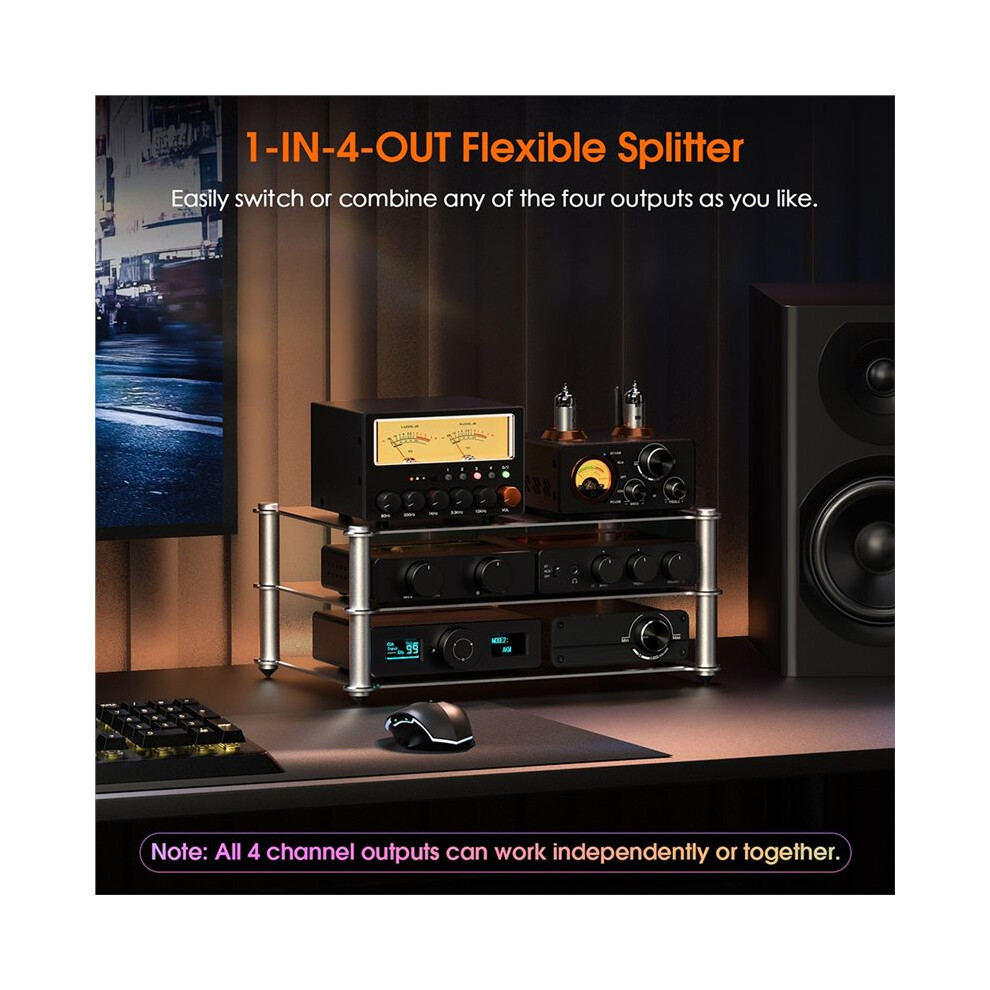

1-IN-4-OUT Flexible Splitter: Easily connect to four amplifiers or active speakers etc. Choose any combination of outputs to work simultaneously.
4-IN-1-OUT Audio Switcher: Easily between four different audio sources such as phones, tablets or players.
5-Band Equalizer with EQ Bypass: Fine-tune your sound with precise frequency adjustments at 80Hz, 330Hz, 1KHz, 3.3KHz, and 10KHz.

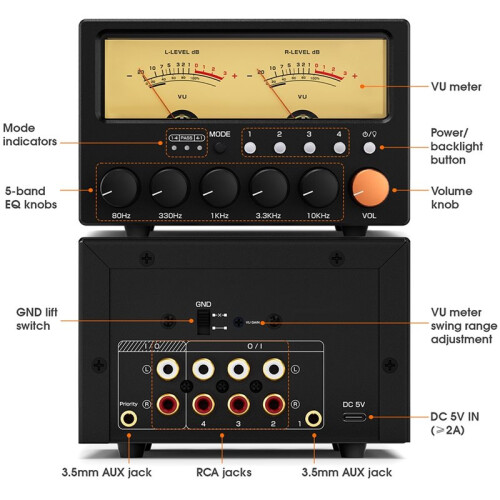

Model: D5
Audio input: 3 groups of RCA / 1*3.5mm AUX
Audio output: 3 groups of RCA / 1*3.5mm Jack
Working mode: 1-IN-4-OUT / 4-IN-1-OUT
4-Channel simultaneous output: Support
Frequency adjustment: 80Hz/330Hz/1KHz/3.3KHz/10KHz
EQ adjustment range: 10dB
EQ bypass mode: Support
Input impedance: 50KΩ
Output impedance: 10Ω
Frequency response: 20Hz-20KHz
Matched headphone impedance: 32-200Ω
Headphone output power: 150mW@32Ω
VU meter backlight brightness adjustment: 6 levels
VU meter swing range adjustment: Support
Working voltage: 5V/2A
Dimensions (W*D*H): 130*80*104mm

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
Plug Type: EU Plug, it applies to Indonesia, Germany, France, Spain, Italy and so .
Voltage: DC5V
Color: Black
Material: Metal+Plastic

Package Contents:
1*Distributor
1*Power cable
